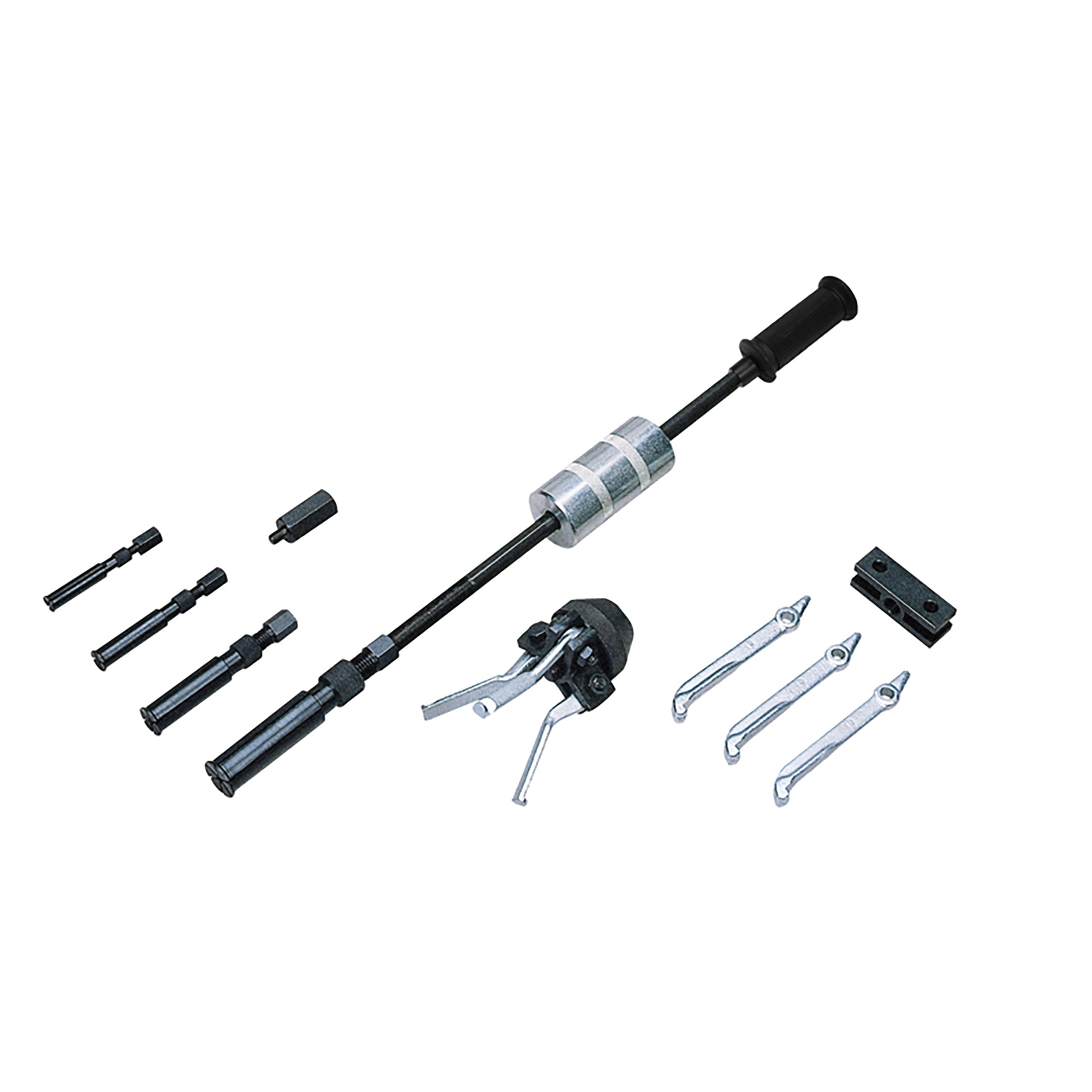

08540300 Slide Hammer Puller Kit - Combi Pull & Split Collets Extractor

Description

  • 3 straight legs, 3 cranked reversible legs for internal and external pulling.
  • 4 split collet internal extractors.
  • Adjustable cone ensures positive location, minimising risk of slippage.
  • Supplied in metal case.

Straight Leg Style
External Spread Min - Max: 66-105mm
Internal Spread Min - Max: 23-83mm
External Reach Max: 75mm

Cranked Leg Style
External Spread Min - Max: 66-105mm
Internal Spread Min - Max: 23-70mm
External Reach Max: 65mm

Split Collets
Internal Spread Min - Max: 10-30mm

Thread size - ½ x 20 UNF

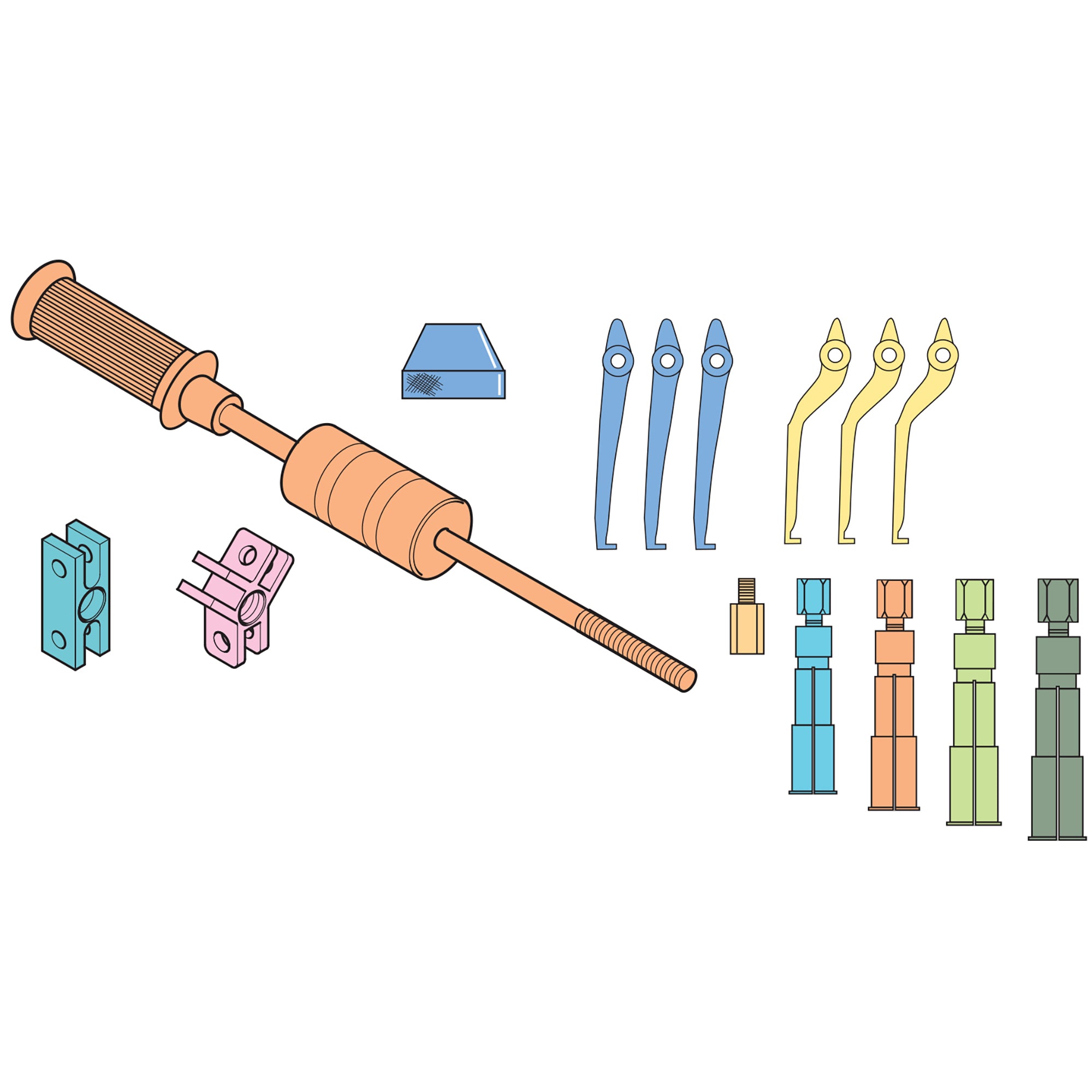

Contents
08540000 1 x Slide Hammer Puller Set
09581100 1 x Split Collet Extractor 10 - 12mm (No.1)
09581200 1 x Split Collet Extractor 12 - 17mm (No.2)
09581300 1 x Split Collet Extractor 19 - 22mm (No.3)
09581400 1 x Split Collet Extractor 22 - 30mm (No.4)
09582000 1 x Adaptor



Product form

3 straight legs, 3 cranked reversible legs for internal and external pulling. 4 split collet internal extractors. Adjustable cone ensures... Read more

SKU: 08540300

Icon for notificationEnquire About This Product

Contact us with an enquiry about this product.

Send us a message!

Description

  • 3 straight legs, 3 cranked reversible legs for internal and external pulling.
  • 4 split collet internal extractors.
  • Adjustable cone ensures positive location, minimising risk of slippage.
  • Supplied in metal case.

Straight Leg Style
External Spread Min - Max: 66-105mm
Internal Spread Min - Max: 23-83mm
External Reach Max: 75mm

Cranked Leg Style
External Spread Min - Max: 66-105mm
Internal Spread Min - Max: 23-70mm
External Reach Max: 65mm

Split Collets
Internal Spread Min - Max: 10-30mm

Thread size - ½ x 20 UNF

Contents
08540000 1 x Slide Hammer Puller Set
09581100 1 x Split Collet Extractor 10 - 12mm (No.1)
09581200 1 x Split Collet Extractor 12 - 17mm (No.2)
09581300 1 x Split Collet Extractor 19 - 22mm (No.3)
09581400 1 x Split Collet Extractor 22 - 30mm (No.4)
09582000 1 x Adaptor
