1300 Series Long Reach Pullers

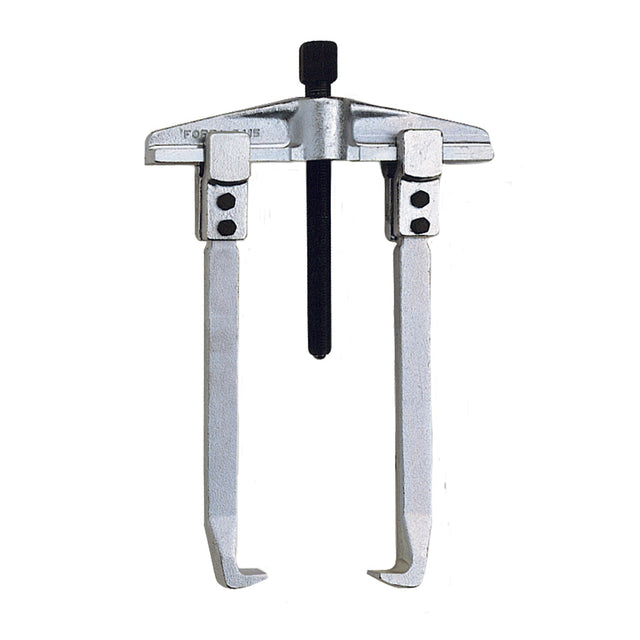

13310000 - Mechanical Int/Ext 2 Leg Long Reach Puller 95 x 200mm
2 Jaw Long Reach Mechanical Puller Forged jaws Reversible jaws - can be used internally or externally Dimensions Spread for External Applications - 25-95mm (B) Spread for Internal Applications - 80-130mm (W) Reach - 200mm (A) Width - 134mm (C) Optional Extra: Short reach jaws ref 131100-02 will allow you to do jobs where a shorter reach is required - up to 100mm Not suitable for use with air/impact tools.
-
13320000 - Mechanical Int/Ext 2 Leg Long Reach Puller 95 x 200mm
2 Jaw Long Reach Mechanical Puller Forged jaws Reversible jaws - can be used internally or externally Dimensions Spread for External Applications - 45-165mm (B) Spread for Internal Applications - 130-225mm (W) Reach - 305mm (A) Width - 223mm (C) Optional Extra: Short reach jaws ref 131200-02 will allow you to do jobs where a shorter reach is required - up to 150mm Not suitable for use with air/impact tools.
-
13325000 - Mechanical Int/Ext 2 Leg Long Reach Puller 190 x 305mm
2 Jaw Long Reach Mechanical Puller Forged jaws Reversible jaws - can be used internally or externally Dimensions Spread for External Applications - 35-190mm (B) Spread for Internal Applications - 130-270mm (W) Reach - 305mm (A) Width - 250mm (C) Optional Extra: Short reach jaws ref 131200-02 will allow you to do jobs where a shorter reach is required - up to 150mm Not suitable for use with air/impact tools.
-
13330000 - Mechanical Int/Ext 2 Leg Long Reach Puller 250 x 380mm
2 Jaw Long Reach Mechanical Puller Forged jaws Reversible jaws - can be used internally or externally Dimensions Spread for External Applications - 60-250mm (B) Spread for Internal Applications - 175-340mm (W) Reach - 380mm (A) Width - 325mm (C) Optional Extra: Short reach jaws ref 131300-02 will allow you to do jobs where a shorter reach is required - up to 205mm Not suitable for use with air/impact tools.
-
13335000 - Mechanical Int/Ext 2 Leg Long Reach Puller 350 x 380mm
2 Jaw Long Reach Mechanical Puller Forged jaws Reversible jaws - can be used internally or externally Dimensions Spread for External Applications - 60-350mm (B) Spread for Internal Applications - 180-425mm (W) Reach - 380mm (A) Width - 425mm (C) Optional Extra: Short reach jaws ref 131300-02 will allow you to do jobs where a shorter reach is required - up to 205mm Not suitable for use with air/impact tools.
-
13340000 - Mechanical Int/Ext 2 Leg Long Reach Puller 510 x 380mm
2 Jaw Long Reach Mechanical Puller Forged jaws Reversible jaws - can be used internally or externally Dimensions Spread for External Applications - 90-510mm (B) Spread for Internal Applications - 220-580mm (W) Reach - 380mm (A) Width - 525mm (C) Optional Extra: Short reach jaws ref 131300-02 will allow you to do jobs where a shorter reach is required - up to 205mm Not suitable for use with air/impact tools.
-
13345000 - Mechanical Int/Ext 2 Leg Long Reach Puller 640 x 350mm
2 Jaw Long Reach Mechanical Puller Forged jaws Reversible jaws - can be used internally or externally Dimensions Spread for External Applications - 140-640mm (B) Spread for Internal Applications - 310-740mm (W) Reach - 350mm (A) Width - 717mm (C) Not suitable for use with air/impact tools.
-
133450-02 - Long Reach Leg - 350mm
Long reach leg for 1300 series pullers, as a spare or to convert a std reach puller to a long reach puller. Length 380mm Suitable for 13145000, 13345000
-
133100-02 - Long Reach Leg - 200mm
Long reach leg for 1300 series pullers, spare or to convert a std reach puller to a long reach puller. Length 200mm Suitable for 13110000, 13115000, 13310000, 13315000
-
133300-02 - Long Reach Leg - 380mm
Long reach leg for 1300 series pullers, as a spare or to convert a std reach puller to a long reach puller. Length 380mm Suitable for 13130000, 13135000, 13140000, 1333000, 13335000, 13340000
-
133200-02 - Long Reach Leg - 305mm
Long reach leg for 1300 series pullers, as a spare or to convert a std reach puller to a long reach puller. Length 305mm Suitable for 13120000, 13125000, 13320000, 13325000
