Hub Puller Spares

41 products

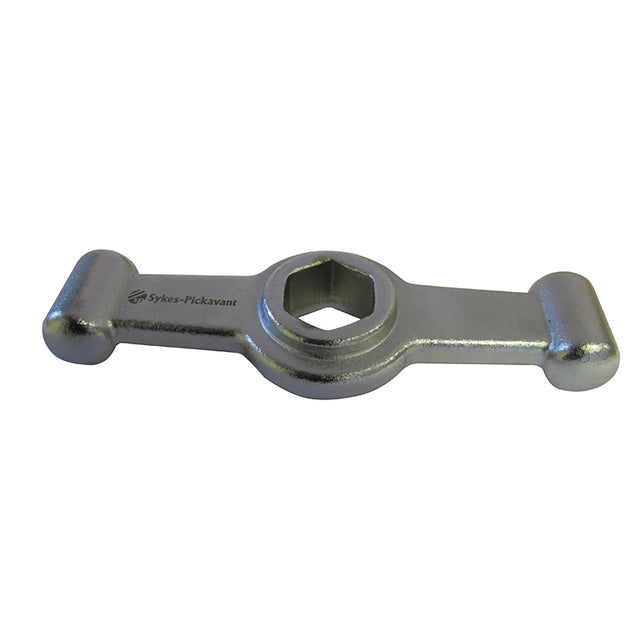

  • 08251900 Shock Handle

    08251900 Shock Handle

    Use in conjunction with 12731100 Impact Force Screw - allows for greater force to be applied When used together, Shock handle (08251900) and Impact Force Screw (12731100) can convert 1500 series hydraulic rams to mechanical. In addition the impact shock handle to screw has a sliding centre spindle which allows the operator to strike the end when fully loaded. This assists the release of stubborn joints or taper fits.

  • Hub Puller Plate

    08520800 - Hub Puller Plate

    Universal hub puller plate with 8 slots for maximum coverage Plate Diameter 145mm Stud Range 84-140mm Suitable for use with Hydraulic Ram 180000V2, Mechanical Screw 12731100, Slide Hammer 08520900 with adaptor 08531270.

  • 08520900 - Slide Hammer Assembly - 5kg

    08520900 - Slide Hammer Assembly - 5kg

    Slide Hammer Weight: 5Kg Thread: 5/8" UNF 18h Note: If using with 08520800, 08531270 adaptor is required

  • Hub Puller Plate Adaptor
  • 095900-04 - M4 Adaptor

    095900-04 - M4 Adaptor

    M4 Adaptor for 09590000 Threaded Stud Extractor

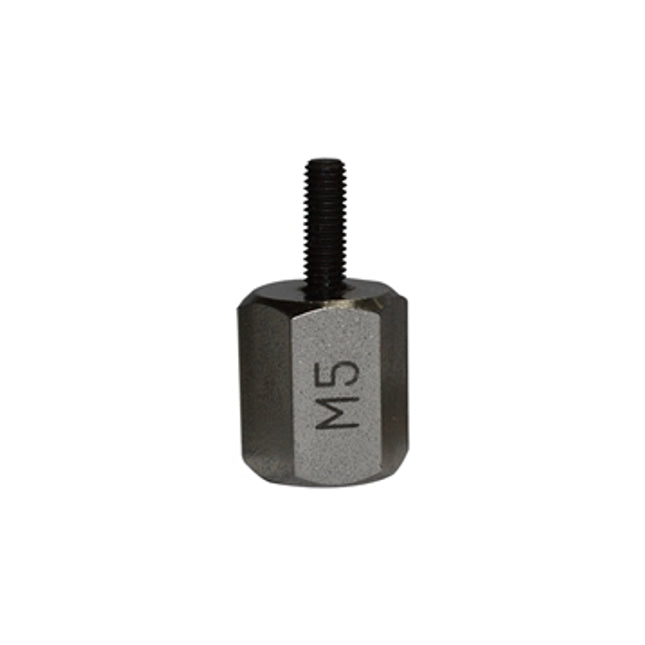

  • 095900-05 - M5 Adaptor

    095900-05 - M5 Adaptor

    M5 Adaptor for 09590000 - Threaded Stud Extractor

  • 095900-06 - M6 Adaptor

    095900-06 - M6 Adaptor

    M6 Adaptor for 09590000 - Threaded Stud Extractor

  • 095900-08 - M8 Adaptor

    095900-08 - M8 Adaptor

    M8 Adaptor for 09590000 - Threaded Stud Extractor

  • 095950-01 - 1/2" / 3/8" Adaptor

    095950-01 - 1/2" / 3/8" Adaptor

    1/2" / 3/8" Adaptor for 09595000 - M6 - M20 Threaded Stud Extractor

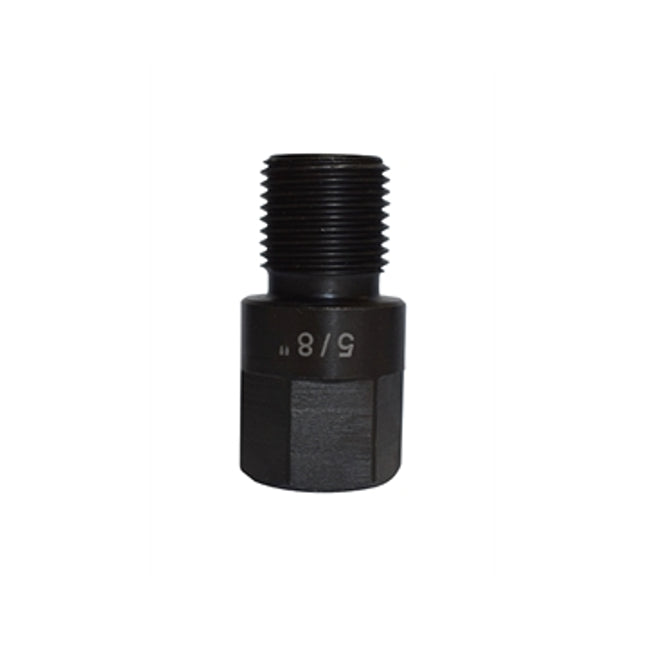

  • 095950-02 - 1/2" / 5/8" Adaptor

    095950-02 - 1/2" / 5/8" Adaptor

    1/2" / 5/8" Adaptor for 09595000 - M6 - M20 Threaded Stud Extractor

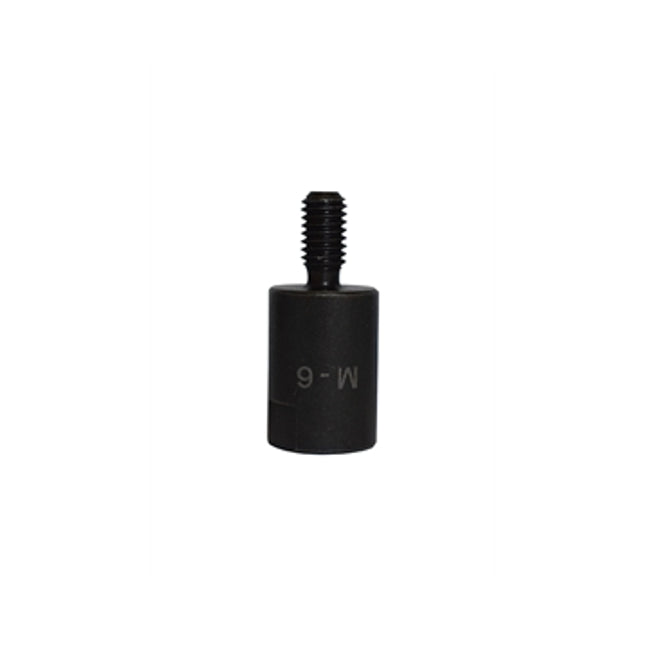

  • 095950-06 - 3/8" - M6 Adaptor

    095950-06 - 3/8" - M6 Adaptor

    3/8" - M6 Adaptor for 09595000 - M6 - M20 Threaded Stud Extractor

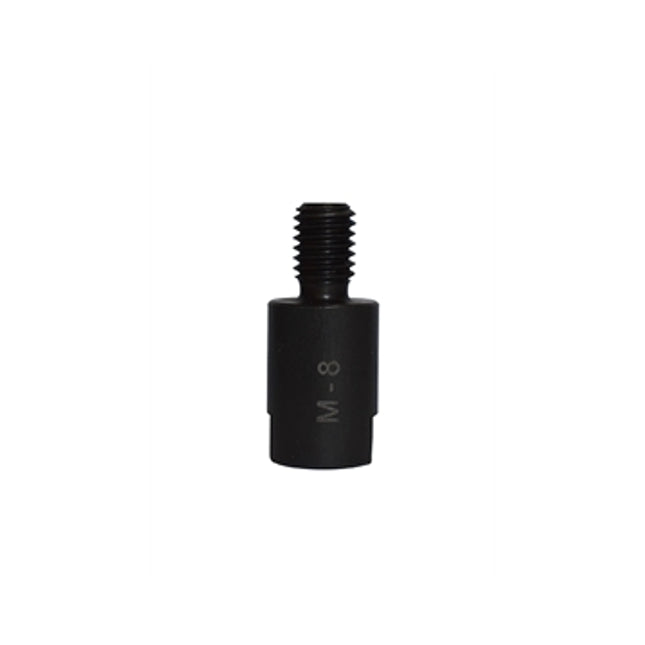

  • 095950-08 - 3/8" - M8 Adaptor

    095950-08 - 3/8" - M8 Adaptor

    3/8" - M8 Adaptor for 09595000 M6 - M20 Threaded Stud Extractor

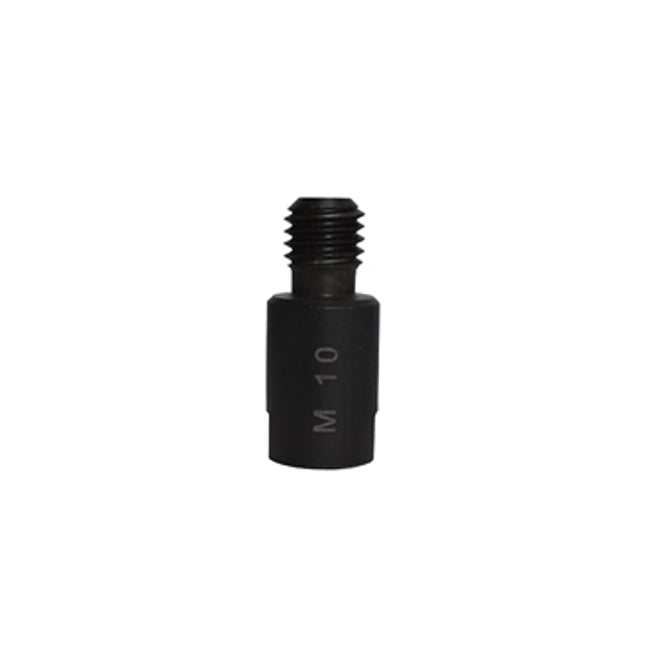

  • 095950-10 - 3/8" - M10 Adaptor

    095950-10 - 3/8" - M10 Adaptor

    3/8" - M10 Adaptor for 09595000 - M6 - M20 Threaded Stud Extractor

  • 095950-12 - 5/8" - M12 Adaptor

    095950-12 - 5/8" - M12 Adaptor

    5/8" - M12 Adaptor for 09595000 - M6 - M20 Threaded Stud Extractor

  • 095950-14 - 5/8" - M14 Adaptor

    095950-14 - 5/8" - M14 Adaptor

    5/8" - M14 Adaptor for 09595000 - M6 - M20 Threaded Stud Extractor

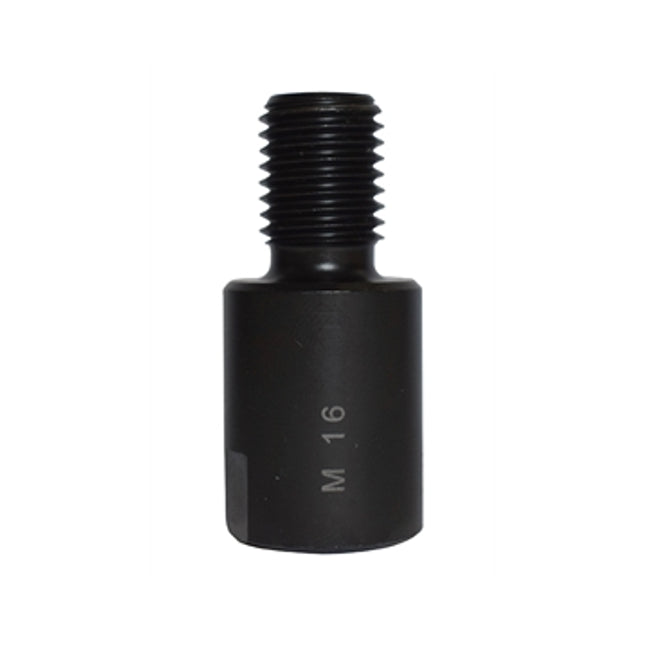

  • 095950-16 - 5/8" - M16 Adaptor

    095950-16 - 5/8" - M16 Adaptor

    5/8" - M16 Adaptor for 09595000 - M6 - M20 Threaded Stud Extractor

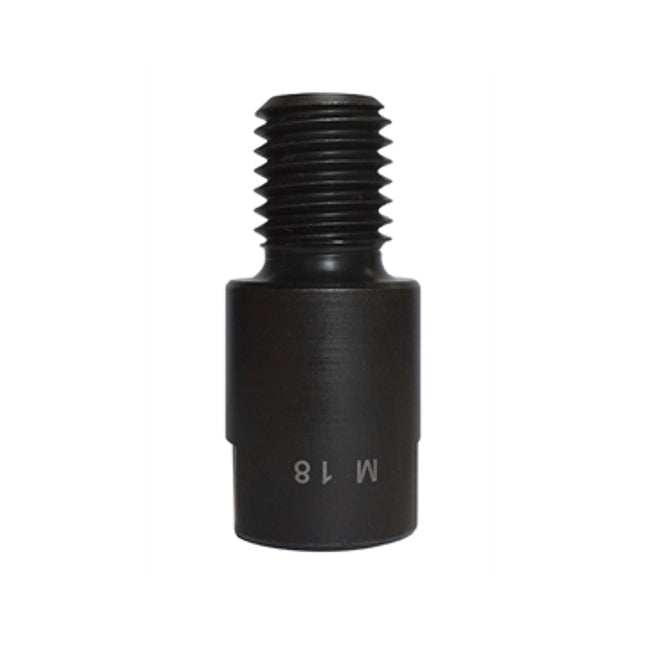

  • 095950-18 - 5/8" - M18 Adaptor

    095950-18 - 5/8" - M18 Adaptor

    5/8" - M18 Adaptor for 09595000 - M6 - M20 Threaded Stud Extractor

  • 095950-20 - 5/8" - M20 Adaptor

    095950-20 - 5/8" - M20 Adaptor

    5/8" - M20 Adaptor for 09595000 - M6 - M20 Threaded Stud Extractor

  • 12731100 Impact Force Screw

    12731100 Impact Force Screw

    Can be used in any SP Hub Puller in place of Hydraulic Ram or Slide Hammer (11/2” BSW thread) When used together, Shock handle (08251900) and Impact Force Screw (12731100) can convert 1500 series hydraulic rams to mechanical. In addition the impact shock handle to screw has a sliding centre spindle which allows the operator to strike the end when fully loaded. This assists the release of stubborn joints or taper fits.

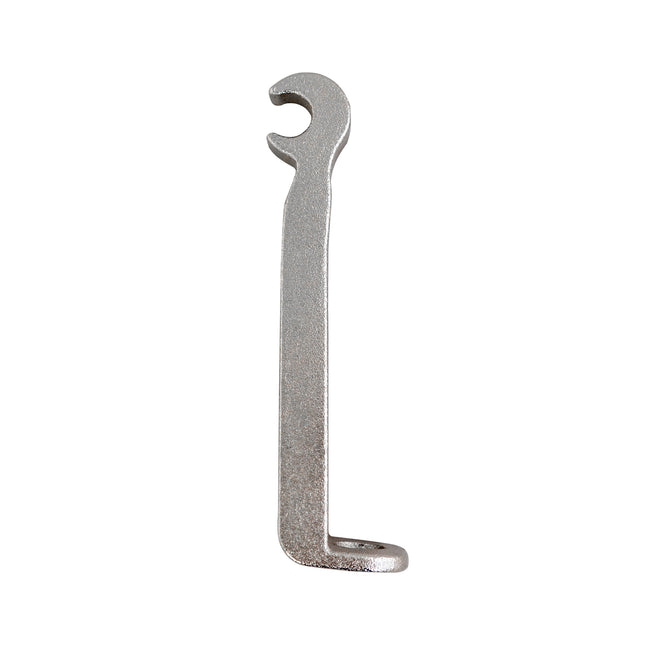

  • 12741000 - Hub Puller Leg (Single)

    12741000 - Hub Puller Leg (Single)

    Spare leg for hub pulling system.

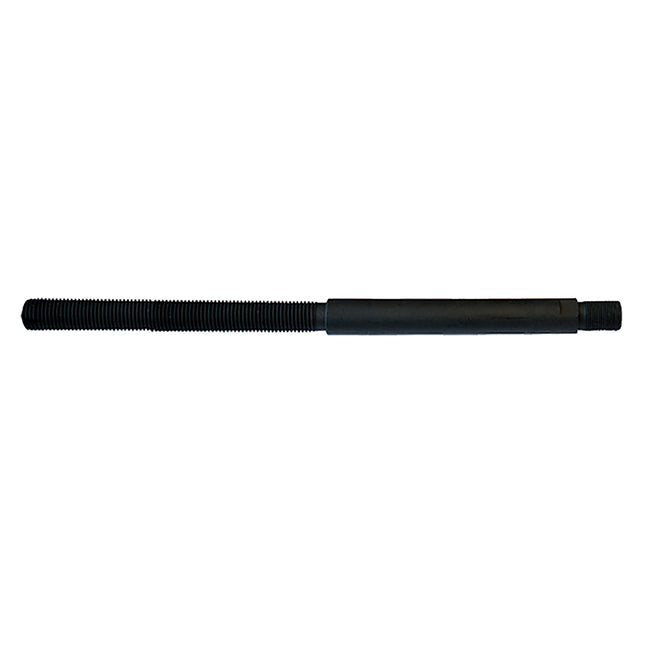

  • 340mm Pulling Rod

    210275-03 340mm Pulling Rod

    340MM M22 X 2.5 & M22 X 1.5 Pulling Rod for 21027500 HGV Hub Puller Kit

  • M22 x 2.5 Nut

    210275-04 M22 X 2.5 Nut

    M22 X 2.5 Nut for 21027500 HGV Hub Puller Kit

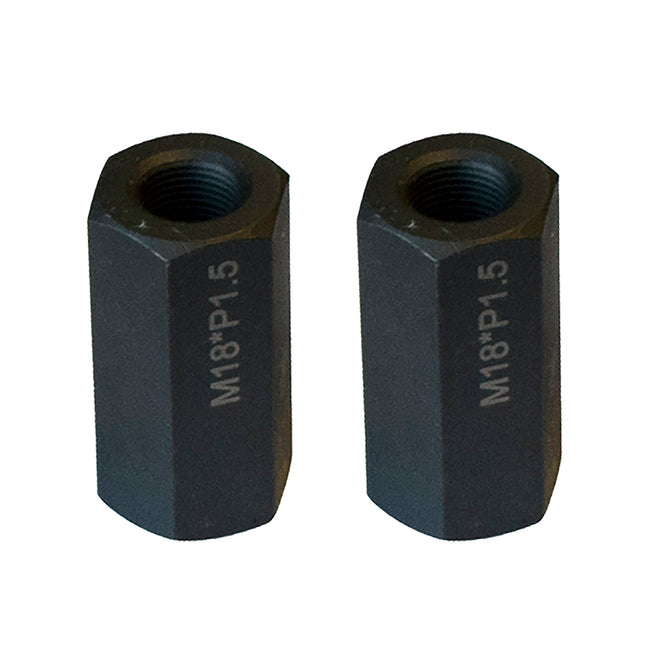

  • M18 x 1.5 Thread Adaptors

    210275-05 M18 X 1.5 Thread Adaptors

    M18 X 1.5 Thread Adaptors for 21027500 HGV Hub Puller Kit

  • M20 x 1.5 Thread Adaptors

    210275-06 M20 X 1.5 Thread Adaptors

    M20 X 1.5 Thread Adaptors for 21027500 HGV Hub Puller Kit

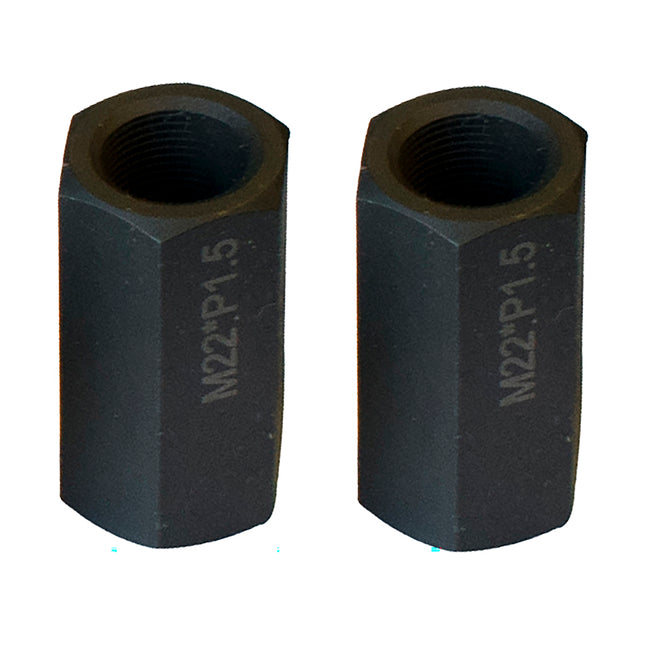

  • M22 x 1.5 Thread Adaptor

    210275-07 M22 X 1.5 Thread Adaptor

    M22 X 1.5 Thread Adaptor for 21027500 HGV Hub Puller Kit

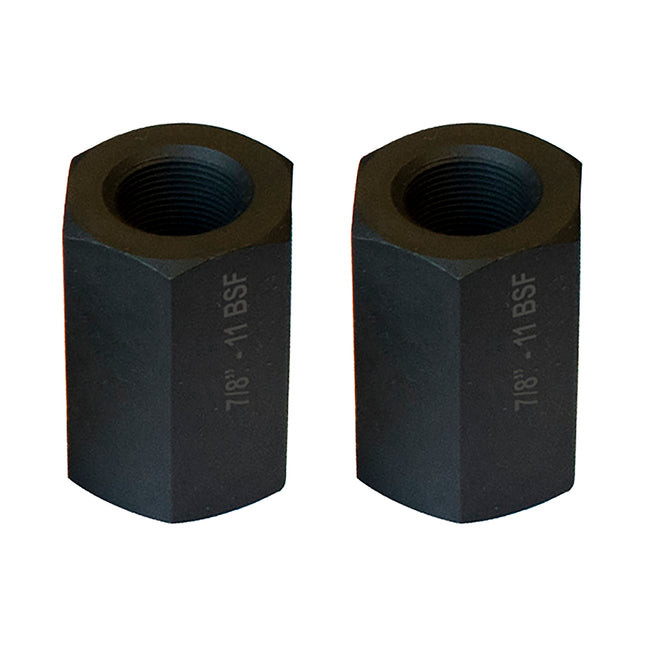

  • M22- 7/8 11BSF Thread Adaptors

    210275-08 M22 - 7/8 11BSF Thread Adaptors

    M22 - 7/8 11BSF Thread Adaptors for for 21027500 HGV Hub Puller Kit

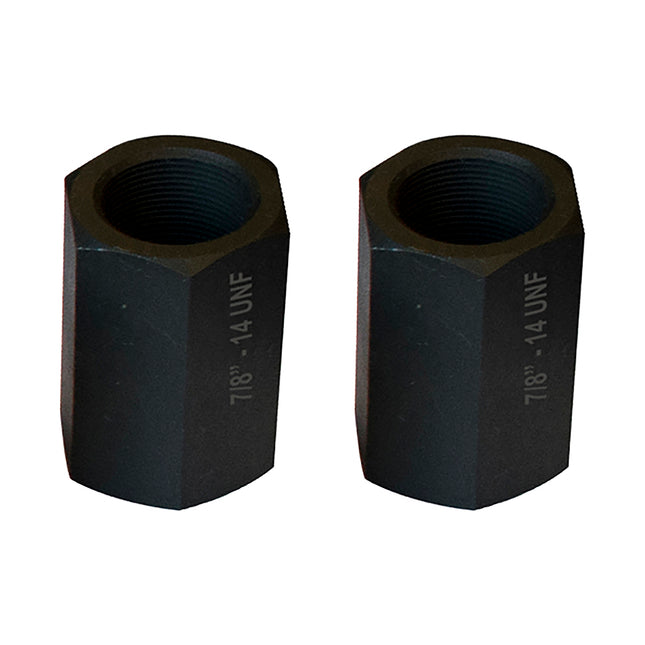

  • M22 - 7/8 14UNF Thread Adaptor

    210275-09 M22 - 7/8 14UNF Thread Adaptors

    M22 - 7/8 14UNF Thread Adaptors for 21027500 HGV Hub Puller Kit

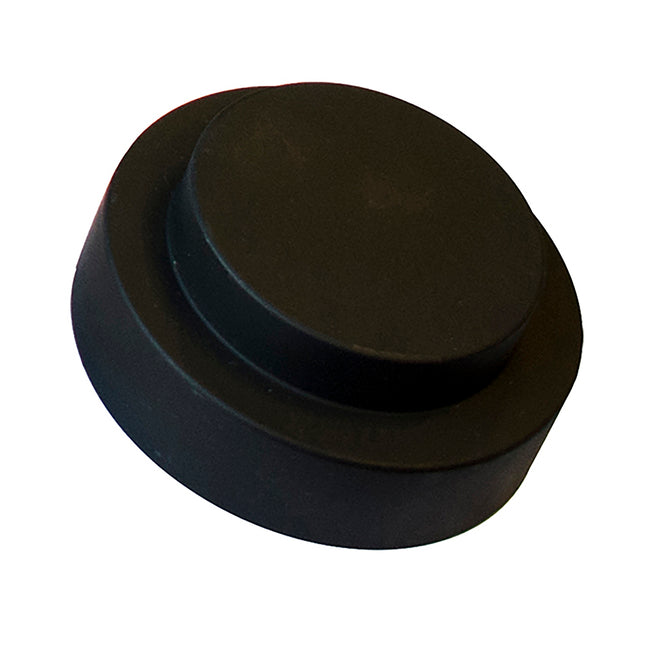

  • 95mm Pressure Plate

    210275-10 95mm Pressure Plate

    95mm Pressure Plate for 21027500 HGV Hub Puller Kit

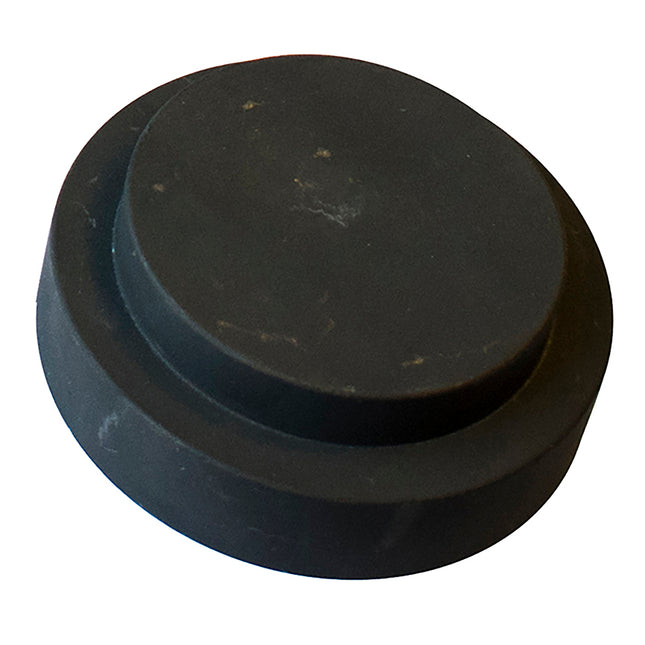

  • 110mm Pressure Plate

    210275-11 110mm Pressure Plate

    110mm Pressure Plate for for 21027500 HGV Hub Puller Kit

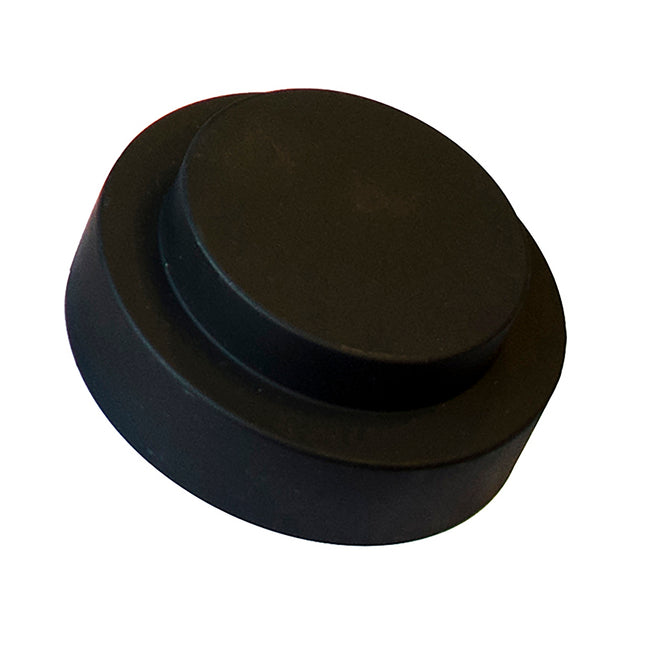

  • 90mm Pressure Plate

    210275-12 90mm Pressure Plate

    90mm Pressure Plate for 21027500 HGV Hub Puller Kit

  • Hub Puller Spares- Beam

    210275-13 Beam

    Beam for 21027500 HGV Hub Puller Kit

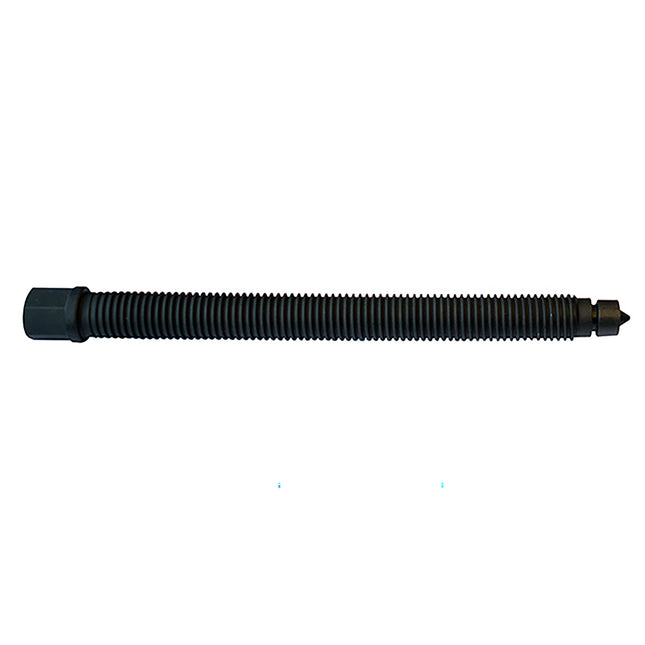

  • Hub Puller Spares- Threaded Centre Rod

    210275-27 Threaded Centre Rod

    Threaded Centre Rod for 21027500 HGV Hub Puller Kit

  • 21027600 Add-on Puller Set

    21027600 Add-on Puller Set

    Use with 21027500 to provide internal / external pulling Includes two pairs of setting sleeves to ensure pulling length is equal for each leg; less time is spent levelling nut position

  • GO010 Universal Hub Puller and Drive Shaft Set - Basic

    GO010 Universal Hub Puller and Drive Shaft Set - Basic

    For pressing out seized and bonded drive shafts and also, with the optional Govoni slide hammer GO421, for removing the wheel hub Considerable time savings - no damage to the thread - wheel bearing is not damaged Optimised hole pitch for maximum coverage of models within the market Suitable for 2, 3, 4, 5 and 6-hole bolt pitch on hubs with stud bolts and wheel bolts Contents:  1 x extractor with mounting thread 1-1/2"-16G 1 x reducing adapter ring for mechanical spindle,1-1/2"-16G x M22x2.0 1 x mechanical spindle, M22x2 1 x pulling flange, 96-142 mm for 3, 4, 5 and 6- hole bolt hub, for M12/M14 bolts 5 x conical washers 1 x solid lubricant paste

  • GO020 Inner Bearing Replacement Kit

    GO020 Inner Bearing Replacement Kit

    Universal tool set for the replacement of inner bearings. Puller features a unique gripping principle that can also be used on flush bearing inner rings that remain on the wheel hub duringreplacement of the wheel bearing. When clamping with the clamping bell, the special cutting profile of the clamping sleeves penetrates even the smallest working gaps resulting from theproduction process, ensuring removal without slippage. The bearing ring is fully gripped and removed without tilting. Also works in places where the ABS pulse wheel is firmly attached to the wheel hub (e.g. VW Golf). Supplied with 5 grippers suitable for the removal of bearings with a diameter of 35 to 61mm Applications: VW, Audi, BMW, Ford, Fiat, Mercedes, Opel, Renault, Peugeot & Volvo. The kit includes the bushing for mounting the mechadraulic screw (GO1016).

  • GO065 Universal Hub Puller and Drive Shaft Kit

    GO065 Universal Hub Puller & Drive Shaft Kit

    Universal kit for pressing out, pulling in and separating drive shafts as well as disassembling/assembling wheel hubs Suitable for vehicles such as SUVs & transporters with an M14 wheel attachment and bolt circle of up to ø 136mm The anti-swivel puller is suitable for common nuts and bolt-secured drive shafts (e.g. VW / Audi) Use the tools contained in the kit for proper assembly and disassembly procedures. Furthermore, components such as wheel bearings, silent blocks and ball joints, for example, will be preserved. Optimized hole pitch for maximum coverage of models within the market (for 2, 3, 4, 5 and 6-hole bolt pitch on hubs). The adaptors contained in the kit allow the use of CV joints, secured both by nuts (usually the common ones) and bolts (e.g.: VW/Audi). When an extreme force is required, max 17 Tonne, use mechadraulic screw GO1016 or hydraulic cylinder GO1061 (optional).   Can be used with: 150000V2 - 8 Tonne Ram 180000V2 - 12 Tonne Ram 08530900 - Slide Hammer 12731100 - Shock Handle GO520 - Slide Hammer

  • GO070 Spacer and Extension Set

    GO070 Spacer and Extension Set

    Upgrade kit for the GO010 Universal Hub Puller and Drive Shaft SetThis kit ensures a strong flange connection with the hub and is also suitable for systems with wheel nuts and/or bolts. The user is not bound to the diameter of the hub edge since the hub's flange is placed 80mm or 90mm in front of the hub.Contents: 1 x Bolt adapter-set M12x1.25, 5pcs. 1 x Bolt adapter-set M12x1.50, 5pcs. 1 x Bolt adapter-set M14x1.50, 5pcs.

  • GO1061 - 17T Hydraulic Cylinder - Aluminium

    GO1061 - 17T Hydraulic Cylinder - Aluminium

    The mechanical properties, the shape and dimensioning for which they were designed, ensure that Govoni hydraulic cylinders have a field of use to the automotive industry as: Injector disassembly; Bearing, hub and silent block disassembly; Coaxial unlocking of very tight mechanical components. Equipped with 5 threaded bushes in order to fit the most relevant threaded bars on the market. Specifications Provides up to 12 tons of controlled hydraulic force Dimensions: 90 x 155 mm Stroke: 43 mm Pressure: max. 700 Bar Hole: 20 mm Connection: 3/" -18 NPT Mounting Thread: 2 3/4-16 UN Adaptors: M10/M12/M14/M16/M18

  • GO520 Heavy Duty Slide Hammer

    GO520 Heavy Duty Slide Hammer

    For driving out components and straightening jobs on bodywork with extra tough heavy-duty design and practical handles 8 tonne (approx.) maximum force Loosens even the tightest connections; pressed or rusted in / attached with a cone Suitable for removing injectors, wheel hubs, supporting joints etc. with relevant accessories Specifications: Weight: 9kg Length: 770mm Connection Thread: M18 x 1.5

  • GO521 Thread Adaptor Set

    GO521 Thread Adaptor Set

    Mounting unit for Heavy Duty Slide Hammer - GO520 Supplied with 4 x commonly used slide hammer adaptors  1 x system adaptor tool, M18 x 1.5 with mounting bore (jointed connection) for universal hooks, double extractor hooks, bow hooks, bodywork pull clamps etc. Suitable for Muller /Klann /KS /Pichler 1 x system adaptor tool, M18x1.5/1-1/2 inch x 16 for wheel hub puller. Suitable for Muller /KS /Pichler 1 x universal adaptor with ball joint, M18x1.5, for use between the slide hammer and the tool, enables work in hard-to-reach places. Suitable for all systems 1 x system adaptor tool, M18 x 1.5/M22x2.0, for wheel hub puller. Suitable for Facom

  • GO530 Slide Hammer - 9KG Non-Impact

    GO530 Slide Hammer - 9KG Non-Impact

    For powerful expulsion of stuck components as well as for body straightening work. The new slide hammer version is filled with a steel shot. This prevents the weight from bouncing back against the abutment. The impact intensity is thus increased because the full impact force is transmitted to the component to be machined. This version is also very gentle on the joints and allows fatigue-free working. The tool is modular and can be split and used as 1.5 kg sliding hammer. The slide hammer is filled with a steel shot. The range of applications can be increased as desired through the optional purchase of additional accessories!   Applications Removal of injectors/wheel hubs/ suspension joints Straightening and reverse deformation of body parts etc.   Technical data Weight 9 kg Total length 770 mm Connection “ Thread M18x1,5; M22x2,0
