Internal and External Extractors
08540500 - Slide Hammer Puller Kit & Display Panel
3 straight legs, 3 cranked reversible legs for internal and external pulling 6 split collet internal extractors Adjustable cone ensures positive location, minimising risk of slippage Includes Display Panel & Hook Set Straight Leg StyleExternal Spread Min - Max: 66-105mmInternal Spread Min - Max: 23-83mmExternal Reach Max: 75mmCranked Leg StyleExternal Spread Min - Max: 66-105mmInternal Spread Min - Max: 23-70mmExternal Reach Max: 65mmSplit ColletsInternal Spread Min - Max: 6.5-30mm Contents 08542100 - Slide Hammer Assembly - 1kg x 1 08541200 - 2 Way Beam x 1 08541300 - 3 Way Beam x 1 08541400 - Straight Legs x 3 08541500 - Cranked Legs x 3 08541800 - Adjustable Cone x 1 09580900 - Split Collet Extractor 6.5 - 8mm x 1 09581000 - Split Collet Extractor 8.5 - 10mm x 1 09581100 - Split Collet Extractor 10 - 12mm x 1 09581200 - Split Collet Extractor 12 - 17mm x 1 09581300 - Split Collet Extractor 19 - 22mm x 1 09581400 - Split Collet Extractor 22 - 30mm x 1 09582000 - Adaptor x 1
09800000 - Multipull® Blind Housing Bearing Remover Kit
These special pullers will remove blind housing bearings without the need to dismantle machinery or remove the running shaft. Positive seating allows even tension on inner and outer bearing rings, reducing resistance. Stabilisers reduce sideways movement and self-centre the puller. 3 kits cover a wide range of ISO bearings. (To identify kit for bearings without an ISO reference, refer to puller spread and adaptor diameter). Supplied in blow moulded case with foam. Specifications: Min Spread: 20mm Max Spread: 95mm Adaptor Dia.: 5.5-8mm Puller Reach: 125mm
09810000 - Multipull® Blind Housing Bearing Remover Kit
These special pullers will remove blind housing bearings without the need to dismantle machinery or remove the running shaft.Positive seating allows even tension on inner and outer bearing rings, reducing resistance.Stabilisers reduce sideways movement and self-centre the puller.3 kits cover a wide range of ISO bearings. (To identify kit for bearings without an ISO reference, refer to puller spread and adaptor diameter).Supplied in blow moulded case with foam.Min Spread: 20mmMax Spread: 117mmAdaptor Dia.: 5.5-12.5mmPuller Reach: 415mm
09820000 - Multipull® Blind Housing Bearing Remover Kit
These special pullers will remove blind housing bearings without the need to dismantle machinery or remove the running shaft.Positive seating allows even tension on inner and outer bearing rings, reducing resistance.Stabilisers reduce sideways movement and self-centre the puller.3 kits cover a wide range of ISO bearings. (To identify kit for bearings without an ISO reference, refer to puller spread and adaptor diameter).Supplied in blow moulded case with foam.Min Spread: 56mmMax Spread: 210mmAdaptor Dia.: 16-31.75mmPuller Reach: 490mm
09580000 - Internal Split Collets Extractor Kit
Extract components quickly and efficiently when conventional pullers cannot be used. Removes gears, bearings, pinions, oil seals etc. Can be upgraded for twin/triple leg pulling. Additional twin beam pulling unit available part no. 09580500. Supplied in metal case. Specifications: Internal Spread Min - Max: 6.5-60mmNo of Split Collet Extractors: 9 Thread size - ½⌀ x 20 UNF Contents: 08542100 1 x Slide Hammer Assembly 09580500 1 x Pulling Unit 09580900 1 x Split Collet Extractor 6.5 - 8mm (No.00) 09581000 1 x Split Collet Extractor 8.5 - 10mm (No.0) 09581100 1 x Split Collet Extractor 10 - 12mm (No.1) 09581200 1 x Split Collet Extractor 12 - 17mm (No.2) 09581300 1 x Split Collet Extractor 19 - 22mm (No.3) 09581400 1 x Split Collet Extractor 22 - 30mm (No.4) 09581500 1 x Split Collet Extractor 30 - 38mm (No.5) 09581600 1 x Split Collet Extractor 38 - 50mm (No.6) 09581700 1 x Split Collet Extractor 50 - 60mm (No.9) 09582000 1 x Adaptor
09580100 - Slide Hammer & Split Collet Extractor Kit
Internal Extractor Kit Extract components quickly and efficiently when conventional pullers cannot be used. Removes gears, bearings, oil seals etc. Additional twin beam pulling unit available part no. 09580500. Specifications: Internal Spread Min - Max: 6.5 - 12mm No. of Split Collet Extractors: 3 Thread size - ½" x 20 UNF
09580200 - Slide Hammer & Split Collet Extractor Kit
Internal Extractor Kit Extract components quickly and efficiently when conventional pullers cannot be used. Removes gears, bearings, oil seals etc. Additional twin beam pulling unit available part no. 09580500. Internal Spread Min - Max: 12-17mm and 19-30mmNo. of Split Collet Extractors: 3Thread size - ½" x 20 UNF
09580300 - Slide Hammer & Split Collet Extractor Kit
Internal Extractor Kit Extract components quickly and efficiently when conventional pullers cannot be used. Removes gears, bearings, oil seals etc. Additional twin beam pulling unit available part no. 09580500. Internal Spread Min - Max: 30-60mmNo. of Split Collet Extractors: 3Thread size - ½" x 20 UNF
09580400 - Slide Hammer & Split Collet Extractor Kit
Internal Extractor Kit Extract components quickly and efficiently when conventional pullers cannot be used. Removes gears, bearings, oil seals etc. Additional twin beam pulling unit available part no. 09580500. Specifications - Internal Spread Min - Max: 8.5 - 17mm and 19 - 22mm No. of Split Collet Extractors: 4 Thread size - ½" x 20 UNF
09590000 - Threaded Stud Extractor M4 - M10
For the extraction of tapped dowels from their location holes Kit includes Slide Hammer & Adaptors Contents: M10 Slide Hammer (400g Weight) M4 Adaptor M5 Adaptor M6 Adaptor M8 Adaptor
09595000 - Threaded Stud Extractor M6 - M20
For the extraction of tapped dowels from their location holes Kit includes Slide Hammer & Adaptors Contents: ½" UNF Slide Hammer (1 Kg weight) 3/8" Convertor 5/8" Convertor M6 x 1mm Adaptor M8 x 1.25mm Adaptor M10 x 1.5 Adaptor M12 x 1.75mm Adaptor M14 x 2mm Adaptor M16 x 2mm Adaptor M18 x 2.5 Adaptor M20 x 2.5mm Adaptor Adaptor Configuration
09580500 - Twin Beam Pulling Unit
Twin beam mechanical puller for use with Sykes-Pickavant split collet type internal extractors. Mechanical force screw can then be used to draw extractors in place of slide hammer.
09580600 - Bearing Extractor Set 57-75mm
Bearing Extractor Set 57-75mm A safe and simple pulling solution for larger bearings found on engines, gearboxes and industrial machinery. Includes 57-75mm Bearing Extractor 09582100 74 - 100mm extractor also available 09582200 - Bearing Extractor 74-100mm
09580700 - Bearing Extractor Set 74-100mm
Bearing Extractor Set 74-100mm A safe and simple pulling solution for larger bearings found on engines, gearboxes and industrial machinery. Includes 74 - 100mm Bearing Extractor 09582200 57 - 75mm extractor also available 09582100 - Bearing Extractor 57-75mm
09580800 - Bearing Extractor Set 57-100mm
Bearing Extractor Set 57-100mm A safe and simple pulling solution for larger bearings found on engines, gearboxes and industrial machinery. Includes: 09582100 - 57-75mm Bearing Extractor 09582200 - 74 - 100mm Bearing Extractor
09580900 - Split Collet Extractor 6.5 - 8mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 6.5-8mm No.00 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) ** ** Additional part 09582000 (convertor from M8 to 1/2” UNF) must be attached for use with slide hammer Found in kits: 09580100 - Slide Hammer & Split Collet Extractor Kit
09581000 - Split Collet Extractor 8.5 - 10mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 8.5-10mm No.0 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) ** ** Additional part 09582000 (convertor from M8 to 1/2” UNF) must be attached for use with slide hammer Found in kits: 09580100 - Slide Hammer & Split Collet Extractor Kit 09580400 - Slide Hammer & Split Collet Extractor Kit
09581100 - Split Collet Extractor 10 - 12mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 10-12mm No.1 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) ** ** Additional part 09582000 (convertor from M8 to 1/2” UNF) must be attached for use with slide hammer Found in kits: 09580100 - Slide Hammer & Split Collet Extractor Kit 09580400 - Slide Hammer & Split Collet Extractor Kit
09581200 - Split Collet Extractor 12 - 17mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 12-17mm No.2 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) ** ** Additional part 09582000 (convertor from M8 to 1/2” UNF) must be attached for use with slide hammer Found in kits: 09580200 - Slide Hammer & Split Collet Extractor Kit 09580400 - Slide Hammer & Split Collet Extractor Kit
09581300 - Split Collet Extractor 19 - 22mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 19-22mm No.3 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) ** ** Additional part 09582000 (convertor from M8 to 1/2” UNF) must be attached for use with slide hammer Found in kits: 09580200 - Slide Hammer & Split Collet Extractor Kit 09580400 - Slide Hammer & Split Collet Extractor Kit

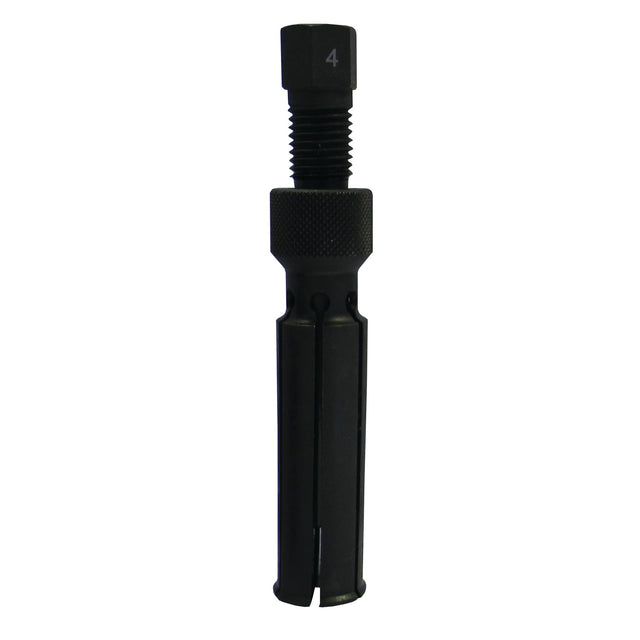

09581400 - Split Collet Extractor 22 - 30mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 22-30mm No.4 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads 08542100 - Slide Hammer Assembly - (1kg) Found in kits: 09580200 - Slide Hammer & Split Collet Extractor Kit
09581500 - Split Collet Extractor 30 - 38mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 30-38mm No.5 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads 08542100 - Slide Hammer Assembly - (1kg) Found in kits: 09580300 - Slide Hammer & Split Collet Extractor Kit
09581600 - Split Collet Extractor 38-50mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 38-50mm No.6 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads 08542100 - Slide Hammer Assembly - (1kg) Found in kits: 09580300 - Slide Hammer & Split Collet Extractor Kit
09581700 - Split Collet Extractor 50-60mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 50-60mm No.7 - stamped on extractor (Previous models were No.9) Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads 08542100 - Slide Hammer Assembly - (1kg) Found in kits: 09580300 - Slide Hammer & Split Collet Extractor Kit
09581800 - Split Collet Extractor 55 - 64mm
½" UNF fitting Compatible with existing 0958 Internal Split Collet Extractor range Extract components quickly and efficiently when conventional pullers cannot be used Removes gears, bearings, pinions, oil seals etc.
09581900 - Split Collet Extractor 65 - 76mm
½" UNF fitting Compatible with existing 0958 Internal Split Collet Extractor range Extract components quickly and efficiently when conventional pullers cannot be used Removes gears, bearings, pinions, oil seals etc.
09582000 - 1/2" Female to M8 male converter
For use with 08542100 Slide Hammer when fitting smaller sized Split Collet Extractors ( 6.5 - 30mm / 09580900 - 09581400 )
09582100 - Bearing Extractor 57-75mm
Bearing Extractor 57-75mm Coverage for larger bearings found on engines, gearboxes and industrial machinery. Specification Thread Size: M16 x 2 Size: 57-75mm Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads (requires adapator 09582300) Found in Kits: 09580600 - Bearing Extractor Set 57-75mm 09580800 - Bearing Extractor Set 57-100mm 74 - 100mm option also available as part number 09580800
09582200 - Bearing Extractor 74-100mm
Bearing Extractor 74-100mm Coverage for larger bearings found on engines, gearboxes and industrial machinery. Specification Thread Size: M16 x 2 Size: 74-100mm Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads (requires adapator 09582300) Found in Kits: 09580700 - Bearing Extractor Set 74-100mm 09580800 - Bearing Extractor Set 57-100mm 57-75mm option also available as part number 09582100
095800TC - Internal Split Collets Extractor Kit - Tool Control
The Extractor kit is supplied in a black case with foam; this dedicated design is ideal for tool control, i.e. off site work where its imperative that all parts are accounted for, i.e. food production locations Extract components quickly and efficiently when conventional pullers cannot be used. Removes gears, bearings, pinions, oil seals etc. Can be upgraded for twin/triple leg pulling. Additional twin beam pulling unit available part no. 09580500. Supplied in metal case. Internal Spread Min - Max: 6.5-60mmNo of Split Collet Extractors: 9 Thread size - ½" x 20 UNFContents:08542100 1 x Slide Hammer Assembly09580500 1 x Pulling Unit09580900 1 x Split Collet Extractor 6.5 - 8mm (No.00) 09581000 1 x Split Collet Extractor 8.5 - 10mm (No.0) 09581100 1 x Split Collet Extractor 10 - 12mm (No.1)09581200 1 x Split Collet Extractor 12 - 17mm (No.2)09581300 1 x Split Collet Extractor 19 - 22mm (No.3)09581400 1 x Split Collet Extractor 22 - 30mm (No.4)09581500 1 x Split Collet Extractor 30 - 38mm (No.5)09581600 1 x Split Collet Extractor 38 - 50mm (No.6)09581700 1 x Split Collet Extractor 50 - 60mm (No.9)09582000 1 x Adaptor
09585800 - Slide Hammer Bearing Extractor Set 57-100mm
Bearing Extractor Set 57-100mm A safe and simple pulling solution for larger bearings found on engines, gearboxes and industrial machinery. Includes: 09582100 - 57-75mm Bearing Extractor 09582200 - 74 - 100mm Bearing Extractor 08532000 - 2 Kg Slide Hammer
