Combined Puller Spares
150000V2 - 1500 Series 8 Tonne Hydraulic Ram
New design includes pre-loading 30mm hex, 2” extension and foam cut out for storage. Standard power unit for SP hydraulic pulling options and can also be used with many alternative SP puller applications e.g. 3 leg pullers, ball joint pullers, hub pullers, suspension bush removers etc Diameter 1 1/2" Thread 16tpi Whitworth Grease filled. Direct force improves stability under load. Provides maximum withdrawal force of 80kN. New hex head makes it possible to increase pre-load capability up to 4 tonnes (with the use of a 30mm wrench). When hydraulic power is applied, the full force is achieved with little loss of ram travel. As the workpiece starts to release, more stroke and power can be applied to ensure a good safe removal.
-
09311500 - Main Rod Assembly
Main Rod for use with Mechanical Puller & Separator Kits Length 254mm Thread 1/2" x 16BSF includes nuts & washers (rod only see 09311670)
-
09581200 - Split Collet Extractor 12 - 17mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 12-17mm No.2 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) ** ** Additional part 09582000 (convertor from M8 to 1/2” UNF) must be attached for use with slide hammer Found in kits: 09580200 - Slide Hammer & Split Collet Extractor Kit 09580400 - Slide Hammer & Split Collet Extractor Kit
-

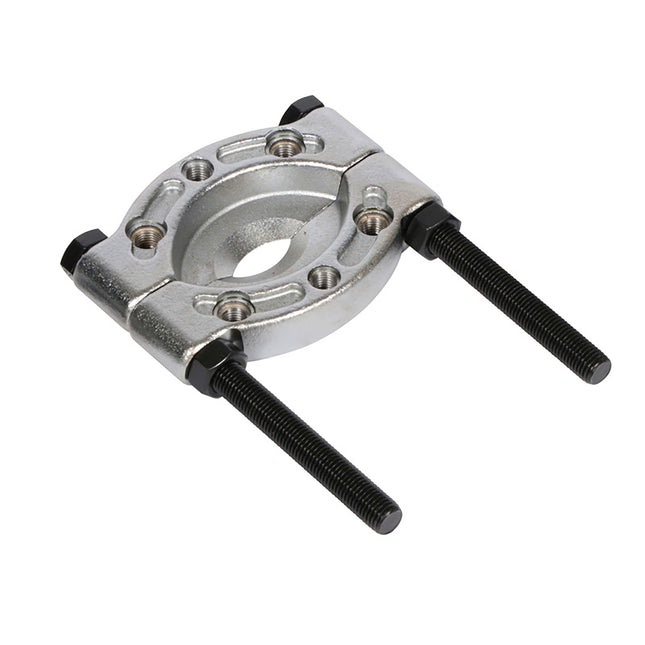

09510000 - Mechanical Bearing Separator - 20-110mm
Individual separator for removing and refitting bearings, etc.Can be used with any of the Sykes-Pickavant design of pullers where standard legs cannot gain access.Tapered legs provide all round support.Supplied in carton. External Spread Min - Max: 20-110mm Compatible with: 09311500 - Main Rod Assembly – Sykes Pickavant Found in Kits: 08420600 - Mechanical Puller & Separator Kit 350mm – Sykes Pickavant 15520000 - Hydraulic Puller & Separator Kit 50-150mm – Sykes Pickavant 155200TC - Hydraulic Puller & Separator Kit - Tool Control – Sykes Pickavant 155200XT - Hydraulic Puller & Separator Kit - Extra Travel – Sykes Pickavant 15520800 - Hydraulic Puller & Separator Kit – Sykes Pickavant 15530500 - Comprehensive Hydraulic Puller/Separator/Extractor Kit – Sykes Pickavant 155400V2 - Hydraulic Puller & Separator Kit – Sykes Pickavant 155405V2 - Hydraulic Puller & Separator Kit – Sykes Pickavant 155700V2 - Hydraulic Internal Extractor, Puller & Separator Kit – Sykes Pickavant 155900V2 - Hydraulic Internal Extractor, Puller & Separator Kit - Mast – Sykes Pickavant 19310000 - Hydraulic Separator Kit – Sykes Pickavant 19310100 - Hydraulic Separator Kit exc Ram – Sykes Pickavant 19310300 - Hydraulic Puller & Separator Kit - Thin Jaw – Sykes Pickavant 19310500 - Hydraulic Internal Extractor, Puller & Separator Kits with – Sykes Pickavant
-
09582000 - 1/2" Female to M8 male converter
For use with 08542100 Slide Hammer when fitting smaller sized Split Collet Extractors ( 6.5 - 30mm / 09580900 - 09581400 )
-
09581300 - Split Collet Extractor 19 - 22mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 19-22mm No.3 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) ** ** Additional part 09582000 (convertor from M8 to 1/2” UNF) must be attached for use with slide hammer Found in kits: 09580200 - Slide Hammer & Split Collet Extractor Kit 09580400 - Slide Hammer & Split Collet Extractor Kit
-

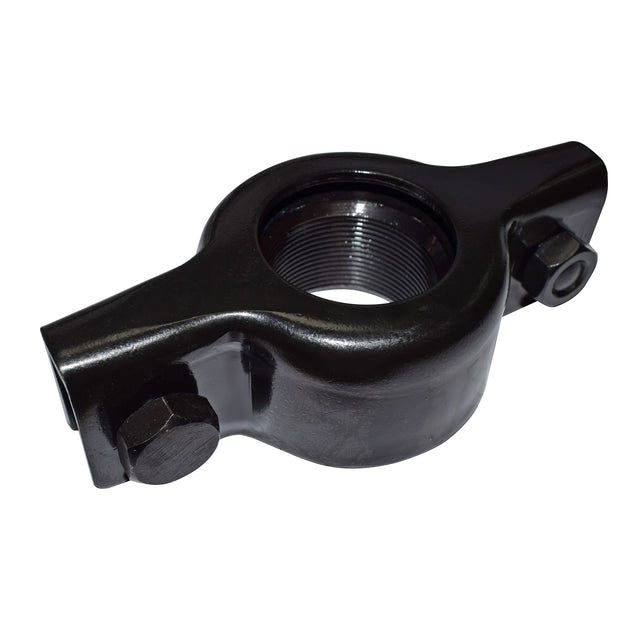

15241200 - Twin Head (With Centre Nut)
1500 Series - Twin Head for Hydraulic Two Leg Pullers1½" Dia. Internal
-

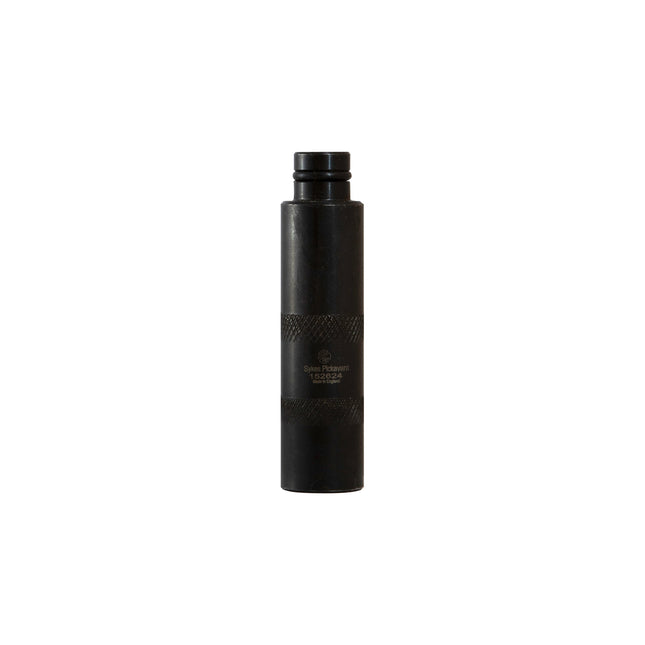

15262400 - Ram Extension - 100mm
Ram Extension 100mm (4") See Downloads section for Kit Contents List
-
08542100 - Slide Hammer Assembly - 1kg
For use with Sykes-Pickavant split collet type internal extractors. Hammer displacement: 220mm. Hammer weight: 1kg. Thread Size: 1/2" UNF
-
09802100 Bearing Adaptor No.1 (5.5mm)
Bearing adaptor No.1 5.5mm For 098 series multipull blind house bearing remover
-
09581500 - Split Collet Extractor 30 - 38mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 30-38mm No.5 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads 08542100 - Slide Hammer Assembly - (1kg) Found in kits: 09580300 - Slide Hammer & Split Collet Extractor Kit
-
15242200 - Ram Extension 50mm (2")
Hydraulic Pullers - Ram Extension 50mm (2")See Downloads section for Kit Contents List
-
09581400 - Split Collet Extractor 22 - 30mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 22-30mm No.4 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads 08542100 - Slide Hammer Assembly - (1kg) Found in kits: 09580200 - Slide Hammer & Split Collet Extractor Kit
-
09581100 - Split Collet Extractor 10 - 12mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 10-12mm No.1 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) ** ** Additional part 09582000 (convertor from M8 to 1/2” UNF) must be attached for use with slide hammer Found in kits: 09580100 - Slide Hammer & Split Collet Extractor Kit 09580400 - Slide Hammer & Split Collet Extractor Kit
-

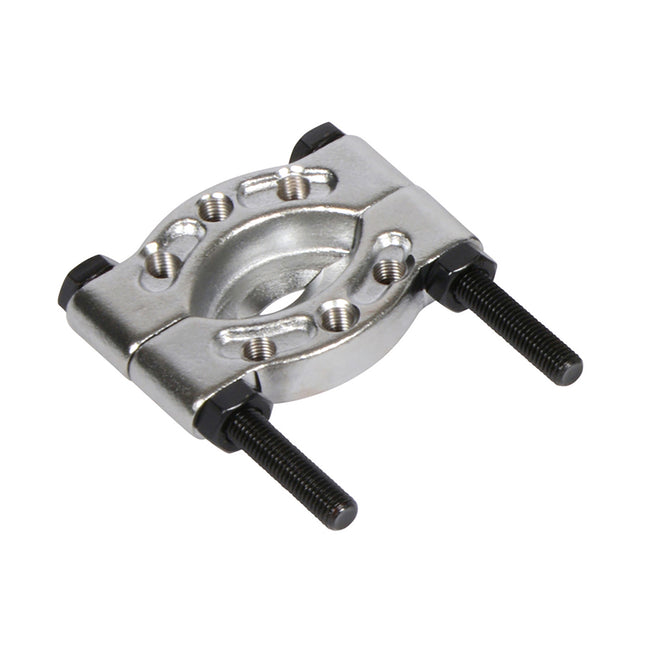

09500000 - Mechanical Bearing Separator - 10-62mm
Individual separator for removing and refitting bearings, etc.Can be used with any of the Sykes-Pickavant design of pullers where standard legs cannot gain access.Tapered legs provide all round support.Supplied in carton. External Spread Min - Max: 10-62mm Compatible with: 09301500 Main Rod for Mechanical Puller – Sykes Pickavant. Found in Kits: 08420600 - Mechanical Puller & Separator Kit 350mm – Sykes Pickavant 09300000 - Mechanical External Separator Kit – Sykes Pickavant 15530500 - Comprehensive Hydraulic Puller/Separator/Extractor Kit – Sykes Pickavant 19310500 - Hydraulic Internal Extractor, Puller & Separator Kits with – Sykes Pickavant
-

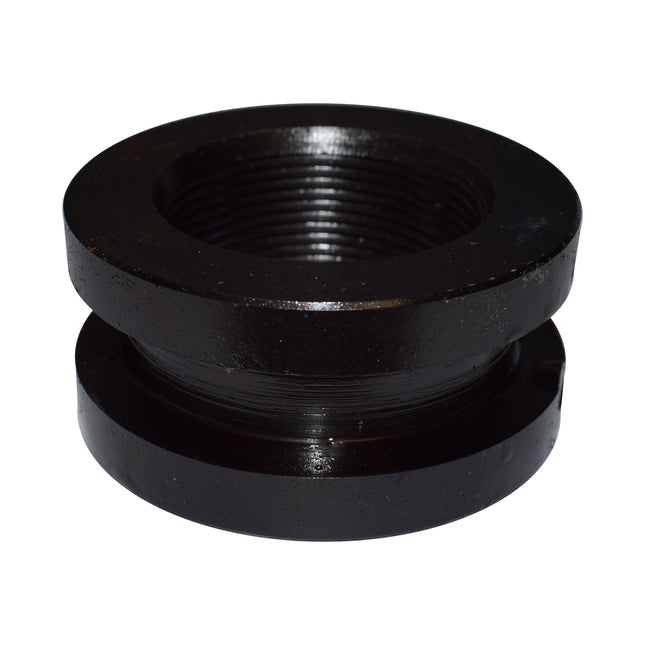

15241400 Centre Nut
Replacement centre nut For 1500 series twin & triple heads
-
09802200 Bearing Adaptor No.2 (6mm)
Bearing adaptor No.2 6mm For 098 series multipull blind house bearing remover
-
09312300 - Extension Rod 127mm
Extension Rod for use with Mechanical Puller & Separator Kits Length 127mm Thread 1/2" x 16 BSF
-

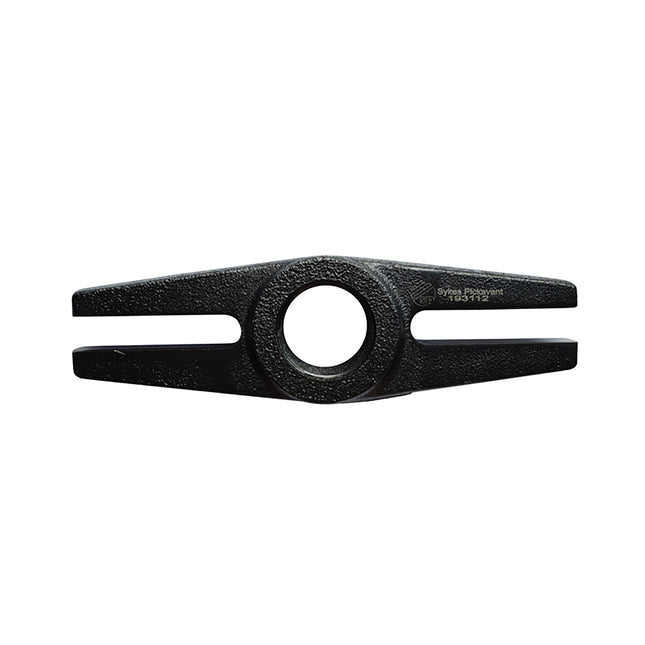

19311200 - Twin Beam - 210mm Thread 1.1/2"
Twin Beam for 1500 Series hydraulic ram Length: 210mm Thread diameter: 1½" See Downloads section for Kit Contents List
-
15292900 - Hydraulic Puller Leg (Wide) - 250mm
Puller Leg 250mm Working Dimensions - Wide Spread 300mm long See Downloads section for Kit Contents List
-
15272600 - Ram Extension - 150mm
Ram Extension 150mm See Downloads section for Kit Contents List
-

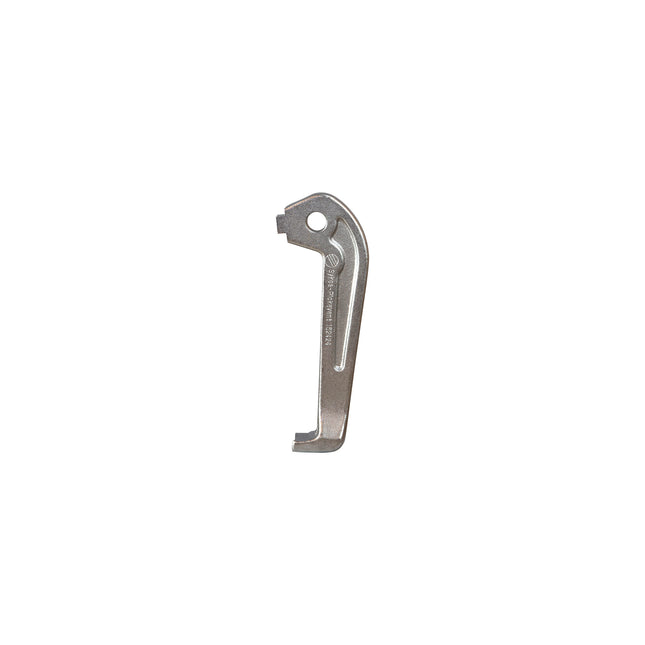

15242400 - Hydraulic Puller Leg - 100mm
Puller Leg - 100mm (4") Working Dimensions165mm Long
-

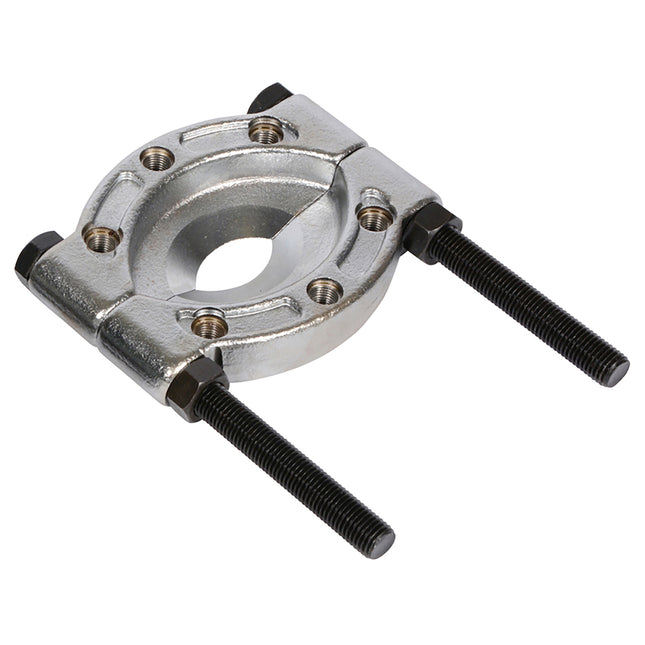

09520000 - Mechanical Bearing Separator - 35-134mm
Individual separators for removing and refitting bearings, etc.Can be used with any of the Sykes-Pickavant design of pullers where standard legs cannot gain access.Tapered legs provide all round support.Supplied in carton. External Spread Min - Max: 35-134mm Can be used with 08320000 & 08330000 Twin Leg Pullers or 09420000 Twin Leg Pulling Unit Compatible with: 09321500 - Main Rod Assembly 332mm – Sykes Pickavant Found in Kits: 08420600 - Mechanical Puller & Separator Kit 350mm – Sykes Pickavant 155800V2 - Hydraulic Internal Extractor, Puller & Separator Kit – Sykes Pickavant 155900V2 - Hydraulic Internal Extractor, Puller & Separator Kit - Mast – Sykes Pickavant 15600000 - Hydraulic Internal/External Puller & Separator Kit – Sykes Pickavant 19320000 - Hydraulic Separator Kit - Heavy Duty – Sykes Pickavant 19320100 - Hydraulic Separator Kit - heavy Duty exc Ram – Sykes Pickavant
-
08601400 - Thin Jaw Leg 75mm
Thin Jaw Leg 75mm 122mm Long (75mm working dimensions) (Can be extended with leg extension part no 08602800) Suitable for kits: 08490500 08600000 08605300 08601000 09305300 09300500 09400300
-

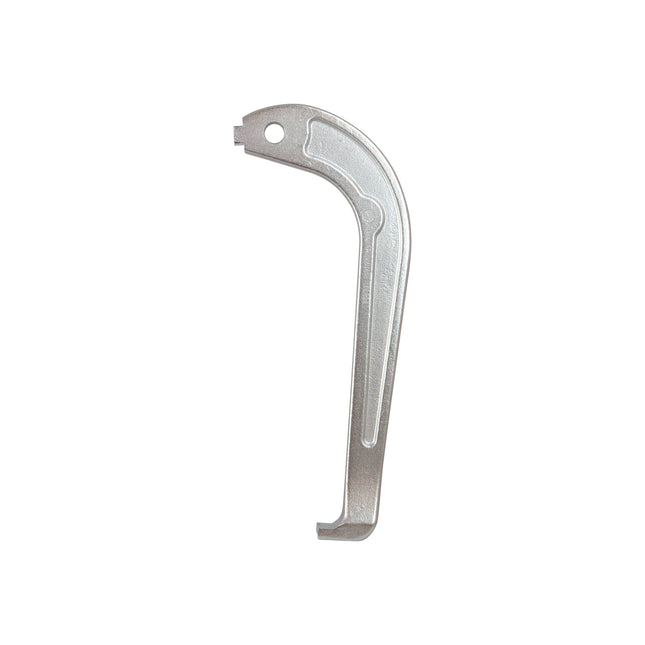

15282800 - Hydraulic Puller Leg (Wide) - 200mm
Puller Leg 200mm Working Dimensions 265mm Long See Downloads section for Kit Contents List
-
09311900 - Extension Rod 285mm
Extension Rod for use with Mechanical Puller & Separator Kits Length 285mm Thread 1/2" x 16 BSF
-

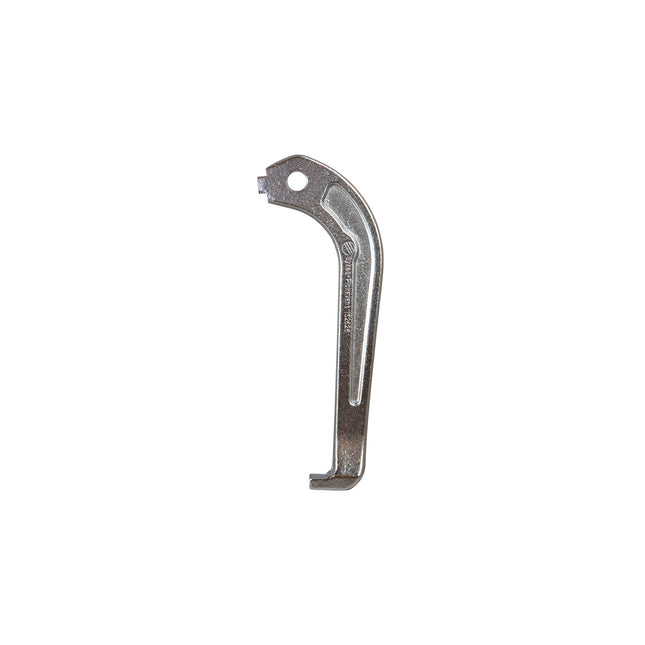

15262600 - Hydraulic Puller Leg - 150mm
Puller Leg 150mm Working Dimensions215mm Long
-
09802300 Bearing Adaptor No.3 (8mm)
Bearing adaptor No.3 8mm For 098 series multipull blind house bearing remover
-
09321500 - Main Rod Assembly 332mm
Main Rod for use with Mechanical Puller & Separator Kits Length 332mm Thread 5/8" x 14 BSF
-
08291100 - Forcing Screw - 292mm
Forcing Screw Length 292mmThread M24 x 3.00
-
08281100 - Force Screw 230mm M16
Forcing Screw Length 230mm Thread M16 For use with Mechanical Pullers:082800000828050008310000084200000842060008490000084903000849050008490600093053000930050009400300
-

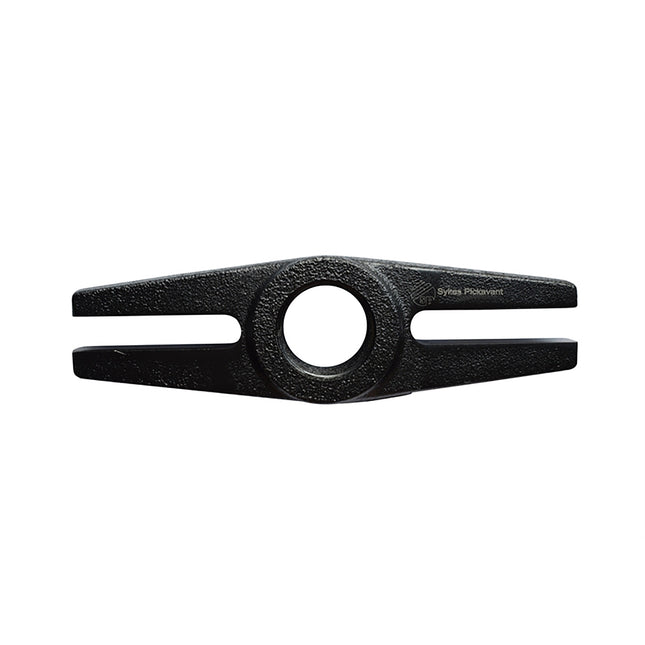

19321200 - Twin Beam - 290mm Thread 1.1/2"
Twin Beam for use with 1500 series hydraulic ram Length: 290mm Thread diameter: 1½" See Downloads section for Kit Contents List
-

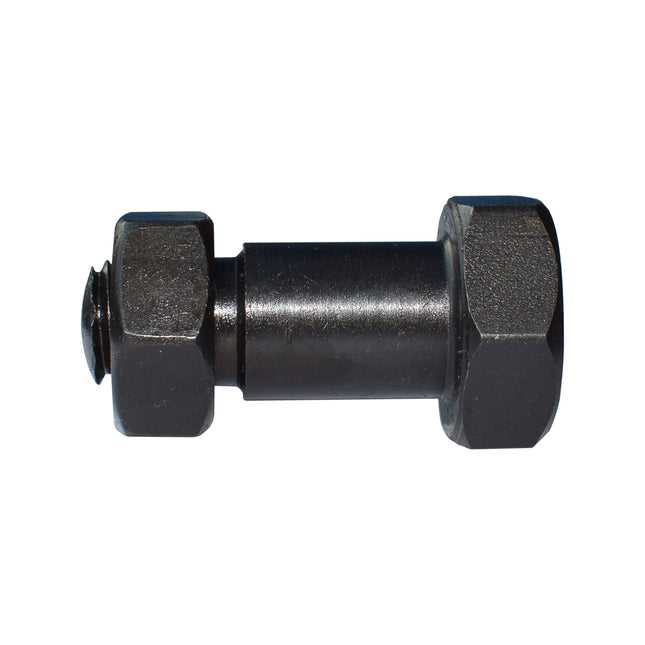

15241500 Pin & Nut
Replacement pin & nut For use with twin & triple heads on 1500 series puller range
-
09801500 Rod Assembly
Rod assembly c/w Nut & washers For 098 series multipull blind house bearing remover
-
09301500 Main Rod for Mechanical Puller
Main Rod for use with Mechanical Puller & Separator Kits Length 160mm Thread 3/8" x 20 BSF
-

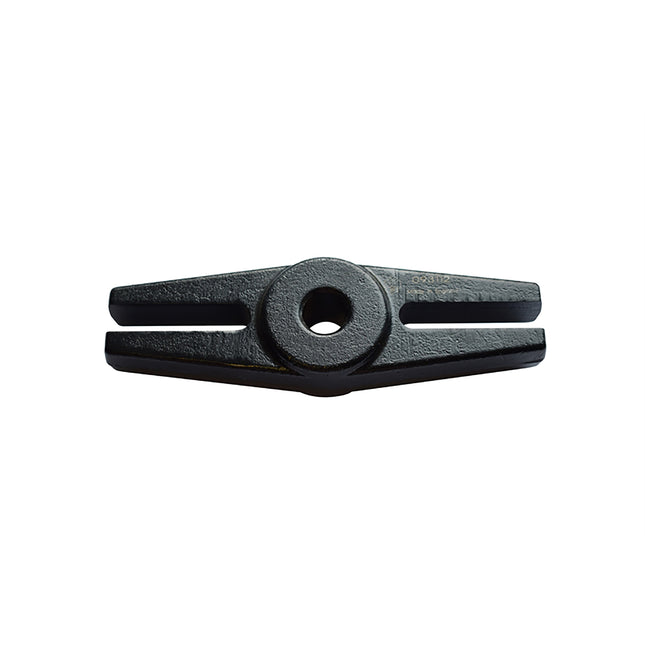

09321200 - Twin Beam - 290mm
Twin Beam for use with Mechanical Puller & Separator Kits Length 290mm
-
09311100 Forcing Screw with Nut
Forcing Screw with Nut Length 305mm Thread 3/4" x 12 BSF
-
09821500 Rod Assembly
Rod assembly For 098 series multipull blind house bearing remover
-
09321900 - Extension Rod 272mm
Extension Rod for use with Mechanical Puller & Separator Kits Length 272mm Thread 5/8" x 14 BSF
-

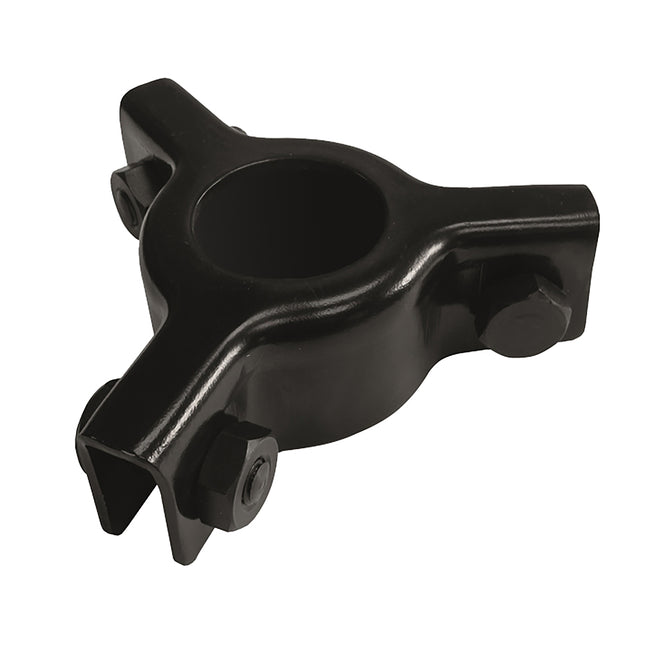

15341400 Triple Head (Without Centre Nut)
1500 Series - Triple Head for Hydraulic Three Leg Pullers1½ Dia. Internal
-
09812600 Bearing adaptor No.6 (12.5mm)
Bearing adaptor No.6 12.5mm For 098 series multipull blind house bearing remover
-
09812500 Bearing adaptor No.5 (11mm)
Bearing adaptor No.5 11mm For 098 series multipull blind house bearing remover
-
09811500 Rod Assembly
Rod assembly For 098 series multipull blind house bearing remover
-
09352070 Adaptor for 09530000
Adaptor for 09530000
-
09350000 - Internal Race Extractor
Pulling attachment for Sykes-Pickavant bearing pullers, part numbers 09310000 and 09320000. Users should also use correct thread protector to fit their bearing puller. Supplied in cardboard box. Internal Reach Min - Max: 40-150mmExternal Reach Max: 100mmUse with 09310000 and 09320000 Kits* - use 09350100 screw adaptor*Thread Protectors - When ordering an internal pulling attachment usersshould also order the correct thread protectors to fit their pulling unit or bearing puller kit.Pulling Unit Part No. 09410000 / Pulling Kit Part No. 09310000Use thread protectors Part No. 09312000 (2)Pulling Unit Part No. 09420000 / Pulling Kit Part No. 09320000Use thread protectors Part No. 09322000 (2)
-
09301200 - Twin Beam for Mechanical Puller
Twin Beam for use with Mechanical Puller & Separator Kits Length 118mm Thread M16
-
08541500 - Small Cranked Legs (3pcs)
Small Cranked Legs x 3For use with mechanical puller kits:085400000854030008545000
-
08281200 - Twin Head - 110mm M16
Twin Head Length 110mm Thread M16
