Cylinder Head & Engine Block Tools

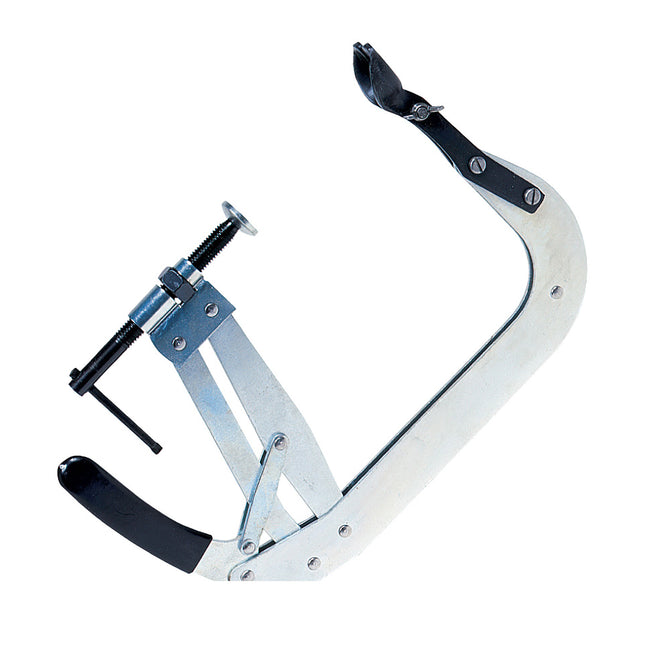

66021000 - Valve Spring Compressor - OHV Engines
Valve Spring Compressor - OHV Engines For the removal of valves on small / medium OHV engines Cam action provides parallel lift Automatic locking action Supplied with straight adjustable width jawsSpecificationA - Jaw (mm) Min 70mm Max 135mmB - Throat (mm) 150mm
-

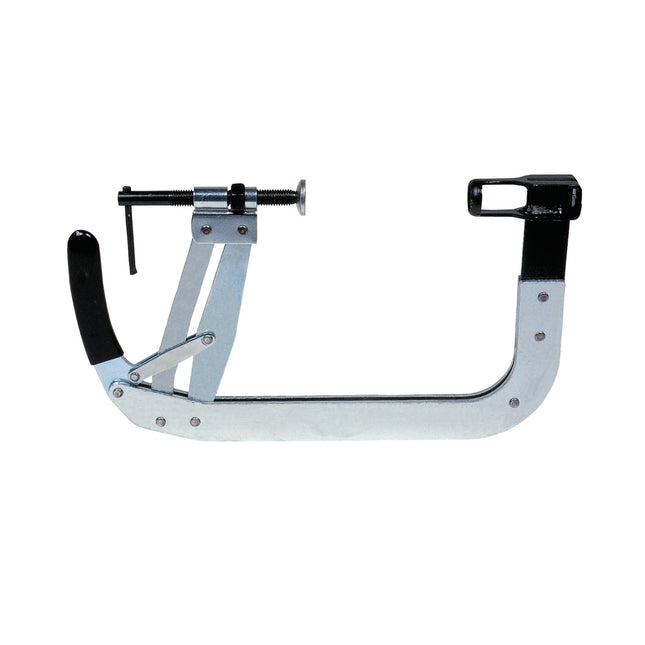

66043000 - Valve Spring Compressor - OHC Engines
Valve Spring Compressor - OHC Engines For OHC petrol & diesel engines Will also fit a wide variety of smaller OHV engines Cam action provides parallel lift Open collet type jaw provides good visibility for difficult access applicationsSpecificationA - Jaw (mm) Min 63mm Max 129mmB - Throat (mm) 158mm
-

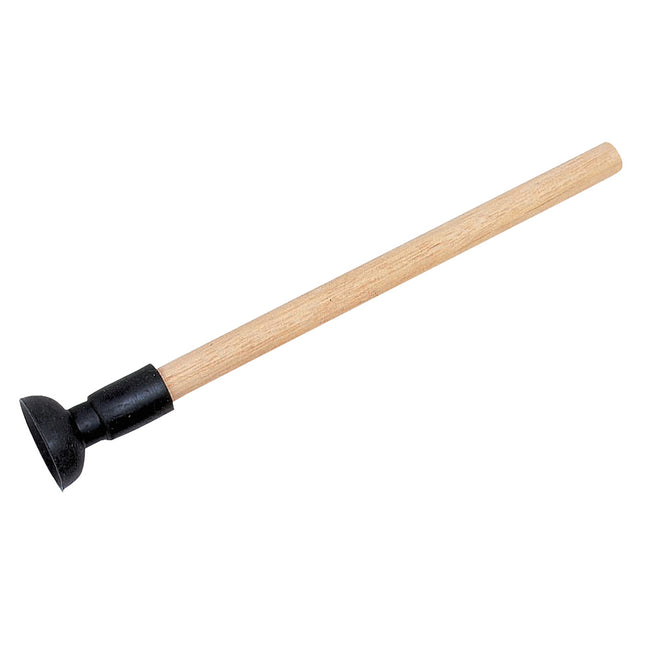

66090200 - Valve Grinding Stick 32mm x 224mm
Wooden handled valve stick for grinding and lapping valvesLarge cup - 32mm diameter - Ideal for HGV, agricultural and industrial plant enginesSingle-Ended 32mm x 224mm
-

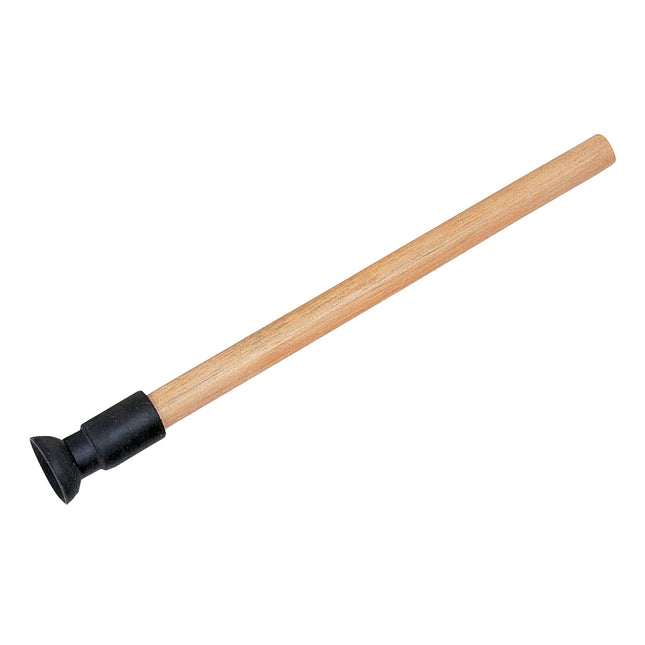

66090300 - Valve Grinding Stick 22mm x 224mm
Wooden handled valve stick for grinding and lapping valvesMedium cup - 22mm diameter - Ideal for cars and light commercial vehiclesSingle-Ended 22mm x 224mm
-

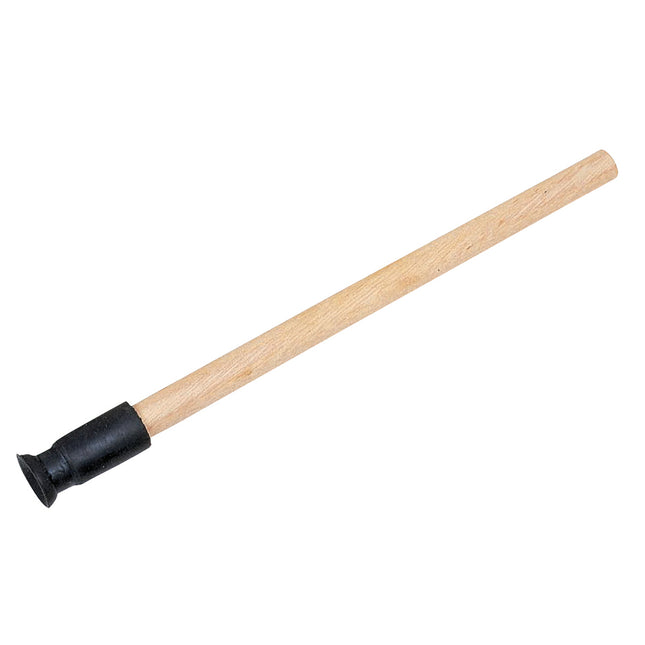

66090400 - Valve Grinding Stick 19mm x 224mm
Wooden handled valve stick for grinding and lapping valvesSmall cup - 19mm diameter - Ideal for cars, motorcycles and generator enginesSingle-Ended 19mm x 224mm
-
66090500 - Valve Grinding Stick - 19/22mm x 224mm
Wooden handled valve stick for grinding and lapping valvesSmall / Medium Cup - 19 / 22mm diameterDouble-Ended 19 / 22mm x 224mm
-
02800000 - Cylinder Honing Set (13-89mm)
Complete honing and deglazing set for 13 - 89mm diameter cylinder bores Flexible drive shaft for use with air or electric drills Supplied with a set of medium grade 220 grit stones Suitable for use on brake and clutch cylinders, small bore engine cylinders, motorcycle engines etcReplacement Stone Sets: 02800100 - Grade: Fine Grit: 400 02800200 - Grade: Medium Grit: 220Note: Each Stone Set consists of 3 x 19mm stones / 3 x 29mm stones / 3 x 50mm stones and 3 x replacement spring clips
-

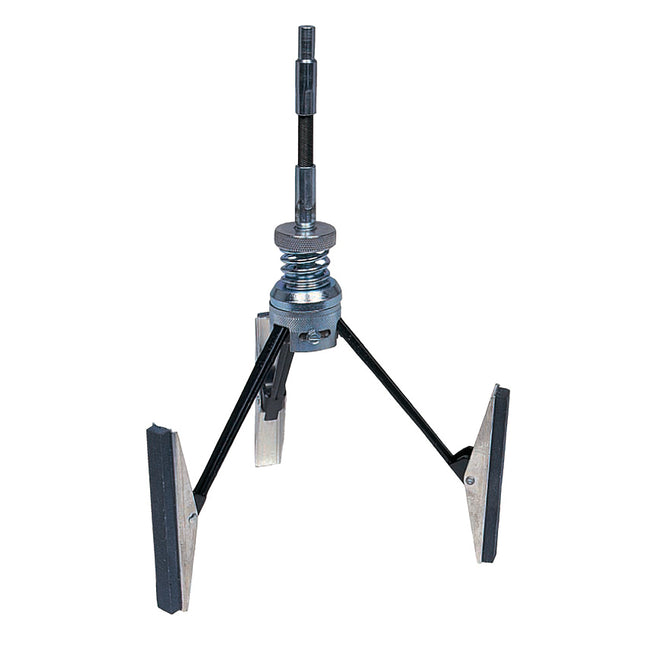

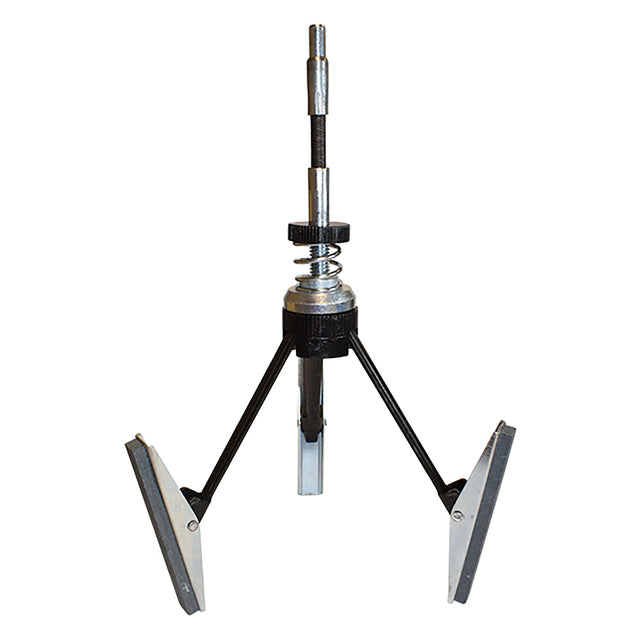

02810000 - Cylinder Honing Set (50-180mm)
Large diameter honing and deglazing tool Flexible drive shaft for use with air or electric drills Supplied with a set of medium grade 220 grit stones Suitable for use on large bore engine cylinders from 50 -180mm Replacement Stone Sets: 02810100 - Grade: Fine Grit: 400 02810200 - Grade: Medium Grit: 220 02810300 - Grade: Coarse Grit: 100 Note: Each Stone Set consists of 3 x 100mm stones and 3 x replacement cotter pins
-
02800100 - Fine Stone Set - for 02800000
Each Stone Set consists of:- 3 x 19mm stones / 3 x 29mm stones / 3 x 50mm stones, and 9 replacement spring clips
-

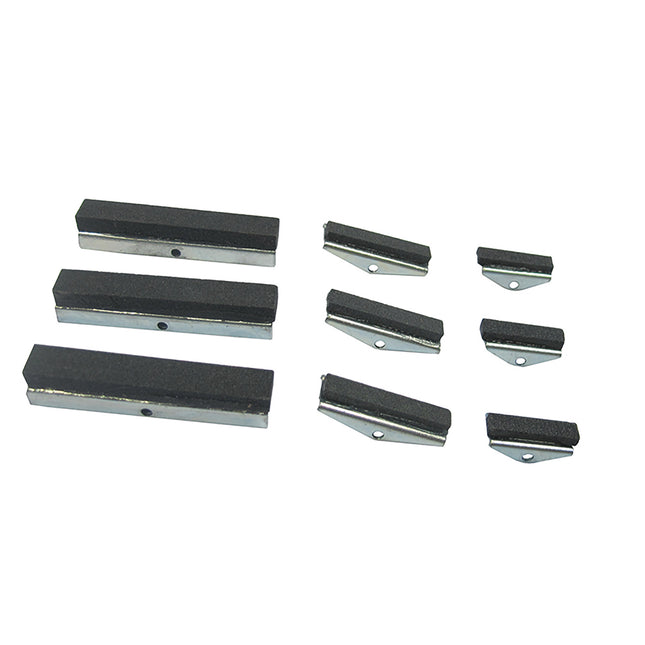

02800200 - Medium Stone Set - for 02800000
Each Stone Set consists of:- 3 x 19mm stones / 3 x 29mm stones / 3 x 50mm stones, and 3 replacement spring clips
-

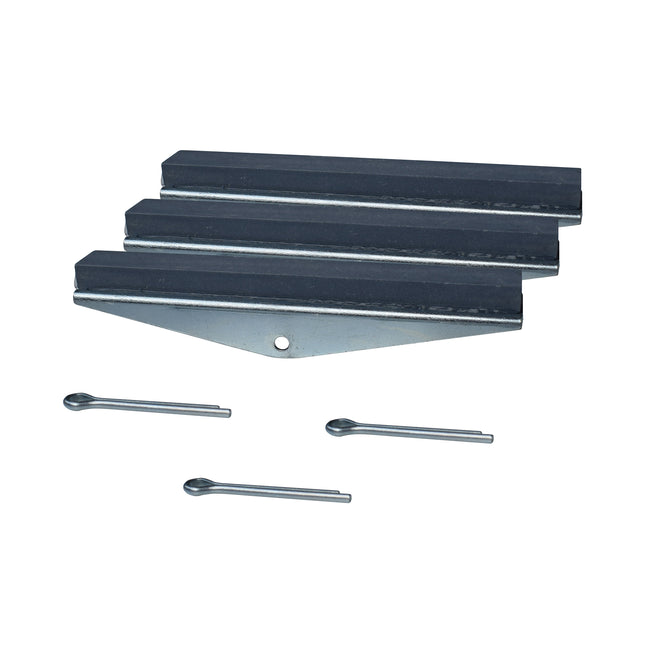

02810100 - Fine Stone Set - for 02810000
Each Stone Set consists of:- 3 x 100mm stones and 3 x replacement cotter pinsGrit: 400
-

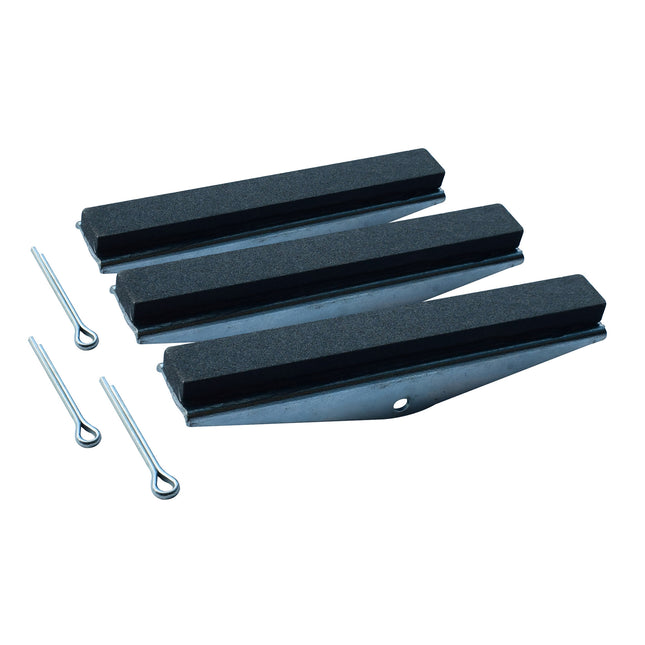

02810200 - Medium Stone Set - for 02810000
Each Stone Set consists of:- 3 x 100mm stones and 3 x replacement cotter pinsGrit: 220
-
02810300 - Coarse Stone Set - for 02810000
Each Stone Set consists of:- 3 x 100mm stones and 3 x replacement cotter pinsGrit: 100
-

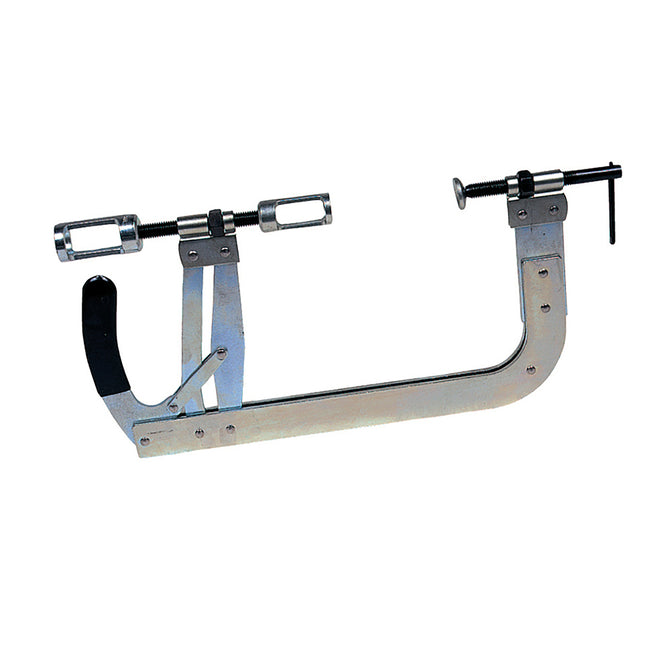

03950000 - Valve Spring Compressor - Multivalve Engines
Valve Spring Compressor - Multivalve Engines For the removal of valves on multivalve petrol & diesel engines Reinforced frame made from rust-proofed steel Supplied with 25mm & 30mm valve spring adaptors Spare Parts & Optional Adaptors: 03950200 - Multivalve VSC Adaptor: 25mm (OD) 18mm (ID)
-

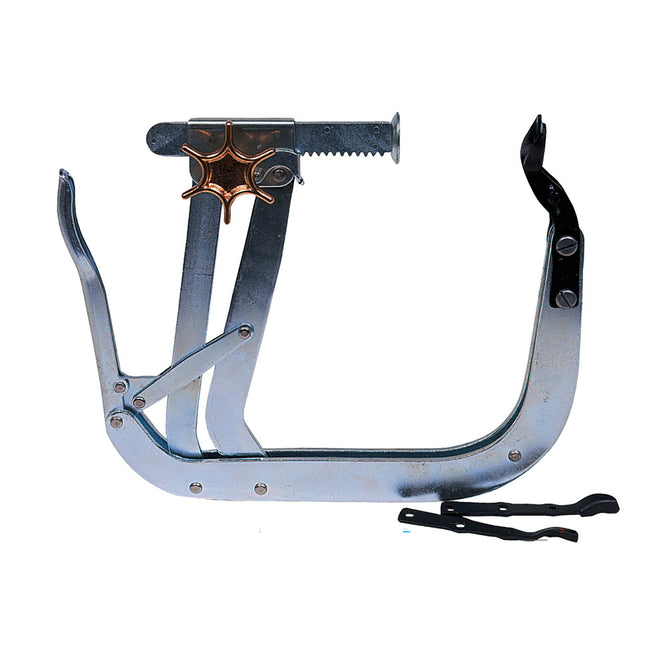

03800000 - Valve Spring Compressor - Heavy Duty
Valve Spring Compressor - Heavy Duty For use on Commercial and Off-Road Engine Vehicles Suitable for use on a wide range of medium and heavy commercial vehicles, buses, agricultural, marine and industrial plant engines Reinforced frame made from rust-proofed steel Geared hand wheel adjustment Supplied with straight & cranked off-set jawsSpecificationCranked Offset JawsA - Jaw (mm) Min 75mm Max 165mmB - Throat (mm) 245mm Straight JawsA “ Jaw (mm) Min 95mm Max 186mmB “ Throat (mm) 245mm
-
GO910 - Stretch Belt Fitting Tool- Universal
Removal / assembly of Poly-V elastic belts for single and double pulleys. In order to apply to double pulleys you must check how much space is available, for the use of the equipment. Assembly and adjustment with centering device. Quick, accurate and safe assembly and disassembly of elastic belts, without causing any damage. The belt cannot be reused without using this tool. Key Factors: High time saving High cost saving Easy and fast belt replacement Universally applicable due to the long slot
-
GO950 - Manual Value Spring Compressor Bench
The two head supports are implemented with non-scratch plastic material and are adjustable from 0 to 30°. There are two handles for locking when the right inclination is set. It is also possible to regulate the horizontal position of the head moving the pins to the opposite holes up and down. There is a long regulation also for the push rod in case of deep valve chambers. The frame can be rotated 30° on both sides. Can also be regulated forward and backwards. In case of valves locked hard into the seat, hit the slide hammer on the top with a plastic mallet. The bench is also provided with a travel limit device that guarantees the same stroke for each valve. When the valve spring is compressed, the operator can block the position using the opposite pin. Consequently you can work on the valves having both hands free. Technical data: Dimensions: 785x500x625 mm Stroke: 265 mm Cylinder head: 750 mm Length: min. 185 mm Inclination angle = 0° - 30° Total weight: 25,5 Kg Application: Cars and commercial vehicles
-

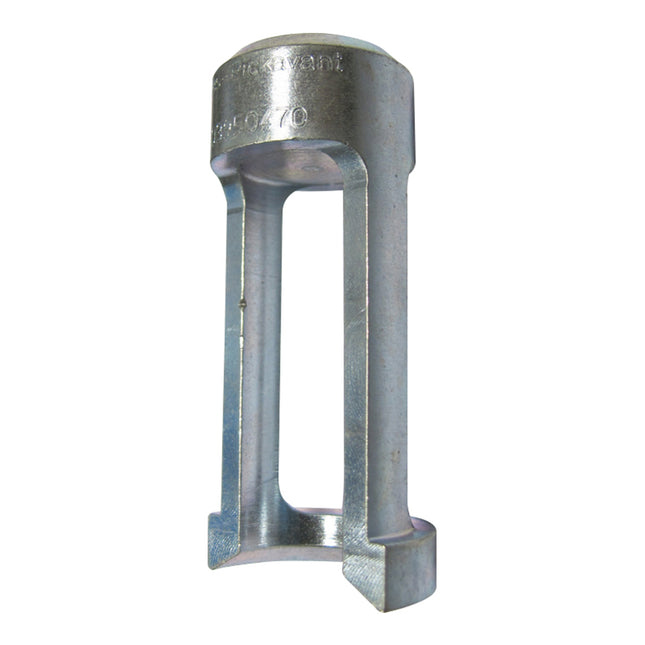

03950400 - Multivalve VSC Adaptor - Restricted Access / BMW
Multivalve Valve Spring Compressor adaptor for use with 03950000 Inside diameter 18mm Outside diameter 30mm Restricted access & BMW
-
03950200 - Multivalve VSC Adaptor: 25mm (OD) 18mm (ID)
Multivalve Valve Spring Compressor adaptor for use with 03950000 Inside diameter 18mm Outside diamter 25mm
