Injector Service Tools

08581000 - Diesel Injector Seal Extractor

Diesel Injector Seal Extractor Designed specially to remove the copper injector base seal when it has become stuck in the cylinder head Traditionally done using a ˜pick “ this tool allows safe and easy removal without risk of damage to the head Simple to use “ utilises SPs well known "split collet" technology to grip the seal and allow it to be pulled out from the head Simple adjustment “ expands from 6.5mm to 8.0mm No need to use picks, hooks etc when trying to retrieve stuck seals & washers

Read more less

GO455 - Injector Removal Fork

Injector Removal Fork for GO434Ford 2.0 ecoblue TDCI from 2016 (Ford Galaxy, S-max,Mondeo,Focus C-Max, Transit and Custom (from 2018), etc(Please note - not suitable for use on seized injectors)Technical data Fork width: 19mm Connection thread: M18x1.5 Height: 98 mm

Read more less

01745000 - Universal Injector Seat Cleaner Set

Designed to clean the injector holes after extraction work Kit includes: - 20mm & 25mm metal brushes for injector hole cleaning - 2 x front brushes for injector seat cleaning - 1 x front brush extension - 1 x seal plug to close the injector hole while cleaning - 1 x seal plug holder to place and remove the plug - 1 x sanding kit

Read more less

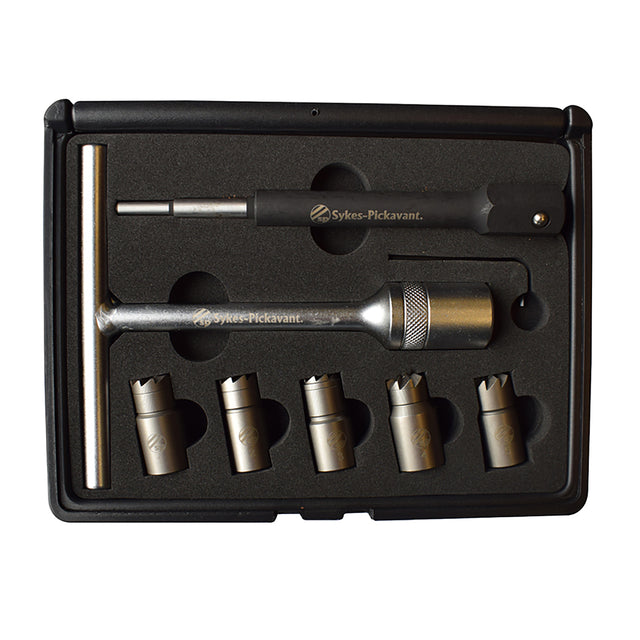

01750000 - Diesel Injector Seat Cleaner Set

Set of 5 Diesel Injector Seat Cleaners, comes with centering pilot and T-Handle Clean injector seats when changing or reconditioning diesel injectors Helps to avoid blow-back due to poorly seated injectors Includes: 15mm flat cleaner - Universal applications 17mm flat cleaner - BMW / PS / Renault 19mm angled cleaner - Fiat / Iveco 19mm flat cleaner - Mercedes CR 21mm angled cleaner - Fiat / Iveco

Read more less

GO563 - Injector Extractor- Bosch M18 x 1.5

Complete tool for the removal of Bosch magnetic injectors. The half-shells of the tool head are positioned directly under the screw ring of the injector electrical connection. The locking sleeve with window provides a non-slip grip. Removal is carried out without partial disassembly and this ensures that the injector can be reused. Application: Universal for diesel engines of many manufacturers Technical data: Connection internal thread M18x1.5

Read more less

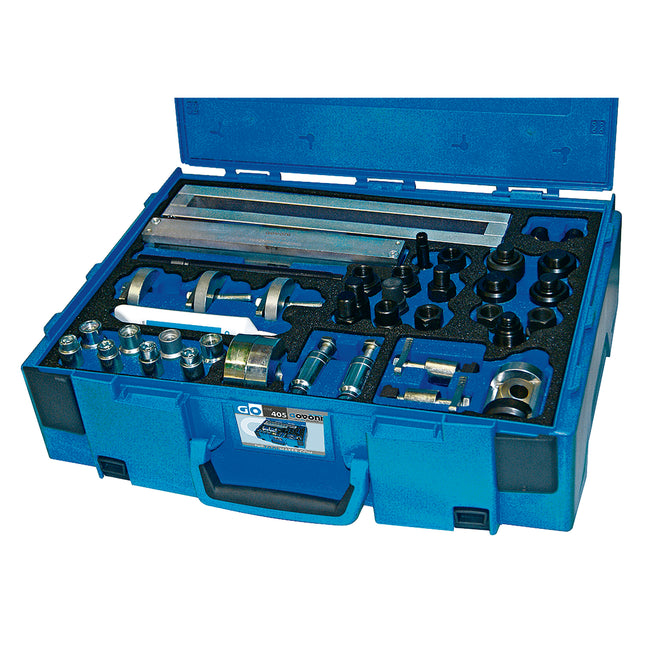

GO405 - Injector Extractor Kit - Master

Specific for disassembling very stuck injectors.Due to fouling caused by combustion the injector is stuck and can not be removed without a proper tool. The universal supporting feet adjustment, on the fixing screws of the head, ensures its use in different levels left / right as well as the possibility to adjust the slippage of the two side bars. Upgrade option for hydraulic pump and hydraulic cylinder (or mechadraulic). Application Connected injectors available for Mercedes Benz, Opel, FCA Group (e.g. 1.3 Mj), Suzuki. M17x1 for Bosch, M14x1 for Delphi models, Toyota with adapter M16x1, M20x1 used for the extraction of Denso injectors and finally M25x1 and M27x1 for Siemens.

Read more less

08587000 - Heavy Duty Slide Hammer Injector Puller Kit

Heavy Duty puller for removal of Bosch, Delphi, Denso and Siemens injectors. Features a flexible u-joint adaptor for access in restricted areas, and adaptors and hooks to connect to the outside of the injectors reducing the need to strip down the injectors. This saves time and money and reduces the risk of losing any essential small parts of the injector. Contents: 10 x Injector adaptors: M16 x 1.0 OT M17 x 1.0 OT M20 x 1.0 OT M25 x 1.0 OT M27 x 1.0 OT M16 x 1.5 IT M14 x 1.5 IT M25 x 0.5 IT M25 x 0.5 IT M27 x 1.0 IT 4 x Injector Solenoid removers: M25 M27 M29 M30 2 x Nozzle extractors: 6mm tamperproof – 10mm hex 7mm tamperproof – 10mm hex 4 x Hooks: 12mm 13.5mm 16mm 26mm 4 x Adaptors: M16x1.5mm M25x0.5mm M25x0.75mm M27x1.0mm Universal Joint: M18x1.5 Heavy Duty Slide Hammer Hammer Weight: 4.3kg

Read more less

08588000 - Pneumatic Vibro Injector Puller with Handle

A new generation of an air powered tool that uses vibrations of 20-30Nm of torque to aid the removal of especially tight or seized injectors. Features Low profile Control handle Contents The kit comes with a comprehensive range of adaptors (19) to suit Bosch, Delphi, Denso, Siemens and more. M12 x 1.5 M16 x 1.5 M17 x 1.0 M18 x 0.75 M18 x 1.5 M20 x 1.0 M20 x 1.5 M22 x 1.5 M25 x 0.5 M25 x 1.0 M26 x 0.75 M27 x 0.75 M27 x 1.0 (x2) M29 x 1.0 M31 x 0.75 M8 x 1.0 M8 x 1.25 M8 x 1.5

Read more less
