Extractor Spares
08281100 - Force Screw 230mm M16
Forcing Screw Length 230mm Thread M16 For use with Mechanical Pullers:082800000828050008310000084200000842060008490000084903000849050008490600093053000930050009400300
-

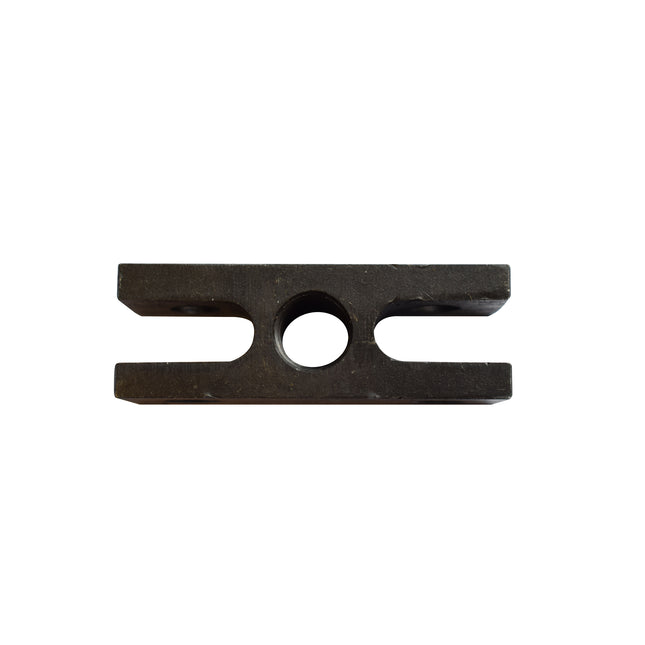

08541200 - 2 Way Beam
2 way beam f or use with kits 08540000 and 08540300
-

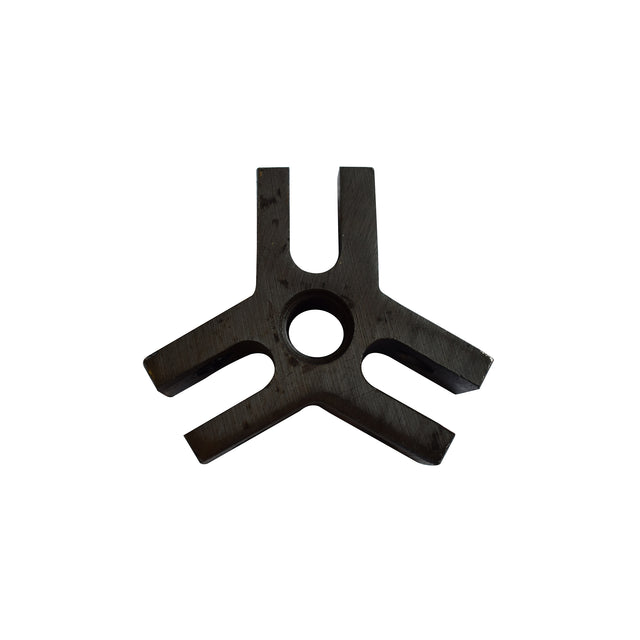

08541300 - 3 Way Beam
For use with kits 08540000, 08540300 and 08545000
-
08541400 - Large Straight Leg
Large straight legFor use with kits:085400000854030008545000
-

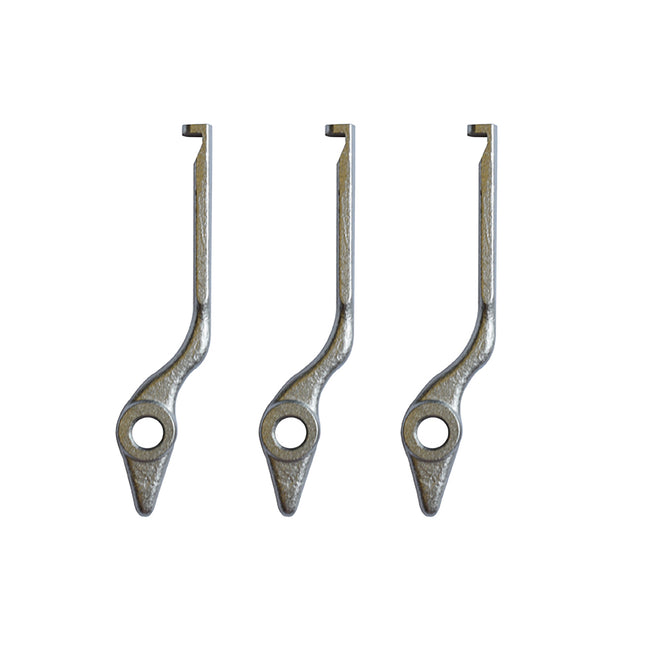

08541500 - Small Cranked Legs (3pcs)
Small Cranked Legs x 3For use with mechanical puller kits:085400000854030008545000
-

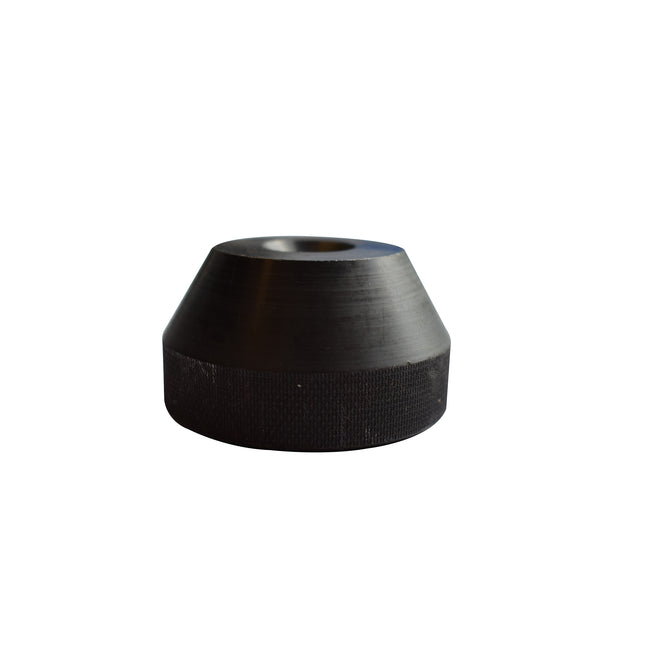

08541800 - Adjustable Cone
For use with kits 08540000 and 08540300
-
08542100 - Slide Hammer Assembly - 1kg
The Sykes Pickavant 1Kg Slide Hammer Assembly is a professional grade tool designed for precise pulling applications in automotive and engineering environments. Ideal for use in bodywork repairs, and component extraction, this tool delivers controlled force without damage. 1 Kg Weight: Provides effective impact force for a wide range of pulling tasks Hammer displacement: 220mm. Thread Size: 1/2" x 20 UNF Suitable for use For use with Sykes-Pickavant Split Collet type internal extractors* *adaptor required for smaller size split collets
-

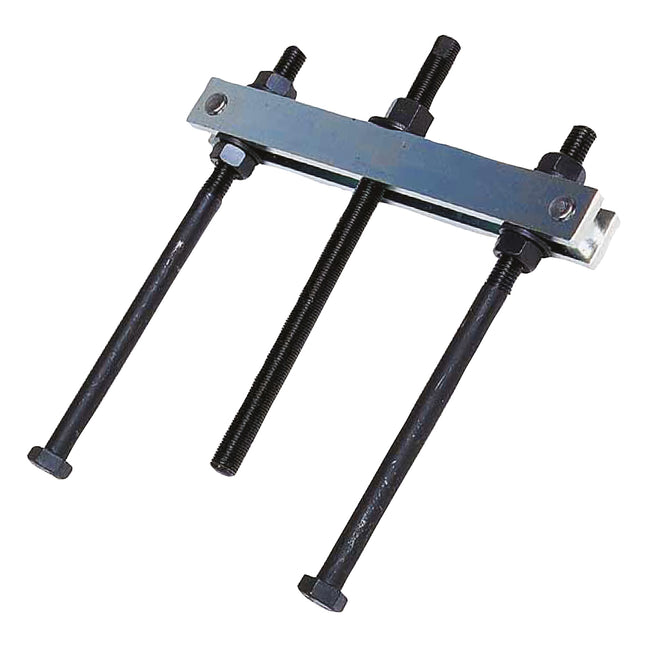

09580500 - Twin Beam Pulling Unit
Twin beam mechanical puller for use with Sykes-Pickavant Split Collet type internal extractors. Mechanical force screw can be used to draw extractors in place of slide hammer.
-
09580900 - Split Collet Extractor 6.5 - 8mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 6.5 - 8 mm No.00 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) ** ** Additional part 09582000 (converter from M8 to 1/2” UNF) must be attached for use with slide hammer Found in kits: 09580000 - Internal Split Collets Extractor Kit 09580100 - Slide Hammer & Split Collet Extractor Kit 19310500 - Hydraulic Internal Extractor, Puller & Separator Kit
-
09581000 - Split Collet Extractor 8.5 - 10mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 8.5 - 10 mm No.0 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) ** ** Additional part 09582000 (convertor from M8 to 1/2” UNF) must be attached for use with slide hammer Found in kits: 09580000 - Internal Split Collets Extractor Kit 09580100 - Slide Hammer & Split Collet Extractor Kit 09580400 - Slide Hammer & Split Collet Extractor Kit 19310500 - Hydraulic Internal Extractor, Puller & Separator Kit
-
09581100 - Split Collet Extractor 10 - 12mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 10-12mm No.1 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) ** ** Additional part 09582000 (convertor from M8 to 1/2” UNF) must be attached for use with slide hammer Found in kits: 09580100 - Slide Hammer & Split Collet Extractor Kit 09580400 - Slide Hammer & Split Collet Extractor Kit 19310500 - Hydraulic Internal Extractor, Puller & Separator Kit 08540400 - Slide Hammer Combi Puller & Extractor Kit
-
09581200 - Split Collet Extractor 12 - 17mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 12 - 17 mm No.2 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) ** ** Additional part 09582000 (convertor from M8 to 1/2” UNF) must be attached for use with slide hammer Found in kits: 09580000 - Internal Split Collets Extractor Kit 09580200 - Slide Hammer & Split Collet Extractor Kit 09580400 - Slide Hammer & Split Collet Extractor Kit 19310500 - Hydraulic Internal Extractor, Puller & Separator Kit 08540400 - Slide Hammer Combi Puller & Extractor Kit
-
09581300 - Split Collet Extractor 19 - 22mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 19-22mm No.3 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) ** ** Additional part 09582000 (converter from M8 to 1/2” UNF) must be attached for use with slide hammer Found in kits: 09580000 - Internal Split Collets Extractor Kit 09580200 - Slide Hammer & Split Collet Extractor Kit 09580400 - Slide Hammer & Split Collet Extractor Kit 19310500 - Hydraulic Internal Extractor, Puller & Separator Kit 08540400 - Slide Hammer Combi Puller & Extractor Kit
-
09581400 - Split Collet Extractor 22 - 30mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 22-30 mm No.4 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads 08542100 - Slide Hammer Assembly - (1kg) Found in kits: 09580000 - Internal Split Collets Extractor Kit 09580200 - Slide Hammer & Split Collet Extractor Kit 19310500 - Hydraulic Internal Extractor, Puller & Separator Kit 08540400 - Slide Hammer Combi Puller & Extractor Kit
-
09581500 - Split Collet Extractor 30 - 38mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 30-38mm No.5 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads 08542100 - Slide Hammer Assembly - (1kg) Found in kits: 09580000 - Internal Split Collets Extractor Kit 09580300 - Slide Hammer & Split Collet Extractor Kit 19310500 - Hydraulic Internal Extractor, Puller & Separator Kit
-
09581600 - Split Collet Extractor 38-50mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 38-50mm No.6 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads 08542100 - Slide Hammer Assembly - (1kg) Found in kits: 09580000 - Internal Split Collets Extractor Kit 09580300 - Slide Hammer & Split Collet Extractor Kit
-
09581700 - Split Collet Extractor 50-60mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 50-60mm No.7 - stamped on extractor (Previous models were No.9) Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads 08542100 - Slide Hammer Assembly - (1kg) Found in kits: 09580000 - Internal Split Collets Extractor Kit 09580300 - Slide Hammer & Split Collet Extractor Kit
-
09581800 - Split Collet Extractor 55 - 64mm
Extract components quickly and efficiently when conventional pullers cannot be used. Removes gears, bearings, pinions, oil seals etc. The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 55 - 64 mm ½" UNF fitting Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) **
-
09581900 - Split Collet Extractor 65 - 76mm
Extract components quickly and efficiently when conventional pullers cannot be used. Removes gears, bearings, pinions, oil seals etc. The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 65 - 76 mm ½" UNF fitting Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) **
-
09582000 - 1/2" Female to M8 male converter
Adaptor for fitting smaller sized split collet extractors to the slide hammers 08542100 and 08532000 Specification: 1/2" Female to M8 Male Required for: 09580900 - Split Collet Extractor 6.5 - 8mm 09581000 - Split Collet Extractor 8.5 - 10mm 09581100 - Split Collet Extractor 10 - 12mm 09581200 - Split Collet Extractor 12 - 17mm 09581300 - Split Collet Extractor 19 - 22mm 09581400 - Split Collet Extractor 22 - 30mm
-
09582100 - Bearing Extractor 57-75mm
Extract components quickly and efficiently when conventional pullers cannot be used. Removes larger bearings found on engines, gearboxes and industrial machinery. The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specification Thread Size: M16 x 2 Size: 57-75mm Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads* *requires adapator 09582300 Found in Kits: 09580600 - Bearing Extractor Set 57-75mm 09580800 - Bearing Extractor Set 57-100mm 09585600 - Slide Hammer Bearing Extractor Set 57-75mm 09585800 - Slide Hammer Bearing Extractor Set 57-100mm
-
09582200 - Bearing Extractor 74-100mm
Bearing Extractor 74-100mm Coverage for larger bearings found on engines, gearboxes and industrial machinery. Specification Thread Size: M16 x 2 Size: 74-100mm Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads (requires adapator 09582300) Found in Kits: 09580700 - Bearing Extractor Set 74-100mm 09580800 - Bearing Extractor Set 57-100mm 57-75mm option also available as part number 09582100
-
09582300 - Adaptor - Female 1/" 20h x Female M6 x 2
Adaptor required when using extractors 09582100 & 09582200 with slide hammer 08532000 Sizes: Female 1/" 20h x Female M6 x 2
09801100 - Force Screw
Force Screw 140mm M10 x 1.5
-
09801200 Beam
Beam For 098 series Multipull blind house bearing removers Length 105mm
-

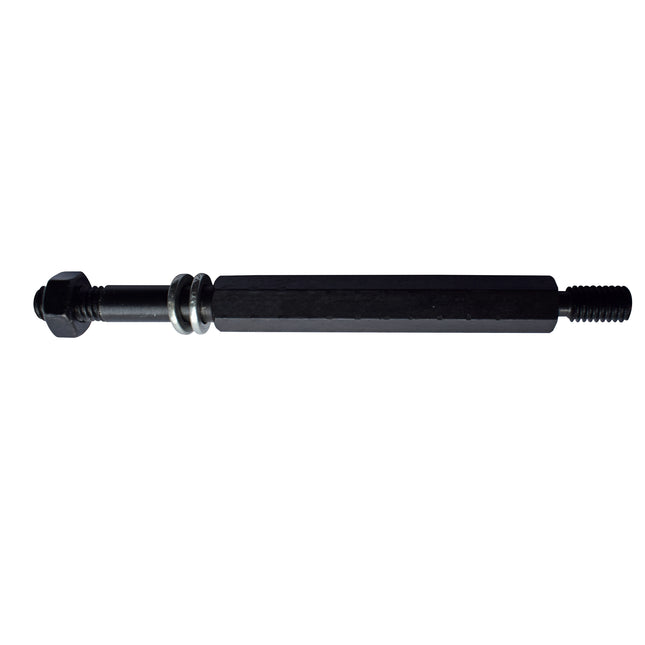

09801500 Rod Assembly
Rod assembly c/w Nut & washers For 098 series multipull blind house bearing remover
-
09801700 Rod Extension - 95mm
Extension Rod Length 95mm For 098 series multipull blind house bearing remover
-
09801900 Rod Extension - 30mm
Extension rod 30mm For 098 series multipull blind house bearing remover
-
09802100 Bearing Adaptor No.1 (5.5mm)
Bearing adaptor No.1 5.5mm For 098 series multipull blind house bearing remover
-
09802200 Bearing Adaptor No.2 (6mm)
Bearing adaptor No.2 6mm For 098 series multipull blind house bearing remover
-
09802300 Bearing Adaptor No.3 (8mm)
Bearing adaptor No.3 8mm For 098 series multipull blind house bearing remover
-

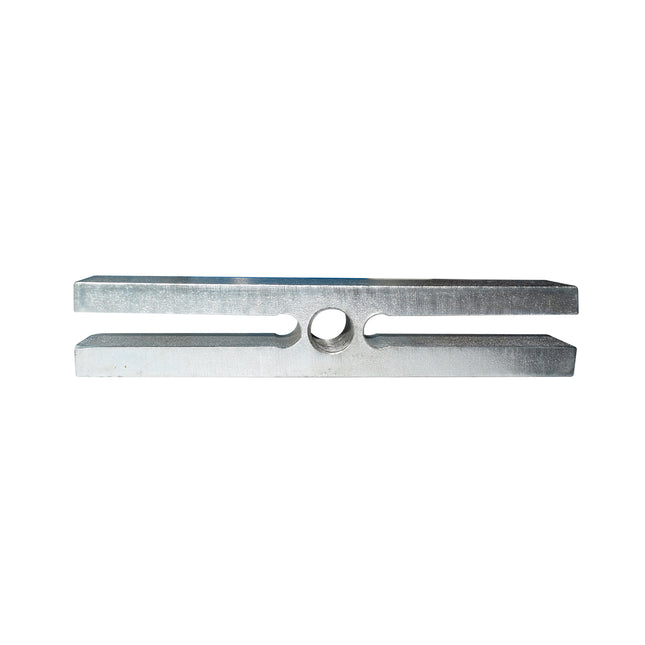

09811200 Beam
Beam For 098 series multipull blind house bearing remover Length 140mm
-

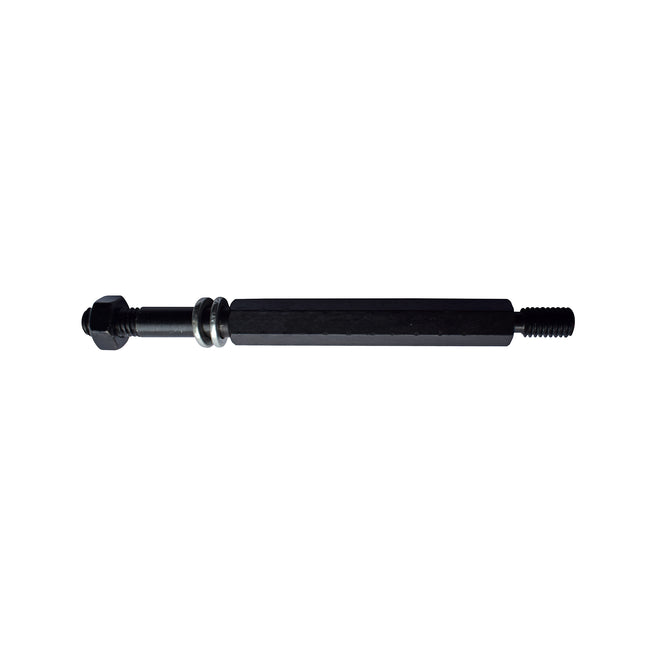

09811500 Rod Assembly
Rod assembly For 098 series multipull blind house bearing remover
-
09811900 Rod Extension - 95mm
Rod Extension Length 95mm For 098 series multipull blind house bearing remover
-

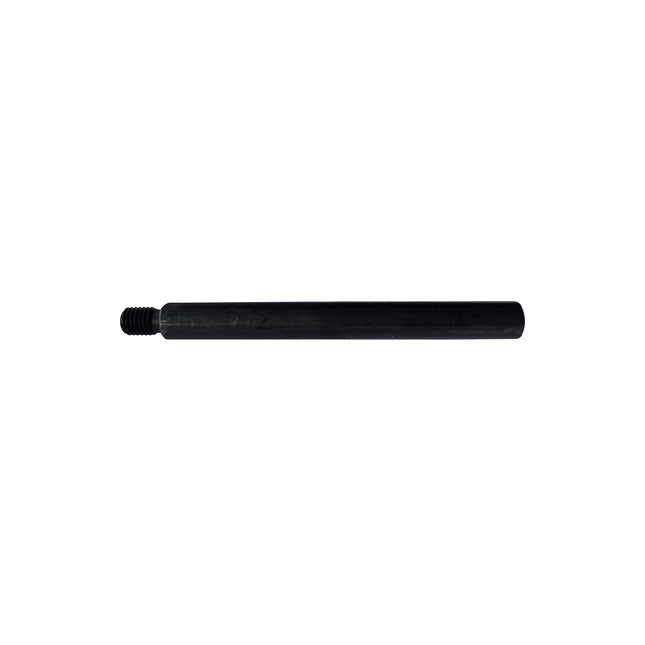

09812000 Rod Extension - 195mm
Rod extension Length 195mm For 098 series multipull blind house bearing remover
-
09812100 Rod Extension - 295mm
Rod Extension Length 295mm For 098 series multipull blind house bearing remover
-
09812400 Bearing adaptor No.4 (9mm)
Bearing adaptor No.4 9mm For 098 series multipull blind house bearing remover
-
09812500 Bearing adaptor No.5 (11mm)
Bearing adaptor No.5 11mm For 098 series multipull blind house bearing remover
-
09812600 Bearing adaptor No.6 (12.5mm)
Bearing adaptor No.6 12.5mm For 098 series multipull blind house bearing remover
