Panel Beating

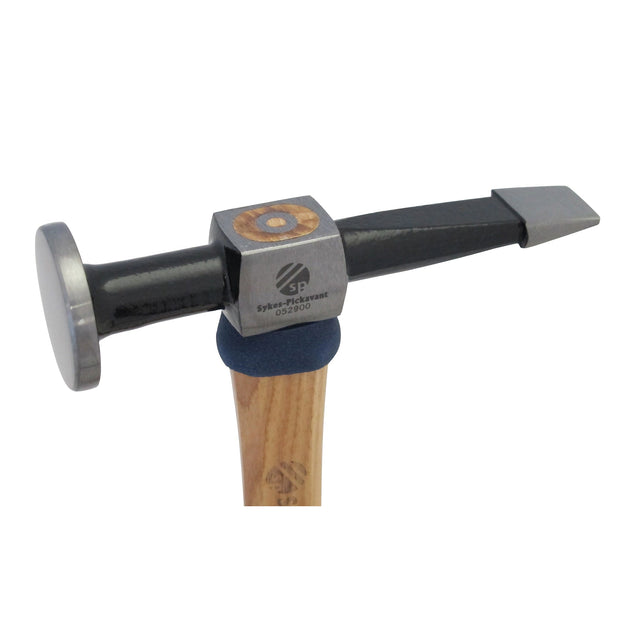

052900V2 Panel Beater Straight Pein & Finish - Flat Face
High quality investment casting alloy steel heads with hardened striking surfaces Fine quality octagonal wooden shafts fitted as standard Wood and steel wedged handles ensure maximum head retention with improved safety The heads have a tapered centre allowing the shaft to expand into the head & are secured with a double wedgeFlat Faced Hammers: Traditional flat faced hammers are designed to construct or reconstruct sheet metal vehicle components, as well as for the removal of small imperfections in sheet metal surfaces. The flat surface minimises distortion and limits the stretching effect of the hammer blow. Flat surface hammers require a high degree of precision so as not to crease the metal surface. Medium-weight, flat face finishing panel beater with straight pein- Round Face: 41mm- Square Face: N/A- Head Width: 130mm- Weight: 0.425kg
056000V2 Panel Beater Standard Bumping - Flat Face
High quality investment casting alloy steel heads with hardened striking surfaces Fine quality octagonal wooden shafts fitted as standard Wood and steel wedged handles ensure maximum head retention with improved safety The heads have a tapered centre allowing the shaft to expand into the head & are secured with a double wedgeFlat Faced Hammers: Traditional flat faced hammers are designed to construct or reconstruct sheet metal vehicle components, as well as for the removal of small imperfections in sheet metal surfaces. The flat surface minimises distortion and limits the stretching effect of the hammer blow. Flat surface hammers require a high degree of precision so as not to crease the metal surface. Medium-weight, flat face panel beater suitable for straightening thicker gauge metals where significant corrective force is required- Round Face: 41mm- Square Face: 38mm- Head Width: 97mm- Weight: 0.425kg
053000V2 Panel Beater Pick & Finishing - Flat Face
High quality investment casting alloy steel heads with hardened striking surfaces Fine quality octagonal wooden shafts fitted as standard Wood and steel wedged handles ensure maximum head retention with improved safety The heads have a tapered centre allowing the shaft to expand into the head & are secured with a double wedge Flat Faced HammersTraditional flat faced hammers are designed to construct or reconstruct sheet metal vehicle components, as well as for the removal of small imperfections in sheet metal surfaces. The flat surface minimises distortion and limits the stretching effect of the hammer blow. Flat surface hammers require a high degree of precision so as not to crease the metal surface. Medium-weight flat face panel beater with round point pick head designed to remove low spots when finishing- Round Face: 38mm- Square Face: N/A- Head Width: 135mm- Weight: 0.43kg
05620000 Panel Beater Light Bumping - Crowned Face
High quality alloy steel heads with hardened striking surfaces Fine quality octagonal wooden shafts fitted as standard Wood and steel wedged handles ensure maximum head retention with improved safety The heads have a tapered centre allowing the shaft to expand into the head & are secured with a double wedgeCrowned Faced HammersCrowned faced hammers are used for the same general purposes as flat faced hammers but are less likely to cause a crease if the hammer blow is not precise. The crowned face does however, produce more marked stretching around the impact area. Light-weight, crowned face panel beater suitable for applying measured force in area of light damage or on thinner gauge metal- Round Face: 32mm- Square Face: 25mm- Head Width: 89mm- Weight: 0.37kg
056100V2 Panel Beater Standard Bumping - Crowned Face
High quality investment casting alloy steel heads with hardened striking surfaces Fine quality octagonal wooden shafts fitted as standard Wood and steel wedged handles ensure maximum head retention with improved safety The heads have a tapered centre allowing the shaft to expand into the head & are secured with a double wedgeCrowned Faced Hammers: Crowned faced hammers are used for the same general purposes as flat faced hammers but are less likely to cause a crease if the hammer blow is not precise. The crowned face does however, produce more marked stretching around the impact area. Medium-weight, crowned face panel beater suitable for straightening thicker gauge metals where significant corrective force is required- Round Face: 41mm- Square Face: 38mm- Head Width: 97mm- Weight: 0.425kgOption also available for use on aluminium - 056100V2-AL
05680000 panel beater light bumping flat face
High quality investment casting alloy steel heads with hardened striking surfaces Fine quality octagonal wooden shafts fitted as standard Wood and steel wedged handles ensure maximum head retention with improved safety The heads have a tapered centre allowing the shaft to expand into the head & are secured with a double wedgeFlat Faced HammersTraditional flat faced hammers are designed to construct or reconstruct sheet metal vehicle components, as well as for the removal of small imperfections in sheet metal surfaces. The flat surface minimises distortion and limits the stretching effect of the hammer blow. Flat surface hammers require a high degree of precision so as not to crease the metal surface.Light-weight, flat face panel beater suitable for applying measured force in areas of light damage or on thinnergauge metal- Round Face: 32mm- Square Face: 25mm- Head Width: 89mm- Weight: 0.37kg
053700V2 Panel Beater Curved Pein - Crowned Face
High quality investment casting alloy steel heads with hardened striking surfaces Fine quality octagonal wooden shafts fitted as standard Wood and steel wedged handles ensure maximum head retention with improved safety The heads have a tapered centre allowing the shaft to expand into the head & are secured with a double wedgeCrowned Faced Hammers: Crowned faced hammers are used for the same general purposes as flat faced hammers but are less likely to cause a crease if the hammer blow is not precise.The crowned face does however, produce more marked stretching around the impact area. Medium-weight, crowned face finishing panel beater with curved pein for use where access is restricted- Round Face: 41mm- Square Face: N/A- Head Width: 142mm- Weight: 0.425kgOption also available for use on aluminium - 053700V2-AL
056500V2 Panel Beater Straight Pein & Finish - Crowned Face
High quality investment casting alloy steel heads with hardened striking surfaces Fine quality octagonal wooden shafts fitted as standard Wood and steel wedged handles ensure maximum head retention with improved safety The heads have a tapered centre allowing the shaft to expand into the head & are secured with a double wedgeCrowned Faced Hammers: Crowned faced hammers are used for the same general purposes as flat faced hammers but are less likely to cause a crease if the hammer blow is not precise. The crowned face does however, produce more marked stretching around the impact area. Medium-weight, crowned face finishing panel beater with straight pein- Round Face: 41mm- Square Face: N/A- Head Width: 130mm- Weight: 0.425kgOption also available for use on aluminium - 056500V2-AL
056600V2 Panel Beater Pick & Finishing - Crowned Face
High quality investment casting alloy steel heads with hardened striking surfaces Fine quality octagonal wooden shafts fitted as standard Wood and steel wedged handles ensure maximum head retention with improved safety The heads have a tapered centre allowing the shaft to expand into the head & are secured with a double wedgeCrowned Faced Hammers: Crowned faced hammers are used for the same general purposes as flat faced hammers but are less likely to cause a crease if the hammer blow is not precise. The crowned face does however, produce more marked stretching around the impact area. Medium-weight crowned face panel beater with round point pick head designed to remove low spots when finishing - Round Face: 38mm- Square Face: N/A- Head Width: 135mm- Weight: 0.43kgOption also available for use on aluminium - 056600V2-AL
056900V2 Panel Beater Shrinking & Flat Face Hammer
High quality investment casting alloy steel heads with hardened striking surfaces Fine quality octagonal wooden shafts fitted as standard Wood and steel wedged handles ensure maximum head retention with improved safety The heads have a tapered centre allowing the shaft to expand into the head & are secured with a double wedgeFlat Faced Hammers: Traditional flat faced hammers are designed to construct or reconstruct sheet metal vehicle components, as well as for the removal of small imperfections in sheet metal surfaces. The flat surface minimises distortion and limits the stretching effect of the hammer blow. Flat surface hammers require a high degree of precision so as not to crease the metal surface. Medium-weight flat face shrinking hammer, specifically designed for panel beating on slightly stretched areas of metal Twin head with 1 x round flat face and 1 x square, cross milled face- Round Face: 41mm- Square Face: 38mm- Head Width: 97mm- Weight: 0.425kg
051000-AL L Shaped Spoon
Slim spoon designed for panel beating work in restricted areas, particularly on smaller vehicles Blade features a slow taper along its length
054301V2 thin curved dolly
Lightweight curved dolly suitable for a wide variety of panel beating tasks - reforming beads and mouldings, reshaping panels, raising low spots- Length: 125mm- Width: 55mm- Depth: 37mm- Weight: 0.90kgOption also available for use on aluminium - 054301V2-AL
054801V2 thin toe dolly
Lightweight thin toe dolly enables access in difficult to reach areas 1 x flat face and 1 x curved face- Length: 115mm- Width: 56mm- Depth: 25mm- Weight: 0.86kgOption also available for use on aluminium - 054801V2-AL
054901V2 anvil dolly
Anvil Dolly 054901V2 General purpose dolly with two curved faces- Length: 102mm- Width: 72mm- Depth: 62mm- Weight: 1.40kg
05500100 grid toe dolly
Convex curved grid-pattern face which assists in shrinking stretched areas of metal- Length: 120mm- Width: 58mm- Depth: 28mm- Weight: 1.16kg
055201V2 utility dolly
Double-ended general purpose dolly with two curved faces- Length: 76mm- Width: 57mm- Depth: 58mm- Weight: 1.15kgOption also available for use on aluminium - 055201V2-AL
05540100 heel dolly
Semi-circular model, ideal for rounded and contoured panels 1 x flat face and 1 x convex face- Length: 80mm- Width: 61mm- Depth: 30mm- Weight: 0.65kgOption also available for use on aluminium - 055401-AL
05550100 Double Ended Round Wedge Dolly
Double Ended Round Wedge Dolly for panel beatingLength: 124mmWidth: 54mmDepth: 44mm
05570100 round head dolly
Double-ended dolly for re-shaping rounded and contoured panels 1 x domed and 1 x flat round surface- Length: 56mm- Width: 56mm- Depth: 56mm- Weight: 0.73kg
055801V2 heavy toe dolly
Heavyweight toe dolly enables access in difficult to reach areas 1 x flat face and 1 x curved face- Length: 125mm- Width: 60mm- Depth: 30mm- Weight: 1.37kg
05730000 Pry & Surfacing Spoon
Spoons are used for bumping and prying and can also be used instead of a dolly when direct access to the rear of a panel is obstructed. The choice of spoon depends on the original contour of the metal, the amount of access available and the proposed action (i.e. roughing or levelling). Specially designed for panel beating work in restricted areas and for separating outer panels from inner frame structure- Length: 295mm- Width: 50mm- Weight: 0.85kgOption also available for use on aluminium - 057300-AL
05740000 general purpose spoon
Spoons are used for bumping and prying and can also be used instead of a dolly when direct access to the rear of a panel is obstructed. The choice of spoon depends on the original contour of the metal, the amount of access available and the proposed action (i.e. roughing or levelling).General Purpose Spoon 05740000 Multi-purpose double ended spoon which is designed for panel beating where access is restricted and separating the outer panels from the inner frame structure- Length: 295mm- Width: 40mm- Weight: 1.10kg
05780000 angled surface spoon
Spoons are used for bumping and prying and can also be used instead of a dolly when direct access to the rear of a panel is obstructed. The choice of spoon depends on the original contour of the metal, the amount of access available and the proposed action (i.e. roughing or levelling).Angled Surfacing Spoon 05780000 Multi-purpose surfacing spoon,with specially designed angled head for panel beating work in restricted areas.For example separating outer panels from inner frame structure depending on the amount of access available- Length: 185mm- Width: 45mm- Weight: 1.56kg

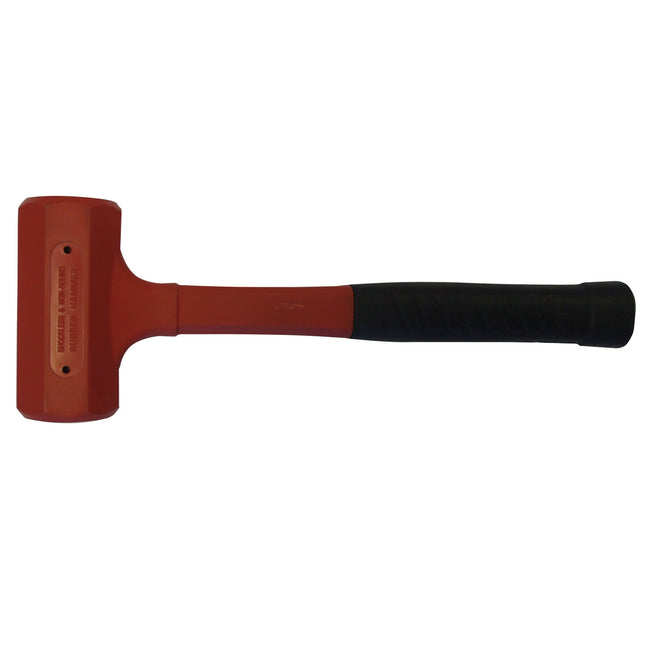

69026500 Dead Blow Hammer - 16oz
Ideal for assembly and maintenance applications Composite Handle

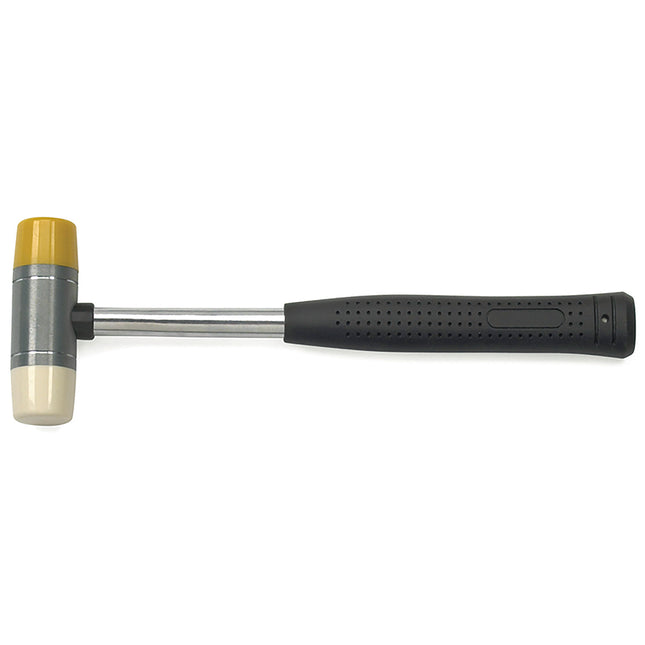

69027500 Soft Face Hammer - 12oz
Ideal for light assembly applications Comfortable anti-slip grip
058500TH Body Repair Kit - Thatcham
œThatcham Accredited Body Repair Tool Kit 058500THœThe first Body Repair Tool Kit to achieve Thatcham accreditation General purpose 13 piece set of Body Repair Tools approved by Thatcham for Insurance Approved Body Repair work Supplied in steel tool box (52700000) Contents:- 052900V2 - Panel Beater Straight Pein and Finish Flat Face- 053000V2 - Panel Beater Pick and Finishing Flat Face- 053700V2 - Panel Beater Pein and Finish Crowned Face- 056900V2 - Panel Beater Flat Face and Shrinking Face- 054301V2 - Thin Curved Dolly- 054801V2 - Thin Toe Dolly- 055201V2 - Utility Dolly- 05730000 - Pry & Surfacing Spoon- 05940000 - Bumping Tool - Flat- 05710100 - Adjustable Body Blade Holder- 05711100 - 9tpi Standard Cut Body Blade- 05711200 - 12tpi Fine Cut Body Blade- 05711500 - 6tpi Plasticut Body Blade
05280000 Panel Beater Double Ended Shrinking Hammer
High quality investment casting alloy steel heads with hardened striking surfaces Fine quality octagonal wooden shafts fitted as standard Wood and steel wedged handles ensure maximum head retention with improved safety The heads have a tapered centre allowing the shaft to expand into the head & are secured with a double wedgeShrinking Hammers: Useful in the final stages of panel finishing when slightly stretched areas of metal can be encountered. In using this type of beater, small amounts of metal are forced into the spaces created by the cross milling. They can also be used on cold aluminium but working on sheet steel will be quicker if heat is applied to the area. Whenever possible, such beating should be carried out on the inside of the panel to minimise resurfacing needed prior to painting. Syke-Pickavant does not recommend using the same individual tools on aluminium and steel.Panel Beater Double Ended Shrinking Hammer 05280000 Medium-weight, flat face shrinking hammer, specifically designed for panel beating on slightly stretched areas of metal Specially designed cross milled heads improves stretched areas by forcing small amounts of metal into spaces created by cross milling- Round Face: 41mm- Square Face: 38mm- Head Width: 97mm- Weight: 0.425kg
05602000 Replacement Hammer Shaft
Replacement Hammer Shaft for Panel Beating Hammers
