Heavy Duty (HGV/PSV)

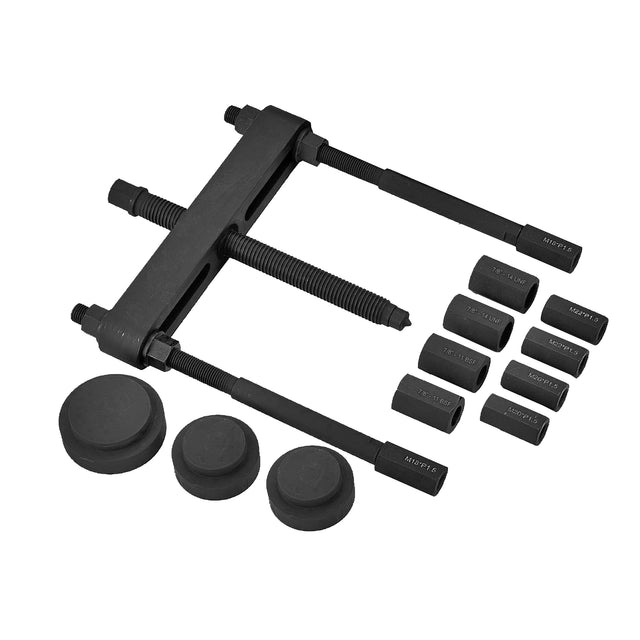

Universal wheel HUB extractor Variable for pitch circle diameter up to 445mm   To suit wheel stud sizes commonly found on DAF, MAN, MERC, RENAULT, SCANIA & VOLVO models   Contains 5 x thread adaptor pairs; - M18 x P1.5 x 65mm/L - M20 x P1.5 x 65mm/L - M22 x P1.5 x 65mm/L - 7/8" - 11 BSF - 7/8" - 14 UNF

Read more less

Use this tool kit to remove and refit slotted bushes properly. The slight conical grinding makes it possible to extract and reuse bushes without damage. The tools may be fit directly on the vehicle without removing entire axes components. Pressers may also be used on the workshop press. By means of the locking device and relating half-shells, bushes are pre-tensioned carefully and parallel to one another so they can be pressed easily into their seat. While the bush is often damaged using commercial tapered sockets, the assembly operations do not damage/deform/detach the bearing's cover when this locking device system is used. The half-shells are fixed securely inside the locking device so they will not slip out. The kit includes a wide selection of the most common applications with high market coverage. Other half-shell kits will soon follow to ensure the subsequent removal of the system. Due to the partly enormous forces required especially for removal, the kit includes GO1012 12T Hydraulic cylinder , which is optimal for integrations.   20017000 Hand Operated Hydraulic Aluminium Pump is required in order to operate the kit Application Ø 75mm MB Actros (stabilizer) Ø 70mm MAN Ø 68mm MAN (front spring) ROR, SAF Ø 66mm IVECO Eurostar (driver’s cabin) Ø 65mm MB Actros (stabilizer), Atego Ø 63mm DAF Ø 60mm MB/IVECO Eurostar (stabilizer), Renault Kerax, Magnum, Premium (leaf spring eye) Ø 58mm MB 3229 B, 652, 650/Volvo Ø 56mm IVECO Eurostar (driver’s cabin)

Read more less

For the removal and installation of split / spring eye bushes on HGV vehicles Uses a unique clamping system and 2 x sets of shells for MB & DAF (63mm and 75mm) When used with a hydraulic pump (20017000/20017500) the kit allows the operator to work in a limited access environment and so reduce the amount of disassembly work required Includes clamp assembly, 2 x shells - 63mm and 75mm plus hydraulic components Applications:Mercedes Benz, Mercedes Benz Actros / Atego and DAF

Read more less

For the removal and installation of split / spring eye bushes on HGV vehicles Uses a unique clamping system and a series of shells for a range of bush sizes from 56mm Dia to 75mm Dia. Allows the operator to work in a limited access environment and so reduce the amount of disassembly work required Comprehensive kit includes clamp assembly, 9 x shells - 56mm / 58mm / 60mm / 63mm / 65mm / 66mm / 68mm / 70mm / 75mm plus hydraulic componentsApplications:Mercedes Benz, MAN, MAN Front Spring, IVECO Eurostar, Mercedes Benz Actros, Atego, DAF and Volvo 20017000 Hand Operated Hydraulic Aluminium Pump is required in order to operate the kit

Read more less

Use this tool kit to remove and refit slotted bushes properly. The slight conical grinding makes it possible to extract and reuse bushes without damage. The tools may be fit directly on the vehicle without removing entire axes components. Pressers may also be used on the workshop press. By means of the locking device and relating half-shells, bushes are pre-tensioned carefully and parallel to one another so they can be pressed easily into their seat. While the bush is often damaged using commercial tapered sockets, the assembly operations do not damage/deform/detach the bearing's cover when this locking device system is used. The half-shells are fixed securely inside the locking device so they will not slip out. The kit includes a wide selection of the most common applications with high market coverage. Other half-shell kits will soon follow to ensure the subsequent removal of the system. Due to the partly enormous forces required especially for removal, the use of a hydraulic cylinder is recommended. The Govoni 12-ton hydraulic cylinder is therefore optimal for integrations.  (See kit GO1310R to purchase with the GO1012 Hydraulic Cylinder) Application Ø 75mm MB Actros (stabilizer) Ø 70mm MAN Ø 68mm MAN (front spring) ROR, SAF Ø 66mm IVECO Eurostar (driver’s cabin) Ø 65mm MB Actros (stabilizer), Atego Ø 63mm DAF Ø 60mm MB/IVECO Eurostar (stabilizer), Renault Kerax, Magnum, Premium (leaf spring eye) Ø 58mm MB 3229 B, 652, 650/Volvo Ø 56mm IVECO Eurostar (driver’s cabin)

Read more less

Designed specifically for the removal of 10 stud 22.5 HGV wheels Pulls inner and outer wheels on twin or single wheel hubs 12 tonne hydraulic force dislodges the most difficult of seized rims Suitable for alloy or steel wheels (soft coated hook sets required for use on alloy wheels) Features: 12 tonne hydraulic ram system 2 Spigot ring sizes for most popular applications “ 281mm & 221mm 4 high strength chains 2 hook types specially designed for internal and external pulling applications Supplied in metal case Includes: 1 x 12T Self Contained Hydraulic Ram 1 x Main Beam 4 x Chains C/W Clevis Pins  4 x Hook - Internal 4 x Hook - External  1 x Pusher Ring Large 1 x Pusher Ring Small 4 x Connecting Rods 1 x Spigot Bung Assembly 1 x Metal Box 1 x Trolley *Soft coated hooks shown but not supplied - available separately

Read more less
