Rams & Cylinders

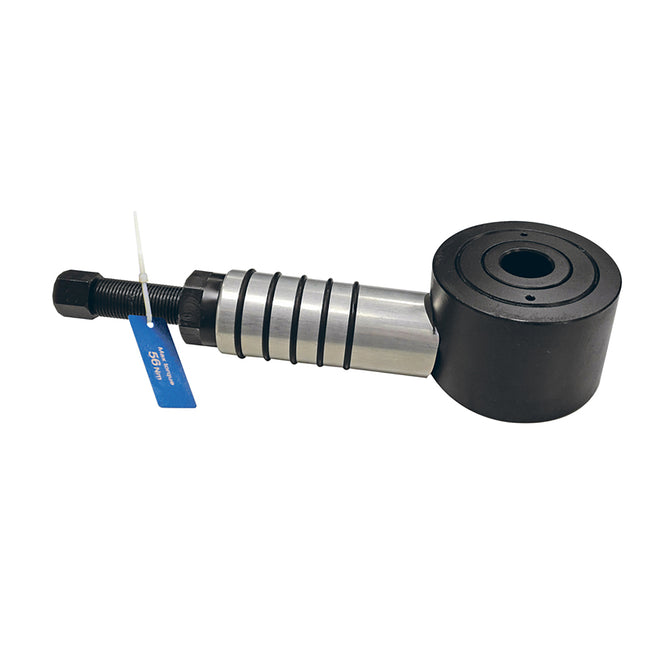

GO1010 - Mechadraulic Cylinder 12 Tonne
Allows application of up to 12 tons of mechadraulic force which can be used to provide a controlled force in place of the mechanical effort required when using the GO410 / GO426 Technical data: Dimensions: 80 x 55 mm Stroke: 8 mm Driving torque: 67Nm Weight: 2.5 Kg Hole: 21.5 mm

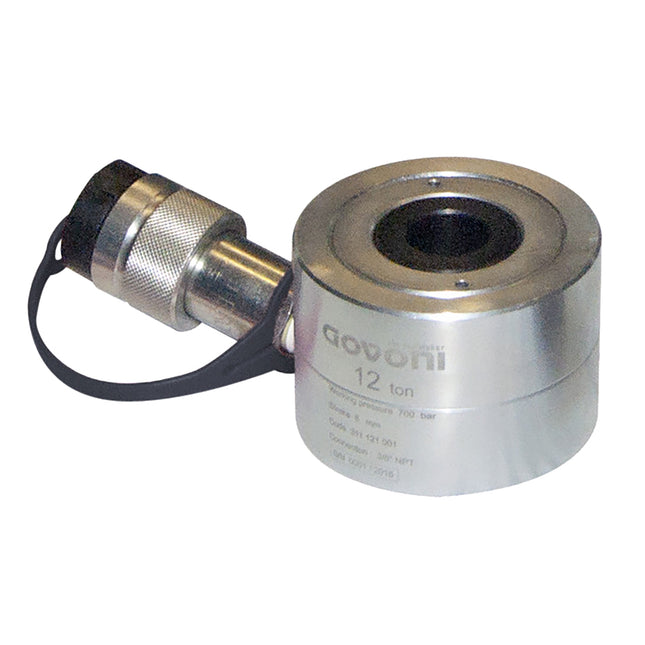

GO1012 - Hydraulic Cylinder Steel 12 Tonne
Technical data Force: 12ton Stroke: 8 mm. Dimensions: 80x55 mm Pressure: max. 700 Bar Hole: 21.5 mm Connection: 3/8" -18 NPT Material: steel
GO1015 - Mechadraulic Cylinder & Adaptor Kit 12 Tonne
Thanks to the use of aluminium, the cylinder combines the strength of steel with the light weight of this element. Non-slip grip on the handle. There are 4 bores on the body for fastening the cylinder. Applications include: injector removal; introduction of wheel hubs; general use in the loosening of very tight mechanical components. Technical data Force: 12tons Stroke: 8 mm Body dimensions: 98x80x50(h) mm Pressure: max. 700 Bar Hole: Ø 21,5 mm Driving torque: 56Nm Weight: 1,65 Kg Grease temperature range of use: from -25°C to 80°C Material: aluminium Adaptors: M10/M12/M14/M16/M18

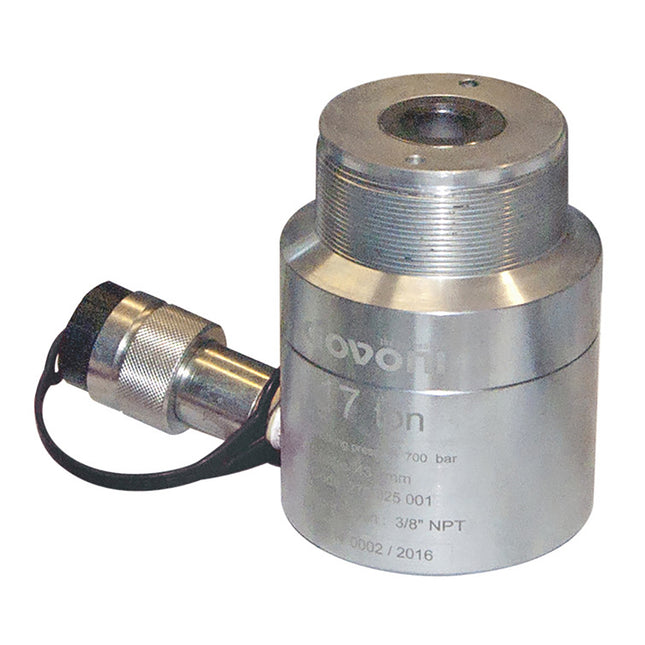

GO1017 - Hydraulic Cylinder 17 Tonne
Force: 17tonnes Stroke: 43 mm Dimensions: 90x155 mm Pressure: max. 700 Bar Hole: 20 mm Connection: 3/8" -18 NPT Outside connection thread: 2" 3/4-16 UN Material: steel

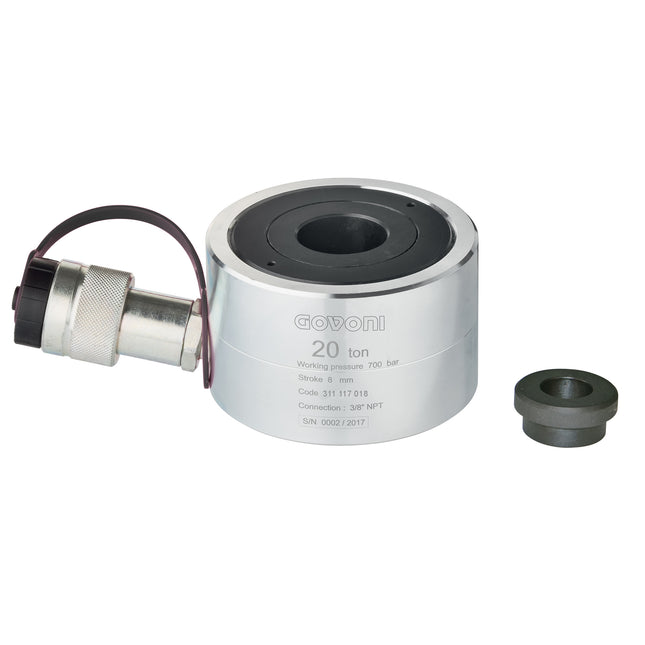

GO1020 - Hydraulic Cylinder 20 Tonne
Allows application of up to 20 tons of hydraulic force which can be used to provide a controlled force in place of the mechanical effort required when using the GO410 / GO426 Technical data: Dimensions: 100 x 60 Stroke: 8 mm Pressure: 700 Bar Weight: 3,04 Kg Hole: 33 Coupling connection thread 3/8" -18 NPT

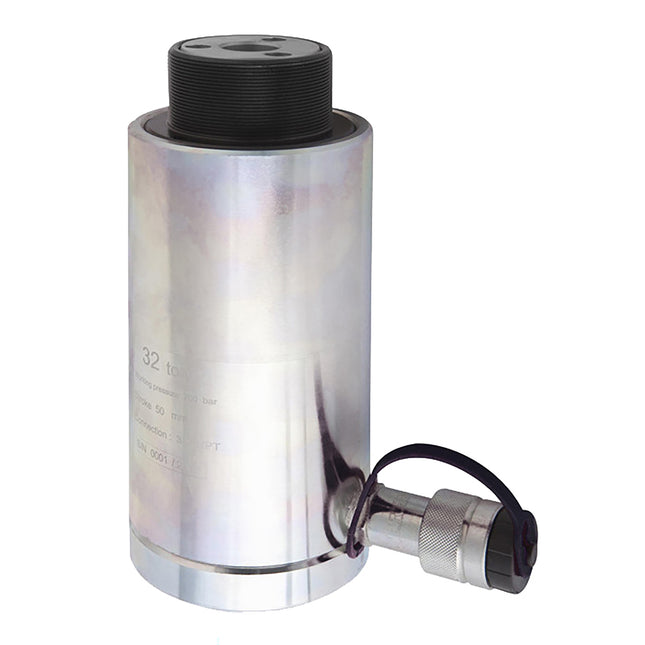

GO1032 - Hydraulic Cylinder - Steel 32 Tonne
Provides up to 32 tons of controlled hydraulic force Dimensions: 104 x 261 mm Stroke: 50 mm Pressure: max. 700 Bar Hole: 21.5 mm Connection: 3/8" -18 NPT Inner thread: M24 x 2 Outside connection thread: 2" 3/4-16 UN

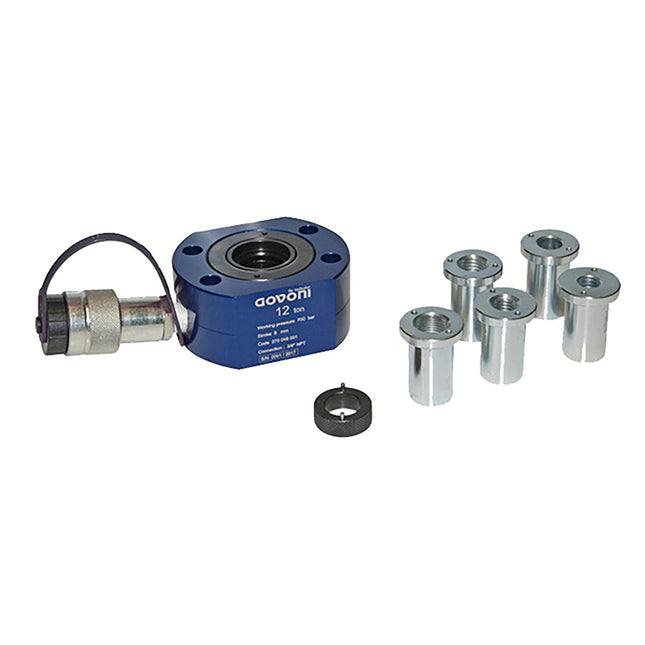

GO1050 - Hydraulic Cylinder - Aluminium 12 Tonne
The mechanical properties, the shape and dimension for which they were designed, ensure that Govoni hydraulic cylinders have a field of use to the automotive industry as: Injector disassembly Bearing, hub and silent block disassembly Coaxial unlocking of very tight mechanical components. Equipped with 5 threaded adaptors in order to fit the most relevant threaded bars on the market. Specifications Force: 12 Tonnes Stroke: 8 mm Dimensions: 80x50 mm Pressure: Max. 700 Bar Hole: 21.5 mm Connection: 3/8"-18 NPT Material: Aluminium Adaptors: M10/M12/M14/M16/M18

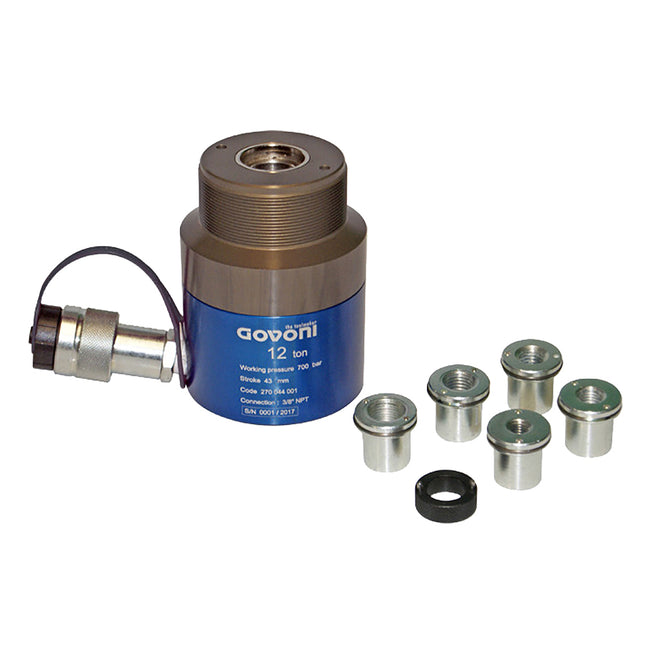

GO1060 - Hydraulic Cylinder - Aluminium 12 Tonne
The mechanical properties, the shape and dimensioning for which they were designed, ensure that Govoni hydraulic cylinders have a field of use to the automotive industry as: Injector disassembly; Bearing, hub and silent block disassembly; Coaxial unlocking of very tight mechanical components. Equipped with 5 threaded bushes in order to fit the most relevant threaded bars on the market. Specifications Provides up to 12 tons of controlled hydraulic force Dimensions: 90 x 155 mm Stroke: 43 mm Pressure: max. 700 Bar Hole: 20 mm Connection: 3/" -18 NPT Mounting Thread: 2 3/4-16 UN Adaptors: M10/M12/M14/M16/M18

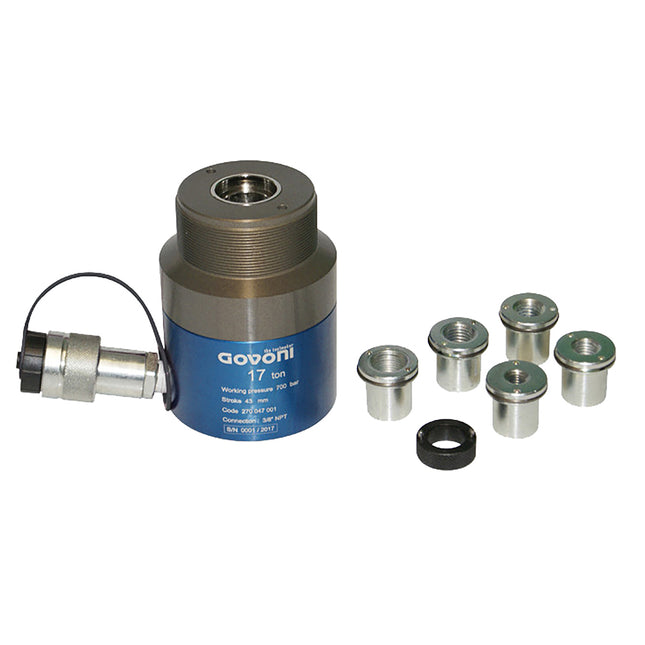

GO1061 - Hydraulic Cylinder - Aluminium 17 Tonne
The mechanical properties, the shape and dimensioning for which they were designed, ensure that Govoni hydraulic cylinders have a field of use to the automotive industry as: Injector disassembly; Bearing, hub and silent block disassembly; Coaxial unlocking of very tight mechanical components. Equipped with 5 threaded bushes in order to fit the most relevant threaded bars on the market. Specifications Provides up to 12 tons of controlled hydraulic force Dimensions: 90 x 155 mm Stroke: 43 mm Pressure: max. 700 Bar Hole: 20 mm Connection: 3/" -18 NPT Mounting Thread: 2 3/4-16 UN Adaptors: M10/M12/M14/M16/M18

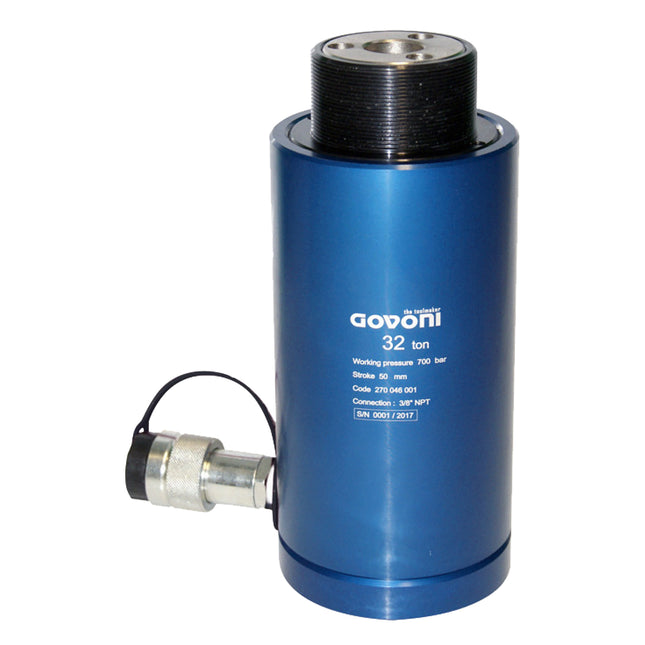

GO1070 - Hydraulic Cylinder - Aluminium 32 Tonne
The mechanical properties, the shape and dimensioning for which they were designed, ensure that Govoni hydraulic cylinders have a field of use to the automotive industry as: Injector disassembly; Bearing, hub and silent block disassembly; Coaxial unlocking of very tight mechanical components. Equipped with 5 threaded bushes in order to fit the most relevant threaded bars on the market. Specifications Provides up to 32 tons of controlled hydraulic force Dimensions: 104 x 261 mm Stroke: 50 mm Pressure: max. 700 Bar Hole: 21.5 mm Connection: 3/8" -18 NPT Inner thread: M24 x 2 Outside connection thread: 2 3/4-16 UN
