Glow Plug Service & Removal

Complete set for removing broken glow plugs: M8 x 1.0, M9 x 1.0, M10 x 1.0 and M10 x 1.25Quick and easy removal - also allows the user to restore the thread for installation of the new glow plugKit includes:4 x special milling cutter tools (3 pcs with 4 cuttings and 1 pc with 2 cuttings) with self-centering helicoidal tip for universal use - Individual centering adaptors are not required Specifications:Dimension A ‰¥ 14mm (M10)Dimension A ‰¥ 20mm (M9, M8)Dimension L ‰¤ 13mmL (thread)

Read more less

Universal Glow Plug Tip Extraction Set - Master M8X1-M9X1-M10X1-M10X1,25. Double Pulling SystemFor the extraction of the electrode terminal part of the glow plugs (M8, M9, M10) in the event of breakage or sticking inside the seat port, which is otherwise impossible to remove.The set includes all the tools needed to safely remove the terminal part of the glow plug electrode without damaging the cylinder head.This operation can be completed with a slide hammer or threaded extractor.

Read more less

Diesel Glow Plug Removal KitSize (mm) M8 x 1.0Popular Applications HDi 1.4 / 1.6, TDV6 Mercedes CDi  Sets of specialist drills and taps for the safe and effective removal of broken / damaged heater plugs Four kits available, covering the most popular sizes of heater plugs:- M8 x 1.0 / M9 x 1.0 / M10 x 1.0 / M10 x 1.25 Each set contains precision engineered components, allowing for the removal of broken parts, without damaging the engine block and leaving a clean cut thread for fitting of the replacement heater plug Full instruction supplied with each kitEach Kit Contains:1. Extractor Socket Set2. LH Fluted Drill “ 2 step3. LH Threaded Tap4. Threaded Tap5. Removal Tool & Impact Adaptor 08591000 Spare Parts: 085910-01 - Extractor Socket Set (Sizes 0,1,2) 085910-02 - Special LH 2 step drill 7mm x 150mm 085910-03 - LH Spiral Point Tap M6 085910-04 - Glow Plug Thread Tap M8 085910-05 - LH Extractor M6

Read more less

Can be used with any current diesel engines using threading sizes M8 x 1, M9 x 1, M10 x 1, M10 x 1.25 When extracting glow plugs, the glow plug tip (glow tube) often breaks and remains stuck in the cylinder head. The broken glow plug tips can be easily extracted with the help of this kit. The set of tools contains all of the tools needed to tap resilient threading into the end of the glow plug. Afterwards the glow plug tip will be extracted with the help of the extraction rod and a striking hammer. The drill will be guided precisely using the glow plug threading in the cylinder head. This will avoid any damage to the cylinder head. This set can be used with any current diesel motors using threading sizes: M8 x 1, M9 x 1, M10 x 1 and M10 x 1.25. Drilling tips implemented and reinforced for new ceramic glow plugs.   Applications: Citroën/Peugeot: 1.4, 1.6L HDI Ford: 1.4, 1.6L TDCI Mazda: 1.4 CD Suzuki: 1.4L DDIS Toyota: 1.4 HDI Volvo: 1.6D, etc. Components: 1 x core hole drill extension with a diameter of 2.5 for M8 x 1 and M9x1 1 x core hole drill extension with a diameter of 3.2 for M8 x 1 (special application) 1 x core hole drill extension with a diameter of 3.2 for M10 x 1 and M10 x 1.25 1 x M3 core hole drill extension for M8 x 1 and M9 x 1 1 x M4 thread tap extension for M8 x 1 (special application) 1 x M4 thread tap extension for M10 x 1 and M10 x 1.25 1 x M3 extra long extraction rod with cap nut for M8 x 1 and M9 x 1 1 x M4 extra long extraction rod with cap nut for M8 x 1 (special application) 1 x M4 extra long extraction rod with cap nut for M10 x 1 and M10 x 1.25 1 x striking hammer, weight 400g 1 x tap guide for M8 x 1 glow plug threads 1 x tap guide for M9 x 1 glow plug threads 1 x tap guide for M10 x 1 glow plug threads 1 x tap guide for M10 x 1.25 glow plug threads

Read more less

New modular system - the master kit contains the basic kit required to be able to use each specific module; as well as each modular component for M8 x 1.0, M9 x 1.0, M10 x 1.0 and M10 x 1.25 glow plugs Quick and easy removal - also allows the user to restore the thread for installation of the new glow plug Special sockets and milling cutters for the breaking and controlled removal of the glow plugs central electrode Sliding rod, extension and slide hammer to remove the stuck glow plus residues in the glow plugs seat Specifications:Dimension A ‰¥ 14mm (M10)Dimension A ‰¥ 20mm (M9, M8)Dimension L ‰¤ 13mmL (thread)Applications:M8x1Mercedes, Smart, VW, Fiat, Opel, Ford etc. M9x1Opel, Fiat, Alfa, Lancia (e.g. 1.3-2.3-3.0 JTD) etc. M10x1VW, Audi, Mercedes, BMW, Opel, PSA, Renault, Ford, Suzuki etc. M10x1,25VW, Audi, Toyota, Suzuki, Opel, Isuzu, Mercedes etc.

Read more less

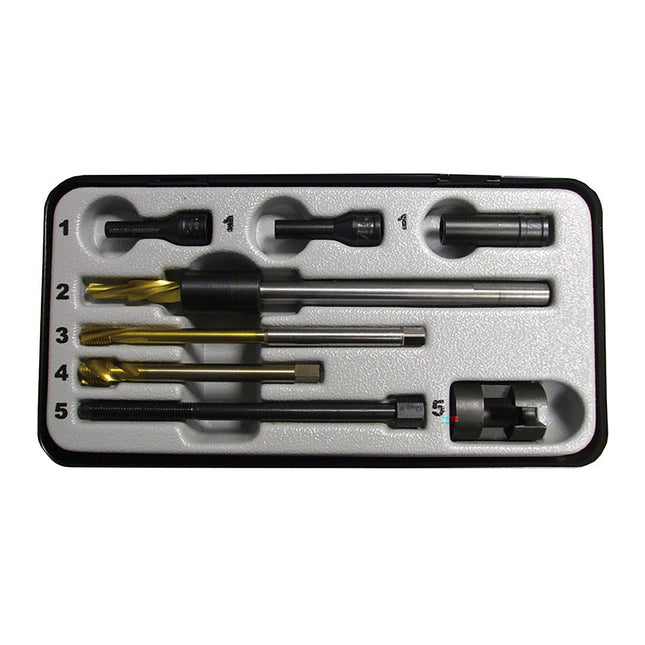

Diesel Glow Plug Removal KitSize (mm) M10 x 1.0Popular Applications HDi 2.0 / 2.2 BMW / Mercedes / VW  Sets of specialist drills and taps for the safe and effective removal of broken / damaged heater plugs Four kits available, covering the most popular sizes of heater plugs:- M8 x 1.0 / M9 x 1.0 / M10 x 1.0 / M10 x 1.25 Each set contains precision engineered components, allowing for the removal of broken parts, without damaging the engine block and leaving a clean cut thread for fitting of the replacement heater plug Full instruction supplied with each kitEach Kit Contains:1. Extractor Socket Set2. LH Fluted Drill “ 2 step3. LH Threaded Tap4. Threaded Tap5. Removal Tool & Impact Adaptor 08592000 Spare Parts: 085920-01 Extractor Socket Set (Sizes 0,1,2) 085920-02 Special LH 2 step drill 9mm x 180mm 085920-03 LH Spiral Point Tap M7 085920-04 Glow Plug Thread Tap M10 085920-05 LH Extractor M7

Read more less

Suitable for removing the final part of the electrode in case of breakage / seizure of the glow plug inside its seat Suitable for M8 sized glow plug tips Also suits M9 glow plug tip removal by using the same M8 size in the slightly larger M9 female thread of the cylinder head

Read more less

Suitable for removing the final part of the electrode in case of breakage / seizure of the glow plug inside its seat Suitable for M10 x 1.0 & M10 x 1.25

Read more less

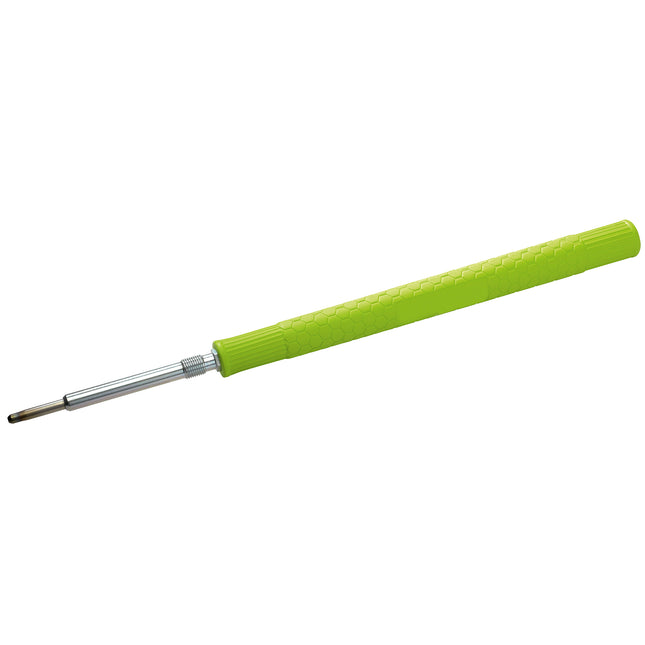

Flexible rubber tool for installing the first pitch on common rail glow plugs Also suitable for use on spark plugs Special anti-slip textured surface for ultimate grip For hard to reach spark and glow plugs Helps prevent cross-threading

Read more less

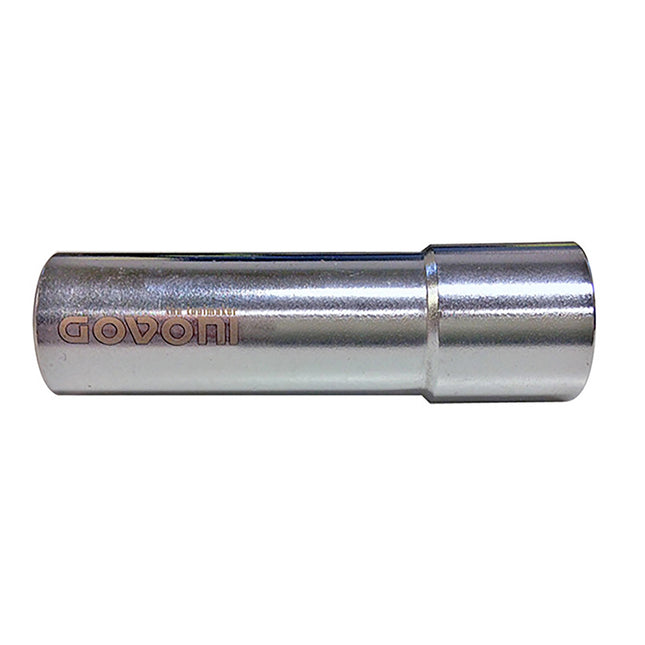

Thanks to the extracting bushes the extractors fit precisely to the glow plug seats, providing a perfect removal.Components1 x Ø 2.5 mm socket for glow plug removal

Read more less

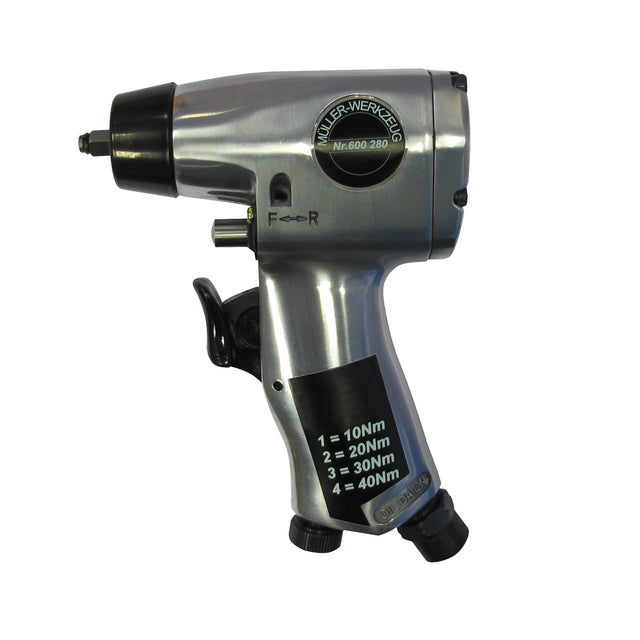

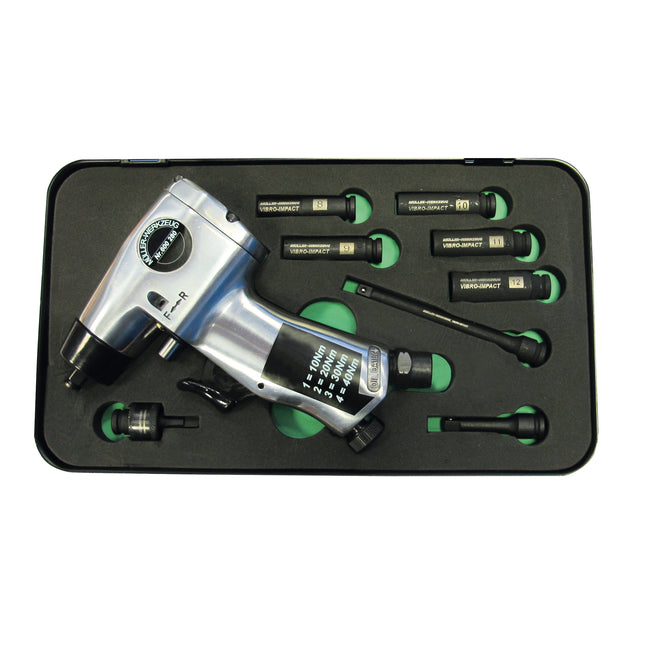

Vibro Impact Glow Plug Remover Set• For the safe, effective removal of 8mm, 9mm, 10mm, 11mm & 12mm glow plugs• Uses controlled impact torque to create vibration in order to loosen seizedglow plugs• The Vibro-Impact tool ‘loosens’ the seized glow plug, making it safe and easy to remove without the risk of broken plugs, and / or damaged cylinder heads• Includes 4 low-torque settings for controlled torque vibration (10, 20, 30, 40Nm)• Supplied with special long-reach 8, 9, 10, 11 & 12mm glow plug sockets, long and short extensions and Universal Joint for ease of access• This kit is also effective for: The removal of any small threaded fixings (up to 12mm thread size) e.g.- Spark Plugs (particularly useful for Ford and Alfa Romeo Twin Spark engines)- Exhaust manifold studs- Engine sump fixingsSquare Drive ¼"Max Torque- Right 40NmMax Torque - Left 10 / 20 / 30 / 40NmAir Inlet ¼"Air Consumption 250 ltrs / minSpeed 12,000 per minAir Supply 6.3bar / 90psiSpare Parts:• 08590170 - 1/4 Impact Gun• 08590470 - Impact Socket 10mm• 08595270 - Impact Socket 11mm• 08590270 - Universal Joint• 08590570 - Impact Socket 12mm• 08595370 - Short Extension• 08590370 - Impact Socket 8mm• 08595170 - Impact Socket 9mm• 08595470 - Long Extension

Read more less

Components: 1 x special long milling cutter (Ø4,5) and 1 x steel milling cutter (Ø8-4,5 mm) with 4 TiN-coated and self-centring cutting edges  1 x thread insert 12-28 UNF  1 x threaded male to create the thread to remove the glow plug 12-28 UNF 1 x threaded male to restore the M9x1 glow plugs thread

Read more less

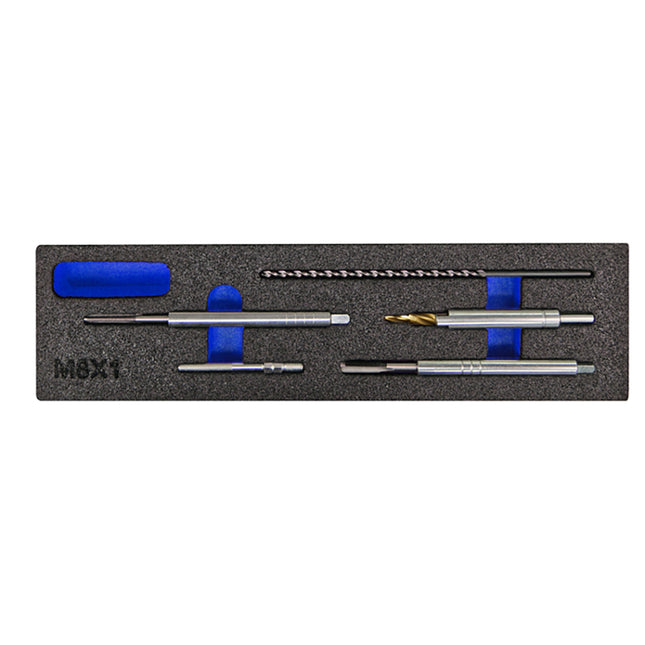

Components: 1 x special long milling cutter (Ø4,5) and steel milling cutter (Ø7-4,5 mm) with 4 TiN-coated and self-centring cutting edges 1 x thread insert 12-28 UNF 1 x threaded male to create the thread to remove the glow plug 12-28 UNF 1 x threaded male to restore the M8x1 glow plugs thread

Read more less

Components: 1 x special long milling cutter (Ø5,5) and 2 x steel milling cutters (Ø8,9-5,5 mm) with 4 TiN-coated and self-centering cutting edges  1 x thread insert 12-28 UNF  1 x threaded male to create the thread to remove the glow plug 12-28 UNF   2 x threaded male to restore the glow plugs thread (M10x1; M10x1,25)

Read more less

Components:3 x steel reamers with cutting edges set at an angle of 63, 93 and 123 degrees, depending on the glow plug‘s seat angle: 1 x M8x1/123°/Ø4,5 mm  1 x M10x1/63°/Ø5,5 mm  1 x M10x1/93°/Ø4,5 mm  2 x centering guides (1 x M8x1; 1 x M10x1) 1 x allen key 2 mm

Read more less
