Loadstar Hydraulic Pullers

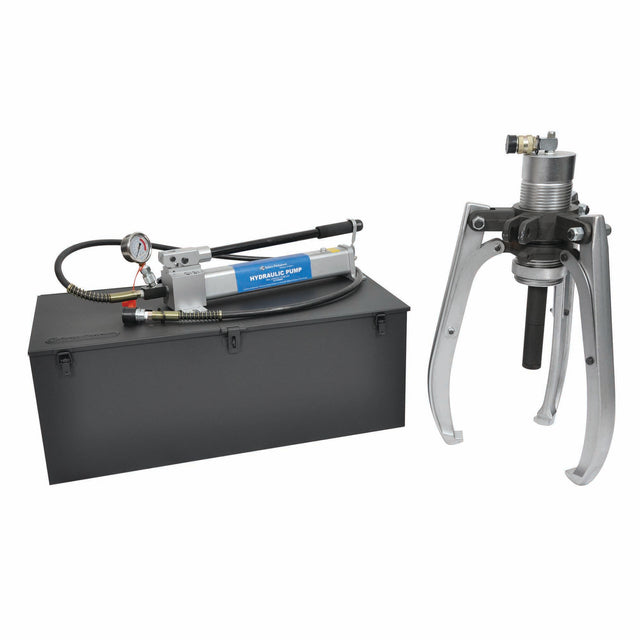

20102000 - Loadstar Puller 20 Tonne
Hydraulic Loadstar - Loadstar Pullers Self centering self locking puller legs, grip increases as load increases Easy one man operation 2 and 3 way options 360 degree swivel hose coupling for optimum access Lightweight aluminium hydraulic pump include Selection of ram extension rods supplied to increase stroke In-built safety valve to prevent overloading Loadstar Puller 20 Tonne 20T Hydraulic Ram and Pump Puller and pump supplied in steel storage case Selection of 4 ram extension rods supplied to increase stroke Supplied in steel storage cases Dimensions: Spread 570mm Reach 365mm Contents: 20017000 1 x Hydraulic Pump Assembly 21720000 1 x High Pressure Hose 1.8m Long 21790000 1 x Gauge & Gauge Block 20102010 1 x Hydraulic Ram 20102014 1 x Leg Assembly 20102012 1 x Head Assembly - Upper 20102013 1 x Head Assembly - Lower 20102020 1 x Ram Extension Set (4 piece) Also available without pump as part number - 20152000
20101200 - Loadstar Puller 12 Tonne
Self centering self locking puller legs, grip increases as load increases Easy one man operation 2 and 3 way options 360 degree swivel hose coupling for optimum access Lightweight aluminium hydraulic pump included Selection of ram extension rods supplied to increase stroke In-built safety valve to prevent overloading Loadstar Puller 12 Tonne 12T Hydraulic Ram and Pump Selection of 4 ram extension rods supplied to increase stroke Puller supplied in sturdy plastic storage case Pump supplied in steel storage case Dimensions: Spread 485mm Reach 305mm Also available without pump as part number - 20101270
20101270 - Loadstar Puller 12 Tonne (Less Pump)
Self centering self locking puller legs, grip increases as load increases Easy one man operation 2 and 3 way options 360 degree swivel hose coupling for optimum access Selection of ram extension rods supplied to increase stroke In-built safety valve to prevent overloading Loadstar Puller 12 Tonne 12T Hydraulic Ram Selection of 4 ram extension rods supplied to increase stroke Puller supplied in sturdy plastic storage case Dimensions: Spread 485mm Reach 305mm Also available with pump as part number - 20101200
20017000 - Hydraulic Aluminium Pump - Hydraulic / Hand Operated
Portable & lightweight aluminium bodied hydraulic pumps fitted with gauge, hydraulic heavy duty hose and ¾ hydraulic coupler Hand Operated pump Pressure Rating: 10,000 psi / 700 bar Designed for use with single acting cylinders Automatic overload relief valve protects hydraulic components Automatic two speed operation - High flow for low resistance and low flow for high resistance Spare Parts21720000 1 x High Pressure Hose - 1.8m long21740000 1 x Quick Coupling - complete21740100 1 x Quick Coupling - male21790000 1 x Gauge & Gauge Block
20017170 - Hydraulic Aluminium Pump - Hand Operated (Without Storage Tin)
Portable & lightweight aluminium bodied hydraulic pump fitted with gauge, hydraulic heavy duty hose and ¾ hydraulic coupler Hand Operated pump Pressure Rating: 10,000 psi / 700 bar Designed for use with single acting cylinders Automatic overload relief valve protects hydraulic components Automatic two speed operation - High flow for low resistance and low flow for high resistance Spare Parts21720000 1 x High Pressure Hose - 1.8m long21740000 1 x Quick Coupling - complete21740100 1 x Quick Coupling - male21790000 1 x Gauge & Gauge BlockPart number 20017000 includes storage tin
20017500 - Hydraulic Aluminium Pump - Air Powered / Foot Operated
Portable & lightweight aluminium bodied hydraulic pumps fitted with gauge, hydraulic heavy duty hose and ¾ hydraulic coupler Pressure Rating: 10,000 psi / 700 bar Designed for use with single acting cylinders Automatic overload relief valve protects hydraulic components Foot pedal control Unique inlet and outlet design features a low noise exhaust system Spare Parts21720000 1 x High Pressure Hose - 1.8m long21740000 1 x Quick Coupling - complete21740100 1 x Quick Coupling - male21790000 1 x Gauge & Gauge Block
20102010 Hydraulic Ram for Loadstar Puller 20 Tonne
Hydraulic Ram for Loadstar Puller 20 Tonne
20014500 Extractor Pin 50 x 150 for Loadstar "Plus" 20T Kit
Extractor Pin 50 x 150 for Loadstar œPlus 20 Tonne Kit
20014400 - Extractor Pin 25 x 150
Extractor Pin 25 x 150 for Loadstar 'Plus' 20 Tonne Kit
20014600 Extractor Pin 38 x 150 for Loadstar "Plus" 20T Kit
Extractor Pin 38 x 150 for Loadstar œPlus 20 Tonne Kit
20014700 Extractor Pin 18 x 75 for Loadstar "Plus" 20T Kit
Extractor Pin 18 x 75 for Loadstar œPlus 20 Tonne Kit
20014800 - Extractor Pin 20 x 150mm
Extractor Pin 20 x 150 for Loadstar 'Plus' 20 Tonne Kit
20019200 - Leg Extension incl. Pins & Nuts
Leg Extension incl. Pins & Nuts for Loadstar "Plus" 20T, 30T and 50T kits
20028300 Twin Beam - Loadstar "Plus" 20T Kit
Loadstar œPlus 20 Tonne KitTwin Beam
20101212 Head Assembly - Upper for Loadstar Puller 12 Tonne
Head Assembly - Upper for Loadstar Puller 12 Tonne
20101220 Ram Extension Set (4 piece) for Loadstar Puller 12 Tonne
Ram Extension Set (4 piece) for Loadstar Puller 12 Tonne
20101213 Head Assembly - Lower for Loadstar Puller 12 Tonne
Head Assembly - Lower for Loadstar Puller 12 Tonne
20102013 Head Assembly - Lower for Loadstar Puller 20 Tonne
Head Assembly - Lower for Loadstar Puller 20 Tonne
20102012 Head Assembly - Upper for Loadstar Puller 20 Tonne
Head Assembly - Upper for Loadstar Puller 20 Tonne
20201000 - 20 Tonne Loadstar "Plus" Basic Kit (minus pump)
Loadstar Plus Heavy Duty Pullers offer a comprehensive range of pulling and extracting options Available in 20 Tonne, 30 Tonne and 50 Tonne Choices range from fully equipped Comprehensive Kits or basic entry level puller kits with the capability to add on extra packs as required These extra packs consist of Separator packs, Accessory Packs and in the 20 Tonne version there is also a Press Frame pack available The Loadstar Plus series is a versatile range with a range of options to suit all heavy duty pulling and extraction situations 20201000 - 20 Tonne Loadstar "Plus" Basic Kit (minus pump) 20T Hydraulic Cylinder Capability as per 20200000 for those customers who already have a suitable hydraulic pump (10,000 psi) with standard 3/4" hydraulic quick coupler Supplied in steel storage case 3 x Cranked legs 3 x Straight legs 3 x Leg extensions‹ Dimensions: Spread 530mm Reach 760mm
20200000 - 20 Tonne Loadstar "Plus" Basic Kit
20 Tonne Loadstar "Plus" Entry Level Kit Loadstar "Plus" Heavy Duty Pullers offer a comprehensive range of pulling and extracting options Available in 20 Tonne, 30 Tonne and 50 Tonne Choices range from fully equipped "Comprehensive Kits" or basic entry level puller kits with the capability to add on extra packs as required These extra packs consist of Separator packs, Accessory Packs and in the 20 Tonne version there is also a Press Frame pack available The Loadstar Plus series is a versatile range with a range of options to suit all heavy duty pulling and extraction situations 20200000 - 20 Tonne Loadstar "Plus" Basic Kit 20T Hydraulic Cylinder and Pump 3 pulling combinations Supplied in steel storage case 3 x Cranked legs 3 x Straight legs 3 x Leg extensions‹ Dimensions: Spread 530mm Reach 760mm
20102020 Ram Extension Set (4 piece) Leg Assembly for Loadstar Puller 20 Tonne
Ram Extension Set (4 piece) Leg Assembly for Loadstar Puller 20 Tonne
20102014 Leg Assembly for Loadstar Puller 20 Tonne
Leg Assembly for Loadstar Puller 20 Tonne
20203000 - 20 Tonne Loadstar "Plus" Accessories Add-On Pack
Loadstar Plus Heavy Duty Pullers offer a comprehensive range of pulling and extracting options. Available in 20 Tonne, 30 Tonne and 50 Tonne. Choices range from fully equipped Comprehensive Kits or entry level puller kits with the capability to add on extra packs as required. These extra packs consist of Separator packs, Accessory Packs and in the 20 Tonne version there is also a Press Frame pack available. The Loadstar Plus series is a versatile range with a range of options to suit all heavy duty pulling and extraction situations. 20 Tonne Loadstar "Plus" Accessories Add-On Pack Provides a range of accessories which increase the capability of the entry level kit (with or without the Separator Add-On pack). Includes 5 extractor (pushing) pins for those hard to reach applications. Auto-grip collar and adaptor for quick change of pins. Ram bases and heads for jacking applications. Supplied in steel storage case.
20204000 - 20 Tonne Loadstar "Plus" Press Frame Add-On Pack
Loadstar Plus Heavy Duty Pullers offer a comprehensive range of pulling and extracting options. Choices range from fully equipped Comprehensive Kits or entry level puller kits with the capability to add on extra packs as required. These extra packs consist of Separator packs, Accessory Packs and in the 20 Tonne version there is also a Press Frame pack available. The Loadstar Plus series is a versatile range with a range of options to suit all heavy duty pulling and extraction situations. 20 Tonne Loadstar "Plus" Press Frame Add-On Pack Press frame assembly to add portable press capability. Particularly useful for removal of HGV suspension King Pins. Includes 5 extractor (pushing) pins for those hard to reach applications. Auto -grip collar and adaptor for quick change of pins. Supplied in steel storage case.
20202000 20 Tonne Loadstar "Plus" Separator Add-on Pack
20 Tonne Loadstar "Plus" Separator Add-on Pack Provides all additional components to add bearing separator capability to the entry level kit without any duplication of parts Supplied in steel storage case ‹ Dimensions: Spread - 50 - 175mm Reach - 420mm Capacity - 20 Tonne
20205000 - 20 Tonne Loadstar "Plus" Comprehensive Kit
Loadstar Plus Heavy Duty Pullers offer a comprehensive range of pulling and extracting options Choices range from fully equipped Comprehensive Kits or entry level puller kits with the capability to add on extra packs as required These extra packs consist of Separator packs, Accessory Packs and in the 20 Tonne version there is also a Press Frame pack available The Loadstar Plus series is a versatile range with a range of options to suit all heavy duty pulling and extraction situations 20205000 - 20 Tonne Loadstar "Plus" Comprehensive Kit 20T Hydraulic Cylinder and Pump Contains full capability without any duplication of parts 6 pulling combinations Bearing separator capability Portable press frame included Internal pulling unit included Supplied in 2 steel storage cases 3 x Cranked legs 3 x Straight legs 3 x Leg extensions Dimensions: Spread 530mm Reach 760mm
20208300 Loadstar Steel Storage Case for Loadstar "Plus" 20T, 30T & 50T
Loadstar Steel Storage Case for Loadstar "Plus" 20T, 30T & 50T
20300000 - 30 Tonne Loadstar "Plus" Basic Kit
Loadstar Plus Heavy Duty Pullers offer a comprehensive range of pulling and extracting options Available in 20 Tonne, 30 Tonne and 50 Tonne Choices range from fully equipped Comprehensive Kits or basic entry level puller kits with the capability to add on extra packs as required These extra packs consist of Separator packs, Accessory Packs and in the 20 Tonne version there is also a Press Frame pack available The Loadstar Plus series is a versatile range with a range of options to suit all heavy duty pulling and extraction situations 20300000 - 30 Tonne Loadstar "Plus" Entry Level Kit 30T Hydraulic Cylinder and Pump 4 pulling combinations Supplied in steel storage case 3 x Cranked legs 3 x Straight legs 3 x Leg extensions‹ Dimensions: Spread 530mm Reach 580mm
20208400 Steel Storage Case
Steel Storage Case for Loadstar Pullers
20301000 - 30 Tonne Loadstar "Plus" Basic Kit (minus pump)
Loadstar Plus Heavy Duty Pullers offer a comprehensive range of pulling and extracting options Available in 20 Tonne, 30 Tonne and 50 Tonne Choices range from fully equipped Comprehensive Kits or basic entry level puller kits with the capability to add on extra packs as required These extra packs consist of Separator packs, Accessory Packs and in the 20 Tonne version there is also a Press Frame pack available The Loadstar Plus series is a versatile range with a range of options to suit all heavy duty pulling and extraction situations 20301000 - 30 Tonne Loadstar "Plus" Entry Level Kit (minus pump) 30T Hydraulic Cylinder Capability as per 20300000 kit for those customers who already have a suitable hydraulic pump (10,000 psi) with standard 3/4 hydraulic quick coupler Supplied in steel storage case‹ Dimensions: Spread 530mm Reach 580mm
20500000 - 50T Loadstar "Plus" Basic Kit
Loadstar Plus Heavy Duty Pullers offer a comprehensive range of pulling and extracting options Available in 20 Tonne, 30 Tonne and 50 Tonne Choices range from fully equipped Comprehensive Kits or basic entry level puller kits with the capability to add on extra packs as required These extra packs consist of Separator packs, Accessory Packs and in the 20 Tonne version there is also a Press Frame pack available The Loadstar Plus series is a versatile range with a range of options to suit all heavy duty pulling and extraction situations 20500000 - 50 Tonne Loadstar "Plus" Entry Level Kit 50T Hydraulic Cylinder and Pump 4 pulling combinations Supplied in steel storage case 3 x Cranked legs 3 x Straight legs 3 x Leg extensions Dimensions: Spread 530mm Reach 470mm
20501000 - 50T Loadstar "Plus" Basic Kit (minus pump)
Loadstar Plus Heavy Duty Pullers offer a comprehensive range of pulling and extracting options Available in 20 Tonne, 30 Tonne and 50 Tonne Choices range from fully equipped Comprehensive Kits or basic entry level puller kits with the capability to add on extra packs as required These extra packs consist of Separator packs, Accessory Packs and in the 20 Tonne version there is also a Press Frame pack available The Loadstar Plus series is a versatile range with a range of options to suit all heavy duty pulling and extraction situations 20501000 - 50 Tonne Loadstar "Plus" Entry Level Kit (minus pump) 50T Hydraulic Cylinder Capability as per 20500000 kit for those customers who already have a suitable hydraulic pump (10,000 psi) with standard 3/4" hydraulic quick coupler Supplied in steel storage case Dimensions: Spread 530mm Reach 470mm
20302000 - 30 Tonne Loadstar "Plus" Separator Add-On Pack
Loadstar Plus Heavy Duty Pullers offer a comprehensive range of pulling and extracting options Available in 20 Tonne, 30 Tonne and 50 Tonne Choices range from fully equipped omprehensive Kits or entry level puller kits with the capability to add on extra packs as required These extra packs consist of Separator packs, Accessory Packs and in the 20 Tonne version there is also a Press Frame pack available The Loadstar Plus series is a versatile range with a range of options to suit all heavy duty pulling and extraction situations 20302000 - 30 Tonne Loadstar "Plus" Separator Add-On Pack Provides all additional components to add bearing capability to the entry level kit without any duplication of parts Supplied in steel storage case‹ Dimensions: Spread - 50 - 175mm Reach - 860mm Capacity - 30 Tonne
20305000 - 30 Tonne Loadstar "Plus" Comprehensive Kit
Loadstar Plus Heavy Duty Pullers offer a comprehensive range of pulling and extracting options Available in 20 Tonne, 30 Tonne and 50 Tonne Choices range from fully equipped Comprehensive Kits or entry level puller kits with the capability to add on extra packs as required These extra packs consist of Separator packs, Accessory Packs and in the 20 Tonne version there is also a Press Frame pack available The Loadstar Plus series is a versatile range with a range of options to suit all heavy duty pulling and extraction situations 20305000 - 30 Tonne Loadstar "Plus" Comprehensive Kit 30T Hydraulic Cylinder and Pump Contains full capability without any duplication of parts. 5 pulling combinations Bearing separator capability Internal pulling unit included Supplied in 2 steel storage case 3 x Cranked legs 3 x Straight legs 3 x Leg extensions‹ Dimensions: Spread 530mm Reach 580mm Also available without pump as part number - 20305100
20505000 - 50T Loadstar "Plus" Comprehensive Kit
Loadstar Plus Heavy Duty Pullers offer a comprehensive range of pulling and extracting options Available in 20 Tonne, 30 Tonne and 50 Tonne Choices range from fully equipped Comprehensive Kits or entry level puller kits with the capability to add on extra packs as required These extra packs consist of Separator packs, Accessory Packs and in the 20 Tonne version there is also a Press Frame pack available The Loadstar Plus series is a versatile range with a range of options to suit all heavy duty pulling and extraction situations 20505000 - 50 Tonne Loadstar "Plus" Comprehensive Kit 50T Hydraulic Cylinder and Pump Contains full capability without any duplication of parts 5 pulling combinations Bearing separator capability Internal pulling unit included Supplied in 2 steel storage cases 3 x Cranked legs 3 x Straight legs 3 x Leg extensions Dimensions: Spread 530mm Reach 470mm Also available without pump as part number - 20505100
20502000 - 50T Loadstar "Plus" Separator Add-On Pack
Loadstar Plus Heavy Duty Pullers offer a comprehensive range of pulling and extracting options Available in 20 Tonne, 30 Tonne and 50 Tonne Choices range from fully equipped Comprehensive Kits or entry level puller kits with the capability to add on extra packs as required These extra packs consist of Separator packs, Accessory Packs and in the 20 Tonne version there is also a Press Frame pack available The Loadstar Plus series is a versatile range with a range of options to suit all heavy duty pulling and extraction situations 20502000 - 50 Tonne Loadstar "Plus" Separator Add-On Pack Provides all additional components to add bearing separator capability to the entry level kit without any duplication of parts Supplied in steel storage case‹ Dimensions: Spread - 50 - 475mm Reach - 750mm Capacity - 50 Tonne
21200000 - 20T Loadstar "Plus" Press Frame - Complete Kit
Loadstar Plus Heavy Duty Pullers offer a comprehensive range of pulling and extracting options. Choices range from fully equipped Comprehensive Kits or entry level puller kits with the capability to add on extra packs as required. These extra packs consist of Separator packs, Accessory Packs and in the 20 Tonne version there is also a Press Frame pack available. The Loadstar Plus series is a versatile range with a range of options to suit all heavy duty pulling and extraction situations. 20 Tonne Loadstar "Plus" Press Frame - Complete Kit 20T Hydraulic Cylinder and Pump. Stand alone portable press frame kit for pin pushing applications. Particularly useful for removal of HGV suspension King Pins. Includes 5 extractor (pushing) pins for those hard to reach applications. Auto-Grip collar and adaptor for quick change of pins. Supplied in steel storage case.
21200100 - 20T Loadstar "Plus" Press Frame - Complete Kit (minus pump)
20 Tonne Loadstar "Plus" Press Frame - Complete Kit (minus pump) As per 21200000 kit minus pumpCapability as per 21200000 kit - for those who already have a suitable hydraulic pump (10,000psi) with standard 3/4" hydraulic quick coupler 20T Hydraulic Cylinder. Stand alone portable press frame kit for pin pushing applications. Particularly useful for removal of HGV suspension King Pins. Includes 5 extractor (pushing) pins for those hard to reach applications. Auto-Grip collar and adaptor for quick change of pins. Supplied in steel storage case.
212050V2 - 20T Loadstar "Plus" Press Frame - Complete Kit (Optare)
Updated Kit now includes additional pins for use with 'Optare' Buses 2011- fitted with albion axles (Pin Ref: R1800058)20T Hydraulic Cylinder and PumpStand alone portable press frame kit for pin pushing applicationsParticularly useful for removal of HGV suspension King PinsIncludes x7 extractor (pushing) pins for those hard to reach applicationsAuto-Grip collar and adaptor for quick change of pinsSupplied in steel storage case
21740000 Quick Coupling - complete
Quick Coupling - complete for 20017000 Hydraulic Pump Assembly
21740100 - Quick Coupling - Male
3/8" NPT Quick Coupling - Male For use with 20017000 / 20017500 Hydraulic Aluminium Pumps
21720000 - High Pressure Hose 1.8m
High Pressure Hose 1.8m
21740200 Quick Coupling - female
Quick Coupling - female for 20017000 Hydraulic Pump Assembly
30025000 Connector for Loadstar "Plus" Kits
Connector for Loadstar "Plus" Kits
21790000 Gauge & Gauge Block
Gauge & Gauge Block for 20017000 Hydraulic Pump Assembly
20973100 - 100T Hydraulic Puller on Trolley
100T Puller supplied on Trolley for ease of raising to the height required, the puller can also be used without the trolley. Specifications Max Spread: 1080mm Max Reach: 656mm Length: 2070 mm Width: 936 mm Puller Minimum Height: 895 mm Puller Maximum Height 1250 mm Weight with Trolley: 590Kg Puller Weight: 400Kg
20305100 - 30 Tonne Loadstar "Plus" Comprehensive Kit (Less pump)
Loadstar Plus Heavy Duty Pullers offer a comprehensive range of pulling and extracting options Available in 20 Tonne, 30 Tonne and 50 Tonne Choices range from fully equipped Comprehensive Kits or entry level puller kits with the capability to add on extra packs as required These extra packs consist of Separator packs, Accessory Packs and in the 20 Tonne version there is also a Press Frame pack available The Loadstar Plus series is a versatile range with a range of options to suit all heavy duty pulling and extraction situations 20305000 - 30 Tonne Loadstar "Plus" Comprehensive Kit 30T Hydraulic Cylinder Contains full capability without any duplication of parts. 5 pulling combinations Bearing separator capability Internal pulling unit included Supplied in steel storage case 3 x Cranked legs 3 x Straight legs 3 x Leg extensions‹ Dimensions: Spread 530mm Reach 580mm Also available with pump as part number - 20305000
