WHEEL BEARING REMOVAL & INSTALLATION For the removal of bearings, races, sleeves etc Ideal tool for the removal of bearing rings from hubs, axles etc Removes the need for cutting tools - greatly reduces bearing ring removal time Unique patented design - specially designed cutting edges on puller legs Legs ut and are pressed into the radius behind the bearing ring ˜Loose / Tight pulling principal means force is applied evenly at all points on the bearing ring Suitable for all types of bearings and rings from 40 - 60mm diameter Supplied in plastic toolbox for safe storage Specification: Spread: 40-60mm Reach: 85mm

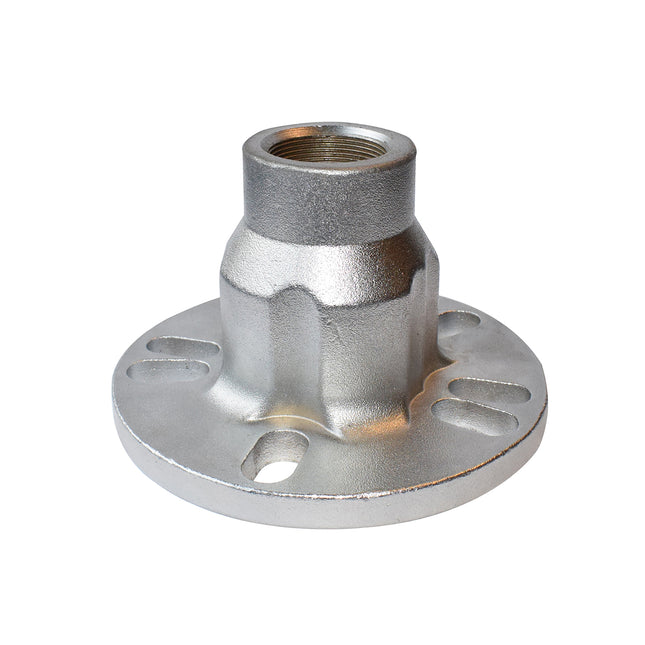

Universal hub puller plate with 8 slots for maximum coverage Plate Diameter 145mm Stud Range 84-140mm Suitable for use with Hydraulic Ram 180000V2, Mechanical Screw 12731100, Slide Hammer 08520900 with adaptor 08531270.
Universal hub puller plate with 8 slots for maximum coverage. Plate Diameter 145mm Stud Range 84-140mm Supplied with 180000V2 - 12T ram for hydraulic removal where more power is required (Ensure Ram is well lubricated before use)

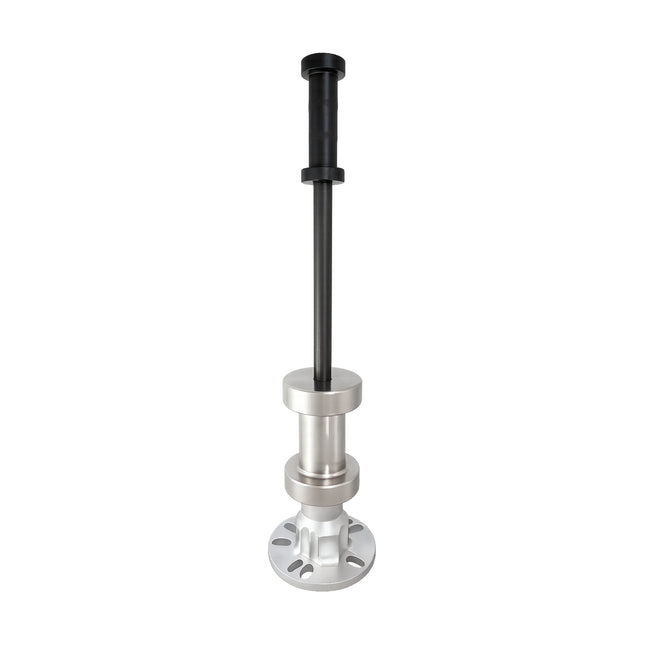

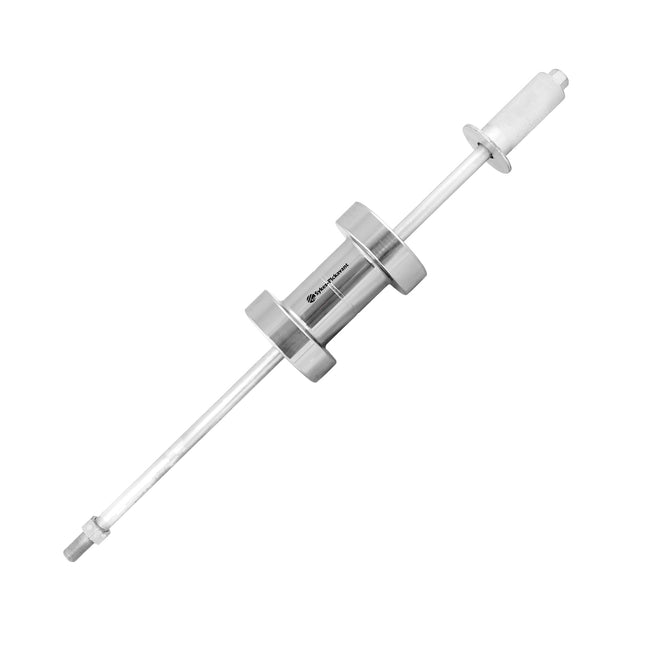

Universal hub puller plate with 8 slots for maximum coverage Plate Diameter 145mm Stud Range 84-140mm Supplied with 08520900 Slide hammer with 5KG / 10lbs weight (plus 08531270 adaptor)
Universal hub puller plate with 8 slots for maximum coverage Plate Diameter 145mm Stud Range 84-140mm Supplied with 12731100 force screw, suitable for use with air tool (Ensure force screw is well lubricated before use)
Universal hub puller plate with 8 slots for maximum coverage Plate Diameter 145mm Stud Range 84-140mm Full kit with all options Supplied with: 180000V2 Hydraulic Ram 08520900 Slide Hammer with 08531270 Adaptor 12731100 Force Screw Supplied in metal tin

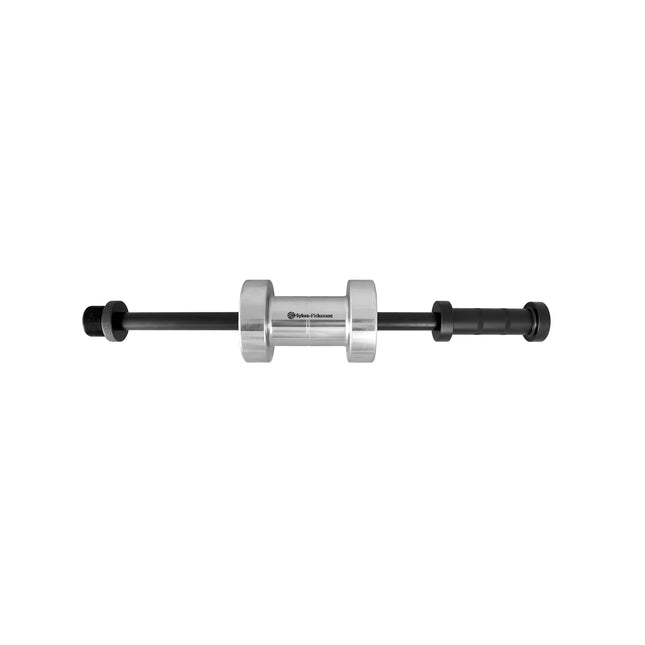

For when greater impact is required Hub pullers can be further enhanced when using this heavy duty tool, which is fully compatible and can be fitted directly into the Puller Ring PlateSlide Hammer Shaft Thread - M20 x 2.5Adaptor Thread - 1 1/2" 16tpi WhitworthFull Length - 840mmWorking Length - 700mm

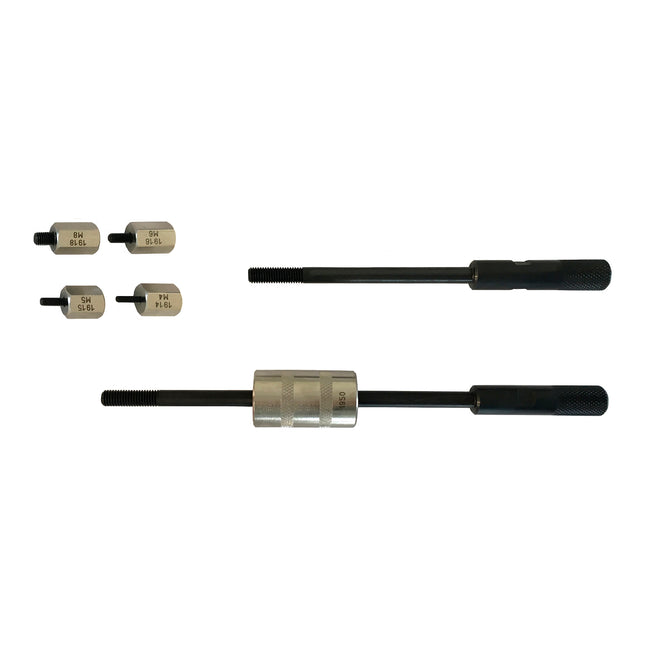

For the extraction of tapped dowels from their location holes Kit includes Slide Hammer & Adaptors Contents: M10 Slide Hammer M4 Adaptor M5 Adaptor M6 Adaptor M8 Adaptor

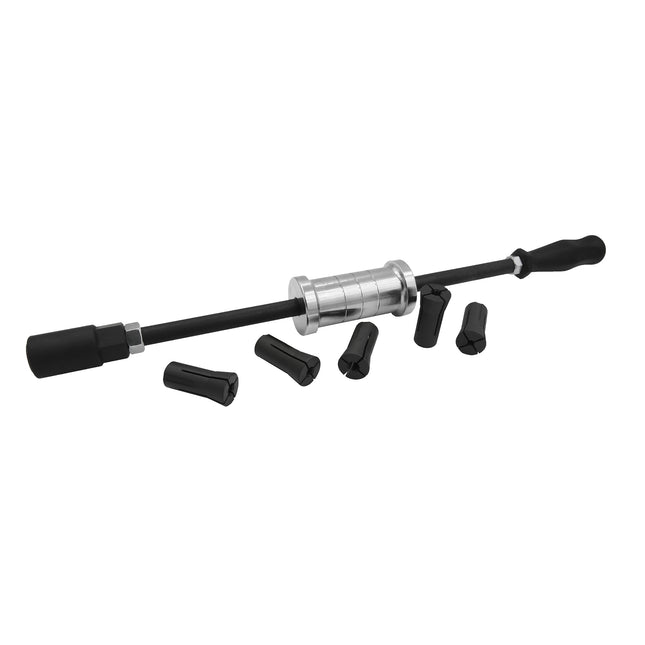

For the extraction of tapped dowels from their location holes Kit includes Slide Hammer & Adaptors Contents: ½ UNF Slide Hammer 3/8 Convertor 5/8 Convertor M6 x 1mm Adaptor M8 x 1.25mm Adaptor M10 x 1.5 Adaptor M12 x 1.75mm Adaptor M14 x 2mm Adaptor M16 x 2mm Adaptor M18 x 2.5 Adaptor M20 x 2.5mm Adaptor Adaptor Configuration
Tapered collets thread onto stud, even where only a few threads are exposed The collet is drawn into the housing and clamped onto stud by tightening the housing bolt Reduces possibility of damage to stud threads Prevents shearing or damaging stud/ workpiece by avoiding bottoming or shouldering studs 6 collet sizes; 6mm, 8mm, 10mm, 12mm, 14mm & 16mm

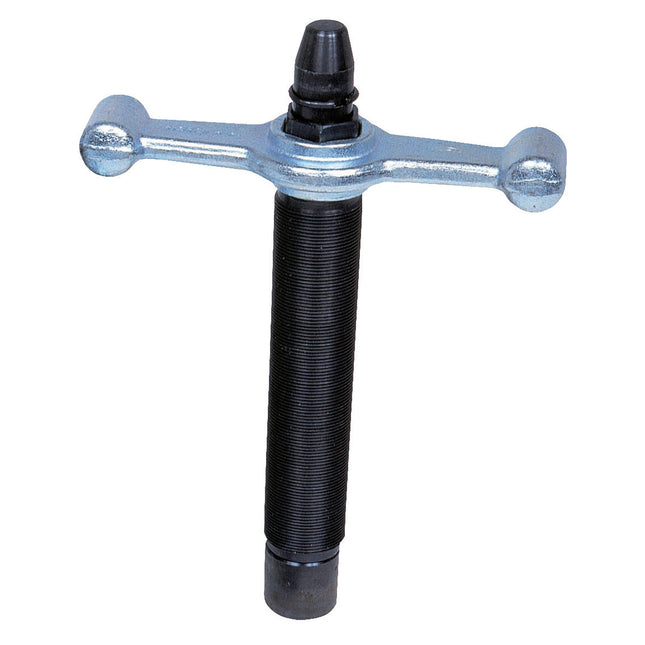

Heavy duty force screw with impact handle included, where shock action is required Can be used as an alternative option in place of 8 and 12 tonne rams as used on in SP Pullers and Press Frames
New design includes pre-loading 30mm hex, 2” extension and foam cut out for storage. Standard power unit for SP hydraulic pulling options and can also be used with many alternative SP puller applications e.g. 3 leg pullers, ball joint pullers, hub pullers, suspension bush removers etc Diameter 1 1/2" Thread 16tpi Whitworth Grease filled. Direct force improves stability under load. Provides maximum withdrawal force of 80kN. New hex head makes it possible to increase pre-load capability up to 4 tonnes (with the use of a 30mm wrench). When hydraulic power is applied, the full force is achieved with little loss of ram travel. As the workpiece starts to release, more stroke and power can be applied to ensure a good safe removal.

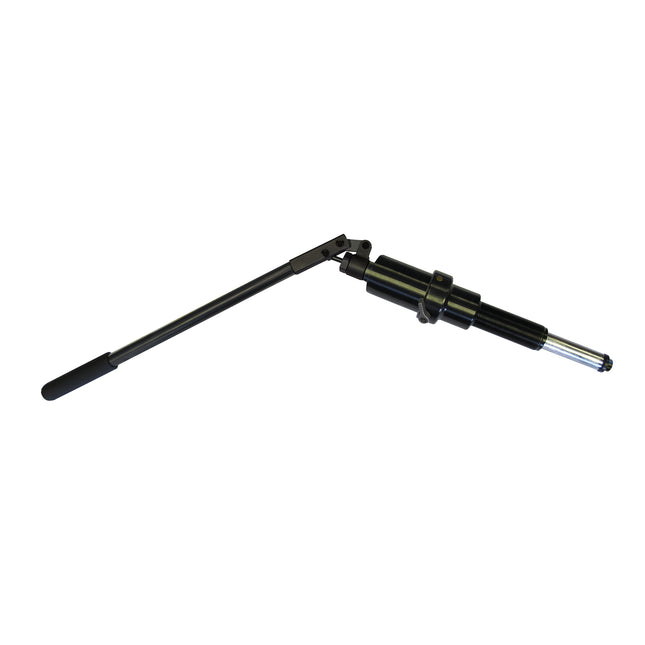

Measurable 8 tonnes of pressure capacity. 85mm of travel allows for reduced setting operations and saves time. 4 x faster output operation than standard 1500 Series ram. Removable handle can be rotated 360°. Integrated pressure relief control valve opens at 8 tonnes and cannot be overloaded. Oil hydraulics work in any position - even upside down. Features piston with spring return. Compatible with the 1500 Series Puller Range where the 8 Tonne Hydraulic Ram is used. Note: Images showing legs / beams and universal press frame not included - Shown for illustration purposes only
Large Capacity Universal Puller Kit Suitable for applications with a large span Includes two pairs of setting sleeves to ensure pulling length is equal for each leg; less time is spent levelling nut position Use of the puller without setting sleeves is possible however more care is needed to guarantee successful levelling Suitable for use with air tools Internal / external reversible legs - can also be used for internal applications Ideal for use on bearings, gears and brake discs Dimensions: Reach: 295mm with 1 setting sleeve 340mm with 2 setting sleeves 250 - 340mm with no setting sleeves Spread: 0mm - 400mm
NEW DESIGN UPGRADE - NOW INCLUDES PRE-LOADING 30MM HEXIncludes: 2” extension and foam cut-out for storage Standard power unit for SP suspension products and is 50% more powerful than the original SP1500 Series 8 tonne ram, creating reliable power for tough applications Can achieve up to 4 tonnes of mechanical force prior to hydraulic operation Diameter 1 1/2" Thread 16tpi Whitworth N.B. Due to the thread being the same as the 1500 series ram it can be used with our hydraulic puller range but all of the components in that range are rated at 10T and so if you chose to use this ram it is at your own risk and Sykes Pickavant cannot be held responsible for any accidents or component damage

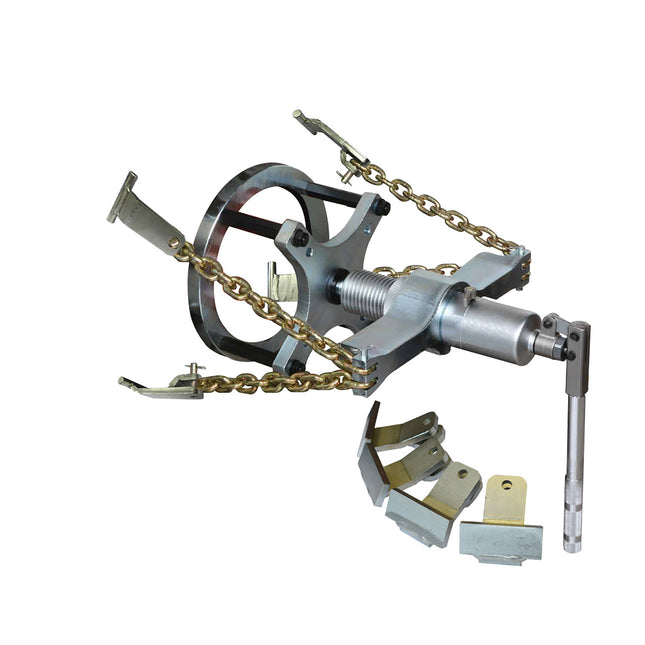

Designed specifically for the removal of 10 stud 22.5 HGV wheels Pulls inner and outer wheels on twin or single wheel hubs 12 tonne hydraulic force dislodges the most difficult of seized rims Suitable for alloy or steel wheels (soft coated hook sets required for use on alloy wheels) Features: 12 tonne hydraulic ram system 2 Spigot ring sizes for most popular applications “ 281mm & 221mm 4 high strength chains 2 hook types specially designed for internal and external pulling applications Supplied in metal case Includes: 1 x 12T Self Contained Hydraulic Ram 1 x Main Beam 4 x Chains C/W Clevis Pins 4 x Hook - Internal 4 x Hook - External 1 x Pusher Ring Large 1 x Pusher Ring Small 4 x Connecting Rods 1 x Spigot Bung Assembly 1 x Metal Box 1 x Trolley *Soft coated hooks shown but not supplied - available separately

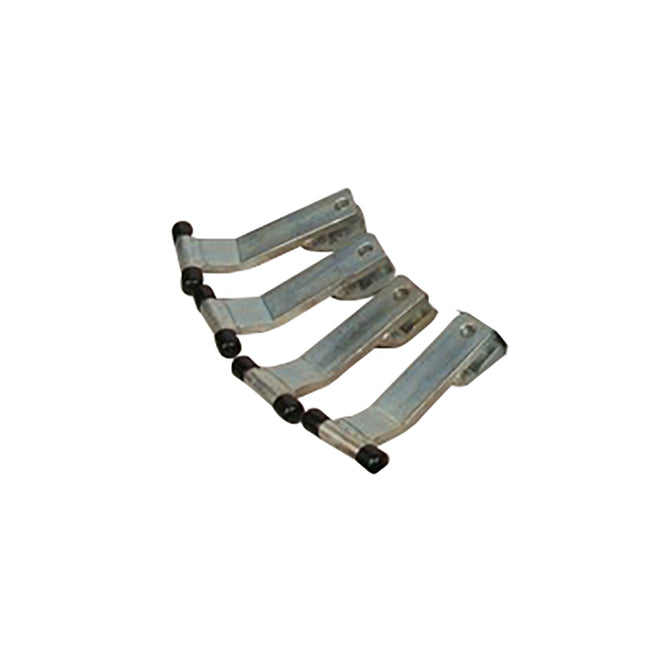

For use with 20880000 - HGV Hydraulic Wheel Puller 4pc Internal Hooks Suitable for alloy wheels

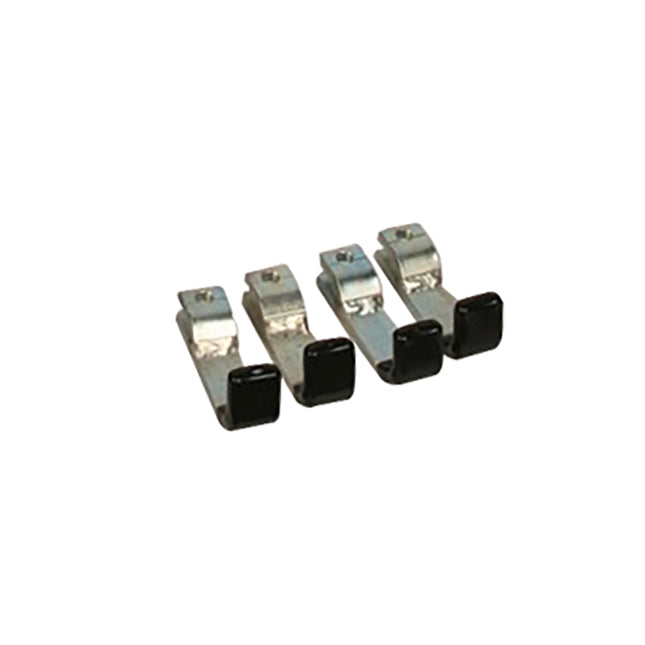

For use with 20880000 - HGV Hydraulic Wheel Puller 4pc External Hooks Suitable for alloy wheels

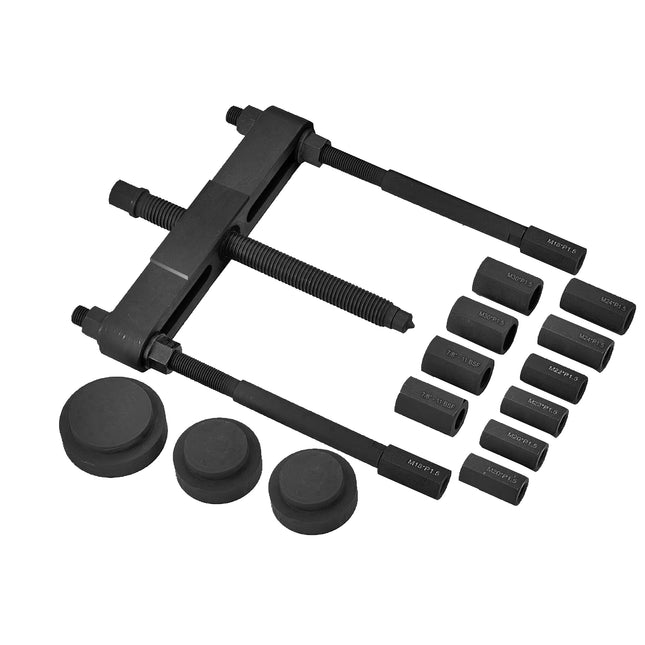

Universal wheel HUB extractor Variable for pitch circle diameter up to 445mm To suit wheel stud sizes commonly found on DAF, MAN, MERC, RENAULT, SCANIA & VOLVO models Contains 5 x thread adaptor pairs; - M18 x P1.5 x 65mm/L - M20 x P1.5 x 65mm/L - M22 x P1.5 x 65mm/L - 7/8" - 11 BSF - 7/8" - 14 UNF

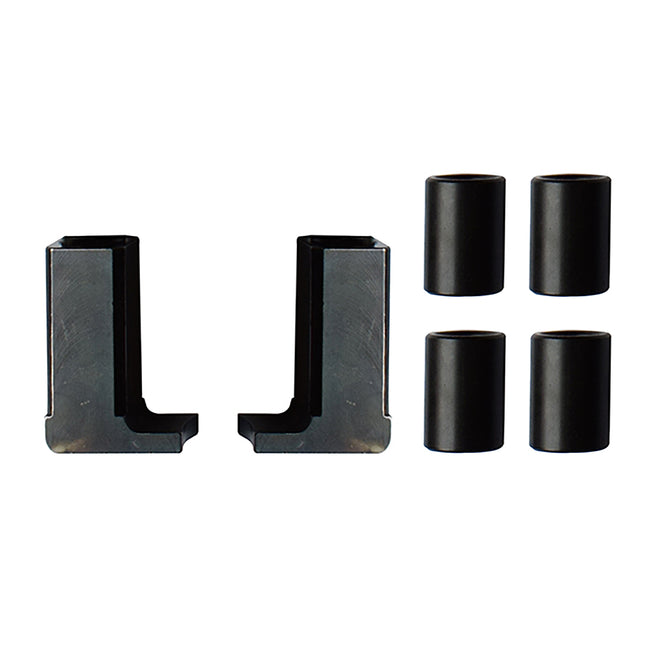

Use with 21027500 to provide internal / external pulling Includes two pairs of setting sleeves to ensure pulling length is equal for each leg; less time is spent levelling nut position
For pressing out seized and bonded drive shafts and also, with the optional Govoni slide hammer GO421, for removing the wheel hub Considerable time savings - no damage to the thread - wheel bearing is not damaged Optimised hole pitch for maximum coverage of models within the market Suitable for 2, 3, 4, 5 and 6-hole bolt pitch on hubs with stud bolts and wheel bolts Contents: 1 x extractor with mounting thread 1-1/2"-16G 1 x reducing adapter ring for mechanical spindle,1-1/2"-16G x M22x2.0 1 x mechanical spindle, M22x2 1 x pulling flange, 96-142 mm for 3, 4, 5 and 6- hole bolt hub, for M12/M14 bolts 5 x conical washers 1 x solid lubricant paste
Upgrade kit for the GO010 Universal Hub Puller and Drive Shaft SetUse this kit if the profile of the seat of the drive shaft's spline has a high degree of adjustment with respect to the profile of the seat of the hub's spline. The adapters in this kit can be used both on drive shafts secured with nuts (of commercial use) and those secured with bolts (VW/Audi for example). This set is also suitable for fitting the hub. Applications:VW/Audi/Seat/Skoda/BMW/Mercedes/Opel/Renault/Peugeot/Porsche (Cayenne) etc. Contents: 10 x pieces for traction sockets for outer thread drive shaft, M16 x 1.5 / M18 x 1.5 / M20 x 1.0 / M20 x 1.25 / M20 x 1.5 / M20 x1.0 / M22 x 1.5 / M24 x 1.5 / M27 x 1.5 / M30 x 1.5 2 x pieces for tie rods for inner thread-drive shaft, M14 x 1.5 / M16 x 1.5 1 x piece for adaptor-fitting M12 x 1.25 / M16 x 1.5 1 x piece for thrust screw M16 / M12, L=300 mm 1 x piece for bell-hub support, 1-1/2"x16 G 1 x piece for support bushing with thrust bearing 1 x piece for nut-traction M16 2 x pieces for adaptors to remove the joints from the drive shaft
Universal tool set for the replacement of inner bearings. Puller features a unique gripping principle that can also be used on flush bearing inner rings that remain on the wheel hub duringreplacement of the wheel bearing. When clamping with the clamping bell, the special cutting proï¬le of the clamping sleeves penetrates even the smallest working gaps resulting from theproduction process, ensuring removal without slippage. The bearing ring is fully gripped and removed without tilting. Also works in places where the ABS pulse wheel is ï¬rmly attached to the wheel hub (e.g. VW Golf). Supplied with 5 grippers suitable for the removal of bearings with a diameter of 35 to 61mm Applications: VW, Audi, BMW, Ford, Fiat, Mercedes, Opel, Renault, Peugeot & Volvo. The kit includes the bushing for mounting the mechadraulic screw (GO1016).
Universal kit for pressing out, pulling in and separating drive shafts as well as disassembling/assembling wheel hubs Suitable for vehicles such as SUVs & transporters with an M14 wheel attachment and bolt circle of up to Ã¸ 136mm The anti-swivel puller is suitable for common nuts and bolt-secured drive shafts (e.g. VW / Audi) Use the tools contained in the kit for proper assembly and disassembly procedures. Furthermore, components such as wheel bearings, silent blocks and ball joints, for example, will be preserved. Optimized hole pitch for maximum coverage of models within the market (for 2, 3, 4, 5 and 6-hole bolt pitch on hubs). The adaptors contained in the kit allow the use of CV joints, secured both by nuts (usually the common ones) and bolts (e.g.: VW/Audi). When an extreme force is required, max 17 Tonne, use mechadraulic screw GO1016 or hydraulic cylinder GO1061 (optional). Can be used with: 150000V2 - 8 Tonne Ram 180000V2 - 12 Tonne Ram 08530900 - Slide Hammer 12731100 - Shock Handle GO520 - Slide Hammer
Upgrade kit for the GO010 Universal Hub Puller and Drive Shaft SetThis kit ensures a strong flange connection with the hub and is also suitable for systems with wheel nuts and/or bolts. The user is not bound to the diameter of the hub edge since the hub's flange is placed 80mm or 90mm in front of the hub.Contents: 1 x Bolt adapter-set M12x1.25, 5pcs. 1 x Bolt adapter-set M12x1.50, 5pcs. 1 x Bolt adapter-set M14x1.50, 5pcs.
The mechanical properties, the shape and dimensioning for which they were designed, ensure that Govoni hydraulic cylinders have a field of use to the automotive industry as: Injector disassembly; Bearing, hub and silent block disassembly; Coaxial unlocking of very tight mechanical components. Equipped with 5 threaded bushes in order to fit the most relevant threaded bars on the market. Specifications Provides up to 12 tons of controlled hydraulic force Dimensions: 90 x 155 mm Stroke: 43 mm Pressure: max. 700 Bar Hole: 20 mm Connection: 3/" -18 NPT Mounting Thread: 2 3/4-16 UN Adaptors: M10/M12/M14/M16/M18
For the quick removal of wheel hubs and bolted wheel bearings. Simple and efficient method to remove front wheel hubs quickly and without too much effort in terms of assembly. The new slide hammer version is filled with steel shot. This prevents the weight from bouncing back against the stop. The impact intensity is thus increased because the full impact force is transmitted to the component to be removed. Slide hammer technical data: Weight: 3Kg Total length: 580mm Connection - Thread: M18x1.5 Applications: Injectors Hubs Support joints Bodywork works
For driving out components and straightening jobs on bodywork with extra tough heavy-duty design and practical handles 8 tonne (approx.) maximum force Loosens even the tightest connections; pressed or rusted in / attached with a cone Suitable for removing injectors, wheel hubs, supporting joints etc. with relevant accessories Specifications: Weight: 9kg Length: 770mm Connection Thread: M18 x 1.5
Mounting unit for Heavy Duty Slide Hammer - GO520 Supplied with 4 x commonly used slide hammer adaptors 1 x system adaptor tool, M18 x 1.5 with mounting bore (jointed connection) for universal hooks, double extractor hooks, bow hooks, bodywork pull clamps etc. Suitable for Muller /Klann /KS /Pichler 1 x system adaptor tool, M18x1.5/1-1/2 inch x 16 for wheel hub puller. Suitable for Muller /KS /Pichler 1 x universal adaptor with ball joint, M18x1.5, for use between the slide hammer and the tool, enables work in hard-to-reach places. Suitable for all systems 1 x system adaptor tool, M18 x 1.5/M22x2.0, for wheel hub puller. Suitable for Facom
For powerful expulsion of stuck components as well as for body straightening work. The new slide hammer version is filled with a steel shot. This prevents the weight from bouncing back against the abutment. The impact intensity is thus increased because the full impact force is transmitted to the component to be machined. This version is also very gentle on the joints and allows fatigue-free working. The tool is modular and can be split and used as 1.5 kg sliding hammer. The slide hammer is filled with a steel shot. The range of applications can be increased as desired through the optional purchase of additional accessories! Applications Removal of injectors/wheel hubs/ suspension joints Straightening and reverse deformation of body parts etc. Technical data Weight 9 kg Total length 770 mm Connection “ Thread M18x1,5; M22x2,0
