Hydraulic Puller Spares

Use in conjunction with 12731100 Impact Force Screw - allows for greater force to be applied When used together, Shock handle (08251900) and Impact Force Screw (12731100) can convert 1500 series hydraulic rams to mechanical. In addition the impact shock handle to screw has a sliding centre spindle which allows the operator to strike the end when fully loaded. This assists the release of stubborn joints or taper fits.

Read more less

For use with Sykes-Pickavant split collet type internal extractors. Hammer displacement: 220mm. Hammer weight: 1kg. Thread Size: 1/2" UNF

Read more less

Twin Beam for Mechanical Puller Length 118mm  Thread M12 For kits:086000000860800008607000

Read more less

Triple Beam for Mechanical Pullers Radius 59mm Thread M12 Suitable for kits:0860800008601000

Read more less

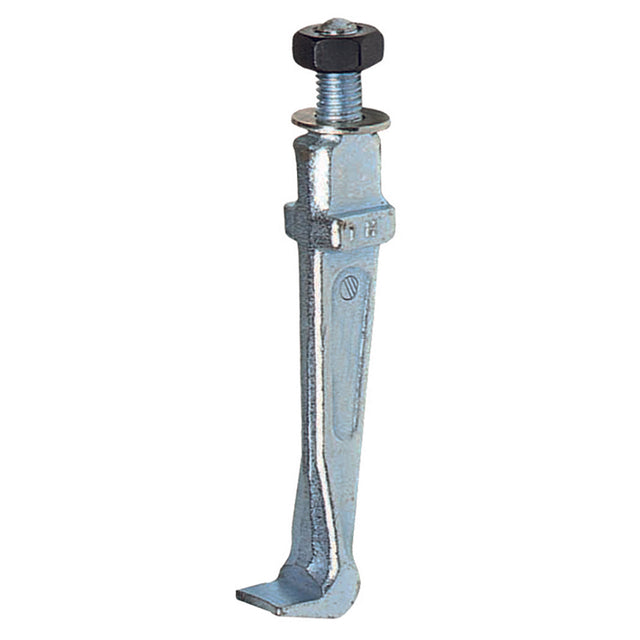

Thin Jaw Leg for use with Thin Jaw Puller Series Specifications: Length: 122 mm Working Dimensions: 75 mm Can be extended with leg extension part no 08602800 - Thin Jaw Leg Extension - 48mm See puller components illustrations and kit content tables for more details on spares

Read more less

48mm extension piece for thin jaw puller legs

Read more less

Thin Jaw Leg for use with Thin Jaw Puller Series Specifications: Length 215 mm Working dimensions: 150 mm Can be extended with leg extension part no 08612800 - Thin Jaw Leg Extension 75mm See puller components illustrations and kit content tables for more details on spares

Read more less

75mm extension piece for thin jaw puller legs

Read more less

  Triple Beam for Mechanical Pullers Radius 125mm Thread M24 Suitable for kits:0864000008650000

Read more less

Forcing Screw with Nut Length 305mm Thread 3/4" x 12 BSF

Read more less

Main Rod for use with Mechanical Puller & Separator Kits Length 254mm Thread 1/2" x 16BSF   includes nuts & washers (rod only see 09311670)

Read more less

Extension Rod for use with Mechanical Puller & Separator Kits Length 285mm Thread 1/2" x 16 BSF

Read more less

Thread Protector - 63mm Long (1/2 x 16 BSF)When ordering an internal pulling attachment users should also order the correct thread protectors to fit their pulling unit or bearing puller kit.For use with:Pulling Unit Part No. 09410000Pulling Kit Part No. 09310000

Read more less

Thrust Race

Read more less

Extension Rod for use with Mechanical Puller & Separator Kits Length 127mm Thread 1/2" x 16 BSF

Read more less

Twin Beam for use with Mechanical Puller & Separator Kits Length 290mm

Read more less

Main Rod for use with Mechanical Puller & Separator Kits Length 332mm Thread 5/8" x 14 BSF

Read more less

Thread Protector - 38mm Long (5/8 x 14 BSF)When ordering an internal pulling attachment users should also order the correct thread protectors to fit their pulling unit or bearing puller kit. For use with:Pulling Unit Part No. 09420000Pulling Kit Part No. 09320000

Read more less

Extension Rod for use with Mechanical Puller & Separator Kits Length 152mm Thread 5/8" x 14 BSF

Read more less

Pulling attachment for Sykes-Pickavant bearing pullers, part numbers 09310000 and 09320000. Users should also use correct thread protector to fit their bearing puller. Supplied in cardboard box. Internal Reach Min - Max: 40-150mmExternal Reach Max: 100mmUse with 09310000 and 09320000 Kits* - use 09350100 screw adaptor*Thread Protectors - When ordering an internal pulling attachment usersshould also order the correct thread protectors to fit their pulling unit or bearing puller kit.Pulling Unit Part No. 09410000 / Pulling Kit Part No. 09310000Use thread protectors Part No. 09312000 (2)Pulling Unit Part No. 09420000 / Pulling Kit Part No. 09320000Use thread protectors Part No. 09322000 (2)

Read more less

Adaptor for 09530000

Read more less

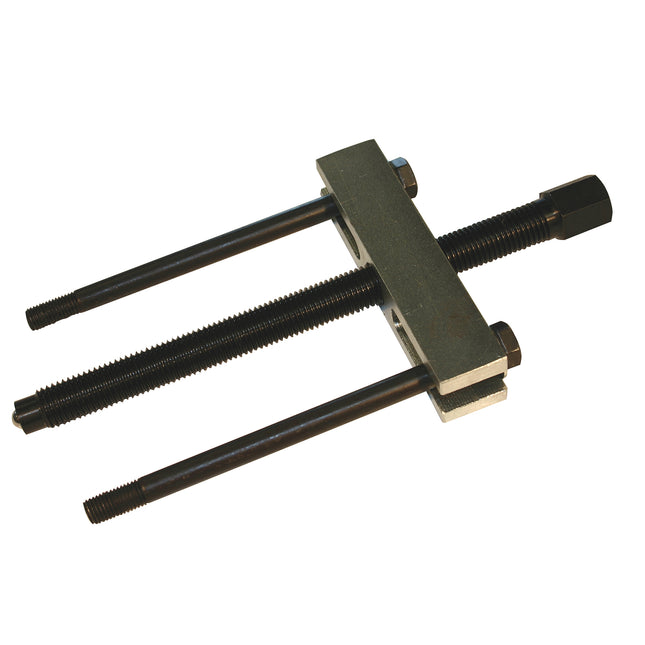

900 Series - Pulling Unit for use with 09500000 Separator Comprises: Twin Beam, Screw and Pulling Rods (2)Suitable for use with 19310500, 15530500 Not suitable for use with air/impact tools.

Read more less

Individual separator for removing and refitting bearings, etc.Can be used with any of the Sykes-Pickavant design of pullers where standard legs cannot gain access.Tapered legs provide all round support.Supplied in carton. External Spread Min - Max: 10-62mm Compatible with: 09301500 Main Rod for Mechanical Puller – Sykes Pickavant.   Found in Kits: 08420600 - Mechanical Puller & Separator Kit 350mm – Sykes Pickavant 09300000 - Mechanical External Separator Kit – Sykes Pickavant 15530500 - Comprehensive Hydraulic Puller/Separator/Extractor Kit – Sykes Pickavant 19310500 - Hydraulic Internal Extractor, Puller & Separator Kits with – Sykes Pickavant

Read more less

Individual separator for removing and refitting bearings, etc.Can be used with any of the Sykes-Pickavant design of pullers where standard legs cannot gain access.Tapered legs provide all round support.Supplied in carton. External Spread Min - Max: 20-110mm   Compatible with: 09311500 - Main Rod Assembly – Sykes Pickavant   Found in Kits: 08420600 - Mechanical Puller & Separator Kit 350mm – Sykes Pickavant 15520000 - Hydraulic Puller & Separator Kit 50-150mm – Sykes Pickavant 155200TC - Hydraulic Puller & Separator Kit - Tool Control – Sykes Pickavant 155200XT - Hydraulic Puller & Separator Kit - Extra Travel – Sykes Pickavant 15520800 - Hydraulic Puller & Separator Kit – Sykes Pickavant 15530500 - Comprehensive Hydraulic Puller/Separator/Extractor Kit – Sykes Pickavant 155400V2 - Hydraulic Puller & Separator Kit – Sykes Pickavant 155405V2 - Hydraulic Puller & Separator Kit – Sykes Pickavant 155700V2 - Hydraulic Internal Extractor, Puller & Separator Kit – Sykes Pickavant 155900V2 - Hydraulic Internal Extractor, Puller & Separator Kit - Mast – Sykes Pickavant 19310000 - Hydraulic Separator Kit – Sykes Pickavant 19310100 - Hydraulic Separator Kit exc Ram – Sykes Pickavant 19310300 - Hydraulic Puller & Separator Kit - Thin Jaw – Sykes Pickavant 19310500 - Hydraulic Internal Extractor, Puller & Separator Kits with – Sykes Pickavant

Read more less

Individual separators for removing and refitting bearings, etc.Can be used with any of the Sykes-Pickavant design of pullers where standard legs cannot gain access.Tapered legs provide all round support.Supplied in carton. External Spread Min - Max: 35-134mm Can be used with 08320000 & 08330000 Twin Leg Pullers or 09420000 Twin Leg Pulling Unit Compatible with: 09321500 - Main Rod Assembly 332mm – Sykes Pickavant Found in Kits: 08420600 - Mechanical Puller & Separator Kit 350mm – Sykes Pickavant 155800V2 - Hydraulic Internal Extractor, Puller & Separator Kit – Sykes Pickavant 155900V2 - Hydraulic Internal Extractor, Puller & Separator Kit - Mast – Sykes Pickavant 15600000 - Hydraulic Internal/External Puller & Separator Kit – Sykes Pickavant 19320000 - Hydraulic Separator Kit - Heavy Duty – Sykes Pickavant 19320100 - Hydraulic Separator Kit - heavy Duty exc Ram – Sykes Pickavant

Read more less

The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 6.5-8mm No.00 - stamped on extractor   Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) ** ** Additional part 09582000 (convertor from M8 to 1/2” UNF) must be attached for use with slide hammer   Found in kits: 09580100 - Slide Hammer & Split Collet Extractor Kit

Read more less

The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 8.5-10mm No.0 - stamped on extractor   Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) ** ** Additional part 09582000 (convertor from M8 to 1/2” UNF) must be attached for use with slide hammer   Found in kits: 09580100 - Slide Hammer & Split Collet Extractor Kit 09580400 - Slide Hammer & Split Collet Extractor Kit

Read more less

The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 10-12mm No.1 - stamped on extractor   Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) ** ** Additional part 09582000 (convertor from M8 to 1/2” UNF) must be attached for use with slide hammer   Found in kits: 09580100 - Slide Hammer & Split Collet Extractor Kit 09580400 - Slide Hammer & Split Collet Extractor Kit

Read more less

The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 12-17mm No.2 - stamped on extractor   Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) ** ** Additional part 09582000 (convertor from M8 to 1/2” UNF) must be attached for use with slide hammer   Found in kits: 09580200 - Slide Hammer & Split Collet Extractor Kit 09580400 - Slide Hammer & Split Collet Extractor Kit

Read more less

The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications:  Internal Spread Min - Max: 19-22mm No.3 - stamped on extractor   Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) ** ** Additional part 09582000 (convertor from M8 to 1/2” UNF) must be attached for use with slide hammer   Found in kits: 09580200 - Slide Hammer & Split Collet Extractor Kit 09580400 - Slide Hammer & Split Collet Extractor Kit

Read more less

The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 22-30mm No.4 - stamped on extractor   Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads 08542100 - Slide Hammer Assembly - (1kg)   Found in kits: 09580200 - Slide Hammer & Split Collet Extractor Kit

Read more less

The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 30-38mm No.5 - stamped on extractor   Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads 08542100 - Slide Hammer Assembly - (1kg)   Found in kits: 09580300 - Slide Hammer & Split Collet Extractor Kit

Read more less

For use with 08542100 Slide Hammer when fitting smaller sized Split Collet Extractors ( 6.5 - 30mm / 09580900 - 09581400 )

Read more less

Can be used in any SP Hub Puller in place of Hydraulic Ram or Slide Hammer (11/2” BSW thread) When used together, Shock handle (08251900) and Impact Force Screw (12731100) can convert 1500 series hydraulic rams to mechanical. In addition the impact shock handle to screw has a sliding centre spindle which allows the operator to strike the end when fully loaded. This assists the release of stubborn joints or taper fits.

Read more less

Heavy duty force screw with impact handle included, where shock action is required Can be used as an alternative option in place of 8 and 12 tonne rams as used on in SP Pullers and Press Frames

Read more less

New design includes pre-loading 30mm hex, 2” extension and foam cut out for storage. Standard power unit for SP hydraulic pulling options and can also be used with many alternative SP puller applications e.g. 3 leg pullers, ball joint pullers, hub pullers, suspension bush removers etc Diameter 1 1/2" Thread 16tpi Whitworth Grease filled. Direct force improves stability under load. Provides maximum withdrawal force of 80kN. New hex head makes it possible to increase pre-load capability up to 4 tonnes (with the use of a 30mm wrench). When hydraulic power is applied, the full force is achieved with little loss of ram travel. As the workpiece starts to release, more stroke and power can be applied to ensure a good safe removal.

Read more less

Measurable 8 tonnes of pressure capacity. 85mm of travel allows for reduced setting operations and saves time. 4 x faster output operation than standard 1500 Series ram. Removable handle can be rotated 360°. Integrated pressure relief control valve opens at 8 tonnes and cannot be overloaded. Oil hydraulics work in any position - even upside down. Features piston with spring return. Compatible with the 1500 Series Puller Range where the 8 Tonne Hydraulic Ram is used. Note: Images showing legs / beams and universal press frame not included - Shown for illustration purposes only

Read more less

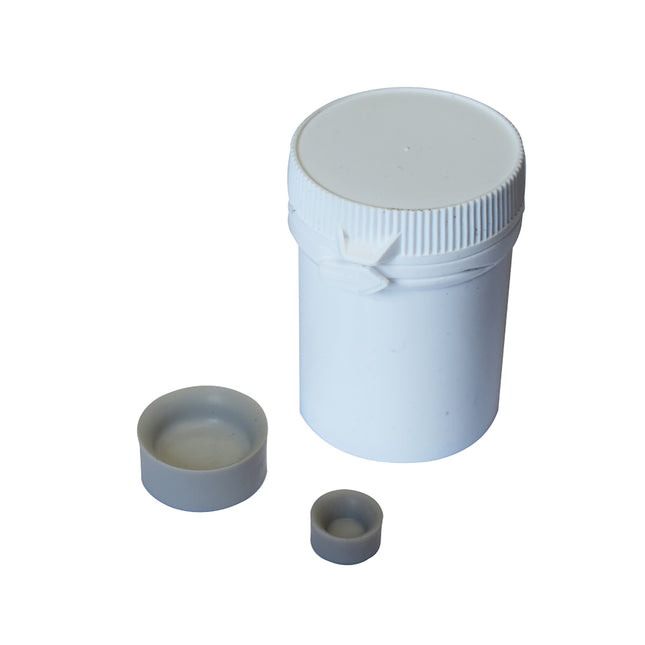

Contents 2 x Seals 1 x Grease 1 x Installation Instructions

Read more less

1500 Series - Twin Head for Hydraulic Two Leg Pullers1½" Dia. Internal

Read more less

Replacement centre nut  For 1500 series twin & triple heads

Read more less

Replacement pin & nut For use with twin & triple heads on 1500 series puller range

Read more less

Hydraulic Pullers - Ram Extension 50mm (2")See Downloads section for Kit Contents List

Read more less

Puller Leg - 100mm (4") Working Dimensions165mm Long

Read more less

Ram Extension 100mm (4") See Downloads section for Kit Contents List

Read more less

Puller Leg 150mm Working Dimensions215mm Long

Read more less

Ram Extension 150mm See Downloads section for Kit Contents List

Read more less

Puller Leg 200mm Working Dimensions  265mm Long See Downloads section for Kit Contents List

Read more less

Puller Leg 250mm Working Dimensions - Wide Spread  300mm long See Downloads section for Kit Contents List

Read more less
