Coil Spring Compression

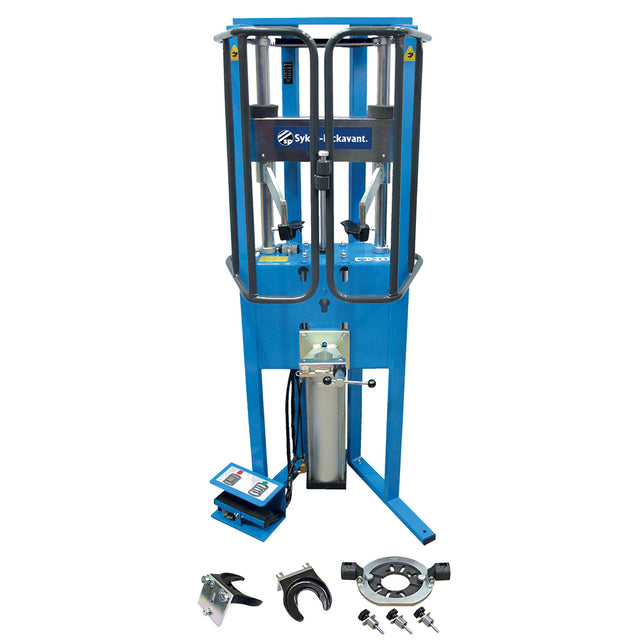

385801SP - Pneumatic Coil Spring Compressor Workstation
Pneumatic Coil Spring Compressor Workstation with Upper Bracket Universal piece of equipment for assembling and disassembling struts and coil springs - suitable for Cars, 4WDs and LCV's Automatic jaw levelling pivots to compensate and hold all coil springs including left hand coils Safety switch prevents operation when gates are open Interchangeable jaws / vice to suit different springs Up to 2452kg of force (at 8 bar) at the touch of a pedal Full height steel safety gates Top arms and jaws adjust and lock to secure spring Unique double depth front plate allows safe work on extra long strut assemblies 4 x 10mm floor mounting holes for insurance company compliance Safety cut-out for de-activation of cylinder when safety guard is opened ALS “ Auto Levelling System - Auto levelling upper arms simplify working on conical and misaligned springsBrackets System - Front and side spring clamps designed for fast changeover using unique Brackets SystemAluminium Cylinder Can be used on extra-long shock absorbers (e.g. commercials) due to the long (330mm) stroke of the cylinder. Manufactured from light alloy and resin to eliminate risk of corrosion and internal parts failure Contents: Safety Guards Bracket A: 78 “ 130mm (38481200) Bracket C: 105 - 182mm (38481400) Strut Vice (GO332) Upper Top Mount Bracket (GO338) Specifications: Dimensions: 1600 x 520 x 300mm Max Working Pressure: 8 bar (116 psi) Compression Force: 2452 kg (24500N) Cylinder Stroke: 330mm CE approved Fitted with Extra Heavy Duty Pneumatic Cylinder - Ideal for Extra Heavy Duty applications i.e. SUVs, 4WDs etc where full spring compression is required Also Includes: GO338- Upper Bracket for Spring Compressor The design is ideal for; Springs with a small number of coils; meaning that one more coil can always be tensioned automatically Simplifying dismantling and assembly operations The rotatable and fixable mounting plate is provided with a universal hole division. In addition, the holder between the arms can easily be tilted. Suitable for use with Sykes-Pickavant Coil Spring Compressors. Applications: Nissan Qashqai Renault Talisman, Megane, Master 3° Series, Kojar, Koleos Peugeot 208, 3008, 5008 Tesla S Bmw X1, X2, X3, X4, X5, Series 1, Series 2 Ford Transit Mercedes Class A, B, C, E Mini Clubman, Countryman BMW (Series 1, 2, X1, X2): 1 F52 Sedan (01.2017 -) 1 Hatchback F40 (07.2019 -) 2 Active Tourer F45 (11.2013 -) 2 Gran Coupe F44 (11.2019 -) 2 Gran Tourer F46 (07.2014 -) X1 F48 (11.2014 -) X1 Van F48 (11.2015 -) X2 F39 (11.2017 -) MINI (Clubman, Countryman): Clubman F54 (11.2014 -) Countryman F60 (10.2016 -) 385801SP Spare Part Break Down Full Range of Service Packs also Available Call our Customer Services team on 01543 679900 to find out more
38580200 - Jaw Holder
For use with 3858 and 3868 workstation brackets Includes 3 x hanging hooks and 4 x slots for brackets Provides a tidy and safe storage solution
38480900 - Mercedes Bracket
For Mercedes C Class (W205) 2015 onwards Front springs
38480600 - Special Bracket - Nissan Qashqai Bracket
For use with the range of suspension workstations (3858, 3868) Nissan Qashqai

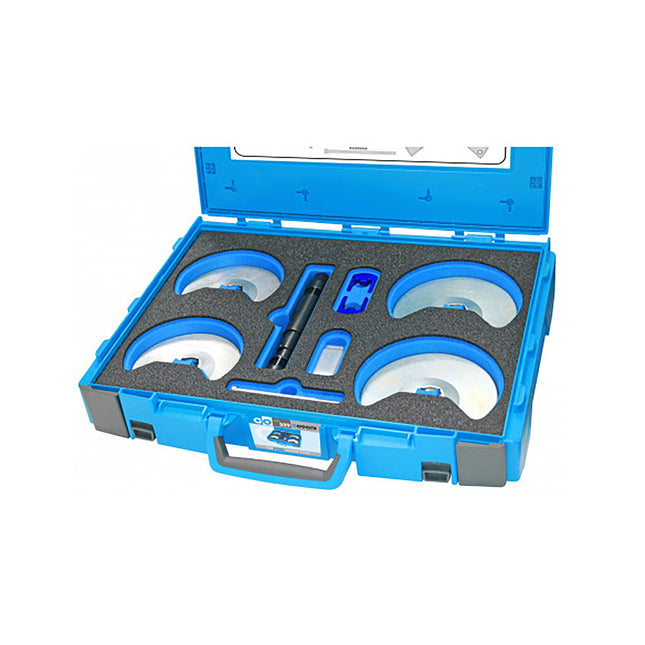

GO359 - Coil Spring Compressor - Multi Link/Wishbone Suspensions
Designed for professional and safe compression of coil springs for wishbone and multi-link suspension. (Not suitable for conical and cylindrical helical springs). The inclination of the jaws adapts perfectly to the compression of the spring and guarantees a secure grip. The safety dynamometric extension simplifies the positioning of the tool on the spring and prevents its overload (Max torque 40 Nm). The only set on the market capable of handling among others the following coil spring: BRAND / MODEL YEAR SUSPENSION Citroen C1 2006- Rear Citroen C3 2003- Rear Kia picanto 2007- Rear Mitsubishi Colt 2007- Rear Peugeot 107, 207, 1007 2007- Rear Skoda Octavia 2001- Rear Skoda Roomster Scout 2008- Rear Suzuki Swift, SX4 2007- Rear Toyota Aygo 2007- Rear VW Touran 2003- Rear Others typical application: BRAND/ MODEL YEAR SUSPENSION BMW Serie 3 (E91) 2007- Rear Citroen C4 2006- Rear Mercedes Benz Classe C (W202) 1993-2000 Front Honda Civic, Stream 2007- Rear Kia Ceed 2007- Rear Mazda 3 2003- Rear Mitsubishi Shogun, Pajero 2007- Rear Renault Traffic 2007- Rear Skoda Fabia 2007- Rear Toyota Yaris 2007- Rear Volvo V70 2007- Rear VW Polo 2007- Rear
GO355 - Strut Controller Universal
The ideal solution for problems related to the assembly and disassembly of shock absorbers with limit switch buffer Located inside the shock absorber, the buffer absorbs the shock ensuring he integrity of the shock absorber at the moment it reaches the end of its stroke Thanks to the universal clamp the stem of the cylinder remains in extension during the compression of the outer spring Recommended applications: VW, Audi, Fiat, BMW, Mercedes, Citroen, Peugeot, Opel, Ford, Nissan, Toyota (models that are equipped with Bilstein shock absorbers) Technical data: Stem: min. 12 mm - max. 28 mm Material: Acetalic resin and aluminum (to protect the stem) (ref. 321061002) Thickness: 20 mm (ref. 321061002)
GO340 - Mechanical Coil Spring Compressor
Suitable as a removal aid for MacPherson spring struts, for rear axle springs and for broken springs. Enables the removal of the spring strut from the clamping bore in the axle casing without additional removal of various axle components or without lowering the sub-frame (support frame).Non-slip as each spindle has a right- and left-hand thread.Saves considerable time and money, as there is no need for a complicated wheel alignment. Technical data Max. load: 800 kg/8.000 N Clamping width: Ø100 - 300 mm Clamping range: short spindle 90 - 180 mm, long spindle 110 - 315 mm Application E.g.: VAG Golf IV, V, VI, Touran, Passat, Audi A3, TT, Skoda Octavia, Seat Leon etc.
GO338 - Upper Top Mount Bracket for Spring Compressor
We have introduced the GO338* Upper Bracket to extend the possible applications of our already successful Coil Spring Compressor Workstation. Rather than creating four or five new brackets, we have adopted this new design to cover a large range of applications. The bracket is able to adapt to a vast number of applications since it is equipped with a rotating and universal plate with fixing holes and slots. The design is ideal for; Springs with a small number of coils; meaning that one more coil can always be tensioned automatically Simplifying dismantling and assembly operations The rotatable and fixable mounting plate is provided with a universal hole division. In addition, the holder between the arms can easily be tilted. Suitable for use with floor Sykes-Pickavant Floor Mounted Coil Spring Compressors. Applications include: Nissan Qashqai Renault Talisman, Megane, Master 3° Series, Kojar, Koleos Peugeot 208, 3008, 5008 Tesla S Ford Transit Mercedes Class A, B, C, E Mini Clubman F54 (11.2014 -), Countryman F60 (10.2016 -) BMW (Series 1, 2, X1, X2), 1 F52 Sedan (01.2017 -), 1 Hatchback F40 (07.2019 -), 2 Active Tourer F45 (11.2013 -), 2 Gran Coupe F44 (11.2019 -), 2 Gran Tourer F46 (07.2014 -), X1 F48 (11.2014 -), X1 Van F48 (11.2015 -), X2 F39 (11.2017 -) *Only suitable for 3858 workstations dated 2015 onwards.

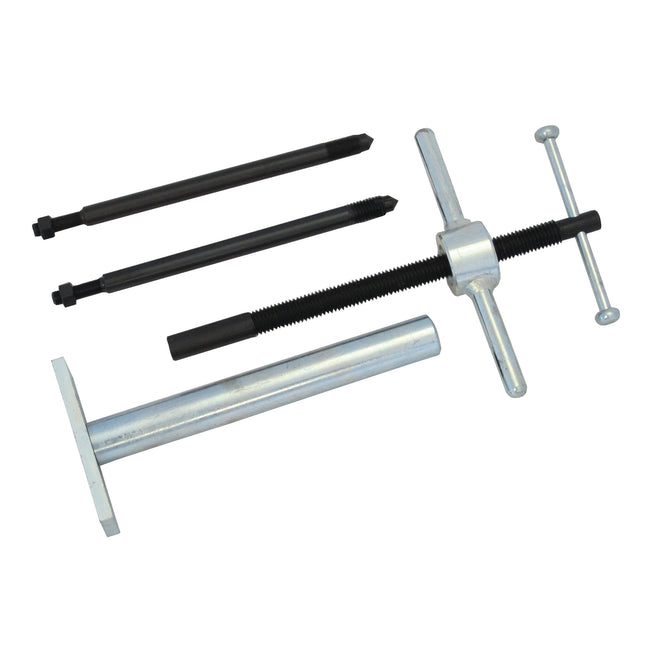

66033000 - Mini Suspension Compressor
For use on BLMC Minis fitted with rubber cone suspension units Supplied with both Metric & Imperial extension screws, to cover all applications
3858COVER - Protective Cover for 3858 Workstations
For use with the 3858 range of Pneumatic Coil Spring Compressor Workstations. Covering the workstation whilst not in use, will help protect pneumatic seals & mechanical moving parts from dust in the environment, potentially prolonging its lifespan.
38580400 - Coil Spring Clamp
Tool to secure coil spring into lower bracket for use with the SP range of suspension workstations Designed to hold the coil spring still during initial compression and restrict twisting through the bracket Rubber dipped to prevent scratching the coil spring
385800-61 - Workstation Swivel Jaws - Pair
Mounts onto top arms in place of standard top jaws & contacts directly onto spring Jaw floats to follow changes in spring angle / profile during compression Constant contact with the coil spring surface area for increased safety Able to work on both left and right handed coil springs For use with the range of suspension workstations (38580000, 38680000)
385800-60 - Workstation Arm Extender - Pair
Mounts between original top arm and jaw attachment Use to extend the length of the top spring mounting jaw position Can be used singly to provide 10mm extension or as a pair for 2 x 10mm extension For use with the range of suspension workstations (38480000, 38580000, 38680000)

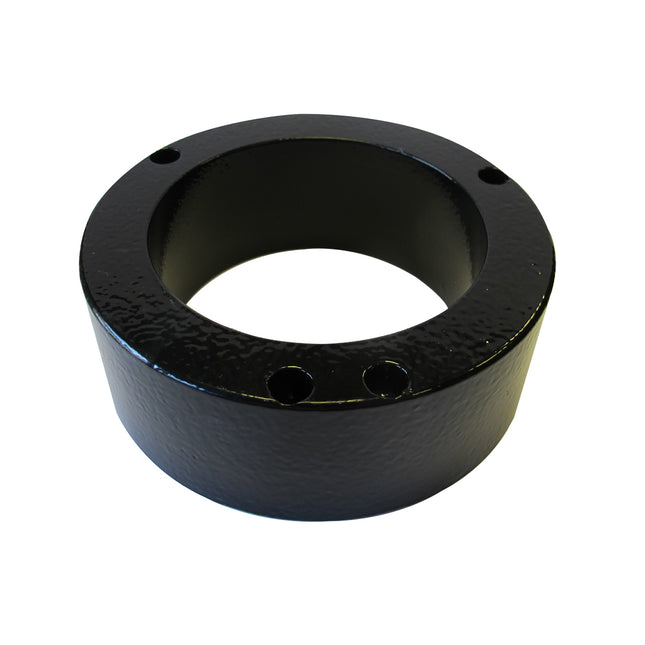

38481600 - BMW Special Bracket
Suitable for: BMW Base Coupe 2-Door 2003 - 2011 Base Sedan 4-Door 2003 - 2011 xDrive30i Sport Utility 4-Door 2007 - 2010 3.0si Sport Utility 4-Door 2007 - 2008 Compatible with adaptor bracket set 38780100 for a new quick fitting system
38481400 - Standard Bracket (C)
For use with the range of suspension workstations (38480000, 38580000, 38680000)Size: 105 - 182mm
38481200 - Standard Bracket (A)
For use with the range of suspension workstations (38480000, 38580000, 38680000)Size: 78 - 130mm
38481000 - Mercedes Bracket
For Mercedes ML Class 163 1997-2005 Rear springs
38480800 - Mercedes Bracket
For Mercedes C Class (W204) 2008-2014 and E Class Coupe (W207 / C207) 2009 onwards Front springs
38480700 - Double Depth Drop Vice
For use with the range of suspension workstations (38580000, 38680000) For use with extra long strut assemblies Chrysler Voyager
38480200 - Upper Bracket Set for High Compression Springs
Optional Accessory for use with Suspension Workstations.Upper Jaw set for high compression springs (Toyota / Honda etc)

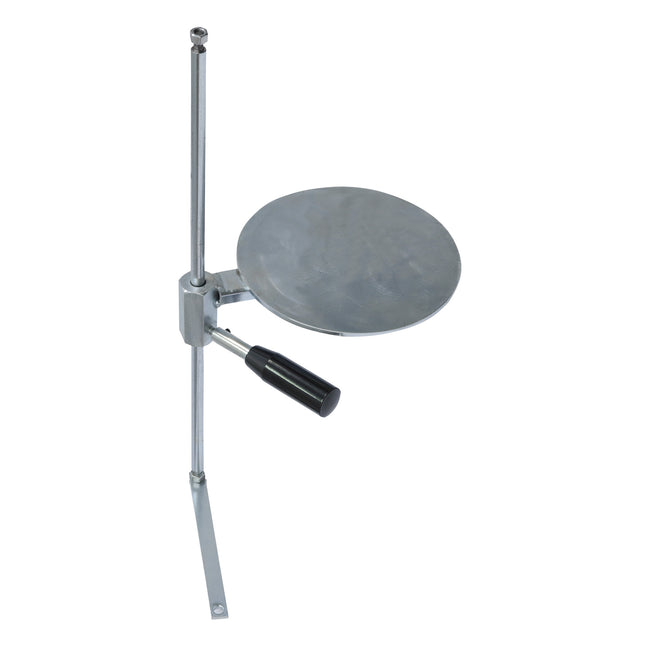

38480300 - Adjustable Strut Support Plate
Optional extra for use with Suspension WorkstationsHeight adjustment plate for supporting strut assembly
08400000 - Extra Heavy Duty Coil Spring Compressor
Safe working load 1800 KG (18000N) Supplied with 1 x pair of universal MULTIPURPOSE jaws- Patented innovative shape of jaw design fits most types and sizes of springs- Protective high-tech inserts in jaw for added safety- Jaws diameter 80-200mm covers 90% of applications Built-in protective accessory for vice clamping Large user friendly adjustable handle for fast jaw positioning Overload shear pin for safe operator use Range of specialist jaw options available TUV approved Supplied with full instructions and vehicle applications Spare Parts: 08400100 - Universal Jaw (single) 08402400 - Shear Pin

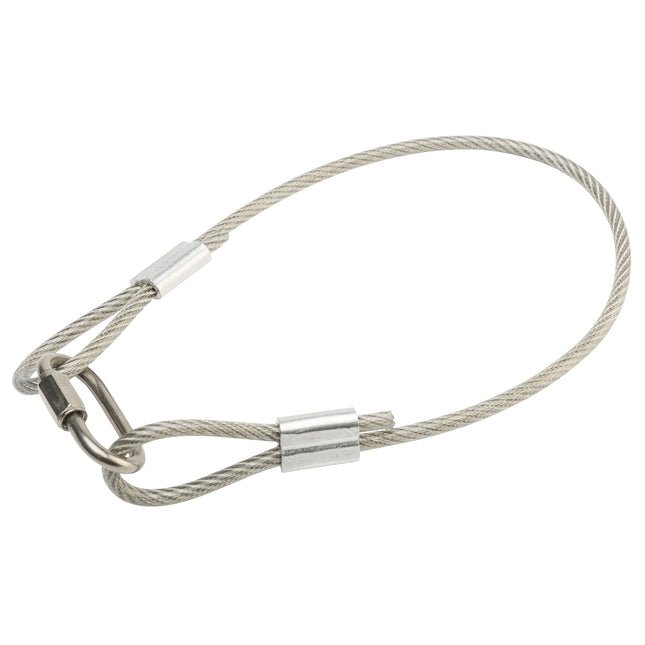

084000-01 - Safety Wire for Coil Spring Compressors
Safety Wire for Vice Mounted Spring Compressors Suiable for use with 08395000 & 08400000 Spring Compressors New and durable wire for improved safety To ensure maximum safety the heavy-duty steel wire can be locked around the spring during compression to prevent the risk of injury

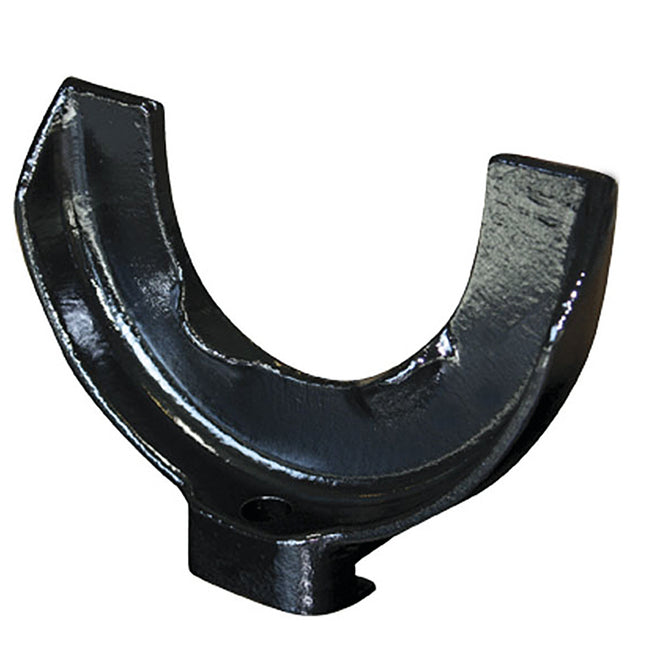

08402500 - Counter Clockwise Jaw
Specialist jaw for Extra Heavy Duty Coil Spring Compressor (08400000) For counter clock springs as typically found on Honda HR-V / CR-V and Prelude vehicles Suitable for spring diameters: 145 - 195mm

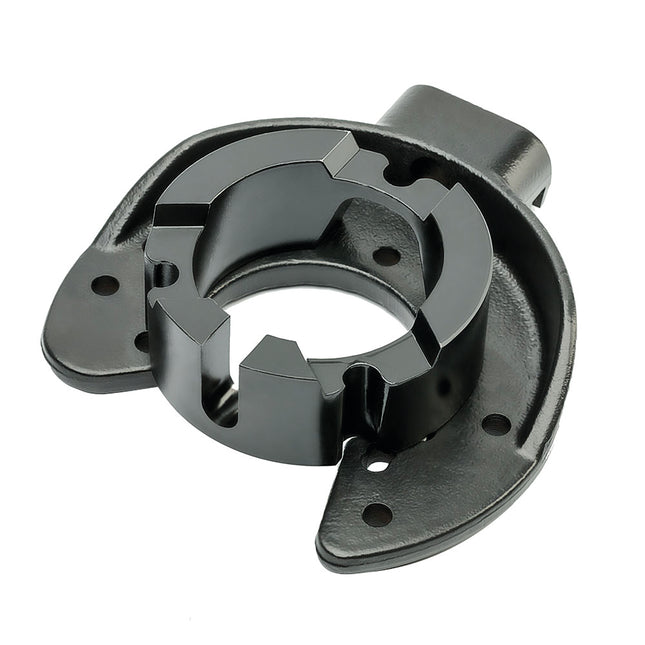

08401600 - Mercedes Jaw
For use with 08400000 Heavy Duty Coil Spring CompressorSuitable for: Mercedes C Class W204 / W205 & Mercedes E Class Coupe W207
08401500 - Safety Cage
Workbench or wall-mounted for operator safety Minimizes risk of injury & improves safety Cage has hinged opening and dedicated slot in the base for securing the 08400000 HD Coil Spring Compressor (above)

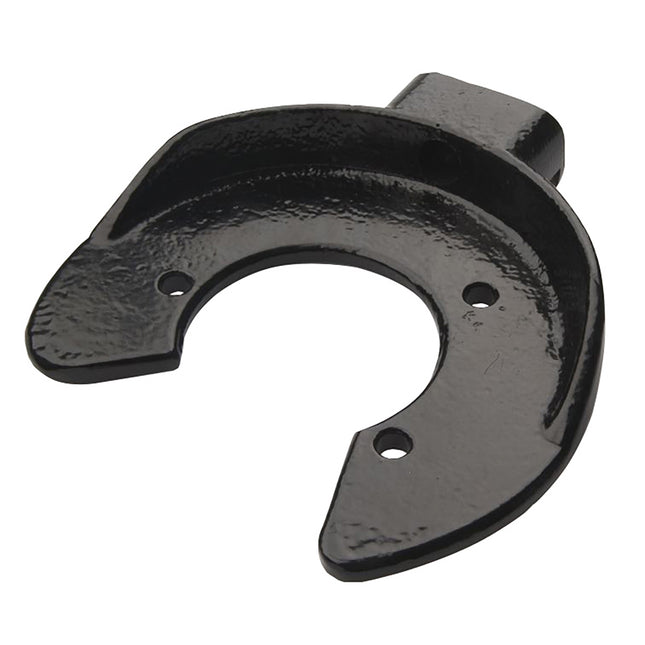

08400900 - Special Jaw Mercedes E Class
Jaw for Mercedes E Class, for the Heavy Duty Coil Spring Compressor (08400000)Note: Optional Specialist Jaws are supplied as singles

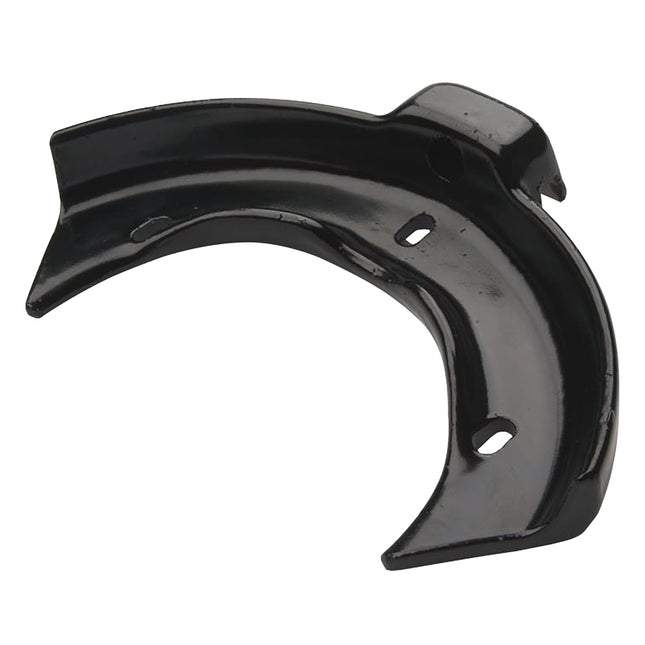

08400800 - Special Jaw Mercedes C Class
Jaw for Mercedes C Class for the Heavy Duty Coil Spring Compressor (08400000)Note: Optional Specialist Jaws are supplied as singles

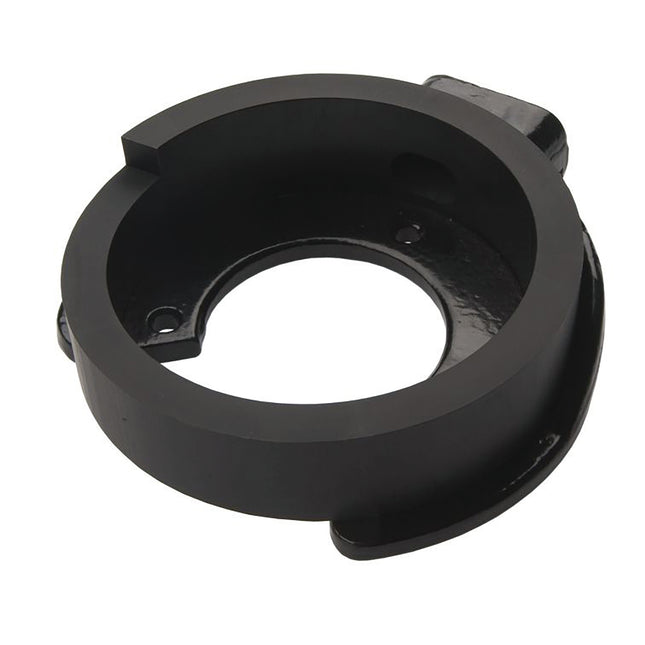

08400700 - Special Jaw
Jaw for BMW 3 series E46, E90, 5 series E39,E60, F10 Renault Megane 2, 3 for the Heavy Duty Coil Spring Compressor (08400000)Note: Optional Specialist Jaws are supplied as singles

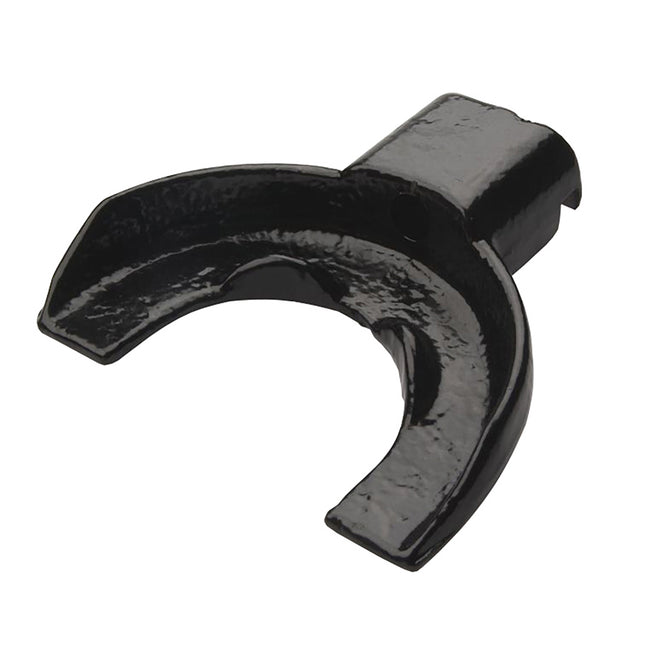

08400600 - Conical Spring Jaw 80-145mm
Jaw for Conical Springs 80 - 145mm for the Heavy Duty Coil Spring Compressor (08400000)Note: Optional Specialist Jaws are supplied as singles

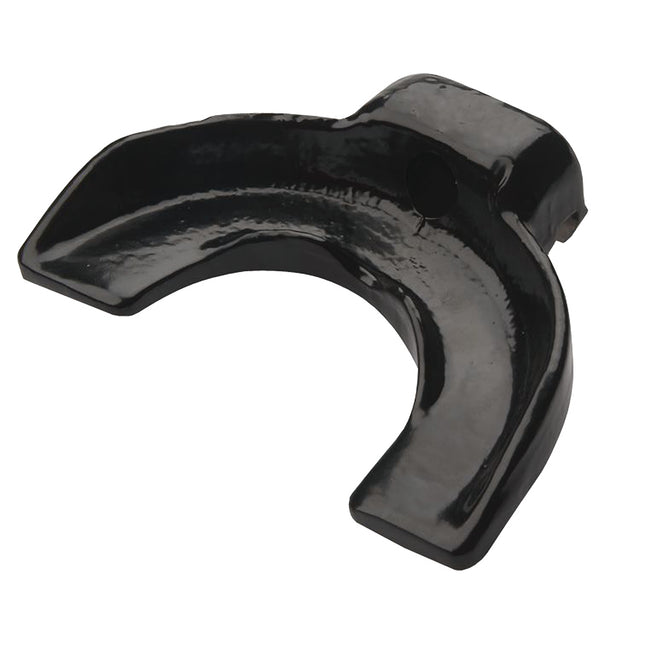

08400500 - Small Jaw 80-120mm
Extra Small jaw - 80-120mm diameter for use with the Heavy Duty Coil Spring Compressor (08400000)Note: Optional Specialist Jaws are supplied as singles

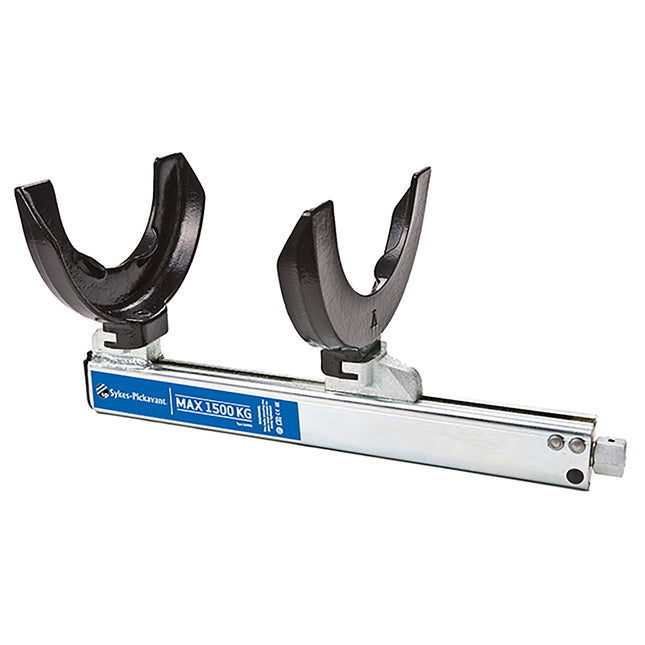

08395000 - Coil Spring Compressor
Dismantles McPherson struts safe and easy and handles approximately 90% of all cars The large user-friendly and ergonomic adjusting handle makes manual positioning of the jaw fast and easy The jaws are secured with strong bolts and equipped with a lip which locks the spring during compression for improved safety TUV approved - Safety Factor 4 Maximum Load 1500kg Note: The use of safety wire 084000-01 is recommended when in use. Optional Jaws The following jaws are compatible with the 08395000 08400100 Universal Jaw 08400500 80-120mm Small Jaw 08400600 80-145mm Conical Spring Jaw 08400700 Special Jaw - BMW 3 series E46, E90, 5 series E39,E60, F10 Renault Megane 2, 3 08400800 Special Jaw - Mercedes C Class 08400900 Special Jaw - Mercedes E Class 08401600 Special Jaw - Mercedes W204/5 W207
08390100 - Small Jaws 80-115mm
Optional Small Jaw - 80-115mm diameter for the Heavy Duty Coil Spring Compressor below (08390000)
GO324 - Mercedes C Bracket
Application: Mercedes: Class C starting from 2010.
GO328 - Large Bracket
from Ø 125 to Ø 205 mm Up to 2.5 Ton
GO367 - Top Bracket Plate For Ford Models
For use with our GO338, to maintain the contact position of the shock absorber top mount with the body.For the new FORD Ranger all-wheel drive models
387800SP - Super Heavy Duty Pneumatic Coil Spring Compressor Workstation
Universal piece of equipment for assembling and disassembling the strongest struts and coil springs on cars, 4WDs & LCVs Pneumatic spring compressor from passenger cars to transporters Comprehensive safety concept includes pneumatic cylinder, foot pedal, safety cage, shock absorber drop guard and pedestal to ensure maximum safety for the user. The station includes one small clamping jaw , one medium clamping jaw, GO338 upper top mount bracket and a vice that allows the compression of almost all the coil springs of the market. Other optional special accessories deliverable. Two clamping jaw mounts on the basic unit permit a maximum opening width of up to 350 mm. Particularly important for many current models with extra-long vehicle springs. Mirror for viewing from above makes the piston rod easier to position during installation. Protective cage with high-strength polycarbonate panels ensures a high level of protection in the event of incorrect operation or accidental splintering of the material. The two infinitely adjustable upper gripper jaws can be set to the required coil diameter. They can be moved upwards and downwards, tilted and fixed in place for maximum adaptability to any type of spring. The practical absorber drop guard keeps the absorber in position during installation. The handles above the unit and the wheels make the unit easy to manoeuvre. Standard equipment Basic unit 3.000 kg Small clamping jaw, Ø 78 - Ø 130 mm Medium clamping jaw, Ø 105 - Ø 185 mm GO338 Upper Top Mount Bracket Mirror with swan neck, magnetic Transport module with 2 steel wheels Vice clamping jaw for absorber tube, Ø 40-60 mm Technical data CE approval for the unit documents the unit's conformity with 2006/42/EC (machinery directive) Working pressure max. 8 bar Cylinder stroke 330 mm
08921000 - Shock Absorber & Machpherson Strut Tool Kit (39pc)
39 piece tool kit to aid in the removal of top suspension nuts. The go-through design enables the piston rod to be held whilst allowing the nut to be loosened or tightened. Applications Will cover most popular European, Asian, Australian & American vehicles, see downloads for application list & contents.

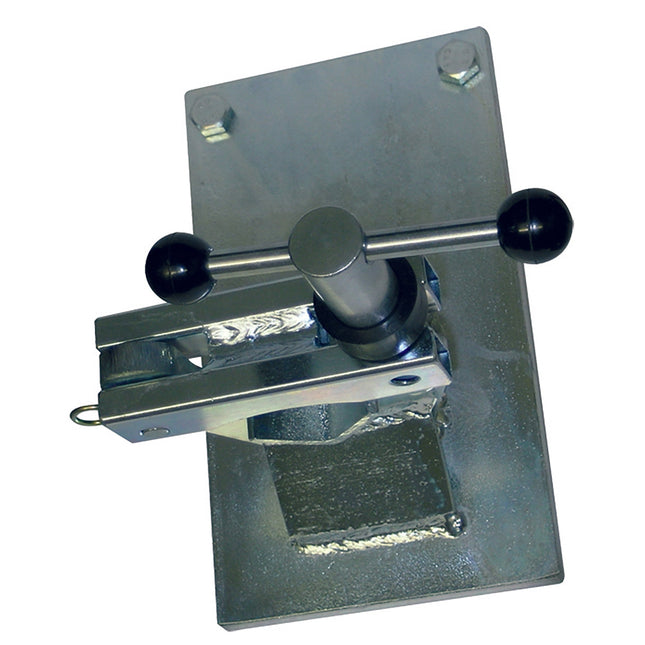

GO333 - Double Depth Drop Vice
For use with the range of suspension workstations (38580000, 38680000) For use with extra long strut assemblies Chrysler Voyager from Ø 40 to Ø 60 mm Up to 3 Ton
