Loadstar "Plus" Heavy Duty Hydraulic Pullers
20014400 Extractor Pin 25 x 150 - Loadstar "Plus" 20T Kit
Extractor Pin 25 x 150 for Loadstar œPlus 20 Tonne Kit
20014070 - Short Pin for 212050V2
Short Pin for 212050V2 20 Tonne Loadstar œPlus Press Frame - Complete Kit (Special Version For œOptare Buses)33mm Dia
20013500 Rod End Cap for Loadstar "Plus" 30 Tonne Kits
Rod End Cap for Loadstar "Plus" 30 Tonne Kits
20013200 Handle for Loadstar "Plus" 30 Tonne Kits
Handle for Loadstar "Plus" 30 Tonne Kits
20012400 Base Pushing Plate incl. Bolts
Base Pushing Plate incl. Bolts for Loadstar œPlus 20 Tonne Kit
20012300 Toe Lift
Toe Lift Finished for Loadstar œPlus 20 Tonne Kit
20012100 Base
Base - Loadstar Plus 20 Tonne Kit
20012000 20T Hydraulic Cylinder
Loadstar œPlus 20 Tonne Kit Contents20T Hydraulic Cylinder
21740100 Quick Coupling - Male
3/8" NPT Quick Coupling - MaleFor use with 20017000 / 20017500 Hydraulic Aluminium Pumps
20208300 Loadstar Steel Storage Case for Loadstar "Plus" 20T, 30T & 50T
Loadstar Steel Storage Case for Loadstar "Plus" 20T, 30T & 50T
20102020 Ram Extension Set (4 piece) Leg Assembly for Loadstar Puller 20 Tonne
Ram Extension Set (4 piece) Leg Assembly for Loadstar Puller 20 Tonne
20101220 Ram Extension Set (4 piece) for Loadstar Puller 12 Tonne
Ram Extension Set (4 piece) for Loadstar Puller 12 Tonne
20101200 Loadstar Puller 12 Tonne
Self centering self locking puller legs, grip increases as load increases Easy one man operation 2 and 3 way options 360 degree swivel hose coupling for optimum access Lightweight aluminium hydraulic pump included Selection of ram extension rods supplied to increase stroke In-built safety valve to prevent overloading Loadstar Puller 12 Tonne 12T Hydraulic Ram and Pump Selection of 4 ram extension rods supplied to increase stroke Puller supplied in sturdy plastic storage case Pump supplied in steel storage case Dimensions: Spread 485mm Reach 305mm Also available without pump as part number - 20101270
20100820 Ram Extension Set (3 piece) for Loadstar Puller 8 Tonne
Ram Extension Set (3 piece) for Loadstar Puller 8 Tonne
20100800 Loadstar Puller 8 Tonne
Self centering self locking puller legs, grip increases as load increases Easy one man operation 2 and 3 way options 360 degree swivel hose coupling for optimum access Lightweight aluminium hydraulic pump included Selection of ram extension rods supplied to increase stroke In-built safety valve to prevent overloading Selection of 3 ram extension rods supplied to increase stroke 8T Hydraulic Ram and Pump ‹ Dimensions: Spread 450mm Reach 280mm
20068500 Twin Beam incl Bolts - 50T Loadstar "Plus" Kit
Twin Beam incl Bolts for 50T Loadstar "Plus" Kit
20059500 Internal Pulling Unit
Internal Pulling Unit for 30T & 50T Loadstar "Plus" Pullers
20058400 Twin Beam
Twin Beam for 30T Loadstar "Plus" Kit
20048100 M10 x 1.5 x 75mm Long Bolt x2
M10 x 1.5 x 75mm Long Bolt for 30T Loadstar "Plus" Kit
20039500 - Loadstar Press Frame
Loadstar Press Frame Assembly460 x 165mm max / 365 x 165mm minMax Pushing Pin Diameter : 50mm MaxPushing Pin length : 150mm (when used with 20012000 hydraulic cylinder)For use with 20012000 Loadstar 20 tonnes Hydraulic Cylinder
20029000 Extension Rod - Loadstar "Plus" Pullers
Extension Rod for 30T & 50T Loadstar "Plus" Pullers
20028900 Standard Rod Assemblies 640mm
640mm Rod Assemblies for use with the 20T Loadstar range
20028400 Puller Leg - Straight
Puller Leg - Straight for Loadstar œPlus 20T, 30T and 50T
20028300 Twin Beam - Loadstar "Plus" 20T Kit
Loadstar œPlus 20 Tonne KitTwin Beam
20019200 Leg Extension incl. Pins & Nuts
Leg Extension incl. Pins & Nuts for Loadstar "Plus" 20T, 30T and 50T kits
20017500 - Hydraulic Aluminium Pump - Air Powered / Foot Operated
Portable & lightweight aluminium bodied hydraulic pumps fitted with gauge, hydraulic heavy duty hose and ¾ hydraulic coupler Pressure Rating: 10,000 psi / 700 bar Designed for use with single acting cylinders Automatic overload relief valve protects hydraulic components Foot pedal control Unique inlet and outlet design features a low noise exhaust system Spare Parts21720000 1 x High Pressure Hose - 1.8m long21740000 1 x Quick Coupling - complete21740100 1 x Quick Coupling - male21790000 1 x Gauge & Gauge Block
20017170 - Hydraulic Aluminium Pump - Hand Operated (Without Storage Tin)
Portable & lightweight aluminium bodied hydraulic pump fitted with gauge, hydraulic heavy duty hose and ¾ hydraulic coupler Hand Operated pump Pressure Rating: 10,000 psi / 700 bar Designed for use with single acting cylinders Automatic overload relief valve protects hydraulic components Automatic two speed operation - High flow for low resistance and low flow for high resistance Spare Parts21720000 1 x High Pressure Hose - 1.8m long21740000 1 x Quick Coupling - complete21740100 1 x Quick Coupling - male21790000 1 x Gauge & Gauge BlockPart number 20017000 includes storage tin
20017000 - Hydraulic Aluminium Pump - Hydraulic / Hand Operated
Portable & lightweight aluminium bodied hydraulic pumps fitted with gauge, hydraulic heavy duty hose and ¾ hydraulic coupler Hand Operated pump Pressure Rating: 10,000 psi / 700 bar Designed for use with single acting cylinders Automatic overload relief valve protects hydraulic components Automatic two speed operation - High flow for low resistance and low flow for high resistance Spare Parts21720000 1 x High Pressure Hose - 1.8m long21740000 1 x Quick Coupling - complete21740100 1 x Quick Coupling - male21790000 1 x Gauge & Gauge Block
20015000 50T Hydraulic Cylinder
50T Hydraulic Cylinder
20014270 optare pushing pin
Special Pushing Pin for Optare Bus applications - short pinApplications include: Optare Solo Buses & Coaches38mm Dia
20014170 - Long Pin for 212050V2
20014170 Long Pin for 212050V2 20 Tonne Loadstar œPlus Press Frame - Complete Kit (Special Version For œOptare Buses) 33mm Dia
20013100 Adjusting Screw - 30T Loadstar "Plus"
Adjusting Screw - 30 Tonne Loadstar œPlus Kit
20013000 30T Hydraulic Cylinder - Loadstar "Plus"
30T Hydraulic Cylinder - Loadstar "Plus"
18592000 - Hydraulic Cylinder 12T
Provides up to 12 tons of controlled hydraulic force Hollow, self-retracting design Stroke: 8mm Hole: 16mm Dimensions: 78 x 62mm
09530000 - Mechanical Bearing Separator - 50-175mm
Individual separators for removing and refitting bearings, etc.Can be used with any of the Sykes-Pickavant design of pullers where standard legs cannot gain access.Tapered legs provide all round support.Supplied in carton. External Spread Min - Max: 50 - 175mm Can be used with Sykes-Pickavant Loadstar Heavy Duty Pullers or 09430000 Twin Leg Pulling Unit

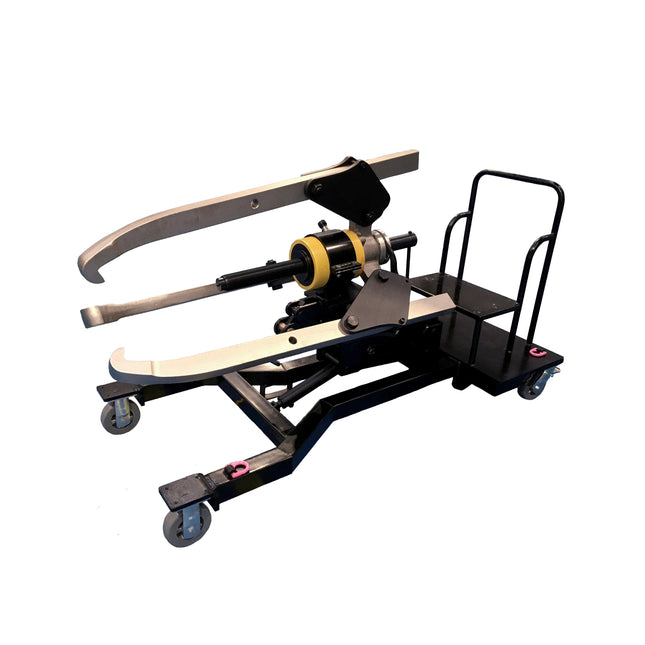

20973100 100T Puller on Trolley
100T Puller supplied on Trolley for ease of raising to the height required, the puller can also be used without the trolley. Specifications Length: 2070 mm Width: 936 mm Puller Minimum Height: 895 mm Puller Maximum Height 1250 mm Weight with Trolley: 590Kg Puller Weight: 400Kg

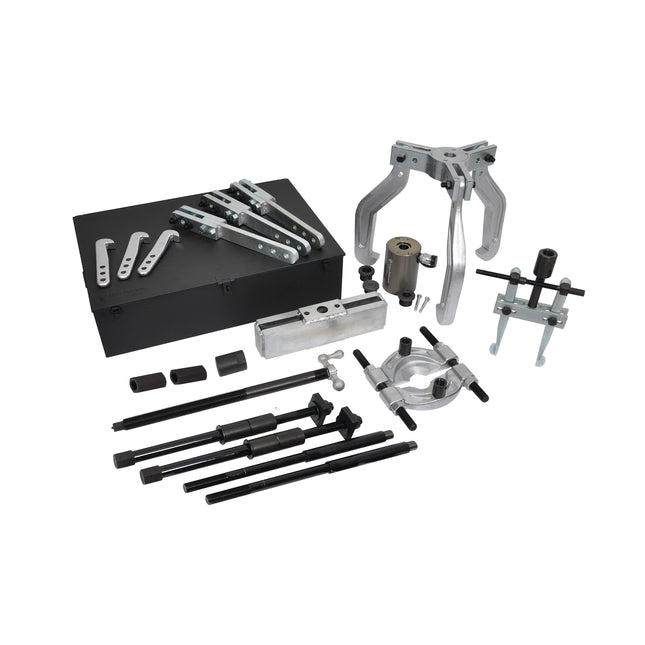

20305100 - 30 Tonne Loadstar "Plus" Comprehensive Kit (Less pump)
Loadstar Plus Heavy Duty Pullers offer a comprehensive range of pulling and extracting options Available in 20 Tonne, 30 Tonne and 50 Tonne Choices range from fully equipped Comprehensive Kits or entry level puller kits with the capability to add on extra packs as required These extra packs consist of Separator packs, Accessory Packs and in the 20 Tonne version there is also a Press Frame pack available The Loadstar Plus series is a versatile range with a range of options to suit all heavy duty pulling and extraction situations 20305000 - 30 Tonne Loadstar "Plus" Comprehensive Kit 30T Hydraulic Cylinder Contains full capability without any duplication of parts. 5 pulling combinations Bearing separator capability Internal pulling unit included Supplied in steel storage case 3 x Cranked legs 3 x Straight legs 3 x Leg extensions‹ Dimensions: Spread 530mm Reach 580mm Also available without pump as part number - 20305000

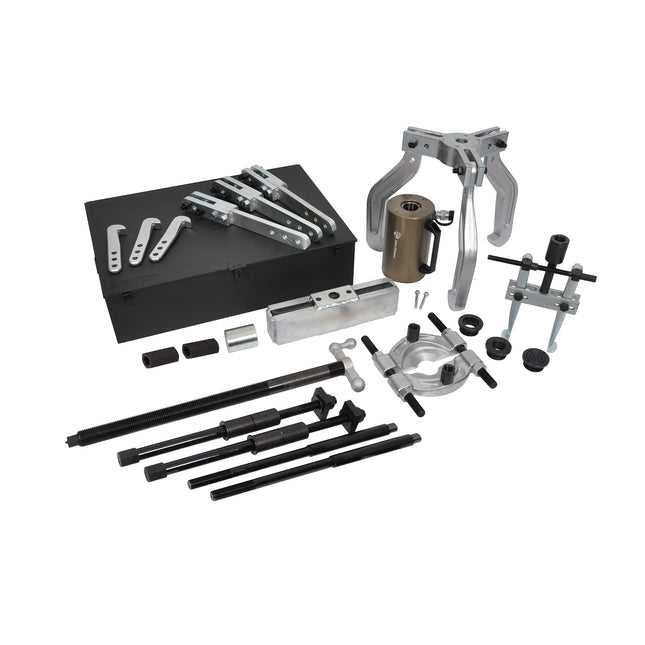

20505100 - 50T Loadstar "Plus" Comprehensive Kit (Less pump)
Loadstar Plus Heavy Duty Pullers offer a comprehensive range of pulling and extracting options Available in 20 Tonne, 30 Tonne and 50 Tonne Choices range from fully equipped Comprehensive Kits or entry level puller kits with the capability to add on extra packs as required These extra packs consist of Separator packs, Accessory Packs and in the 20 Tonne version there is also a Press Frame pack available The Loadstar Plus series is a versatile range with a range of options to suit all heavy duty pulling and extraction situations 20505000 - 50 Tonne Loadstar "Plus" Comprehensive Kit 50T Hydraulic Cylinder Contains full capability without any duplication of parts 5 pulling combinations Bearing separator capability Internal pulling unit included Supplied in 2 steel storage cases 3 x Cranked legs 3 x Straight legs 3 x Leg extensions Dimensions: Spread 530mm Reach 470mm Also available without pump as part number - 20505000

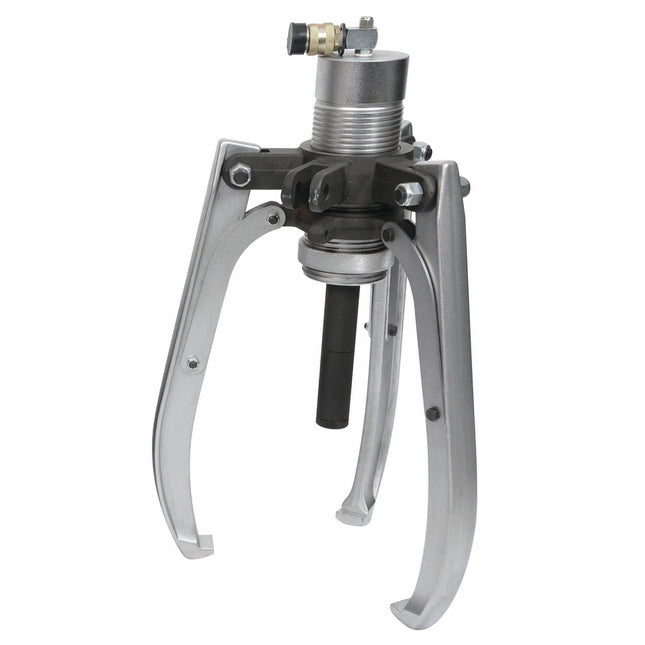

20152000 Loadstar Puller 20 Tonne (Less Pump)
Hydraulic Loadstar - Loadstar Pullers Self centering self locking puller legs, grip increases as load increases Easy one man operation 2 and 3 way options 360 degree swivel hose coupling for optimum access Selection of ram extension rods supplied to increase stroke In-built safety valve to prevent overloading Loadstar Puller 20 Tonne 20T Hydraulic Ram Puller Selection of 4 ram extension rods supplied to increase stroke Supplied in steel storage cases Dimensions: Spread 570mm Reach 365mm Contents: 20102010 1 x Hydraulic Ram 20102014 1 x Leg Assembly 20102012 1 x Head Assembly - Upper 20102013 1 x Head Assembly - Lower 20102020 1 x Ram Extension Set (4 piece) Also available without pump as part number - 20102000
18592100 - 12 Tonne hydraulic Cylinder
Provides up to 12 tons of controlled hydraulic force Hollow, self-retracting design Stroke: 40mm Hole: 16mm Dimensions: 78 x 124mm
