Mechanical Puller Spares
131100-02 - Short Leg Assembly 100mm
Leg Assembly Length 100mm Spare leg for 13110000 & 13115000 Mechanical Pullers Can also be used to change long reach pullers 13310000 & 133150000 to short reach.
-
131100-03 Force Screw 158mm
Force Screw for Mechanical Pullers Size 158mm M14 x 1.5 Suitable for 13110000, 13115000, 1331000, 13315000 pullers.
-

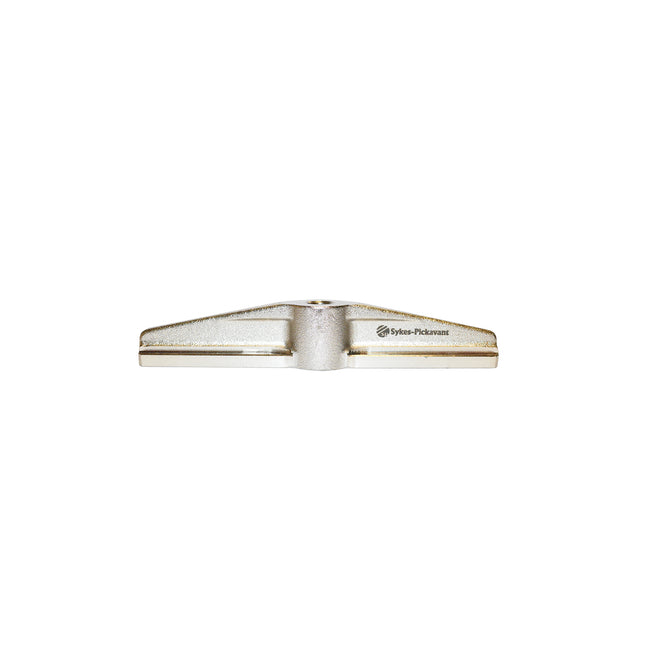

131150-01 - Twin Beam 176mm
Twin Beam Width 176mm Suitable for 13115000 & 13315000 pullers
-

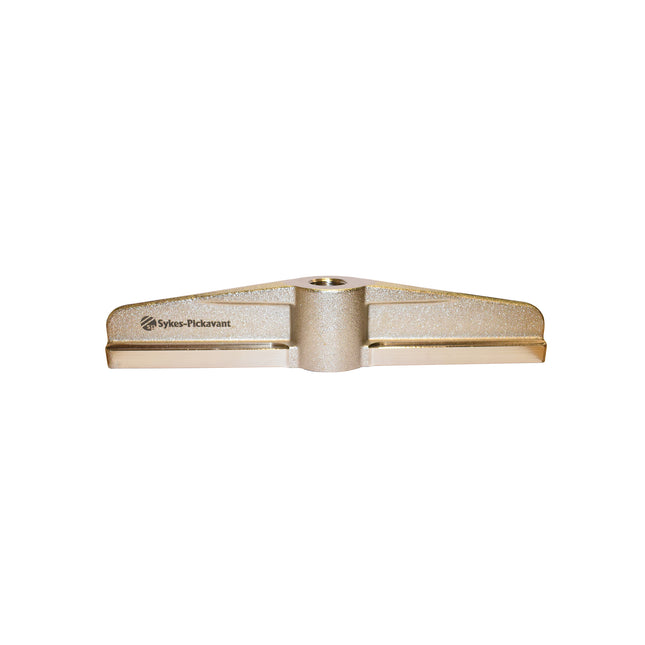

131200-01 - Twin Beam 223mm
Twin Beam Width 223mm Suitable for 13120000 & 13320000 pullers
-

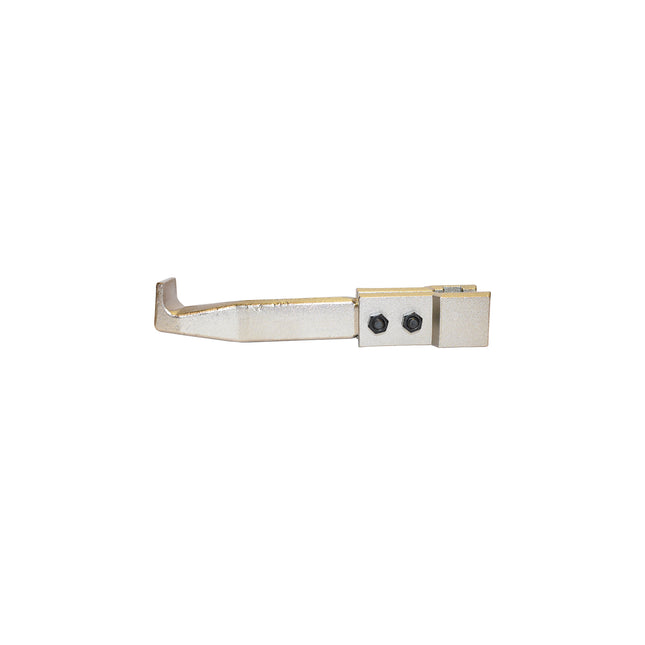

131200-02 - Leg Assembly 150mm
Leg Assembly Length 150mm Suitable for 13120000, 13125000, 13320000 & 13325000 pullers
-

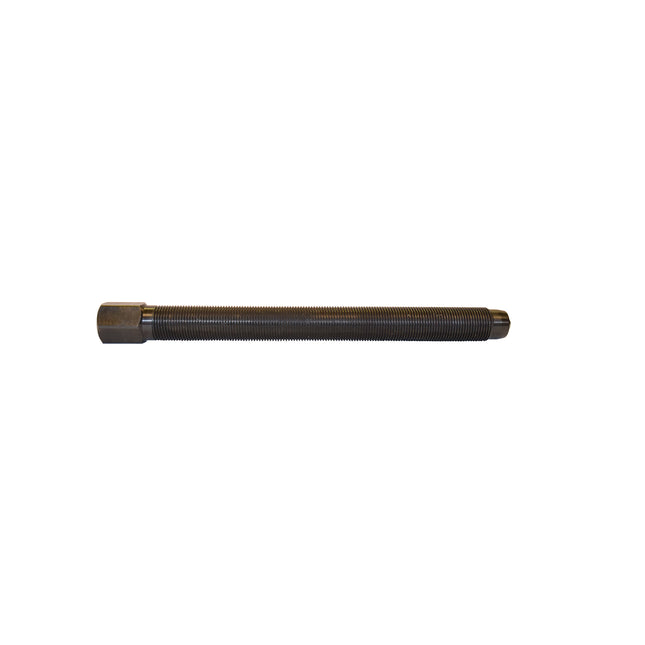

131200-03 - Force Screw 235mm
Force Screw Size 235mm M20 x 1.5 Suitable for 13120000, 13125000, 13320000 & 13325000 pullers
-

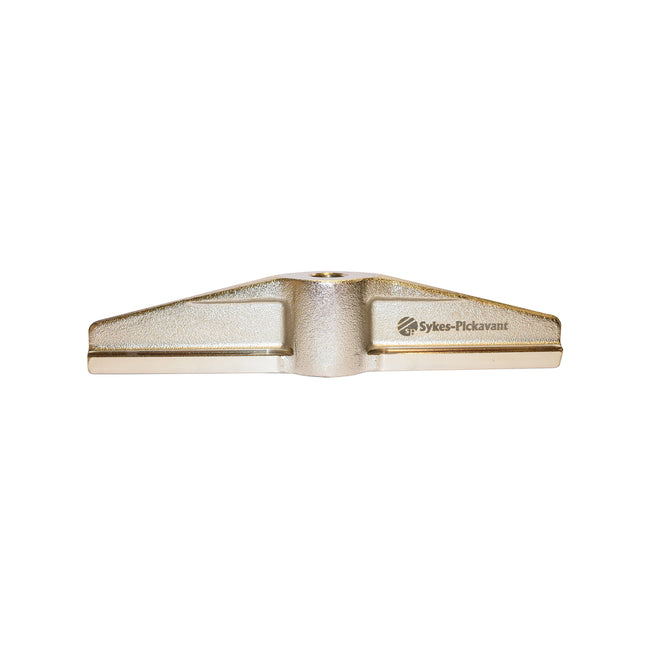

131250-01 - Twin Beam 250mm
Twin Beam Width 250mm Suitable for 13125000 & 13325000 pullers
-
131300-01 - Twin Beam 325mm
Twin Beam Width 325mm Suitable for 13130000 & 13330000 pullers
-

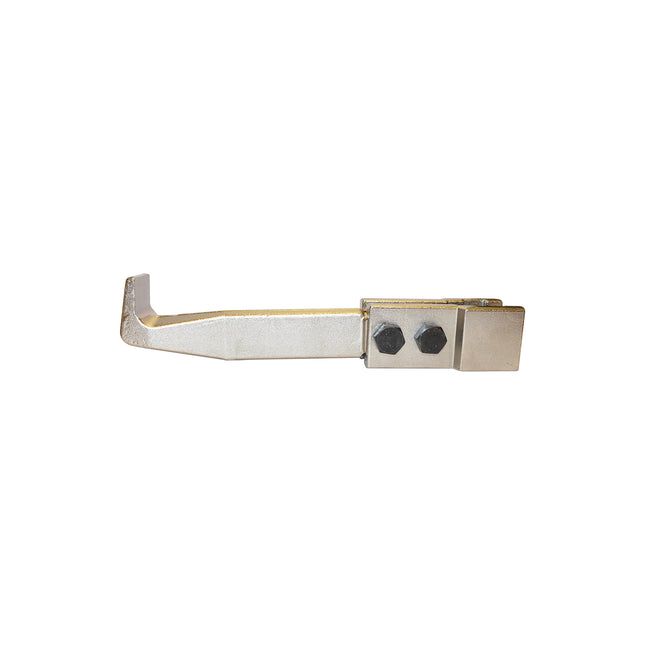

131300-02 - Leg Assembly 205mm
Leg Assembly Length 205mm Suitable for 13130000, 13135000, 13140000, 1333000, 13335000 & 13345000 pullers
-

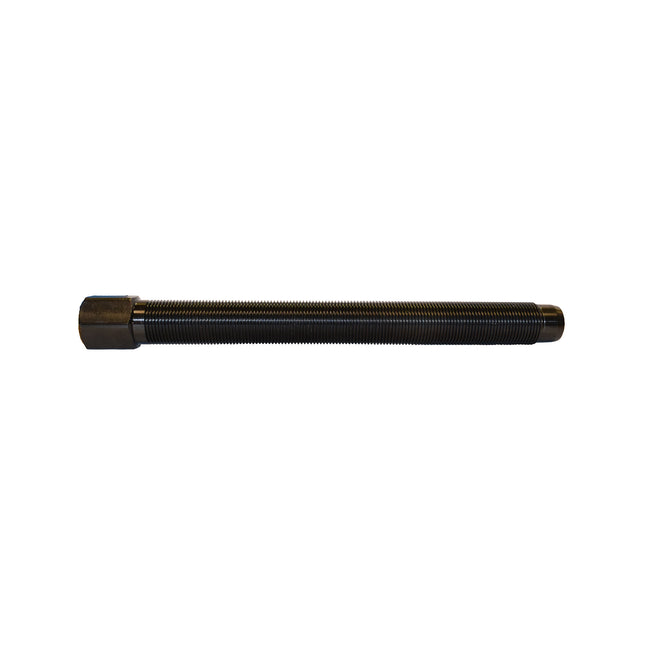

131300-03 - Force Screw 310mm
Force Screw Size 310mm M28 x 2 Suitable for 13130000, 13135000, 13330000 & 13335000 pullers
-

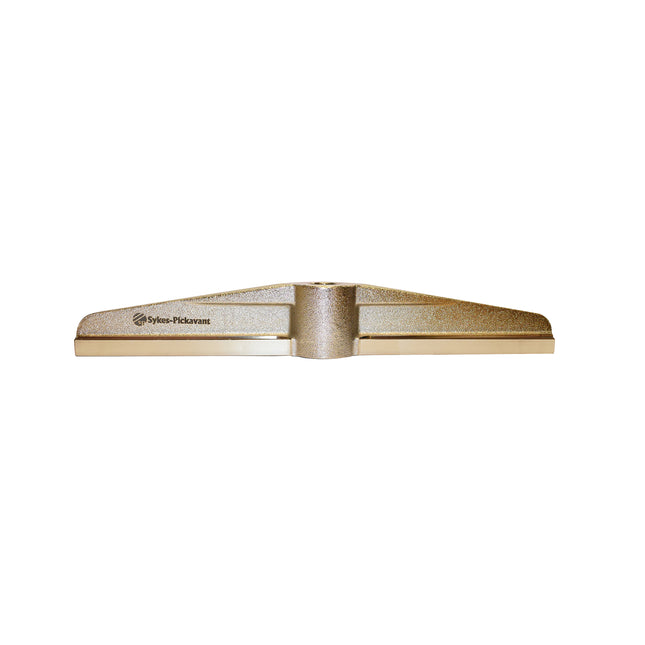

131350-01 - Twin Beam 425mm
Twin Beam Width 425mm Suitable for 13135000 & 13335000 pullers
-

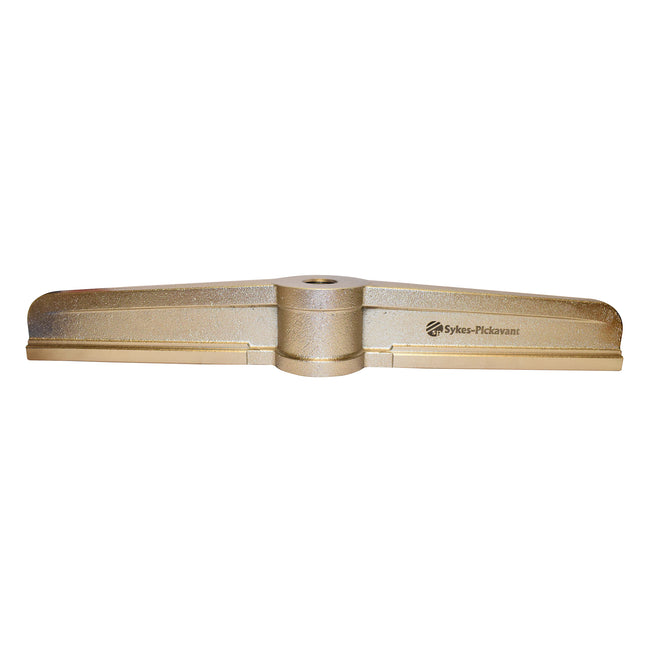

131400-01 - Twin Beam 585mm
Twin Beam Width 585mm Suitable for 13140000 & 13340000 pullers
-

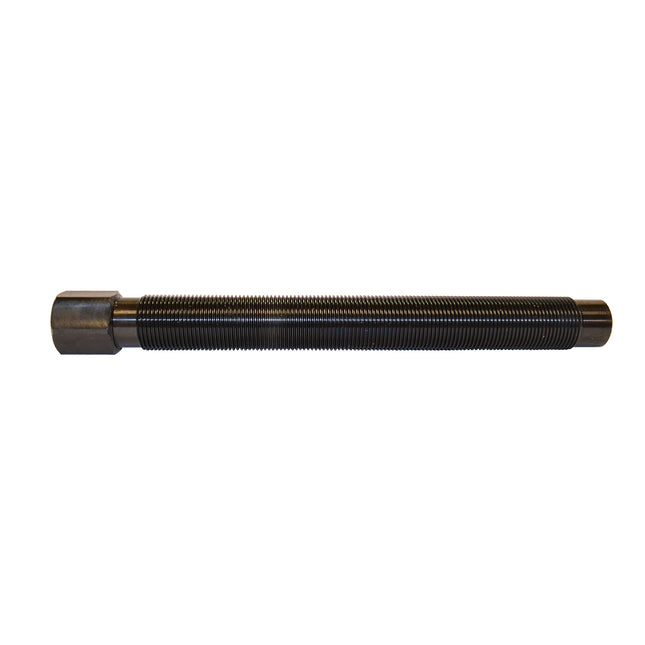

131400-03 - Force Screw 338mm
Force Screw Size 338mm Suitable for 131400000, 13145000, 13340000 & 13345000 pullers
-

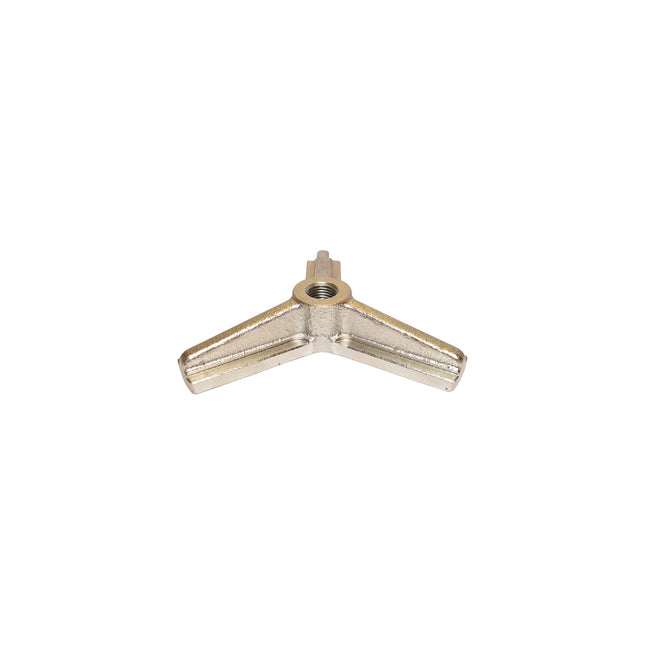

132100-01 Triple Beam
Triple Beam for 13210000 Mechanical Puller
-

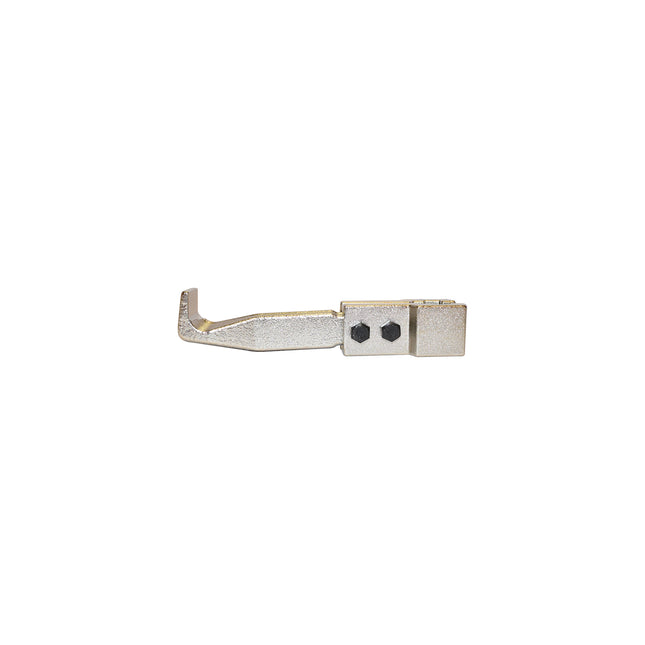

132100-02 Leg Assembly
Leg Assembly for 13210000 & 13215000 Mechanical Puller
-

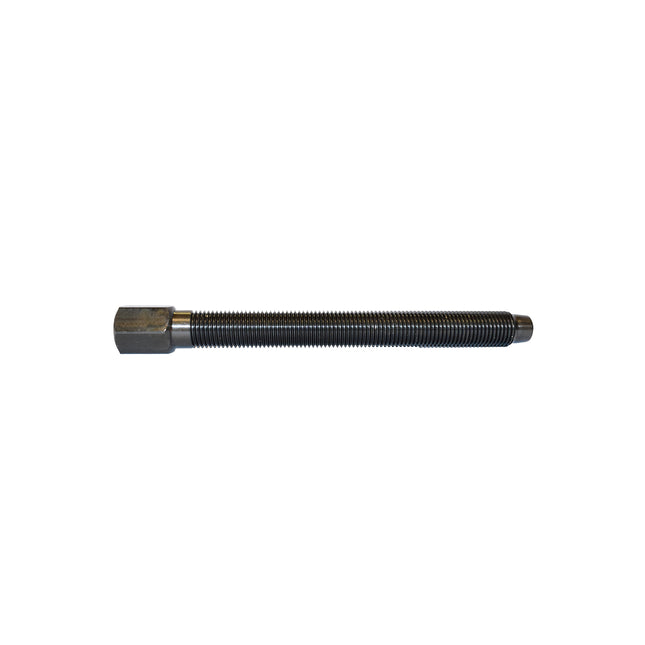

132100-03 Force Screw
Force Screw for 13210000, 13215000 & 13220000 Mechanical Pullers
-

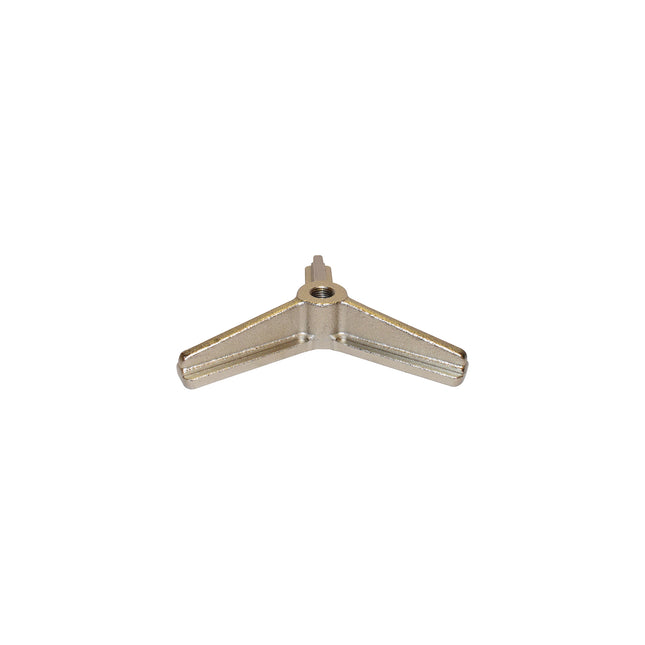

132150-01 Triple Beam
Triple Beam for 13215000 Mechanical Puller
-

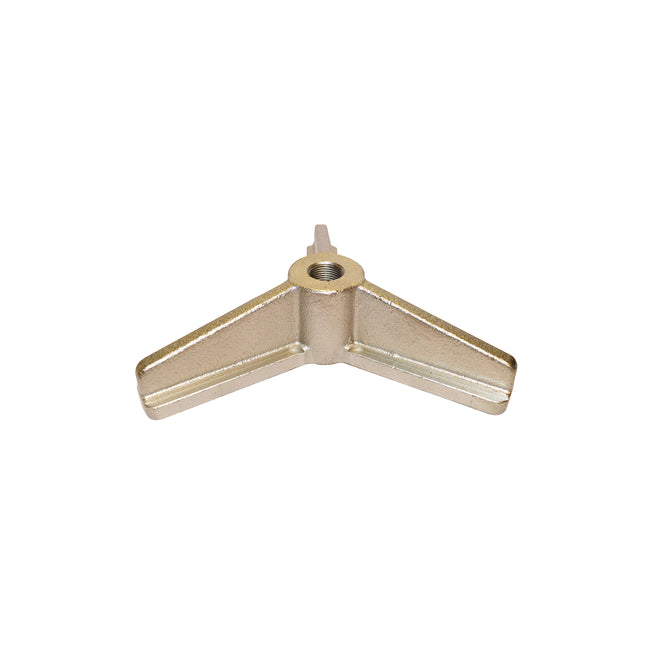

132200-01 Triple Beam
Triple Beam for 13220000 Mechanical Puller
-

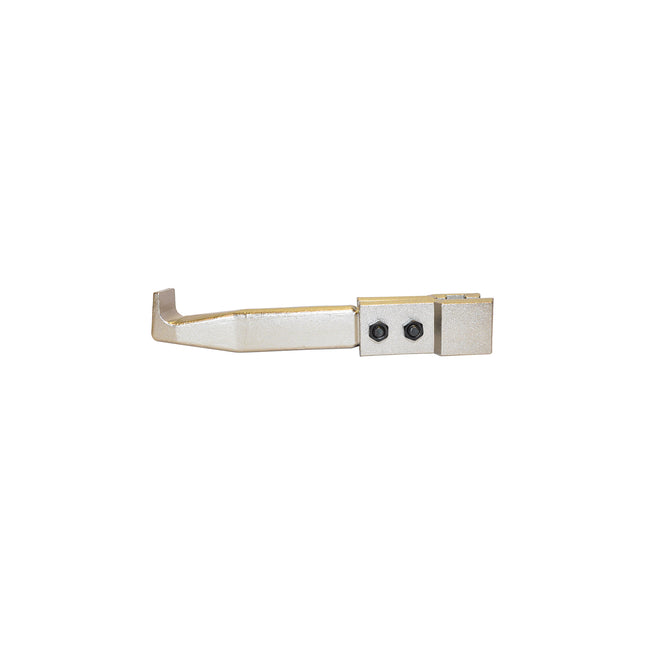

132200-02 Leg Assembly
Leg Assembly for 13220000 Mechanical Puller
-

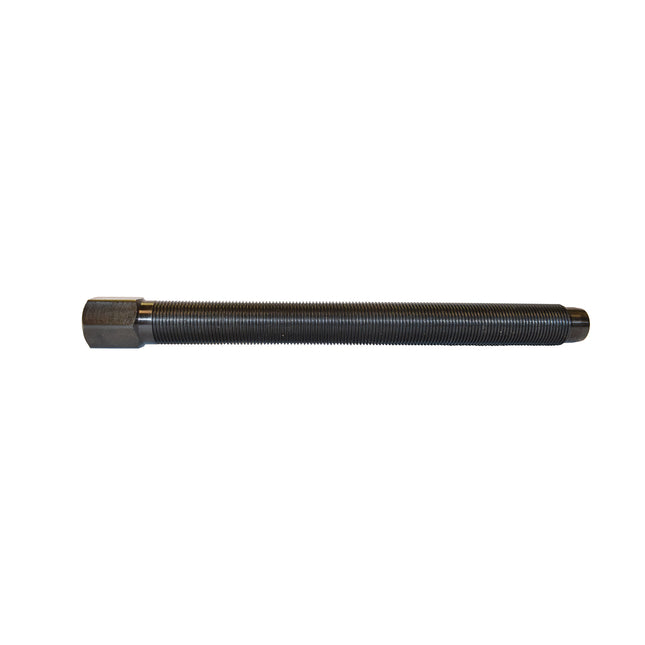

132200-03 Force Screw
Force Screw for 13220000 Mechanical Puller
-

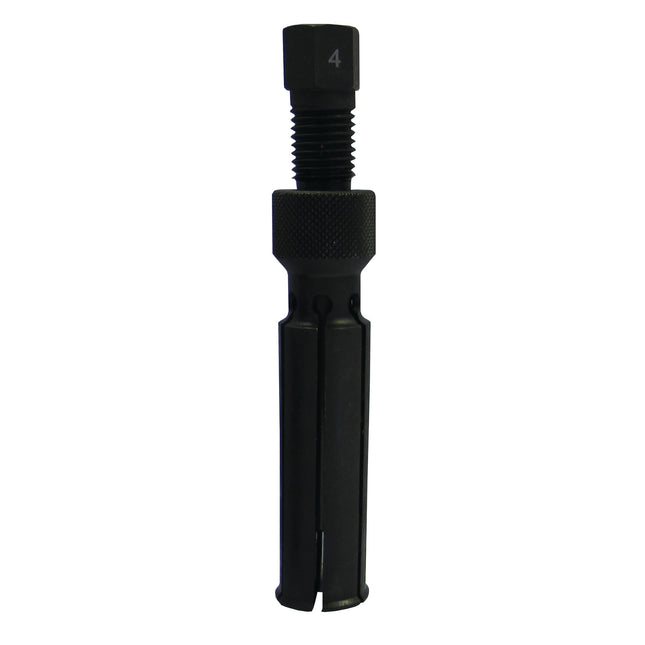

09581400 - Split Collet Extractor 22 - 30mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 22-30 mm No.4 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads 08542100 - Slide Hammer Assembly - (1kg) Found in kits: 09580000 - Internal Split Collets Extractor Kit 09580200 - Slide Hammer & Split Collet Extractor Kit 19310500 - Hydraulic Internal Extractor, Puller & Separator Kit 08540400 - Slide Hammer Combi Puller & Extractor Kit
-

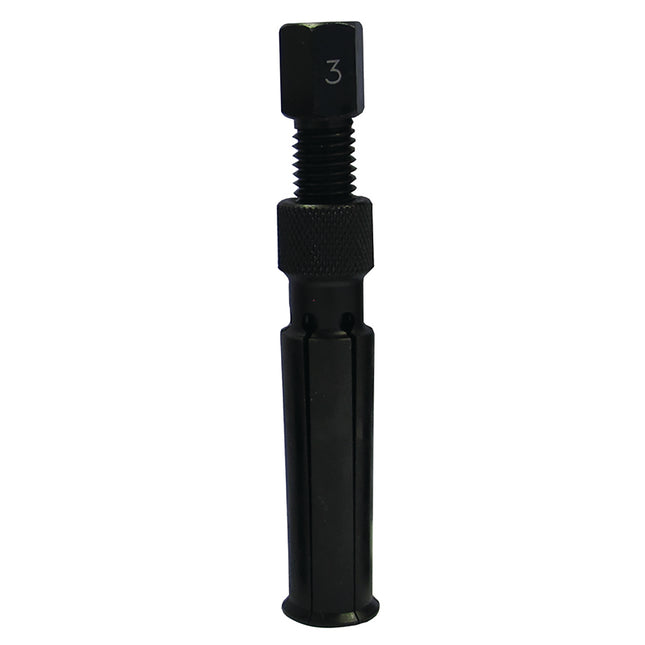

09581300 - Split Collet Extractor 19 - 22mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 19-22mm No.3 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) ** ** Additional part 09582000 (converter from M8 to 1/2” UNF) must be attached for use with slide hammer Found in kits: 09580000 - Internal Split Collets Extractor Kit 09580200 - Slide Hammer & Split Collet Extractor Kit 09580400 - Slide Hammer & Split Collet Extractor Kit 19310500 - Hydraulic Internal Extractor, Puller & Separator Kit 08540400 - Slide Hammer Combi Puller & Extractor Kit
-

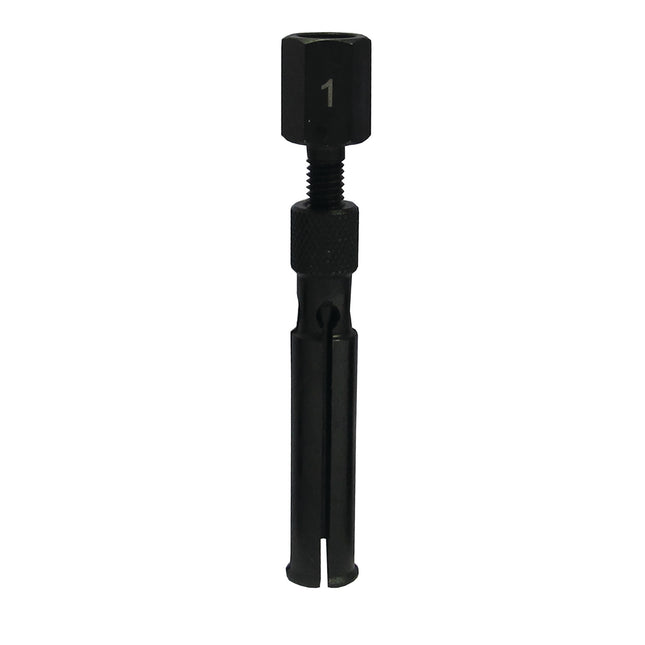

09581100 - Split Collet Extractor 10 - 12mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 10-12mm No.1 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) ** ** Additional part 09582000 (convertor from M8 to 1/2” UNF) must be attached for use with slide hammer Found in kits: 09580100 - Slide Hammer & Split Collet Extractor Kit 09580400 - Slide Hammer & Split Collet Extractor Kit 19310500 - Hydraulic Internal Extractor, Puller & Separator Kit 08540400 - Slide Hammer Combi Puller & Extractor Kit
-

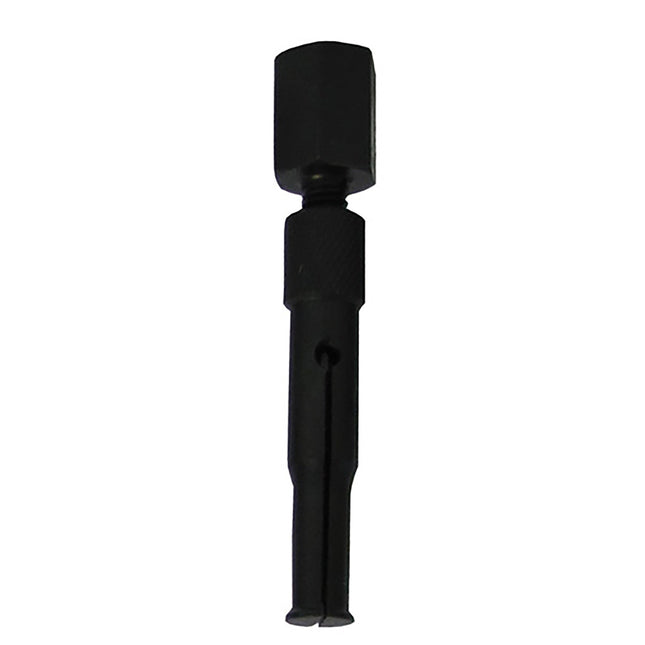

09581000 - Split Collet Extractor 8.5 - 10mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 8.5 - 10 mm No.0 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) ** ** Additional part 09582000 (convertor from M8 to 1/2” UNF) must be attached for use with slide hammer Found in kits: 09580000 - Internal Split Collets Extractor Kit 09580100 - Slide Hammer & Split Collet Extractor Kit 09580400 - Slide Hammer & Split Collet Extractor Kit 19310500 - Hydraulic Internal Extractor, Puller & Separator Kit
-

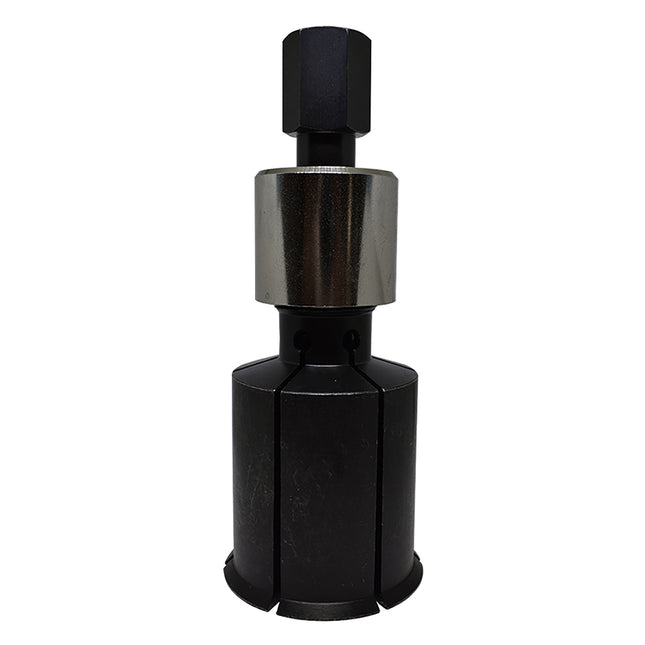

09581800 - Split Collet Extractor 55 - 64mm
Extract components quickly and efficiently when conventional pullers cannot be used. Removes gears, bearings, pinions, oil seals etc. The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 55 - 64 mm ½" UNF fitting Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) **
-

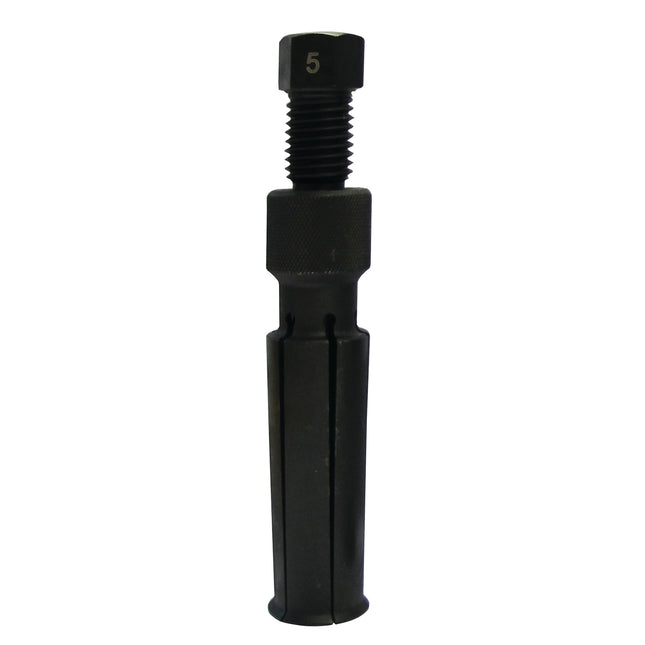

09581500 - Split Collet Extractor 30 - 38mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 30-38mm No.5 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads 08542100 - Slide Hammer Assembly - (1kg) Found in kits: 09580000 - Internal Split Collets Extractor Kit 09580300 - Slide Hammer & Split Collet Extractor Kit 19310500 - Hydraulic Internal Extractor, Puller & Separator Kit
-
09581900 - Split Collet Extractor 65 - 76mm
Extract components quickly and efficiently when conventional pullers cannot be used. Removes gears, bearings, pinions, oil seals etc. The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 65 - 76 mm ½" UNF fitting Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) **
-

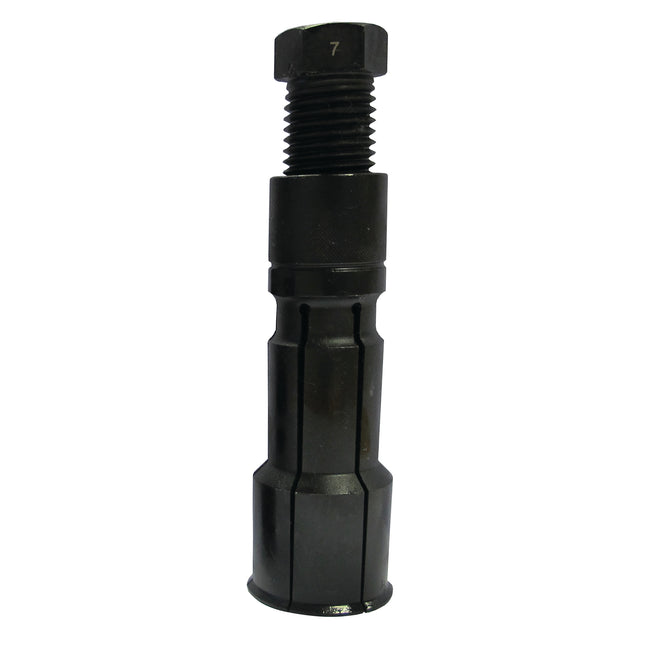

09581700 - Split Collet Extractor 50-60mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 50-60mm No.7 - stamped on extractor (Previous models were No.9) Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads 08542100 - Slide Hammer Assembly - (1kg) Found in kits: 09580000 - Internal Split Collets Extractor Kit 09580300 - Slide Hammer & Split Collet Extractor Kit
-

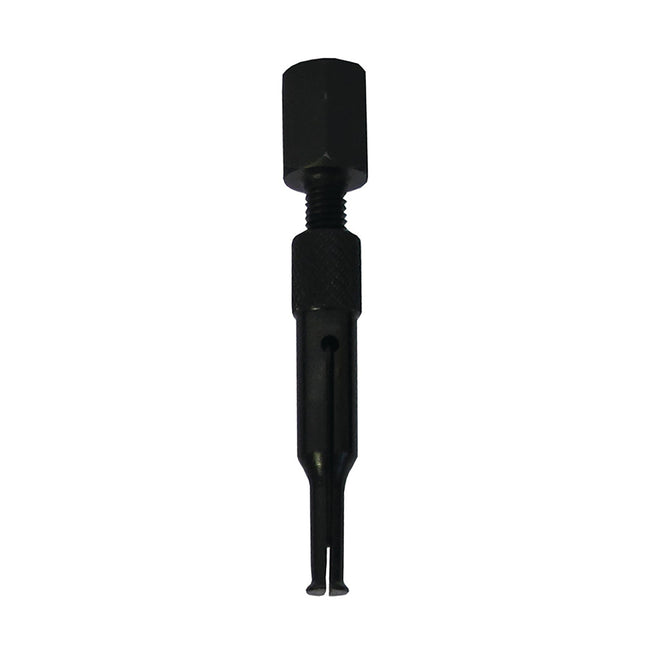

09580900 - Split Collet Extractor 6.5 - 8mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 6.5 - 8 mm No.00 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) ** ** Additional part 09582000 (converter from M8 to 1/2” UNF) must be attached for use with slide hammer Found in kits: 09580000 - Internal Split Collets Extractor Kit 09580100 - Slide Hammer & Split Collet Extractor Kit 19310500 - Hydraulic Internal Extractor, Puller & Separator Kit
-

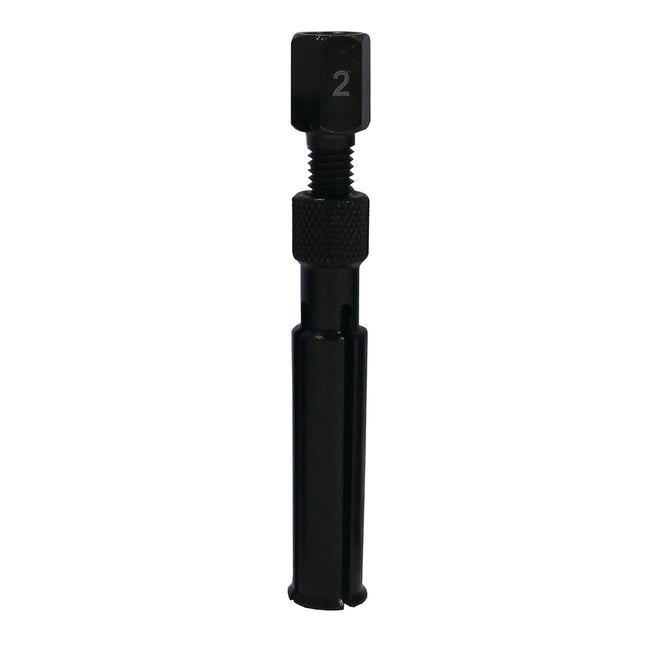

09581200 - Split Collet Extractor 12 - 17mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 12 - 17 mm No.2 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) ** ** Additional part 09582000 (convertor from M8 to 1/2” UNF) must be attached for use with slide hammer Found in kits: 09580000 - Internal Split Collets Extractor Kit 09580200 - Slide Hammer & Split Collet Extractor Kit 09580400 - Slide Hammer & Split Collet Extractor Kit 19310500 - Hydraulic Internal Extractor, Puller & Separator Kit 08540400 - Slide Hammer Combi Puller & Extractor Kit
-

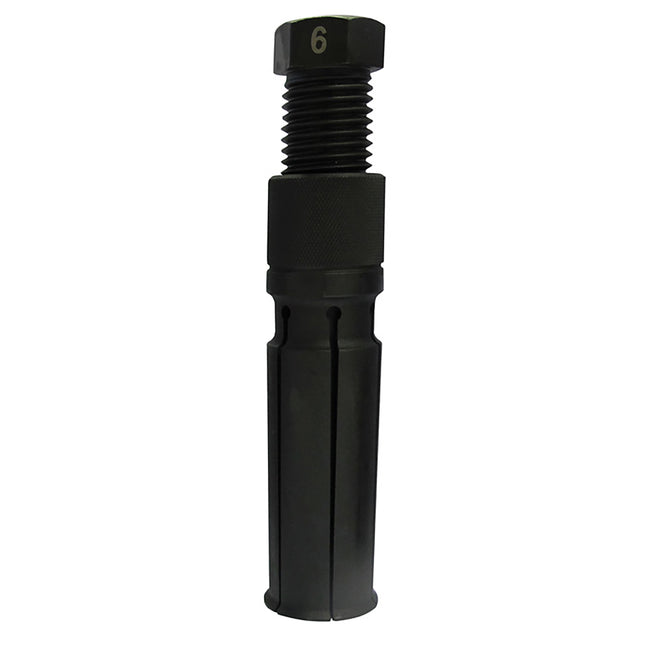

09581600 - Split Collet Extractor 38-50mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 38-50mm No.6 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads 08542100 - Slide Hammer Assembly - (1kg) Found in kits: 09580000 - Internal Split Collets Extractor Kit 09580300 - Slide Hammer & Split Collet Extractor Kit
-

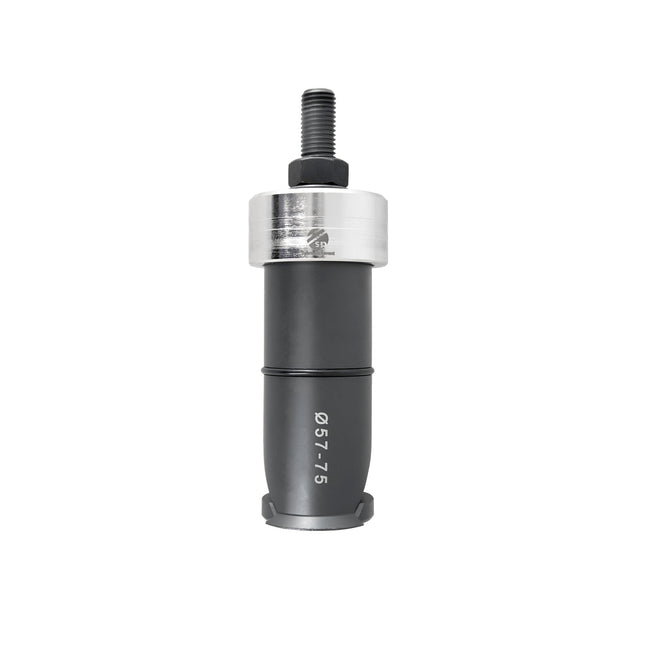

09582100 - Bearing Extractor 57-75mm
Extract components quickly and efficiently when conventional pullers cannot be used. Removes larger bearings found on engines, gearboxes and industrial machinery. The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specification Thread Size: M16 x 2 Size: 57-75mm Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads* *requires adapator 09582300 Found in Kits: 09580600 - Bearing Extractor Set 57-75mm 09580800 - Bearing Extractor Set 57-100mm 09585600 - Slide Hammer Bearing Extractor Set 57-75mm 09585800 - Slide Hammer Bearing Extractor Set 57-100mm
-

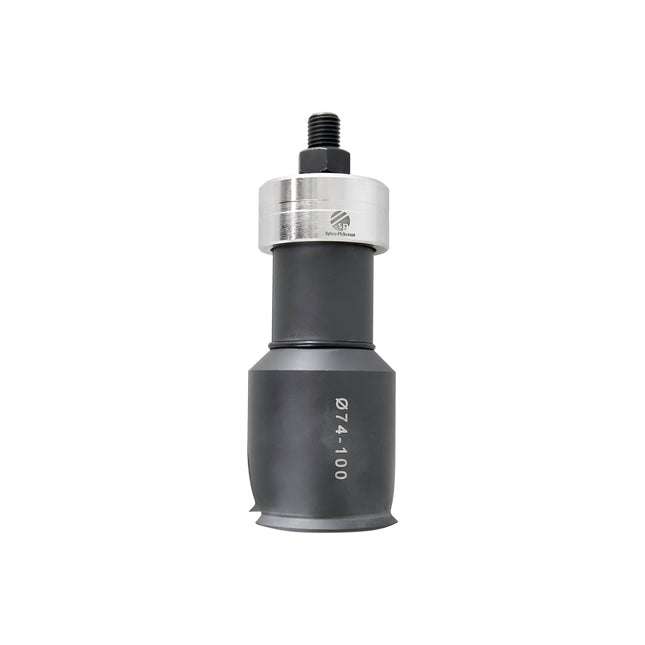

09582200 - Bearing Extractor 74-100mm
Bearing Extractor 74-100mm Coverage for larger bearings found on engines, gearboxes and industrial machinery. Specification Thread Size: M16 x 2 Size: 74-100mm Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads (requires adapator 09582300) Found in Kits: 09580700 - Bearing Extractor Set 74-100mm 09580800 - Bearing Extractor Set 57-100mm 57-75mm option also available as part number 09582100
-
133100-02 - Long Reach Leg - 200mm
Long reach leg for 1300 series pullers, spare or to convert a std reach puller to a long reach puller. Length 200mm Suitable for 13110000, 13115000, 13310000, 13315000 See downloads for more information on the 1300 series 2 leg pullers and compatible long & short legs
-

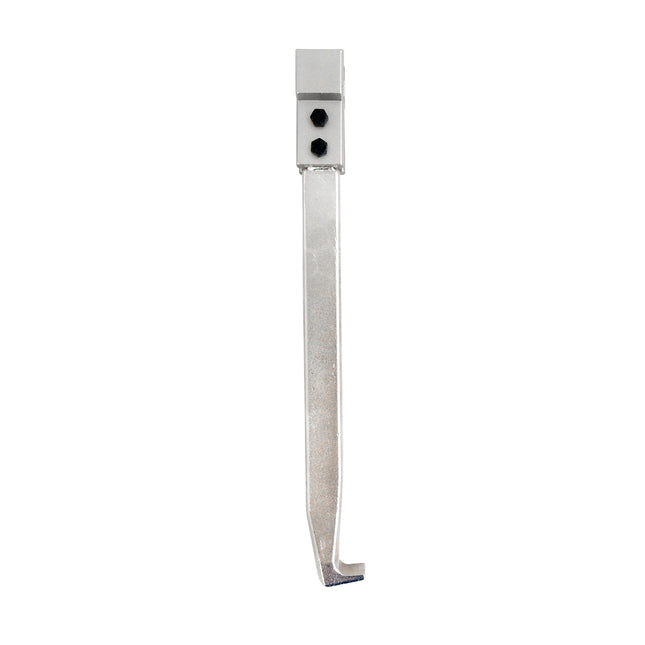

133200-02 - Long Reach Leg - 305mm
Long reach leg for 1300 series pullers, as a spare or to convert a std reach puller to a long reach puller. Length 305mm Suitable for 13120000, 13125000, 13320000, 13325000 See downloads for more information on the 1300 series 2 leg pullers and compatible long & short legs
-
133300-02 - Long Reach Leg - 380mm
Long reach leg for 1300 series pullers, as a spare or to convert a std reach puller to a long reach puller. Length 380mm Suitable for 13130000, 13135000, 13140000, 1333000, 13335000, 13340000 See downloads for more information on the 1300 series 2 leg pullers and compatible long & short legs
-

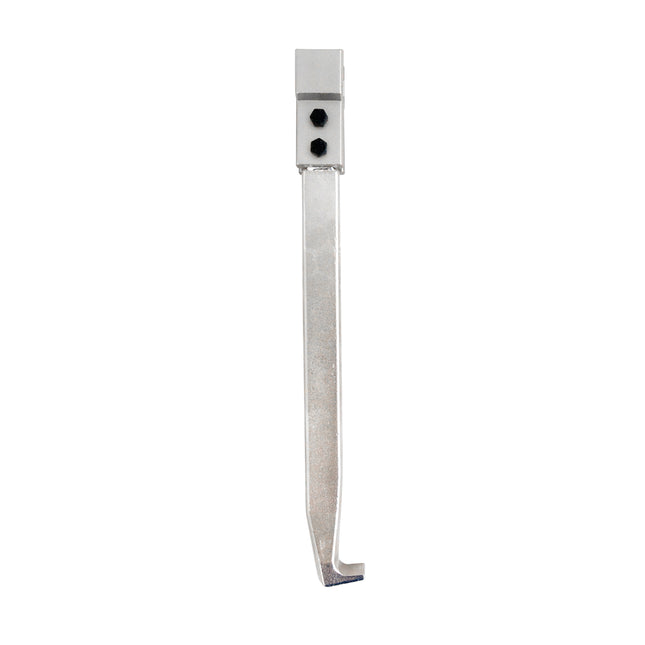

133450-02 - Long Reach Leg - 350mm
Long reach leg for 1300 series pullers, as a spare or to convert a std reach puller to a long reach puller. Length 380mm Suitable for 13145000, 13345000 See downloads for more information on the 1300 series 2 leg pullers and compatible long & short legs
-

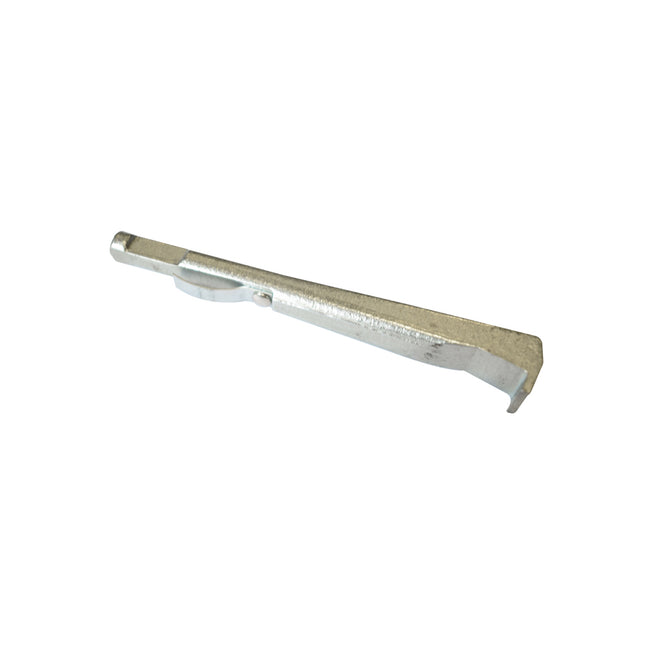

08210570 - Leg for 08215000 Fast Fit Micro Puller
1 x Leg for 08215000 Fast Fit Micro Puller
-

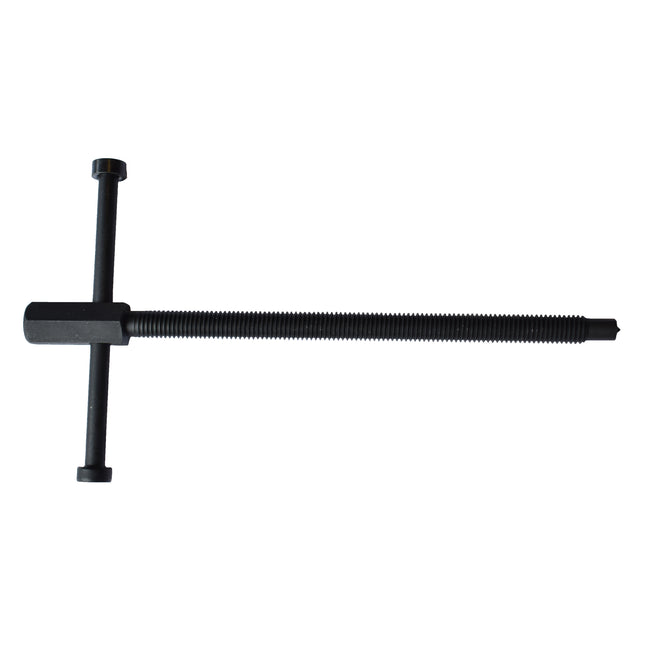

08210300 - Forcing Screw for 08215000
Forcing Screw for 08215000 puller
-

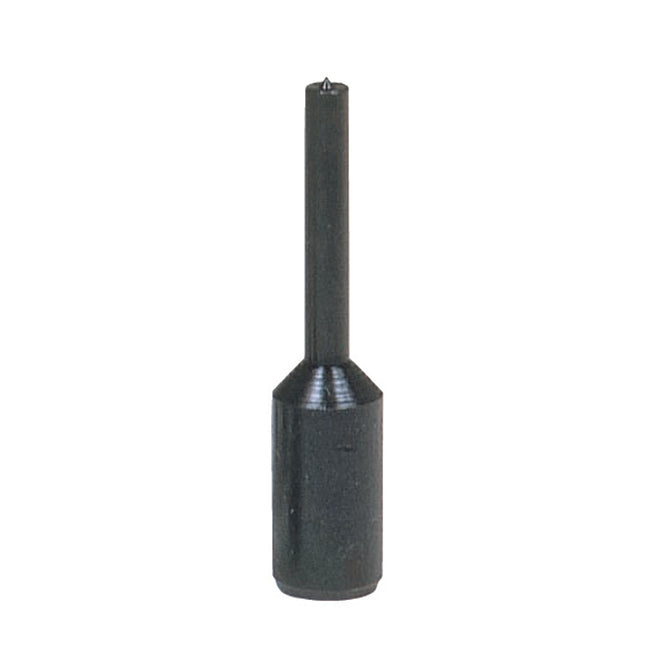

08210400 - Nose Piece Extension
Nose Piece Extension for 08215000 puller
-

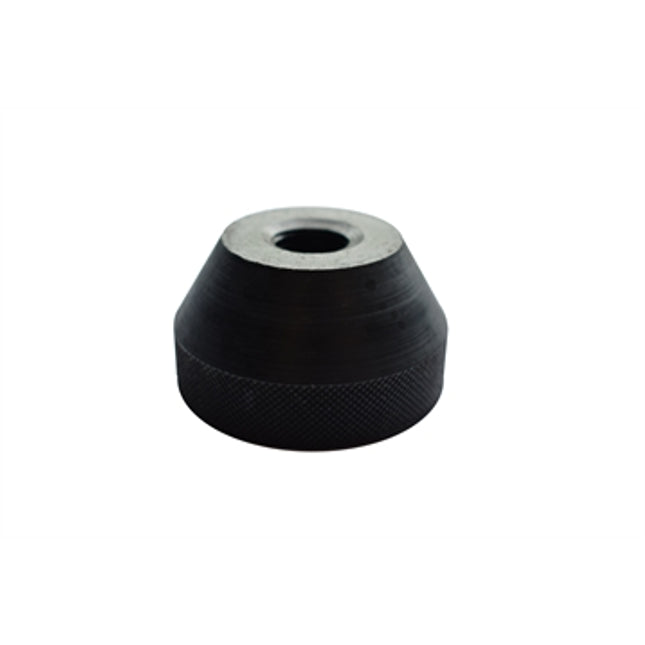

08545300 - Adjustable Cone
For use with kit 08545000
-

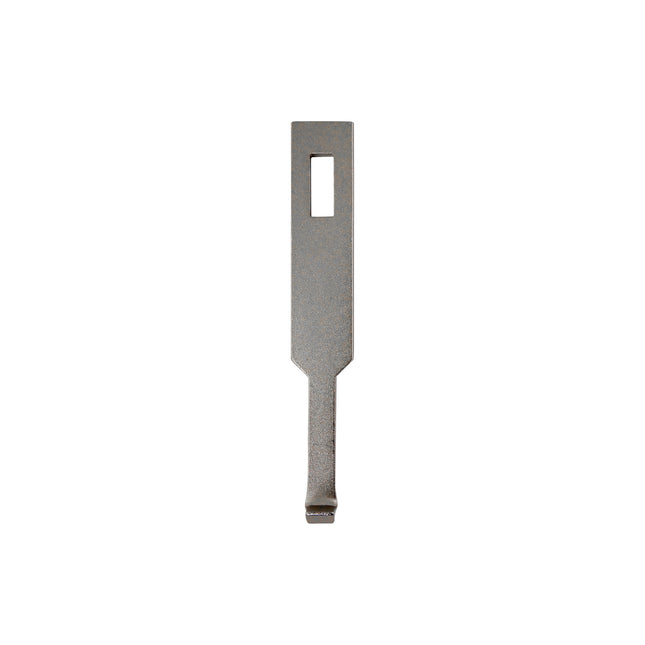

SP1805-31 - Puller Leg - 190mm
Spare puller leg for SPEEDLINE1805 - Multipull Puller Specifications Total Jaw Length: 190 mm Working Jaw Length: 136 mm Jaw Width: 12.5 mm Foot Depth: 13 mm Jaw thickness: 8 mm
-

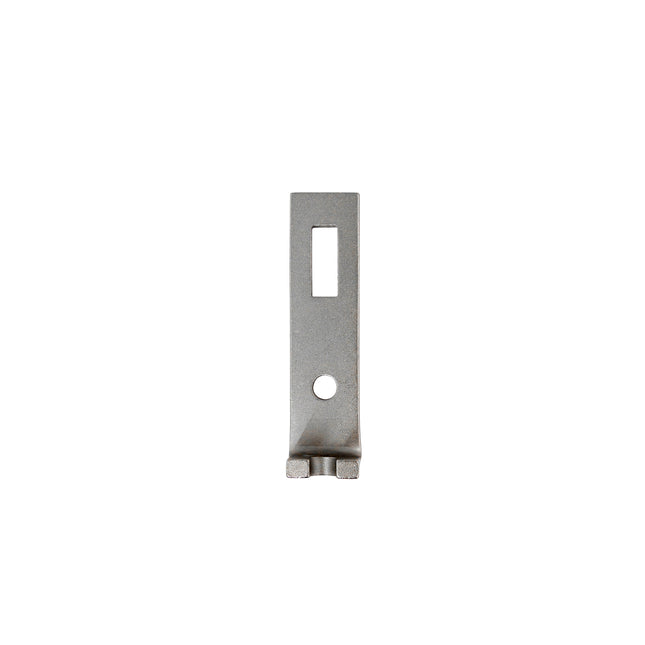

SP1805-32 - Puller Leg - 119mm
Spare puller leg for SPEEDLINE1805 - Multipull Puller Specifications Total Jaw Length: 119 mm Working Jaw Length: 61 mm Jaw Width: 30 mm Foot Depth: 20 mm Jaw thickness: 8 mm
-

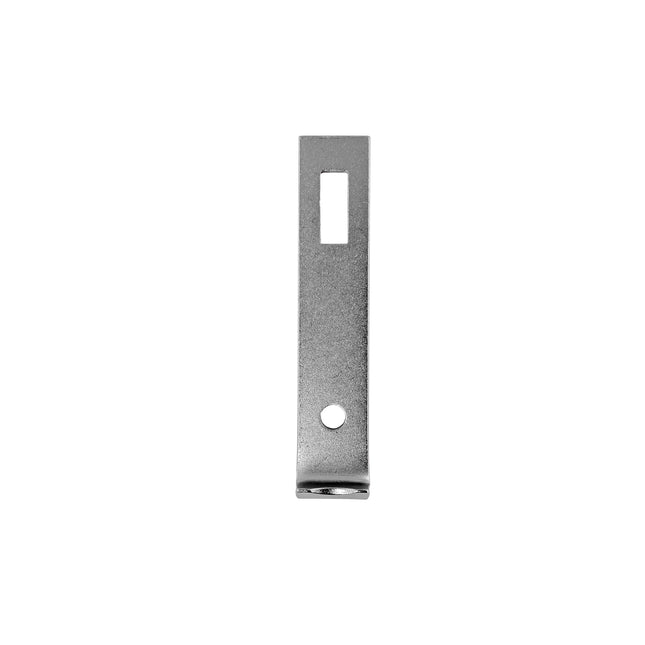

SP1805-33 - Puller Leg - 151 mm
Spare puller leg for SPEEDLINE1805 - Multipull Puller Specifications Total Jaw Length: 151 mm Working Jaw Length: 100 mm Jaw Width: 30 mm Foot Depth: 12 mm Jaw thickness: 6 mm
-

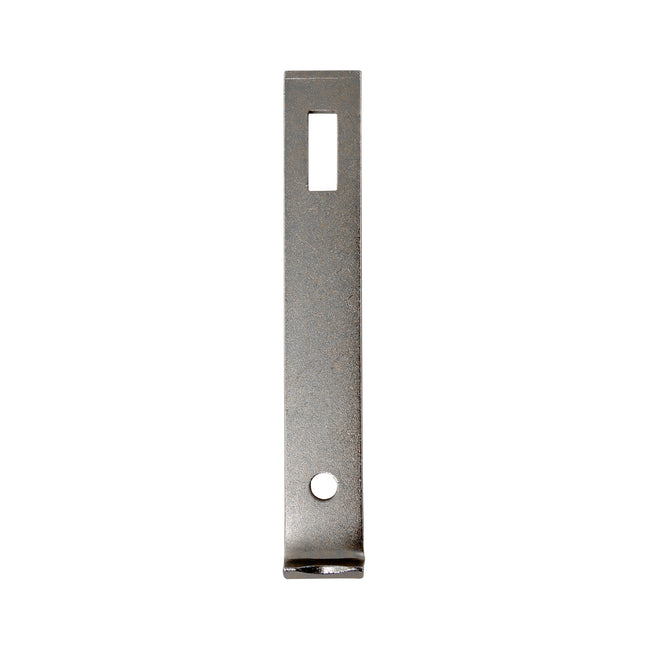

SP1805-34 - Puller Leg - 186 mm
Spare puller leg for SPEEDLINE1805 - Multipull Puller Specifications Total Jaw Length: 186 mm Working Jaw Length: 140 mm Jaw Width: 30 mm Foot Depth: 12 mm Jaw thickness: 6 mm
-

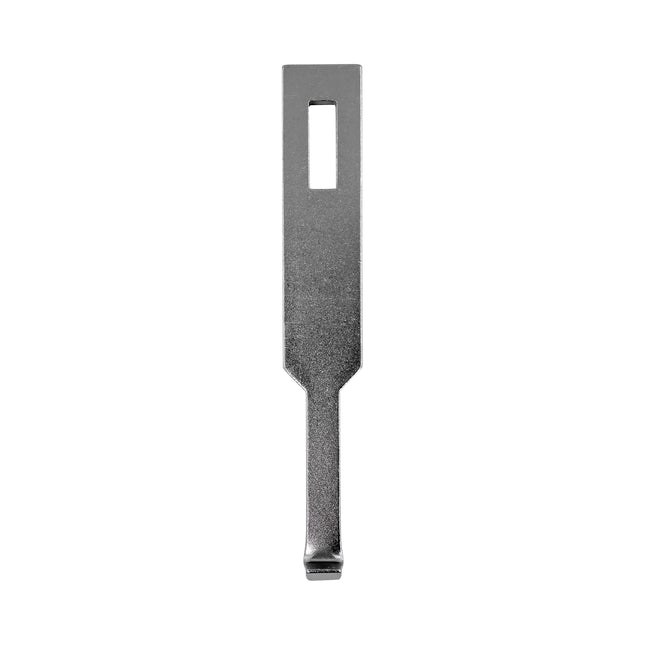

SP1810-31 - Puller Leg - 255 mm
Spare puller leg for SPEEDLINE1810 Total Jaw Length: 255 mm Working Jaw Length: 182 mm Jaw Width: 17 mm Foot Depth: 14 mm Jaw thickness: 10 mm
-

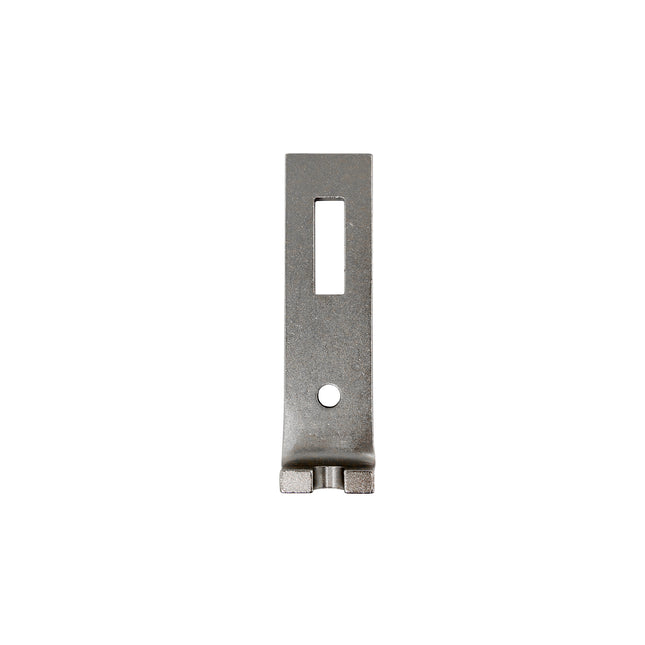

SP1810-32 - Puller Leg - 149 mm
Spare puller leg for SPEEDLINE1810 Total Jaw Length: 149 mm Working Jaw Length: 76 mm Jaw Width: 40 mm Foot Depth: 24 mm Jaw thickness: 10 mm
-

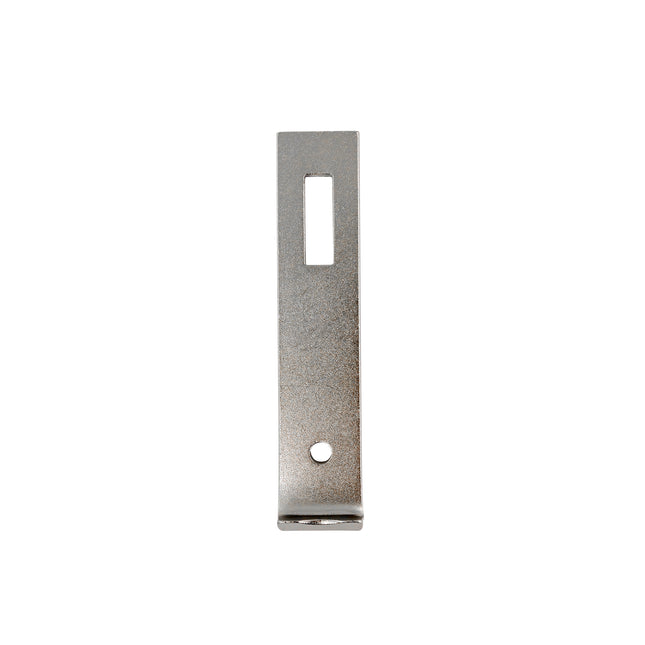

SP1810-33 - Puller Leg - 191 mm
Spare puller leg for SPEEDLINE1810 Total Jaw Length: 191 mm Working Jaw Length: 120 mm Jaw Width: 40 mm Foot Depth: 14 mm Jaw thickness: 8 mm
