ATF Machine & Adaptor Kits

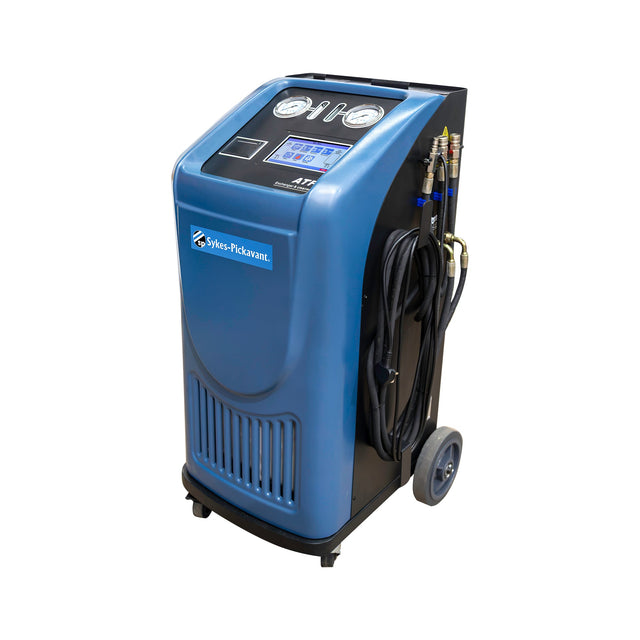

The Sykes Pickavant New Generation Automatic Transmission Fluid Exchange Machine offers exceptional cleaning and fluid replacement in under 20 minutes on all modern transmission systems. The machine is capable of servicing Standard ATF, DCT / DSG and CVT Transmissions. Features 15-20 minutes per service 100% of ATF replaced during service operation Fully automatic, user friendly, safe and reliable operation Improves workshop efficiency Accommodates large capacity ATF exchanges including buses/trucks Accommodates any type of ATF oil Ability to pre heat the oil Allows oil exchanging Comes with standard set of adaptors  Includes 2 x Automatic Transmission Flush Kits (FATFKIT) Std Adaptor Kit Contents (included) PART NO SIZE CAR MODELS / GEARBOX  A01 Ø5/Ø8/Ø10 Toyota, Honda, Nissan, Mistubishi Space Wagon, GLXI, Lexus Es300 Ø8 Ø8 hose Toyota, Honda, Nissan, Mistubishi Space Wagon, GLXI, Lexus Es300 Ø10 Ø10 hose Toyota, Honda, Nissan, Mistubishi Space Wagon, GLXI, Lexus Es300 Ø12 Ø12 hose Toyota, Honda, Nissan, Mistubishi Space Wagon, GLXI, Lexus Es300 A03A M16 x 1.5 Cadillac, BMW750:4HP-22, 4HP-24, A21 Mitsubishi V6, 3000 A03B M16 x 1.5 Cadillac, BMW750:4HP-22, 4HP-24, A42 A05A M18 x 1.5 European Opel Vectra, VW Passat A05B M18 x 1.5 European Opel Vectra, VW Passat A06A G1/4" Chrysler Grand Voyager, 300 A06B G1/4" Chrysler Grand Voyager, 300 A10A UNF 1/2-20 Ford, Mercedes, Volvo, Chrysler A10B UNF 1/2-20 Ford, Mercedes, Volvo, Chrysler A11A Z1/4 Ford, Lincoln, Volvo A11B Z1/4 Ford, Lincoln, Volvo A13A UNF 5/8-18 GM, Chrysler A13B UNF 5/8-18 GM, Chrysler A14A UNF 5/8-18 Ford, Volvo A14B UNF 5/8-18 Ford, Volvo A20A UNF 1/2-20 Ford A20B UNF 1/2-20 Ford A43x2 M12x1.5 General A44 M12 General A51 Ø8.0(H) Ford, Lincoln, Mazda, Volvo A53 Ø12. 5(H) Chrysler, Dodge, Ford Focus   Optional adaptor kits available:  35090000 - ATF Adaptor Kit No 4 (140 pcs) FDATFM-KIT1 - Optional Adaptor Kit FDATFM-KIT2 - Optional Adaptor Kit FDATFM-KIT3 - Optional Adaptor Kit To view the full range of ATF products, click here.

Read more less

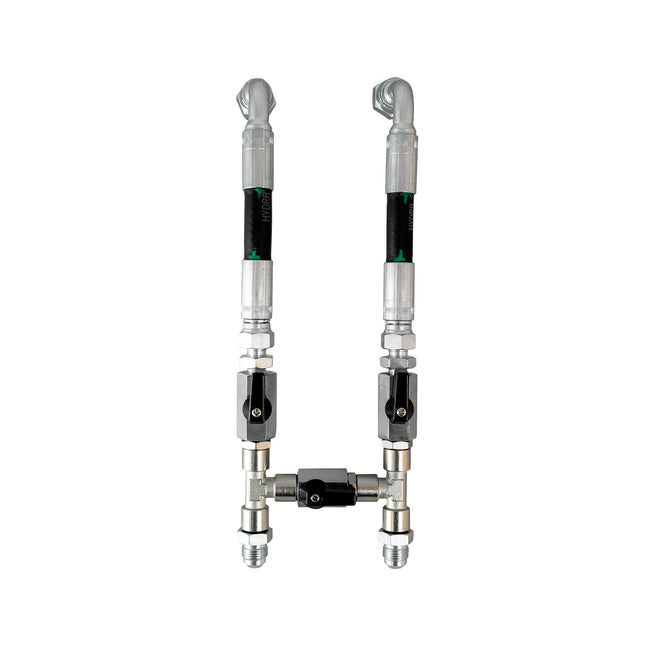

ATF Fluid Control Adaptor The H Adapter simplifies and improves safety when carrying out oil exchanges on JLR and Ford vehicles fitted with thermostats in the oil cooler lines. The unit connects directly to the ATF machine, with oil pipes attached to the adapter. This allows the vehicle to be hooked up to the machine while cold, avoiding the risk of burns from disconnecting at full operating temperature. At the machine end, stop valves are fitted. These are switched to “closed,” opening a cross-section that allows oil to circulate (loop) between the car and the machine. This enables the vehicle to warm up safely while the machine, switched out of the loop, brings the oil up to 80°C. Once both the car and the machine are at the correct temperature, the car is briefly turned off, the machine valves opened, and the cross-pipe closed. The car is then restarted, and the oil exchange process begins. After the exchange is complete, always follow the manufacturer’s instructions for checking oil levels. Some vehicles require a hot check, while others require a cold check. Ensuring the correct procedure is followed will prevent underfilling or overfilling.

Read more less

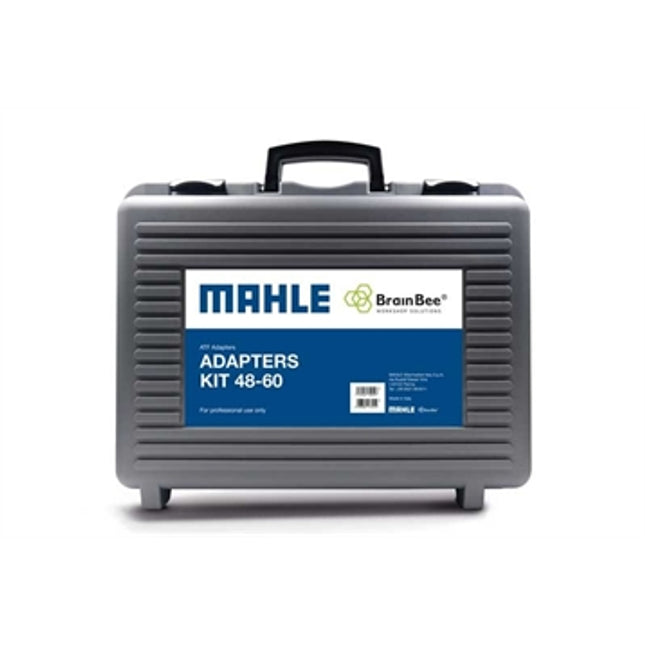

ATF Adaptor KitIncludes:No.48 - PeugeotNo.49 - JeepNo.50 - Renault Laguna III, Espace IVNo.51 - AudiNo.52 - AudiNo.53 - AudiNo.54 - MazdaNo.55 - Nissan Juke (2011-2014)No.56 - Nissan Juke (2014-2019)No.57 - Fiat, Citroen, PeugeotNo.58 - Land Rover, VolvoNo.59 - Peugeot, BMW, MiniNo.60 - Peugeot, Volvo

Read more less

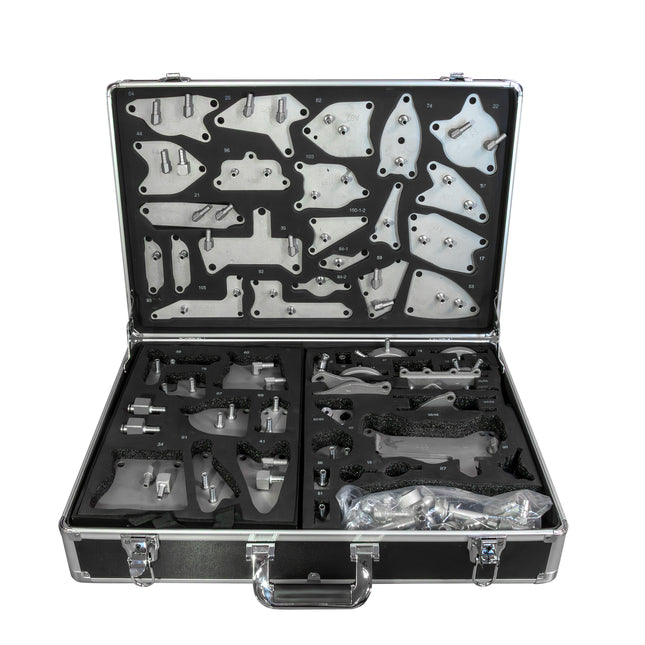

Comprehensive set of ATF adaptors to suit a wide range of vehicles. See applications list in downloads for more information. To view the full range of ATF products, click here.

Read more less

Optional Adaptor Kit for use with ATF Machine. Contents: PART NO SIZE CAR MODELS / GEARBOX  A02 Ø9.55(H) Ø12.75(H) Ø15.85(H) Toyota Honda, Nissan, Mitsubishi Space Wagon GLXI, Lexus 3000 A04A G1/4" Mercedes A04B G1/4" Mercedes A07A M18x1.5 Europe Opel Vectra A07B M18x1.5 Europe Opel Vectra A08A UNF 1/2-20 GM, Lincoln, Cadillac A08B UNF 1/2-20 GM, Lincoln, Cadillac A09A M16x1.5 Europe A09B M16x1.5 Chrysler A12A UNF 5/8-18 Ford, Mercedes A12B UNF 5/8-18 Ford, Cadillac A15AUNF UNF 5/8-18 Chrysler Benxc200, s325i, GM A15B UNF 5/8-18 Chrysler Benxc200, s325i, GM A16A M18x.15 Europe A16B M18x1.5 Europe A17A, A17B Ø14.95, Ø14.85 Europe A18A Ø15 Special Vehicles A18B Bore Ø16 Special Vehicles A19A Bore Ø13 A19B Outer Ø12 A40 G1/4 Special Vehicles A41 G1/4 Special Vehicles A42 M10x1.0 Special Vehicles A45 G1/4 Special Vehicles A46 Ø12 Special Vehicles A47 M14x2.0 Special Vehicles A48 M20X1.5 outer Special Vehicles A49 UNF 3/4 -18 Outer Special Vehicles A50 Ø9.5(H) GM, Buick, Chevrolet, Cadillac, Saab A52 Ø9.5(H) Chrysler, Dodge A54 Ø6.0(H) Hose Adaptor A55 Ø7.5(H) Hose Adaptor A56 Ø9.5(H) Hose Adaptor A57 Ø12.5(H) A60 BMW

Read more less

Optional Adaptor Kit Contents:   PART NO CAR MODELS / GEARBOX  WJ060001 NEW BMW WJ060002 Mercedes Benz 722.9 WJ060003 VAG (Toureg, Phaeton, Amarok, T5, Q5, Q7, Cayenne, div.A8) WJ060004 DSG/VAG (Audi, Skoda, VW, Seat) WJ060009 AISIN: Peugeot / Renault / Citreon / Fiat / Opel / VAG BBZ030034 HOSE

Read more less

Optional Adaptor Kit Contents:   PART NO CAR MODELS / GEARBOX  WJ060005 Tf80 Multi (Volvo, Alfa Romeo, Cadillac, Fiat, Ford, Lancia, LandRover Evoque, Lincoln, Mazda, Mercury Range Rover, Saab WJ060006 Powershift (Volvo & Ford) / VW Touareg adaptor / Dodge Journey WJ060007 GM TF80 (Opel, GM & Chevrolet) WJ060010 ZF 8 HP BBZ030034 HOSE
