Split Collet Extractors

The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 6.5 - 8 mm No.00 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) ** ** Additional part 09582000 (converter from M8 to 1/2” UNF) must be attached for use with slide hammer Found in kits: 09580000 - Internal Split Collets Extractor Kit 09580100 - Slide Hammer & Split Collet Extractor Kit 19310500 - Hydraulic Internal Extractor, Puller & Separator Kit

Read more less

The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 8.5 - 10 mm No.0 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) ** ** Additional part 09582000 (convertor from M8 to 1/2” UNF) must be attached for use with slide hammer Found in kits: 09580000 - Internal Split Collets Extractor Kit 09580100 - Slide Hammer & Split Collet Extractor Kit 09580400 - Slide Hammer & Split Collet Extractor Kit 19310500 - Hydraulic Internal Extractor, Puller & Separator Kit

Read more less

The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 10-12mm No.1 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) ** ** Additional part 09582000 (convertor from M8 to 1/2” UNF) must be attached for use with slide hammer Found in kits: 09580100 - Slide Hammer & Split Collet Extractor Kit 09580400 - Slide Hammer & Split Collet Extractor Kit 19310500 - Hydraulic Internal Extractor, Puller & Separator Kit 08540400 - Slide Hammer Combi Puller & Extractor Kit

Read more less

The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 12 - 17 mm No.2 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) ** ** Additional part 09582000 (convertor from M8 to 1/2” UNF) must be attached for use with slide hammer Found in kits: 09580000 - Internal Split Collets Extractor Kit 09580200 - Slide Hammer & Split Collet Extractor Kit 09580400 - Slide Hammer & Split Collet Extractor Kit 19310500 - Hydraulic Internal Extractor, Puller & Separator Kit 08540400 - Slide Hammer Combi Puller & Extractor Kit

Read more less

The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications:  Internal Spread Min - Max: 19-22mm No.3 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) ** ** Additional part 09582000 (converter from M8 to 1/2” UNF) must be attached for use with slide hammer Found in kits: 09580000 - Internal Split Collets Extractor Kit 09580200 - Slide Hammer & Split Collet Extractor Kit 09580400 - Slide Hammer & Split Collet Extractor Kit 19310500 - Hydraulic Internal Extractor, Puller & Separator Kit 08540400 - Slide Hammer Combi Puller & Extractor Kit

Read more less

The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 22-30 mm No.4 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads 08542100 - Slide Hammer Assembly - (1kg) Found in kits: 09580000 - Internal Split Collets Extractor Kit 09580200 - Slide Hammer & Split Collet Extractor Kit 19310500 - Hydraulic Internal Extractor, Puller & Separator Kit 08540400 - Slide Hammer Combi Puller & Extractor Kit

Read more less

The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 30-38mm No.5 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads 08542100 - Slide Hammer Assembly - (1kg) Found in kits: 09580000 - Internal Split Collets Extractor Kit 09580300 - Slide Hammer & Split Collet Extractor Kit 19310500 - Hydraulic Internal Extractor, Puller & Separator Kit

Read more less

The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 38-50mm No.6 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads 08542100 - Slide Hammer Assembly - (1kg) Found in kits: 09580000 - Internal Split Collets Extractor Kit 09580300 - Slide Hammer & Split Collet Extractor Kit

Read more less

The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications:  Internal Spread Min - Max: 50-60mm No.7 - stamped on extractor (Previous models were No.9) Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads 08542100 - Slide Hammer Assembly - (1kg) Found in kits: 09580000 - Internal Split Collets Extractor Kit 09580300 - Slide Hammer & Split Collet Extractor Kit

Read more less

For use with Sykes-Pickavant split collet type internal extractors. Hammer displacement: 220mm. Hammer weight: 1kg. Thread Size: 1/2" UNF

Read more less

Slide hammer with a 2kg weight, featuring a different thread on each end of the bar for mounting various accessories. Swap the handle to the opposite end to change the size of thread end from 1/2" 20h UN to 5/8" 18h UN Removable 1/2" male thread gives the slide hammer a 1/2" 20h UN female thread option. Specially designed for use with 13750400 / 13760400 / 13770400 / 13780400 pullers. Also compatible with the Sykes Pickavant Split Collet Extractors Weight size: 2Kg Thread sizes: 1/2" 20h UN / 5/8" 18h UN Length: 514mm Weight: 3.4Kgs

Read more less

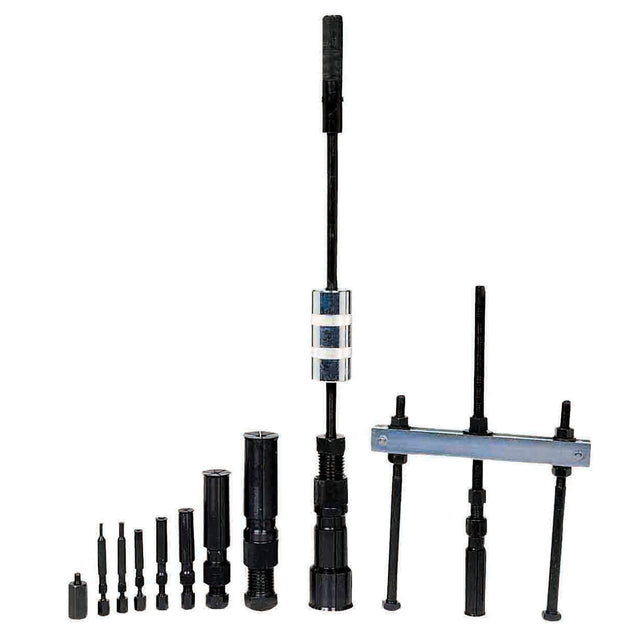

Extract components quickly and efficiently when conventional pullers cannot be used Removes gears, bearings, pinions, oil seals etc Can be upgraded for twin/triple leg pulling Additional twin beam pulling unit available part no. 09580500 Specifications: Internal Spread Min - Max: 6.5-60 mm No of Split Collet Extractors: 9 Slide Hammer Thread size - 1/2" x 20 UNF Contents: 08542100 1 x Slide Hammer Assembly 09580500 1 x Pulling Unit 09580900 1 x Split Collet Extractor 6.5 - 8 mm (No.00) 09581000 1 x Split Collet Extractor 8.5 - 10 mm (No.0) 09581100 1 x Split Collet Extractor 10 - 12 mm (No.1) 09581200 1 x Split Collet Extractor 12 - 17 mm (No.2) 09581300 1 x Split Collet Extractor 19 - 22 mm (No.3) 09581400 1 x Split Collet Extractor 22 - 30 mm (No.4) 09581500 1 x Split Collet Extractor 30 - 38 mm (No.5) 09581600 1 x Split Collet Extractor 38 - 50 mm (No.6) 09581700 1 x Split Collet Extractor 50 - 60 mm (No.9) 09582000 1 x Adaptor Supplied in metal case

Read more less

The Extractor kit is supplied in a black case with foam; this dedicated design is ideal for tool control, i.e. off site work where its imperative that all parts are accounted for, i.e. food production locations Extract components quickly and efficiently when conventional pullers cannot be used. Removes gears, bearings, pinions, oil seals etc. Can be upgraded for twin/triple leg pulling. Additional twin beam pulling unit available part no. 09580500. Specifications: Internal Spread Min - Max: 6.5-60mm No of Split Collet Extractors: 9 Slide Hammer Thread Size 1/2" x 20 UNF Contents: 08542100 1 x Slide Hammer Assembly 09580500 1 x Pulling Unit 09580900 1 x Split Collet Extractor 6.5 - 8mm (No.00) 09581000 1 x Split Collet Extractor 8.5 - 10mm (No.0) 09581100 1 x Split Collet Extractor 10 - 12mm (No.1) 09581200 1 x Split Collet Extractor 12 - 17mm (No.2) 09581300 1 x Split Collet Extractor 19 - 22mm (No.3) 09581400 1 x Split Collet Extractor 22 - 30mm (No.4) 09581500 1 x Split Collet Extractor 30 - 38mm (No.5) 09581600 1 x Split Collet Extractor 38 - 50mm (No.6) 09581700 1 x Split Collet Extractor 50 - 60mm (No.9) 09582000 1 x Adaptor

Read more less

Extract components quickly and efficiently when conventional pullers cannot be used. Removes gears, bearings, oil seals etc. Additional twin beam pulling unit available part no. 09580500. Specifications: Internal Spread Min - Max: 6.5 - 12mm No. of Split Collet Extractors: 3 Slide Hammer Thread Size 1/2" x 20 UNF Contents: 08542100 - Slide Hammer Assembly - 1kg 09580900 - Split Collet Extractor 6.5 - 8mm 09581000 - Split Collet Extractor 8.5 - 10mm 09581100 - Split Collet Extractor 10 - 12mm 09582000 - 1/2" Female to M8 male converter

Read more less

Extract components quickly and efficiently when conventional pullers cannot be used. Removes gears, bearings, oil seals etc. Additional twin beam pulling unit available part no. 09580500. Specifications: Internal Spread Min - Max: 12-17mm and 19-30mm No. of Split Collet Extractors: 3 Slide Hammer Thread Size 1/2" x 20 UNF Contents: 08542100 - Slide Hammer Assembly - 1kg 09580900 - Split Collet Extractor 6.5 - 8mm 09581200 - Split Collet Extractor 12 - 17mm 09581300 - Split Collet Extractor 19 - 22mm 09581400 - Split Collet Extractor 22 - 30mm 09582000 - 1/2" Female to M8 male converter

Read more less

Extract components quickly and efficiently when conventional pullers cannot be used. Removes gears, bearings, oil seals etc. Additional twin beam pulling unit available part no. 09580500. Specifications: Internal Spread Min - Max: 30-60 mm No. of Split Collet Extractors: 3 Slide Hammer Thread Size 1/2" x 20 UNF Contents: 08542100 - Slide Hammer Assembly - 1kg 09581500 - Split Collet Extractor 30 - 38mm 09581600 - Split Collet Extractor 38-50mm 09581700 - Split Collet Extractor 50-60mm

Read more less

Extract components quickly and efficiently when conventional pullers cannot be used. Removes gears, bearings, oil seals etc. Additional twin beam pulling unit available part no. 09580500. Specifications: Internal Spread Min - Max: 8.5 - 17 mm and 19 - 22 mm No. of Split Collet Extractors: 4 Slide Hammer Thread Size 1/2" x 20 UNF Contents: 08542100 - Slide Hammer Assembly - 1kg 09581000 - Split Collet Extractor 8.5 - 10mm 09581100 - Split Collet Extractor 10 - 12mm 09581200 - Split Collet Extractor 12 - 17mm 09581300 - Split Collet Extractor 19 - 22mm 09582000 - 1/2" Female to M8 male converter

Read more less

A safe and simple pulling solution for larger bearings found on engines, gearboxes and industrial machinery. Specification:  Internal spread 57-75 mm Contents 09582100 - 57-75mm Bearing Extractor 09311500 - Main Rod Assembly x 2 09311200 - Twin Beam 205mm 09584300 - Force Screw 09311400 - Thrust Nut 09312100 - Thrust Race 09312000 - Thread Protector -63mm 09584200 - Adaptor Supplied in Metal Tin Also available 09582200 - Bearing Extractor 74-100mm This kit is also compatible with slide hammer 08532000* adaptor required 09582300

Read more less

A safe and simple pulling solution for larger bearings found on engines, gearboxes and industrial machinery. Contents: 09582200 - 74-100 mm Bearing Extractor 09311500 - Main Rod Assembly x 2 09311200 - Twin Beam 205mm 09584300 - Force Screw 09311400 - Thrust Nut 09312100 - Thrust Race 09312000 - Thread Protector -63mm 09584200 - Adaptor Supplied in Metal Tin Also available 09582100 - Bearing Extractor 57-75mm This kit is also compatible with slide hammer 08532000* adaptor required 09582300

Read more less

A safe and simple pulling solution for larger bearings found on engines, gearboxes and industrial machinery. Contents 09582100 - 57-75 mm Bearing Extractor 09582200 - 74-100 mm Bearing Extractor 09311500 - Main Rod Assembly x 2 09311200 - Twin Beam 205 mm 09584300 - Force Screw 09311400 - Thrust Nut 09312100 - Thrust Race 09312000 - Thread Protector -63mm 09584200 - Adaptor Supplied in Metal Tin This kit is also compatible with slide hammer 08532000* adaptor required 09582300

Read more less

Hydraulic 1500 series For removing bearings and gears. where access behind components is too restricted to use standard pullers Drop forged, high quality steel, heat treated for strength and durability Extract components quickly and efficiently when conventional pullers can not be used Slide Hammer with 7 split collet internal extractors Supplied with metal display panel - 610mm x 457mm Dimensions: External Spread Min - Max: 10-105mm Internal Reach Min - Max: 6.5-38mm External Reach Max: 876mm Contents: 150000V2 - Hydraulic Ram With Nose Piece 19311200 - Twin Beam 09500000 - Separator 10-55mm 09510000 - Separator 20-105mm 09311500 - Main Rods (x2) 09311900 - Extension Rods (x4) 09312300 - Extension Rods 5 inch (x2) 08601400 - Legs 75mm - Thin Jaw (x2) 08542100 - Slide Hammer 09580900 - Split Collet Extractor 6.5 - 8mm (No.00) 09581000 - Split Collet Extractor 8.5 - 10mm (No.0) 09581100 - Split Collet Extractor 10 - 12mm (No.1) 09581200 - Split Collet Extractor 12 - 17mm (No.2) 09581300 - Split Collet Extractor 19 - 22mm (No.3) 09581400 - Split Collet Extractor 22 - 30mm (No.4) 09581500 - Split Collet Extractor 30 - 38mm (No.5) 09582000 - Adaptor 09400000 - Pulling Unit 15512800 - Metal Panel 19312670 - Overlay 19312900 - Hook Kit

Read more less

Twin beam mechanical puller for use with Sykes-Pickavant Split Collet type internal extractors. Mechanical force screw can be used to draw extractors in place of slide hammer.

Read more less

Bearing Extractor Set 57-75mm A safe and simple pulling solution for larger bearings found on engines, gearboxes and industrial machinery. Includes: 09582100 - 57-75mm Bearing Extractor  08532000 - 2 Kg Slide Hammer 74-100mm Extractor also available 09582200

Read more less

Bearing Extractor Set 74-100mm A safe and simple pulling solution for larger bearings found on engines, gearboxes and industrial machinery. Includes 09582200 - 74 - 100mm Bearing Extractor  08532000 - 2 Kg Slide Hammer   57 - 75mm extractor also available 09582100

Read more less

Bearing Extractor Set 57-100mm A safe and simple pulling solution for larger bearings found on engines, gearboxes and industrial machinery. Includes: 09582100 - 57-75mm Bearing Extractor  09582200 - 74 - 100mm Bearing Extractor  08532000 - 2 Kg Slide Hammer
