09580000 - Internal Split Collets Extractor Kit

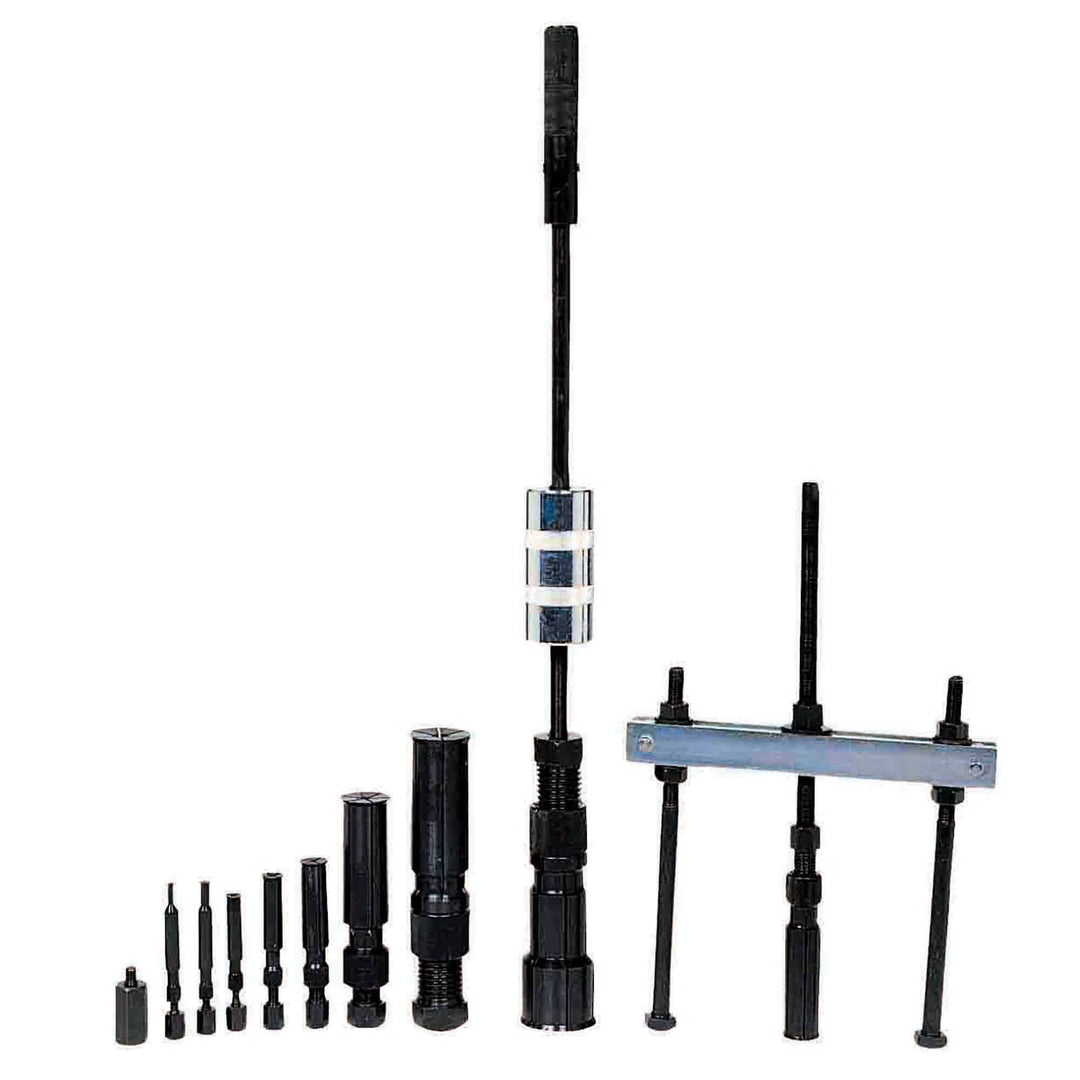

09580000 components

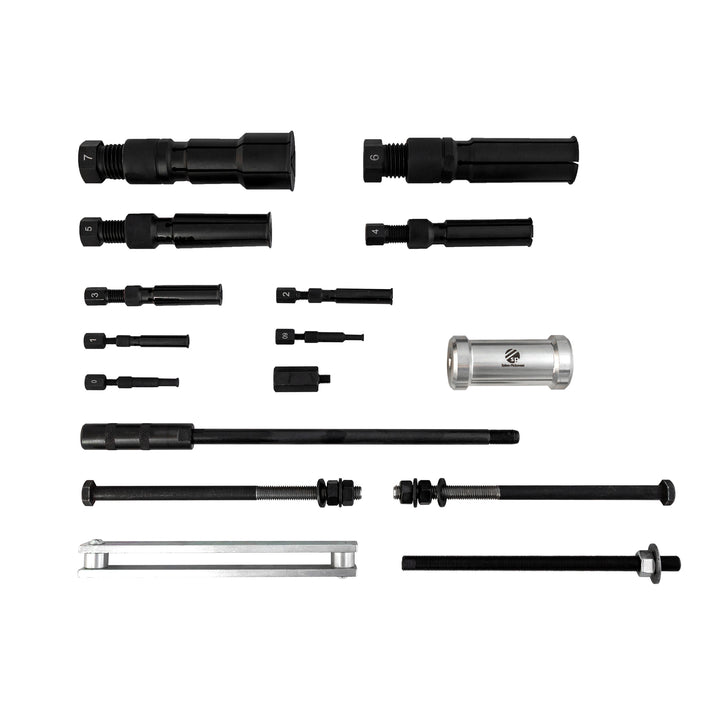

095800tc components shown loose

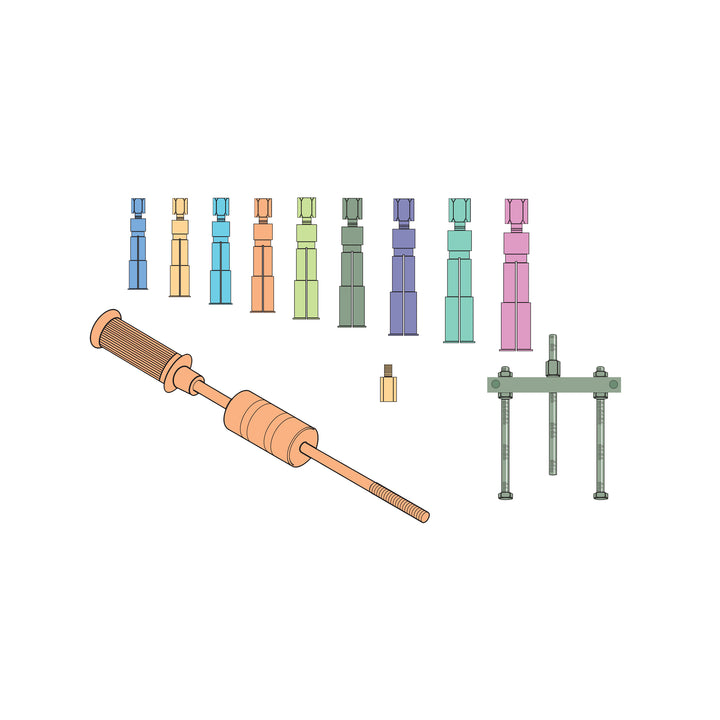

09580000 component illustration
Extractors Breakdown Ilustration
09580000 components
095800tc components shown loose
09580000 component illustration
Extractors Breakdown Ilustration
Description

Description

Extract components quickly and efficiently when conventional pullers cannot be used

  • Removes gears, bearings, pinions, oil seals etc
  • Can be upgraded for twin/triple leg pulling
  • Additional twin beam pulling unit available part no. 09580500

Specifications:

  • Internal Spread Min - Max: 6.5-60 mm
  • No of Split Collet Extractors: 9
  • Slide Hammer Thread size - 1/2" x 20 UNF

Contents:

  • 08542100 1 x Slide Hammer Assembly
  • 09580500 1 x Pulling Unit
  • 09580900 1 x Split Collet Extractor 6.5 - 8 mm (No.00)
  • 09581000 1 x Split Collet Extractor 8.5 - 10 mm (No.0)
  • 09581100 1 x Split Collet Extractor 10 - 12 mm (No.1)
  • 09581200 1 x Split Collet Extractor 12 - 17 mm (No.2)
  • 09581300 1 x Split Collet Extractor 19 - 22 mm (No.3)
  • 09581400 1 x Split Collet Extractor 22 - 30 mm (No.4)
  • 09581500 1 x Split Collet Extractor 30 - 38 mm (No.5)
  • 09581600 1 x Split Collet Extractor 38 - 50 mm (No.6)
  • 09581700 1 x Split Collet Extractor 50 - 60 mm (No.9)
  • 09582000 1 x Adaptor
  • Supplied in metal case
Product form

Extract components quickly and efficiently when conventional pullers cannot be used Removes gears, bearings, pinions, oil seals etc Can be... Read more

SKU: 09580000

Icon for notificationEnquire About This Product

Contact us with an enquiry about this product.

Please include a contact number in the message.

Send us a message!

Description

Description

Extract components quickly and efficiently when conventional pullers cannot be used

  • Removes gears, bearings, pinions, oil seals etc
  • Can be upgraded for twin/triple leg pulling
  • Additional twin beam pulling unit available part no. 09580500

Specifications:

  • Internal Spread Min - Max: 6.5-60 mm
  • No of Split Collet Extractors: 9
  • Slide Hammer Thread size - 1/2" x 20 UNF

Contents:

  • 08542100 1 x Slide Hammer Assembly
  • 09580500 1 x Pulling Unit
  • 09580900 1 x Split Collet Extractor 6.5 - 8 mm (No.00)
  • 09581000 1 x Split Collet Extractor 8.5 - 10 mm (No.0)
  • 09581100 1 x Split Collet Extractor 10 - 12 mm (No.1)
  • 09581200 1 x Split Collet Extractor 12 - 17 mm (No.2)
  • 09581300 1 x Split Collet Extractor 19 - 22 mm (No.3)
  • 09581400 1 x Split Collet Extractor 22 - 30 mm (No.4)
  • 09581500 1 x Split Collet Extractor 30 - 38 mm (No.5)
  • 09581600 1 x Split Collet Extractor 38 - 50 mm (No.6)
  • 09581700 1 x Split Collet Extractor 50 - 60 mm (No.9)
  • 09582000 1 x Adaptor
  • Supplied in metal case
