1300 Series Pullers Std & Long

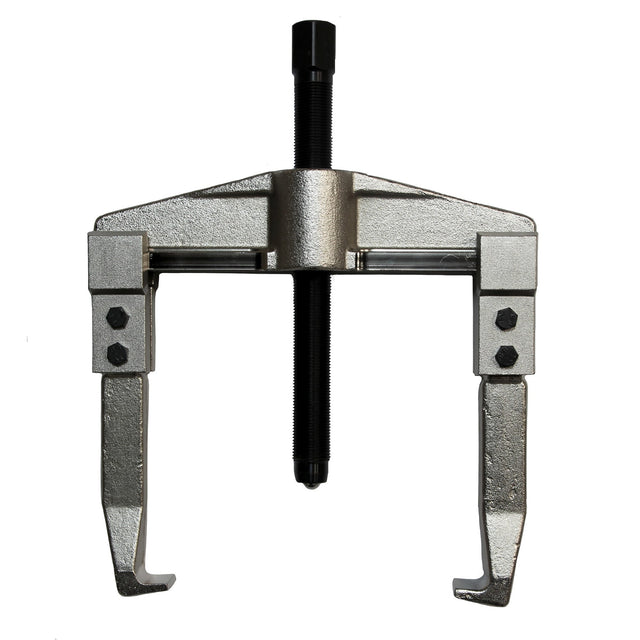

13120000 - Mechanical Int/Ext 2 Leg Puller 165 x 150mm
The Sykes Pickavant 1300 Series Puller range has been designed specifically for both External and Internal pulling tasks. The twin leg pullers have rigid legs, giving them great stability and firmness during use, allowing parts to be safely and efficiently extracted. The 1300 range gives the user the option of choosing between short or long legs*, depending on the task to be performed. *See downloads for more information on the 1300 series 2 leg pullers and compatible long & short legs Key Features: 2 Leg Design: Ensures excellent stability and access in restricted areas, ideal for working around obstructions where traditional 3 leg pullers can't reach. Reversible Legs: Easily change between internal and external pulling by reversing the legs. Hexagonal Spindle Head: Allows for effortless application of force using a wrench Spindle with Ball Support: Built in support ball minimizes friction during pulling, optimizing performance during the extraction process. Versatile Applications: Great for pulling gears, pulleys and bearings, in both industrial and automotive settings. Dimensions External Spread: 40-165mm (B) Internal Spread: 130-225mm (W) Reach: 150mm (A) Width of Beam: 223mm (C) Max Force: 7 Ton Not suitable for use with air/impact tools. Optional Extra Long reach jaws ref 133200-02 will give your puller extra reach up to 305mm
-
13130000 - Mechanical Int/Ext 2 Leg Puller 240 x 205mm
The Sykes Pickavant 1300 Series Puller range has been designed specifically for both External and Internal pulling tasks. The twin leg pullers have rigid legs, giving them great stability and firmness during use, allowing parts to be safely and efficiently extracted. The 1300 range gives the user the option of choosing between short or long legs*, depending on the task to be performed. *See downloads for more information on the 1300 series 2 leg pullers and compatible long & short legs Key Features: 2 Leg Design: Ensures excellent stability and access in restricted areas, ideal for working around obstructions where traditional 3 leg pullers can't reach. Reversible Legs: Easily change between internal and external pulling by reversing the legs. Hexagonal Spindle Head: Allows for effortless application of force using a wrench Spindle with Ball Support: Built in support ball minimizes friction during pulling, optimizing performance during the extraction process. Versatile Applications: Great for pulling gears, pulleys and bearings, in both industrial and automotive settings. Dimensions External Spread: 50 - 240mm (B) Internal Spread: 175 - 325mm (W) Reach: 205mm (A) Width of Beam: 325mm (C) Max Force: 12 Ton Not suitable for use with air/impact tools. Optional Extra Long reach jaws ref 133300-02, will give your puller extra reach up to 380mm
-
13115000 - Mechanical Int/Ext 2 Leg Puller 135 x 100mm
The Sykes Pickavant 1300 Series Puller range has been designed specifically for both External and Internal pulling tasks. The twin leg pullers have rigid legs, giving them great stability and firmness during use, allowing parts to be safely and efficiently extracted. The 1300 range gives the user the option of choosing between short or long legs*, depending on the task to be performed. *See downloads for more information on the 1300 series 2 leg pullers and compatible long & short legs Key Features: 2 Leg Design: Ensures excellent stability and access in restricted areas, ideal for working around obstructions where traditional 3 leg pullers can't reach. Reversible Legs: Easily change between internal and external pulling by reversing the legs. Hexagonal Spindle Head: Allows for effortless application of force using a wrench Spindle with Ball Support: Built in support ball minimizes friction during pulling, optimizing performance during the extraction process. Versatile Applications: Great for pulling gears, pulleys and bearings, in both industrial and automotive settings. Dimensions External Spread: 35-135mm (B) Internal Spread: 100-175mm (W) Reach: 100mm (A) Width of Beam: 176mm (C) Max Force: 3Ton Not suitable for use with air/impact tools. Optional Extra: Long reach jaws ref 133100-02 will give your puller extra reach up to 200mm
-
13110000 - Mechanical Int/Ext 2 Leg Puller 95 x 100mm
The Sykes Pickavant 1300 Series Puller range has been designed specifically for both External and Internal pulling tasks. The twin leg pullers have rigid legs, giving them great stability and firmness during use, allowing parts to be safely and efficiently extracted. The 1300 range gives the user the option of choosing between short or long legs*, depending on the task to be performed. *See downloads for more information on the 1300 series 2 leg pullers and compatible long & short legs Key Features: 2 Leg Design: Ensures excellent stability and access in restricted areas, ideal for working around obstructions where traditional 3 leg pullers can't reach. Reversible Legs: Easily change between internal and external pulling by reversing the legs. Hexagonal Spindle Head: Allows for effortless application of force using a wrench Spindle with Ball Support: Built in support ball minimizes friction during pulling, optimizing performance during the extraction process. Versatile Applications: Great for pulling gears, pulleys and bearings, in both industrial and automotive settings. Dimensions External Spread: 30 - 95mm (B) Internal Spread: 92 - 130mm (W) Reach: 100mm (A) Width of Beam: 134mm (C) Max Force: 3 Ton. Not suitable for use with air/impact tools. Optional Extra Long reach jaws ref 133100-02 will give your puller extra reach up to 200mm
-
13125000 - Mechanical Int/Ext 2 Leg Puller 190 x 155mm
The Sykes Pickavant 1300 Series Puller range has been designed specifically for both External and Internal pulling tasks. The twin leg pullers have rigid legs, giving them great stability and firmness during use, allowing parts to be safely and efficiently extracted. The 1300 range gives the user the option of choosing between short or long legs*, depending on the task to be performed. *See downloads for more information on the 1300 series 2 leg pullers and compatible long & short legs Key Features: 2 Leg Design: Ensures excellent stability and access in restricted areas, ideal for working around obstructions where traditional 3 leg pullers can't reach. Reversible Legs: Easily change between internal and external pulling by reversing the legs. Hexagonal Spindle Head: Allows for effortless application of force using a wrench Spindle with Ball Support: Built in support ball minimizes friction during pulling, optimizing performance during the extraction process. Versatile Applications: Great for pulling gears, pulleys and bearings, in both industrial and automotive settings. Dimensions External Spread: 35-190mm (B) Internal Spread: 135-250mm (W) Reach: 155mm (A) Width of Beam: 250mm (C) Max Force: 7 Ton Not suitable for use with air/impact tools. Optional Extra Long reach jaws ref 133200-02, will give your puller extra reach up to 305mm
-
1300DISPLAY - Set of 5 x 2 Leg Mechanic Pullers with Display Unit
Set of 5 x 2 Jaw Mechanical Pullers Forged jaws Reversible jaws - can be used internally or externally Includes: 13110000 - Mechanical Puller - 2 Leg - 100 X 95mm 13115000 - Mechanical Puller - 2 Leg - 100 X 135mm 13120000 - Mechanical Puller - 2 Leg - 150 X 165mm 13125000 - Mechanical Puller - 2 Leg - 155 X 190mm 13130000 - Mechanical Puller - 2 Leg - 205 X 240mm Display Stand Header Card with Cable Ties Not suitable for use with air/impact tools. See downloads for more information on the 1300 series 2 leg pullers and compatible long & short legs
-
13135000 - Mechanical Int/Ext 2 Leg Puller 350 x 200mm
The Sykes Pickavant 1300 Series Puller range has been designed specifically for both External and Internal pulling tasks. The twin leg pullers have rigid legs, giving them great stability and firmness during use, allowing parts to be safely and efficiently extracted. The 1300 range gives the user the option of choosing between short or long legs*, depending on the task to be performed. *See downloads for more information on the 1300 series 2 leg pullers and compatible long & short legs Key Features: 2 Leg Design: Ensures excellent stability and access in restricted areas, ideal for working around obstructions where traditional 3 leg pullers can't reach. Reversible Legs: Easily change between internal and external pulling by reversing the legs. Hexagonal Spindle Head: Allows for effortless application of force using a wrench Spindle with Ball Support: Built in support ball minimizes friction during pulling, optimizing performance during the extraction process. Versatile Applications: Great for pulling gears, pulleys and bearings, in both industrial and automotive settings. Dimensions External Spread: 60-350mm (B) Internal Spread: 175-425mm (W) Reach: 200mm (A) Width of Beam: 425mm (C) Max Force: 12 Ton Not suitable for use with air/impact tools. Optional Extra Long reach jaws ref 133300-02 will give your puller extra reach up to 380mm
-
13140000 - Mechanical Int/Ext 2 Leg Puller 510 x 200mm
The Sykes Pickavant 1300 Series Puller range has been designed specifically for both External and Internal pulling tasks. The twin leg pullers have rigid legs, giving them great stability and firmness during use, allowing parts to be safely and efficiently extracted. The 1300 range gives the user the option of choosing between short or long legs*, depending on the task to be performed. *See downloads for more information on the 1300 series 2 leg pullers and compatible long & short legs Key Features: 2 Leg Design: Ensures excellent stability and access in restricted areas, ideal for working around obstructions where traditional 3 leg pullers can't reach. Reversible Legs: Easily change between internal and external pulling by reversing the legs. Hexagonal Spindle Head: Allows for effortless application of force using a wrench Spindle with Ball Support: Built in support ball minimizes friction during pulling, optimizing performance during the extraction process. Versatile Applications: Great for pulling gears, pulleys and bearings, in both industrial and automotive settings. Dimensions External Spread: 90-510mm (B) Internal Spread: 220-580mm (W) Reach: 200mm (A) Width of Beam: 585mm (C) Max Force: 12 Ton Not suitable for use with air/impact tools. Optional Extra: Long reach jaws ref 133300-02 will give your puller extra reach up to 380mm
-
13215000 - Mechanical Int/Ext 3 Leg Puller 135 x 100mm
The Sykes Pickavant 1300 Series Puller range has been designed specifically for both External and Internal pulling tasks. The triple leg pullers have rigid legs, giving them great stability and firmness during use, allowing parts to be safely and efficiently extracted. Key Features: 3 Leg Design: Three leg pullers distribute pulling force more evenly around the part, giving a more effective grip than 2 leg pullers, meaning there is less risk of slippage or damaging the part that is being pulled. Reversible Legs: Easily change between internal and external pulling by reversing the legs. Hexagonal Spindle Head: Allows for effortless application of force using a wrench Spindle with Ball Support: Built in support ball minimizes friction during pulling, optimizing performance during the extraction process. Versatile Applications: Great for pulling gears, pulleys and bearings, in both industrial and automotive settings. Dimensions External Spread: 38-135mm (B) Internal Spread: 100-175mm Reach: 100mm (A) Diameter of Beam: 176mm (C) Not suitable for use with air/impact tools.
-
133100-02 - Long Reach Leg - 200mm
Long reach leg for 1300 series pullers, spare or to convert a std reach puller to a long reach puller. Length 200mm Suitable for 13110000, 13115000, 13310000, 13315000 See downloads for more information on the 1300 series 2 leg pullers and compatible long & short legs
-
133450-02 - Long Reach Leg - 350mm
Long reach leg for 1300 series pullers, as a spare or to convert a std reach puller to a long reach puller. Length 380mm Suitable for 13145000, 13345000 See downloads for more information on the 1300 series 2 leg pullers and compatible long & short legs
-
133300-02 - Long Reach Leg - 380mm
Long reach leg for 1300 series pullers, as a spare or to convert a std reach puller to a long reach puller. Length 380mm Suitable for 13130000, 13135000, 13140000, 1333000, 13335000, 13340000 See downloads for more information on the 1300 series 2 leg pullers and compatible long & short legs
-
133200-02 - Long Reach Leg - 305mm
Long reach leg for 1300 series pullers, as a spare or to convert a std reach puller to a long reach puller. Length 305mm Suitable for 13120000, 13125000, 13320000, 13325000 See downloads for more information on the 1300 series 2 leg pullers and compatible long & short legs
-
13330000 - Mechanical Int/Ext 2 Leg Long Reach Puller 250 x 380mm
2 Jaw Long Reach Mechanical Puller Forged jaws Reversible jaws - can be used internally or externally Dimensions Spread for External Applications - 60-250mm (B) Spread for Internal Applications - 175-340mm (W) Reach - 380mm (A) Width - 325mm (C) Max - 12 Ton. Optional Extra: Short reach jaws ref 131300-02 will allow you to do jobs where a shorter reach is required - up to 205mm Not suitable for use with air/impact tools. See downloads for more information on the 1300 series 2 leg pullers and compatible long & short legs
-
13345000 - Mechanical Int/Ext 2 Leg Long Reach Puller 640 x 350mm
2 Jaw Long Reach Mechanical Puller Forged jaws Reversible jaws - can be used internally or externally Dimensions Spread for External Applications - 140-640mm (B) Spread for Internal Applications - 310-740mm (W) Reach - 350mm (A) Width - 717mm (C) Max - 15 Ton. Not suitable for use with air/impact tools. See downloads for more information on the 1300 series 2 leg pullers and compatible long & short legs
-
13340000 - Mechanical Int/Ext 2 Leg Long Reach Puller 510 x 380mm
2 Jaw Long Reach Mechanical Puller Forged jaws Reversible jaws - can be used internally or externally Dimensions Spread for External Applications - 90-510mm (B) Spread for Internal Applications - 220-580mm (W) Reach - 380mm (A) Width - 525mm (C) Max - 12 Ton. Optional Extra: Short reach jaws ref 131300-02 will allow you to do jobs where a shorter reach is required - up to 205mm Not suitable for use with air/impact tools. See downloads for more information on the 1300 series 2 leg pullers and compatible long & short legs
-
13335000 - Mechanical Int/Ext 2 Leg Long Reach Puller 350 x 380mm
2 Jaw Long Reach Mechanical Puller Forged jaws Reversible jaws - can be used internally or externally Dimensions Spread for External Applications - 60-350mm (B) Spread for Internal Applications - 180-425mm (W) Reach - 380mm (A) Width - 425mm (C) Max - 12 Ton. Optional Extra: Short reach jaws ref 131300-02 will allow you to do jobs where a shorter reach is required - up to 205mm Not suitable for use with air/impact tools. See downloads for more information on the 1300 series 2 leg pullers and compatible long & short legs
-
13325000 - Mechanical Int/Ext 2 Leg Long Reach Puller 190 x 305mm
2 Jaw Long Reach Mechanical Puller Forged jaws Reversible jaws - can be used internally or externally Dimensions Spread for External Applications - 35-190mm (B) Spread for Internal Applications - 130-270mm (W) Reach - 305mm (A) Width - 250mm (C) Max - 12 Ton. Optional Extra: Short reach jaws ref 131200-02 will allow you to do jobs where a shorter reach is required - up to 150mm Not suitable for use with air/impact tools. See downloads for more information on the 1300 series 2 leg pullers and compatible long & short legs
-
13320000 - Mechanical Int/Ext 2 Leg Long Reach Puller 95 x 200mm
2 Jaw Long Reach Mechanical Puller Forged jaws Reversible jaws - can be used internally or externally Dimensions Spread for External Applications - 45-165mm (B) Spread for Internal Applications - 130-225mm (W) Reach - 305mm (A) Width - 223mm (C) Max - 7 Ton. Optional Extra: Short reach jaws ref 131200-02 will allow you to do jobs where a shorter reach is required - up to 150mm Not suitable for use with air/impact tools. See downloads for more information on the 1300 series 2 leg pullers and compatible long & short legs
-
13315000 - Mechanical Int/Ext 2 Leg Long Reach Puller 135 x 200mm
2 Jaw Long Reach Mechanical Puller Forged jaws Reversible jaws - can be used internally or externally Dimensions Spread for External Applications - 35-135mm (B) Spread for Internal Applications - 95-175mm (W) Reach - 200mm (A) Width - 176mm (C) Max - 3 Ton. Optional Extra: Short reach jaws ref 131100-02 will allow you to do jobs where a shorter reach is required - up to 100mm Not suitable for use with air/impact tools. See downloads for more information on the 1300 series 2 leg pullers and compatible long & short legs
-
13310000 - Mechanical Int/Ext 2 Leg Long Reach Puller 95 x 200mm
2 Jaw Long Reach Mechanical Puller Forged jaws Reversible jaws - can be used internally or externally Dimensions Spread for External Applications - 25-95mm (B) Spread for Internal Applications - 80-130mm (W) Reach - 200mm (A) Width - 134mm (C) Max - 3 Ton. Optional Extra: Short reach jaws ref 131100-02 will allow you to do jobs where a shorter reach is required - up to 100mm Not suitable for use with air/impact tools. See downloads for more information on the 1300 series 2 leg pullers and compatible long & short legs
-
13145000 - Mechanical Int/Ext 2 Leg Puller 640 x 225mm
The Sykes Pickavant 1300 Series Puller range has been designed specifically for both External and Internal pulling tasks. The twin leg pullers have rigid legs, giving them great stability and firmness during use, allowing parts to be safely and efficiently extracted. The 1300 range gives the user the option of choosing between short or long legs*, depending on the task to be performed. *See downloads for more information on the 1300 series 2 leg pullers and compatible long & short legs Key Features: 2 Leg Design: Ensures excellent stability and access in restricted areas, ideal for working around obstructions where traditional 3 leg pullers can't reach. Reversible Legs: Easily change between internal and external pulling by reversing the legs. Hexagonal Spindle Head: Allows for effortless application of force using a wrench Spindle with Ball Support: Built in support ball minimizes friction during pulling, optimizing performance during the extraction process. Versatile Applications: Great for pulling gears, pulleys and bearings, in both industrial and automotive settings. Dimensions External Spread: 140-640mm (B) Internal Spread: 310-740mm (W) Reach: 225mm (A) Width of Beam: 717mm (C) Max Force: 15 Ton Not suitable for use with air/impact tools. Optional Extra Long reach jaws ref 133450-02 will give your puller extra reach up to 350mm
-
13070000 - Self Centering 2/3 Leg Puller 0-240mm
The jaws are connected by a self-centring mechanism for simultaneous movement, improving the placement of the puller on the work piece if in an unsuitable position. The device has safety in mind by preventing the jaws opening past the recommended opening distance. When a puller is opened beyond this distance, the work piece may be released or the puller could become broken. Features: External 2/3 jaw puller Forged jaws Self-centring closure system Jaw opening limiting safety feature Dimensions: Reach - 225mm (A) Spread - 240mm (B) Tonne - 7 Weight - 6.5kg Spindle - M18 x 1.5 x 250 Not suitable for use with air/impact tools.
-
13220000 - Mechanical Int/Ext 3 Leg Puller 165 x 150mm
The Sykes Pickavant 1300 Series Puller range has been designed specifically for both External and Internal pulling tasks. The triple leg pullers have rigid legs, giving them great stability and firmness during use, allowing parts to be safely and efficiently extracted. Key Features: 3 Leg Design: Three leg pullers distribute pulling force more evenly around the part, giving a more effective grip than 2 leg pullers, meaning there is less risk of slippage or damaging the part that is being pulled. Reversible Legs: Easily change between internal and external pulling by reversing the legs. Hexagonal Spindle Head: Allows for effortless application of force using a wrench Spindle with Ball Support: Built in support ball minimizes friction during pulling, optimizing performance during the extraction process. Versatile Applications: Great for pulling gears, pulleys and bearings, in both industrial and automotive settings. Dimensions External Spread: 42-165mm (B) Internal Spread: 130-225mm Reach: 150mm (A) Diameter of Beam: 223mm (C) Not suitable for use with air/impact tools.
-
13210000 - Mechanical Int/Ext 3 Leg Puller 95 x 100mm
The Sykes Pickavant 1300 Series Puller range has been designed specifically for both External and Internal pulling tasks. The triple leg pullers have rigid legs, giving them great stability and firmness during use, allowing parts to be safely and efficiently extracted. Key Features: 3 Leg Design: Three leg pullers distribute pulling force more evenly around the part, giving a more effective grip than 2 leg pullers, meaning there is less risk of slippage or damaging the part that is being pulled. Reversible Legs: Easily change between internal and external pulling by reversing the legs. Hexagonal Spindle Head: Allows for effortless application of force using a wrench Spindle with Ball Support: Built in support ball minimizes friction during pulling, optimizing performance during the extraction process. Versatile Applications: Great for pulling gears, pulleys and bearings, in both industrial and automotive settings. Dimensions: External Spread: 35-95mm (B) Internal Spread: 92-130mm Reach: 100mm (A) Diameter of Beam: 100mm (C) Not suitable for use with air/impact tools.
-
13105000 - Self Centering 2/3 Leg Puller 0-450mm
The jaws are connected by a self-centring mechanism for simultaneous movement, improving the placement of the puller on the work piece if in an unsuitable position. The device has safety in mind by preventing the jaws opening past the recommended opening distance. When a puller is opened beyond this distance, the work piece may be released or the puller could become broken. Features: External 2/3 jaw puller Forged jaws Self-centring closure system Jaw opening limiting safety feature Dimensions: Reach - 490mm (A) Spread - 405mm (B) Tonne - 10 Weight - 16kg Spindle - M20 x 1.5 x 319 Not suitable for use with air/impact tools.
-
13100000 - Self Centering 2/3 Leg Puller 0-350mm
The jaws are connected by a self-centering mechanism for simultaneous movement, improving the placement of the puller on the work piece if in an unsuitable position. The device has safety in mind by preventing the jaws opening past the recommended opening distance. When a puller is opened beyond this distance, the work piece may be released or the puller could become broken. Features: External 2/3 jaw puller Forged jaws Self-centring closure system Jaw opening limiting safety feature Dimensions: Reach - 410mm (A) Spread - 350mm (B) Tonne - 10 Weight - 14.5kg Spindle - M20 x 1.5 x 319 Not suitable for use with air/impact tools.
-
13010000 - Self Centering 2/3 Leg Puller 0-110mm
The jaws are connected by a self-centring mechanism for simultaneous movement, improving the placement of the puller on the work piece if in an unsuitable position. The device has safety in mind by preventing the jaws opening past the recommended opening distance. When a puller is opened beyond this distance, the work piece may be released or the puller could become broken. Features: External 2/3 jaw puller Forged jaws Self-centring closure system Jaw opening limiting safety feature Dimensions: Reach - 105mm (A) Spread - 110mm (B) Tonne - 1 Weight - 1kg Spindle - M10 x 1 x 110 Not suitable for use with air/impact tools.
