08610000 - Mechanical Thin Jaw 2 Leg Puller 0-150mm
Thin Jaw Leg PullersThin jaws enable access where clearance behind components is limited Two legs for removing gears, races, bearings and sprocketsDifferent leg styles availableAutomotive and industrial applicationsDrop forged steel legs, beam and jawsHeat treated for strength and durabilityCan be upgraded for triple leg pullingSupplied in cardboard box Dimensions: Spread Min - Max: 0-150mm Reach Max: 150mm Not suitable for use with air/impact tools.
-
08635000 - Mechanical Thin Jaw 2 Leg Puller 0-150mm
Thin Jaw Leg Puller Thin jaws enable access where clearance behind components is limited Two legs for removing gears, races, bearings and sprocketsAutomotive and industrial applicationsDrop forged steel legs, beam and jawsHeat treated for strength and durabilityCan be upgraded for triple leg pullingSupplied in cardboard box Dimensions: Spread Min - Max: 0-150mm Reach Max: 225mm Not suitable for use with air/impact tools.
-
08640000 - Mechanical Thin Jaw 3 Leg Puller 0-150mm
Triple Leg Mechanical Puller Thin jaws enable access where clearance behind components is limited Three legs for removing gears, races, bearings and sprockets Automotive and industrial applications Drop forged steel legs, beam and jaws Heat treated for strength and durability Supplied in cardboard box‹ Dimensions: Spread Min - Max: 0-150mm Reach Max: 150mm Not suitable for use with air/impact tools.
-
08655000 - Mechanical Thin Jaw 3 Leg Puller 0-150mm
Triple Leg Mechanical Puller Thin jaws enable access where clearance behind components is limited Three legs for removing gears, races, bearings and sprockets Automotive and industrial applications Drop forged steel legs, beam and jaws Heat treated for strength and durability Supplied in cardboard box Dimensions: Spread Min - Max: 0-150mm Reach Max: 225mm Not suitable for use with air/impact tools.
-
13110000 - Mechanical Int/Ext 2 Leg Puller 95 x 100mm
The Sykes Pickavant 1300 Series Puller range has been designed specifically for both External and Internal pulling tasks. The twin leg pullers have rigid legs, giving them great stability and firmness during use, allowing parts to be safely and efficiently extracted. The 1300 range gives the user the option of choosing between short or long legs*, depending on the task to be performed. *See downloads for more information on the 1300 series 2 leg pullers and compatible long & short legs Key Features: 2 Leg Design: Ensures excellent stability and access in restricted areas, ideal for working around obstructions where traditional 3 leg pullers can't reach. Reversible Legs: Easily change between internal and external pulling by reversing the legs. Hexagonal Spindle Head: Allows for effortless application of force using a wrench Spindle with Ball Support: Built in support ball minimizes friction during pulling, optimizing performance during the extraction process. Versatile Applications: Great for pulling gears, pulleys and bearings, in both industrial and automotive settings. Dimensions External Spread: 30 - 95mm (B) Internal Spread: 92 - 130mm (W) Reach: 100mm (A) Width of Beam: 134mm (C) Max Force: 3 Ton. Not suitable for use with air/impact tools. Optional Extra Long reach jaws ref 133100-02 will give your puller extra reach up to 200mm
-
13210000 - Mechanical Int/Ext 3 Leg Puller 95 x 100mm
The Sykes Pickavant 1300 Series Puller range has been designed specifically for both External and Internal pulling tasks. The triple leg pullers have rigid legs, giving them great stability and firmness during use, allowing parts to be safely and efficiently extracted. Key Features: 3 Leg Design: Three leg pullers distribute pulling force more evenly around the part, giving a more effective grip than 2 leg pullers, meaning there is less risk of slippage or damaging the part that is being pulled. Reversible Legs: Easily change between internal and external pulling by reversing the legs. Hexagonal Spindle Head: Allows for effortless application of force using a wrench Spindle with Ball Support: Built in support ball minimizes friction during pulling, optimizing performance during the extraction process. Versatile Applications: Great for pulling gears, pulleys and bearings, in both industrial and automotive settings. Dimensions: External Spread: 35-95mm (B) Internal Spread: 92-130mm Reach: 100mm (A) Diameter of Beam: 100mm (C) Not suitable for use with air/impact tools.
-
13310000 - Mechanical Int/Ext 2 Leg Long Reach Puller 95 x 200mm
2 Jaw Long Reach Mechanical Puller Forged jaws Reversible jaws - can be used internally or externally Dimensions Spread for External Applications - 25-95mm (B) Spread for Internal Applications - 80-130mm (W) Reach - 200mm (A) Width - 134mm (C) Max - 3 Ton. Optional Extra: Short reach jaws ref 131100-02 will allow you to do jobs where a shorter reach is required - up to 100mm Not suitable for use with air/impact tools. See downloads for more information on the 1300 series 2 leg pullers and compatible long & short legs
-
15405300 - Hydraulic Combination 2 Leg Puller Kit 50-150mm
Hydraulic 1500 series Removes gears, bearings, pulleys and sprockets Wide range of automotive and industrial applications Powered by 1500 series hydraulic ram Safe and easy to use 8 tonnes of force with minimum effort Easy to adjust Non-twisting for improved stability Supplied with nose piece for use on centred shafts Makes 4 different hydraulic pullers Combination standard and thin jaw leg puller Dimensions: Puller Spread Min - Max: 50-150mm Puller Reach Max: 255mm Ram Extension: 50 / 100mm Contents: 1500 Series Hydraulic Ram With Nose Piece 15242200 - 1 x Ram Extension - 50mm 15262600 - 2 x Legs 150mm 08611400 - 2 x Legs 150mm - Thin Jaw 15242400 - 2 x Legs 100mm 19311200 - 1 x Twin Beam 15262400 - 1 x Ram Extension - 100mm 15241200 - 1 x Twin Head Assembly 08612800 - 2 x Thin Jaw Extension Set - 75mm
-
18610000 - Hydraulic Thin Jaw 2 Leg Puller 50-150mm
Hydraulic 1500 series Removes gears, bearings, pulleys and sprockets Wide range of automotive and industrial applications Powered by 1500 series hydraulic ram Safe and easy to use 8 tonnes of force with minimum effort Easy to adjust Non-twisting for improved stability Supplied with nose piece for use on centered shafts Thin jaws enable access where clearance behind components is limited Supplied in cardboard box Dimensions: Puller Spread: 50 - 150mm Puller Reach Max: 150mm Ram Extension: 50mm Contains: 1 x Hydraulic Ram 1 x Twin Head Assembly or Sliding Beam 1 x Ram Extension 2 x Legs
-
18635000 - Hydraulic Thin Jaw 2 Leg Puller 50-150mm
Hydraulic 1500 series Removes gears, bearings, pulleys and sprockets Wide range of automotive and industrial applications Powered by 1500 series hydraulic ram Safe and easy to use 8 tonnes of force with minimum effort Easy to adjust Non-twisting for improved stability Supplied with nose piece for use on centered shafts Thin jaws enable access where clearance behind components is limited Supplied in cardboard box Dimensions: Puller Spread: 50 - 150mm Puller Reach Max: 225mm Ram Extension: 150mm
-
18640000 - Hydraulic Thin Jaw 3 Leg Puller 50-150mm
Hydraulic 1500 series Removes gears, bearings, pulleys and sprockets Wide range of automotive and industrial applications Powered by 1500 series hydraulic ram Safe and easy to use 8 tonnes of force with minimum effort Easy to adjust Non-twisting for improved stability Supplied with nose piece for use on centered shafts Thin jaws enable acccess where clearance behind components is limited Supplied in cardboard box Dimensions: Puller Spread Min - Max: 50 - 150mm Puller Reach Max: 150mm Ram Extension: 50mm Contains: 1 x Hydraulic Ram 1 x Triple Head Assembly or Sliding Beam 1 x Ram Extension 3 x Legs
-

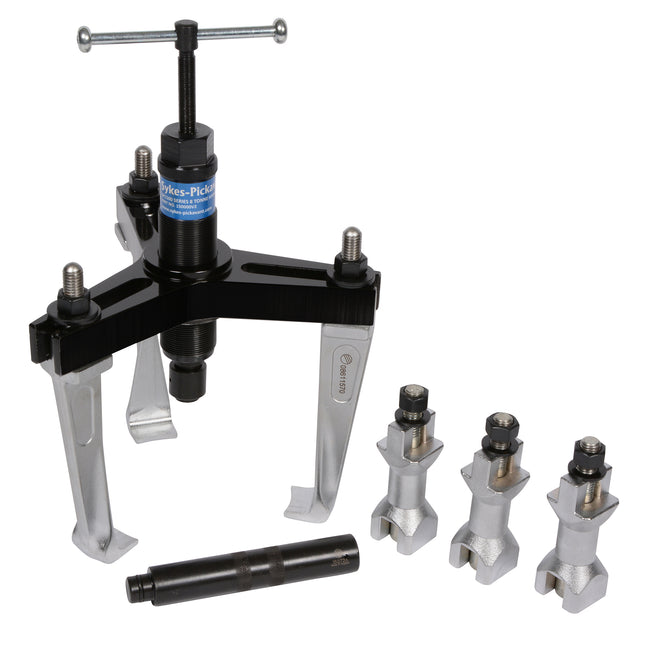

18655000 - Hydraulic Thin Jaw 3 Leg Puller 50-150mm
Hydraulic 1500 series Removes gears, bearings, pulleys and sprockets Wide range of automotive and industrial applications Powered by 1500 series hydraulic ram Safe and easy to use 8 tonnes of force with minimum effort Easy to adjust Non-twisting for improved stability Supplied with nose piece for use on centered shafts Thin jaws enable access where clearance behind components is limited Supplied in cardboard box Dimensions: Puller Spread Min - Max: 50 - 150mm Puller Reach Max: 225mm Ram Extension: 150mm
-
19310300 - Hydraulic Thin Jaw Puller & Separator Kit
Combination pack consisting of a medium duty hydraulic thin jaw puller and bearing separator Also available without hydraulic ram as kit 19310400 (in carton) Supplied in cardboard box Dimensions: External Spread Min - Max: 20 - 105mm External Reach Max: 876mm Puller Spread Min - Max: 50 - 150mm Puller Reach Max: 150 Contents: 1500 Series Hydraulic Ram With Nose Piece 15262400 1 x Ram Extension - 100mm 08611400 2 x Legs 150mm - Thin Jaw 19311200 1 x Twin Beam 09510000 1 x Separator 20-105mm 09311500 2 x Main Rods 09311900 4 x Extension Rods 09312300 2 x Extension Rods 5 inch
