Puller Search
08330000 - Mechanical Adjustable 2 Leg Puller 0-400mm
Standard Adjustable Leg Pullers 3 positions, adjustable legs for increased pulling options Two legs for removing gears, races, bearings and sprockets Different leg styles available Automotive and industrial applications Drop forged steel legs, beam and jaws Heat treated for strength and durability Can be upgraded for triple leg pulling Supplied in cardboard box Dimensions: Spread Min - Max: 0-400mm Reach Max: 380mm Not suitable for use with air/impact tools.
-
08340000 - Mechanical Adjustable 2/3 Leg Puller 0-400mm
Standard Adjustable Leg Pullers New Twin / Triple head gives you the option of a 2 or 3 leg puller 3 positions, adjustable legs for increased pulling options Three legs for removing gears, races, bearings and sprockets Different leg styles available Automotive and industrial applications Drop forged steel legs, beam and jaws Heat treated for strength and durability Supplied in cardboard box Dimensions: Spread Min - Max: 0-400mm Reach Max: 390mm Not suitable for use with air/impact tools.
-
08420000 - Mechanical 2/3 Leg Puller Kit 0-350mm
Mechanical Puller Kit Makes 12 separate mechanical 2 or 3 leg pullers Twin / triple head, double ended reversible and standard adjustable legs for a wide range of pulling options Supplied in metal case Dimensions: Spread Min - Max: 0-350mm Reach Max: 380mm No. of Puller Combinations: 12 Contents: 08271100 1 x Forcing Screw 08272300 1 x Twin./Triple Head 08271400 3 x Leg Assembly - Reversible 08281100 1 x Forcing Screw 08282300 1 x Twin/Triple Head 08281400 3 x Leg Assembly - Reversible 08291100 1 x Forcing Screw 08292300 1 x Twin/Triple Head 08291400 3 x Leg Assembly - Standard Adjustable 08331400 3 x Leg Assembly - Standard Adjustable Not suitable for use with air/impact tools.
-
08420600 - Mechanical Puller & Separator Kit 350mm
Makes 12 mechanical 2 or 3 leg pullers with 3 separator options Twin / triple head and double ended reversible legs for a wide range of pulling options Supplied in metal case Dimensions: Spread Max: 350mm Reach Max: 380mm External Spread Max: 140mm Contents: 08271100 1 x Forcing Screw 08272300 1 x Twin/Triple Head 08271400 3 x Leg Assembly - Reversible 08281100 1 x Forcing Screw 08282300 1 x Twin/Triple Head 08281400 3 x Leg Assembly - Reversible 08291100 1 x Forcing Screw 08292300 1 x Twin/Triple Head 08291400 3 x Leg Assembly - Standard Adjustable 08331400 3 x Leg Assembly - Standard Adjustable 09500000 1 x Separator 10-55mm 09510000 1 x Separator 20-105mm 09520000 1 x Separator 35-140mm Not suitable for use with air/impact tools.
-

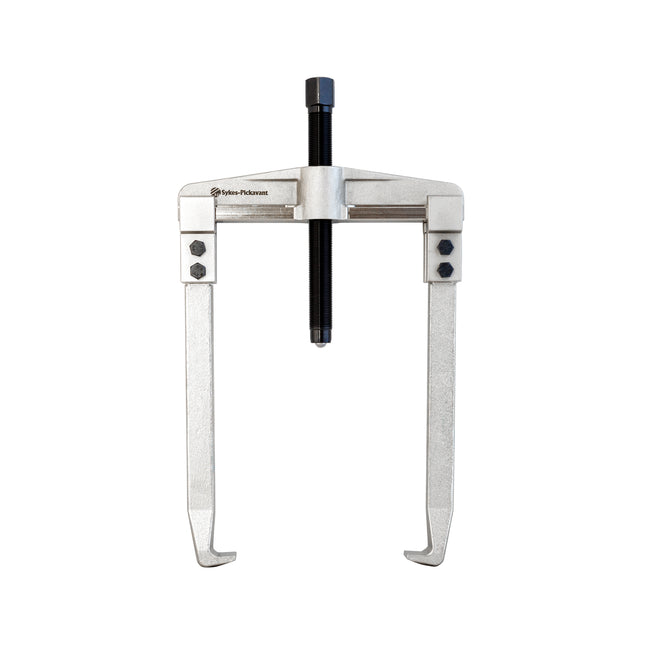

13330000 - Mechanical Int/Ext 2 Leg Long Reach Puller 250 x 380mm
2 Jaw Long Reach Mechanical Puller Forged jaws Reversible jaws - can be used internally or externally Dimensions Spread for External Applications - 60-250mm (B) Spread for Internal Applications - 175-340mm (W) Reach - 380mm (A) Width - 325mm (C) Max - 12 Ton. Optional Extra: Short reach jaws ref 131300-02 will allow you to do jobs where a shorter reach is required - up to 205mm Not suitable for use with air/impact tools. See downloads for more information on the 1300 series 2 leg pullers and compatible long & short legs
-
13335000 - Mechanical Int/Ext 2 Leg Long Reach Puller 350 x 380mm
2 Jaw Long Reach Mechanical Puller Forged jaws Reversible jaws - can be used internally or externally Dimensions Spread for External Applications - 60-350mm (B) Spread for Internal Applications - 180-425mm (W) Reach - 380mm (A) Width - 425mm (C) Max - 12 Ton. Optional Extra: Short reach jaws ref 131300-02 will allow you to do jobs where a shorter reach is required - up to 205mm Not suitable for use with air/impact tools. See downloads for more information on the 1300 series 2 leg pullers and compatible long & short legs
-

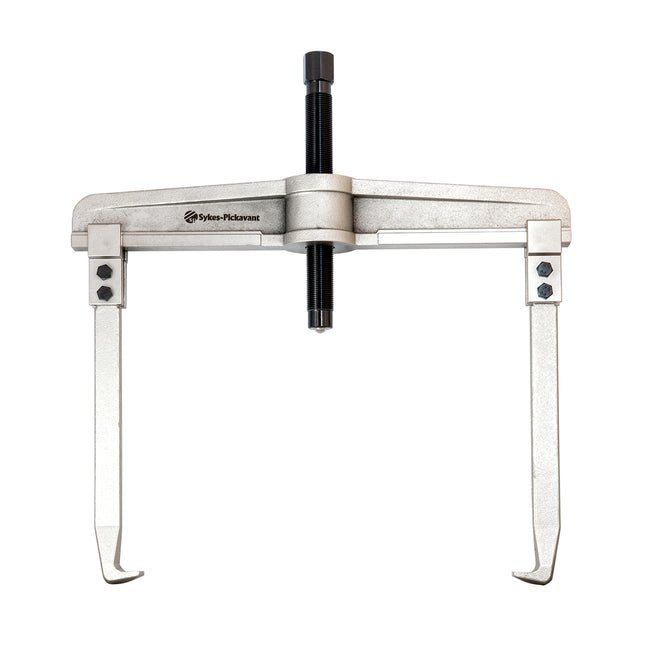

13340000 - Mechanical Int/Ext 2 Leg Long Reach Puller 510 x 380mm
2 Jaw Long Reach Mechanical Puller Forged jaws Reversible jaws - can be used internally or externally Dimensions Spread for External Applications - 90-510mm (B) Spread for Internal Applications - 220-580mm (W) Reach - 380mm (A) Width - 525mm (C) Max - 12 Ton. Optional Extra: Short reach jaws ref 131300-02 will allow you to do jobs where a shorter reach is required - up to 205mm Not suitable for use with air/impact tools. See downloads for more information on the 1300 series 2 leg pullers and compatible long & short legs
-

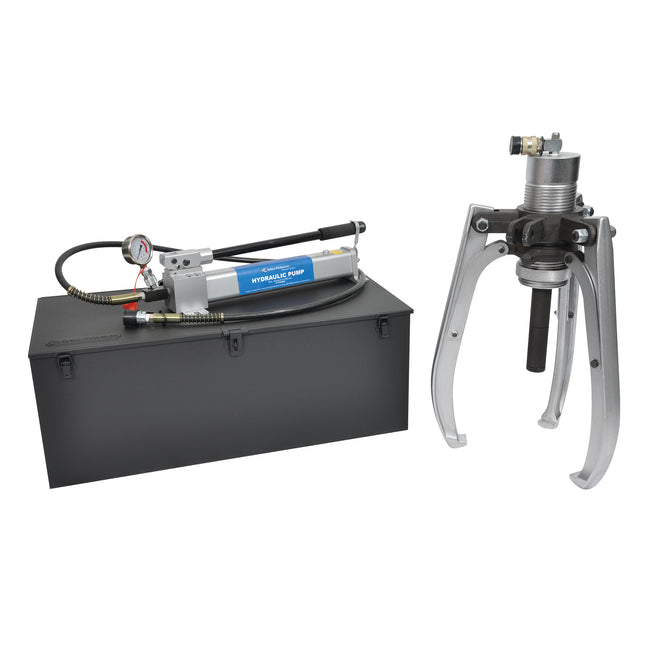

20102000 - Loadstar Puller 20 Tonne
Hydraulic Loadstar - Loadstar Pullers Self centering self locking puller legs, grip increases as load increases Easy one man operation 2 and 3 way options 360 degree swivel hose coupling for optimum access Lightweight aluminium hydraulic pump include Selection of ram extension rods supplied to increase stroke In-built safety valve to prevent overloading Loadstar Puller 20 Tonne 20T Hydraulic Ram and Pump Puller and pump supplied in steel storage case Selection of 4 ram extension rods supplied to increase stroke Supplied in steel storage cases Dimensions: Spread 570mm Reach 365mm Contents: 20017000 1 x Hydraulic Pump Assembly 21720000 1 x High Pressure Hose 1.8m Long 21790000 1 x Gauge & Gauge Block 20102010 1 x Hydraulic Ram 20102014 1 x Leg Assembly 20102012 1 x Head Assembly - Upper 20102013 1 x Head Assembly - Lower 20102020 1 x Ram Extension Set (4 piece) Also available without pump as part number - 20152000
