Body Blades & Holders

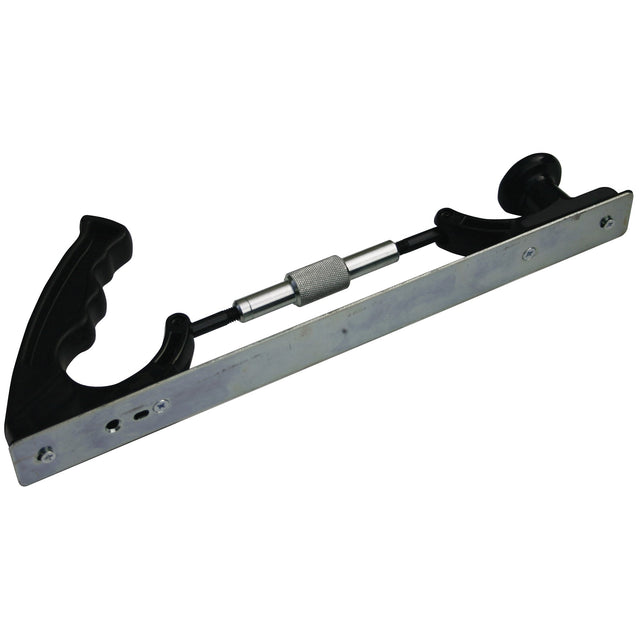

05710000 - Adjustable Body Blade Holder c/w File Blade
Adjustable blade holder, suitable for forming & shaping fillers and metal during body repair work Steel tension adjuster and base plate Supplied with a standard flat cut 9tpi blade 05711100 Compatible with most flat profile 356mm body blades Robust construction with steel tension adjuster, sole plate and tough plastic handle 2 position handle for vertical or horizontal use Individual blades available: 05711100 - Body Blade Standard Flat Cut 9 tpi 05711200 - Body Blade Fine Flat Cut 12 tpi 05711500 - Body Blade Plasticut Flat Cut 6 tpi
-
05711200 - Body Blade Fine Flat Cut 12 tpi
Specially heat treated alloy steel provides hardness with flexibility Length: 356mm Precision cut teeth Blade edges chamfered Maximum deflection of 14mm Fine Flat Cut 12tpi
-
05711100 - Body Blade Standard Flat Cut 9 tpi
Specially heat treated alloy steel provides hardness with flexibility Length: 356mm Precision cut teeth Blade edges chamfered Maximum deflection of 14mm Standard Flat Cut 9tpi
-
05711500 - Body Blade Plasticut Flat Cut 6 tpi
Specially heat treated alloy steel provides hardness with flexibility Length: 356mm Precision cut teeth Blade edges chamfered Maximum deflection of 14mm Plasticut Flat Cut 6tpi
-
05710100 - Adjustable Body Blade Holder only
Adjustable blade holder, suitable for forming & shaping fillers and metal during body repair work Steel tension adjuster and base plate Compatible with most flat profile 356mm body blades Robust construction with steel tension adjuster, sole plate and tough plastic handle 2 position handle for vertical or horizontal use Individual blades available: 05711100 - Body Blade Standard Flat Cut 9 tpi 05711200 - Body Blade Fine Flat Cut 12 tpi 05711500 - Body Blade Plasticut Flat Cut 6 tpi
-
KFH300MM - Adjustable Holder for Car Body Files - 300mm
This ergonomic and particularly lightweight holder permits individual tensioning of car body file blades to match the surface contour of the workpiece. Advantages: The bending radius of the file can be steplessly adjusted via the tensioning system. Particularly lightweight plastic design without plasticizer. Can be used in a focused manner or over a wide area as the car body file can be used curved as well as straight. Enables work with low levels of fatigue thanks to vibration-damping rubber pad. Suitable for file length 300mm
-
299B300C1 - Premium Car Body File Blade - 300mm Coarse 9tpi
Car body file blades can be tensioned individually in the car body file holder and can be adapted to match the surface contour of the workpiece.Advantages: The bending radius of the file can be steplessly adjusted via the tensioning system. Convex shape of the file prevents unwanted scratches. Can be used in a focused manner. Razor-sharp tooth edges. Length: 300mmTeeth Per Inch: 9Type: CoarseCan be used with KFH300MM Body Blade Holder
-
299B300C2 - Premium Car Body File Blade - 300mm Medium 10tpi
Car body file blades can be tensioned individually in the car body file holder and can be adapted to match the surface contour of the workpiece.Advantages: The bending radius of the file can be steplessly adjusted via the tensioning system. Convex shape of the file prevents unwanted scratches. Can be used in a focused manner. Razor-sharp tooth edges. Length: 300mmTeeth Per Inch: 10Type: CoarseCan be used with KFH300MM
-
299B300C3 - Premium Car Body File Blade - 300mm Fine 12tpi
Car body file blades can be tensioned individually in the car body file holder and can be adapted to match the surface contour of the workpiece.Advantages: The bending radius of the file can be steplessly adjusted via the tensioning system. Convex shape of the file prevents unwanted scratches. Can be used in a focused manner. Razor-sharp tooth edges. Length: 300mmTeeth Per Inch: 12Type: FineCan be used with KFH300MM Body Blade Holder
-
KFH350MM - Adjustable Holder for Car Body Files - 350mm
This ergonomic and particularly lightweight holder permits individual tensioning of car body file blades to match the surface contour of the workpiece. Advantages: The bending radius of the file can be steplessly adjusted via the tensioning system. Particularly lightweight plastic design without plasticizer. Can be used in a focused manner or over a wide area as the car body file can be used curved as well as straight. Enables work with low levels of fatigue thanks to vibration-damping rubber pad. Suitable for file length 350mm
-
299B350C00 - Premium Car Body File Blade - 350mm Extra Coarse 7tpi
Car body file blades can be tensioned individually in the car body file holder and can be adapted to match the surface contour of the workpiece.Advantages: The bending radius of the file can be steplessly adjusted via the tensioning system. Convex shape of the file prevents unwanted scratches. Can be used in a focused manner. Razor-sharp tooth edges. Length: 350mmTeeth Per Inch: 7Type: Extra CoarseCan be used with KFH350MM Body Blade Holder
-
299B350C0 - Premium Car Body File Blade - 350mm Very Coarse 8tpi
Car body file blades can be tensioned individually in the car body file holder and can be adapted to match the surface contour of the workpiece.Advantages: The bending radius of the file can be steplessly adjusted via the tensioning system. Convex shape of the file prevents unwanted scratches. Can be used in a focused manner. Razor-sharp tooth edges. Length: 350mmTeeth Per Inch: 8Type: Very CoarseCan be used with KFH350MM Body Blade Holder
-
299B350C1 - Premium Car Body File Blade - 350mm Coarse 9tpi
Car body file blades can be tensioned individually in the car body file holder and can be adapted to match the surface contour of the workpiece.Advantages: The bending radius of the file can be steplessly adjusted via the tensioning system. Convex shape of the file prevents unwanted scratches. Can be used in a focused manner. Razor-sharp tooth edges. Length: 350mmTeeth Per Inch: 9Type: CoarseCan be used with KFH350MM Body Blade Holder
-
299B350C2 - Premium Car Body File Blade - 350mm Medium 10tpi
Car body file blades can be tensioned individually in the car body file holder and can be adapted to match the surface contour of the workpiece.Advantages: The bending radius of the file can be steplessly adjusted via the tensioning system. Convex shape of the file prevents unwanted scratches. Can be used in a focused manner. Razor-sharp tooth edges. Length: 350mmTeeth Per Inch: 10Type: MediumCan be used with KFH350MM Body Blade Holder
-
299B350C3 - Premium Car Body File Blade - 350mm Fine 12tpi
Car body file blades can be tensioned individually in the car body file holder and can be adapted to match the surface contour of the workpiece. Advantages: The bending radius of the file can be steplessly adjusted via the tensioning system. Convex shape of the file prevents unwanted scratches. Can be used in a focused manner. Razor-sharp tooth edges. Specifications: Length: 350mm Teeth Per Inch: 12 Type: Fine Can be used with KFH350MM Body Blade Holder
-
299E350SC Premium Car Body File Blade - 350mm Cross Cut
Car body file blades can be tensioned individually in the car body file holder and can be adapted to match the surface contour of the workpiece.Advantages: The bending radius of the file can be steplessly adjusted via the tensioning system. Convex shape of the file prevents unwanted scratches. Can be used in a focused manner. Razor-sharp tooth edges. Length: 350mmType: Special Cross CutCan be used with KFH350MM Body Blade Holder
-
299C350C1 - Body File Set (5pcs) - 350mm Cut 1 for Coarse Stock Removal
A convex, tanged car‑body file featuring dual-axis curvature (longitudinal and transverse) for precise panel shaping and finishing. Key Features Cut 1, radial tooth design: Designed for fast and aggressive coarse stock removal and roughing. The cut is designed to achieve score free surfaces. Convex Profile: Ideal for working on curved surfaces like automotive panels; ensures consistent contact and prevents unwanted scratches. One‑sided cut: Tailored for controlled, smooth filing. Tanged (handle-ready): Supplied without a handle Specifications Length: 350mm Width: 34.5mm Height: 7.6mm Cut Type: Cut 3 (fine radial tooth) File Profile: Dual-curve convex surface Mounting: Tahnged (requires separate handle) Ideal For Deburring, leveling, and finishing of car body panels Rounding edges or chamfering sheet metal Working on aluminium and steels with hardness up to 1,200 N/mm² (< 38 HRC) Benefits Curved convex shape ensures scratch‑free workmanship and precise filing Fine cut and radial tooth pattern deliver smooth material removal for final finish quality Robust industrial packaging ensures product integrity during shipment
-
299C350C3 - 5pc Body File Set - 350mm Cut 3 for Finishing
A convex, tanged car‑body file featuring dual-axis curvature (longitudinal and transverse) for precise panel shaping and finishing. Key Features Cut 3, radial tooth design: Optimised for fine stock removal and producing scratch free surfaces Convex Profile: Its curved geometry minimises unwanted scratches and allows targeted filing. One‑sided cut: Tailored for controlled, smooth filing. Tanged (handle-ready): Supplied without a handle Specifications Length: 350mm Width: 34.5mm Height: 7.6mm Cut Type: Cut 3 (fine radial tooth) File Profile: Dual-curve convex surface Mounting: Tahnged (requires separate handle) Ideal For Deburring, leveling, and finishing of car body panels Rounding edges or chamfering sheet metal Working on aluminium and steels with hardness up to 1,200 N/mm² (< 38 HRC) Benefits Curved convex shape ensures scratch‑free workmanship and precise filing Fine cut and radial tooth pattern deliver smooth material removal for final finish quality Robust industrial packaging ensures product integrity during shipment
-
299C350C3-1 - Body File - 350mm Cut 3 for Finishing
A convex, tanged car‑body file featuring dual-axis curvature (longitudinal and transverse) for precise panel shaping and finishing. Key Features Cut 3, radial tooth design: Optimised for fine stock removal and producing scratch free surfaces Convex Profile: Its curved geometry minimises unwanted scratches and allows targeted filing. One‑sided cut: Tailored for controlled, smooth filing. Tanged (handle-ready): Supplied without a handle Specifications Length: 350mm Width: 34.5mm Height: 7.6mm Cut Type: Cut 3 (fine radial tooth) File Profile: Dual-curve convex surface Mounting: Tahnged (requires separate handle) Ideal For Deburring, leveling, and finishing of car body panels Rounding edges or chamfering sheet metal Working on aluminium and steels with hardness up to 1,200 N/mm² (< 38 HRC) Benefits Curved convex shape ensures scratch‑free workmanship and precise filing Fine cut and radial tooth pattern deliver smooth material removal for final finish quality Robust industrial packaging ensures product integrity during shipment
-
299C350C1-1 - Body File - 350mm Cut 1 for Coarse Stock Removal
A convex, tanged car‑body file featuring dual-axis curvature (longitudinal and transverse) for precise panel shaping and finishing. Key Features Cut 1, radial tooth design: Designed for fast and aggressive coarse stock removal and roughing. The cut is designed to achieve score free surfaces. Convex Profile: Ideal for working on curved surfaces like automotive panels; ensures consistent contact and prevents unwanted scratches. One‑sided cut: Tailored for controlled, smooth filing. Tanged (handle-ready): Supplied without a handle Specifications Length: 350mm Width: 34.5mm Height: 7.6mm Cut Type: Cut 3 (fine radial tooth) File Profile: Dual-curve convex surface Mounting: Tahnged (requires separate handle) Ideal For Deburring, leveling, and finishing of car body panels Rounding edges or chamfering sheet metal Working on aluminium and steels with hardness up to 1,200 N/mm² (< 38 HRC) Benefits Curved convex shape ensures scratch‑free workmanship and precise filing Fine cut and radial tooth pattern deliver smooth material removal for final finish quality Robust industrial packaging ensures product integrity during shipment
