EV Tables
GO1500B EV Battery & Transmission Lifting Table 1500kg
Universal lifting table with a load capacity of 1500kg (1.5T) Aside from lifting electric-car batteries, this product is also perfect for lifting and moving engines, automatic gearboxes, chassis components Features: Powered by compressed air. Sliding cover, allowing convenient battery installation or removal. High ground clearance makes it compatible with all workshop cranes on the market. Extendable and tiltable top table, by means of a mechanical screw Easy to operate and tilt with self explanatory operations. The table features holes with M10 thread, which can be used to mount all types of supports or accessories, including special hooks, brackets, and protective mats for battery packs. Button operated table lowering Rack safety system, when not being operated, the table locks by means of a mechanical anti-lowering safety wedge. Specifications Opening Table - Extendable Table (200mm) Tilting Table (±3°) Shifting Table - Extendable Handle - Fork Housing OK Max Capacity 1500 KG Time To Go Up 80 s (no load) / 150 s (full load) Time To Go Down 70 s (no load) / 15 s (full load) Power Supply 6/8 bar
-

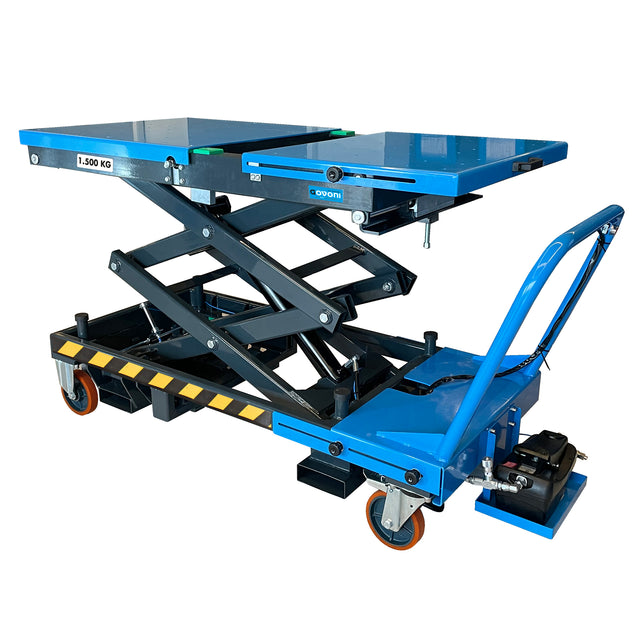

GO1500T EV Battery & Transmission Lifting Table 1500kg
Universal lifting table with a load capacity of 1500kg (1.5T) Aside from lifting electric-car batteries, this product is also perfect for lifting and moving engines, automatic gearboxes, chassis components Features: Powered by compressed air. Sliding cover, allowing convenient battery installation or removal. High ground clearance makes it compatible with all workshop cranes on the market. Extendable and tiltable top table, by means of a mechanical screw Table top can be moved laterally up to 30mm to allow repositioning under the vehicle. Easy to operate and tilt with self explanatory operations. The table features holes with M10 thread, which can be used to mount all types of supports or accessories, including special hooks, brackets, and protective mats for battery packs. Button operated table lowering Rack safety system, when not being operated, the table locks by means of a mechanical anti-lowering safety wedge. Specifications Opening Table - Extendable Table (200mm) Tilting Table (±3°) Shifting Table (±30mm) Extendable Handle (225mm) Fork Housing OK Max Capacity 1500 KG Time To Go Up 80 s (no load) / 150 s (full load) Time To Go Down 70 s (no load) / 15 s (full load) Power Supply 6/8 bar
-
GO1000B EV Battery & Transmission Lifting Table 1000kg
Universal lifting table with a load capacity of 1000kg (1T)Aside from lifting electric-car batteries, this product is also perfect for lifting and moving engines, automatic gearboxes, chassis components Features: Powered by compressed air. Sliding cover, allowing convenient battery installation or removal. High ground clearance makes it compatible with all workshop cranes on the market. Extendable and tiltable top table, by means of a mechanical screw Easy to operate and tilt with self explanatory operations. The table features holes with M10 thread, which can be used to mount all types of supports or accessories, including special hooks, brackets, and protective mats for battery packs. Button operated table lowering Rack safety system, when not being operated, the table locks by means of a mechanical anti-lowereing safety wedge.
-
GO1501 Spacer Kit For Lifting Tables M10 (15pcs)
15 Piece Spacer Kit for use with EV & Transmission Lifting Tables GO1000B / GO1500B / GO1500T Spacers can used to raise the battery or transmission off the tale to allow access to the underneath for removing bolts etc. Allow you to avoid battery contact with the metal table and so prevents arcing. Allow for easy access for straps to lift the battery off the table when full battery replacement is required Thread size - M10
-
GO1503 Battery Lifting Accessory Kit
Required to hold battery pack on the platform, safely. The components fits perfectly to the different types of batteries, taking into consideration the possible specifications of the manufacturer. Slotted holes in the foot allow an easy changing/moving of the platform. The support columns are height-adjustable and have a thread for screwing the rubbers/spacers. Used for platforms with M8 and M10 threaded holes. Specifications: Support foot length: 200 mm Minimum height: 215 mm Maximum height: 315 mm Usable key for upper pin: SW32 mm Threads used for top fixing: M8 Maximum capacity for each support: 100 Kg Fixing screw: M8 Fixing screw: M10
-
GO1504 Spacer Kit For Lifting Tables M8 (15pcs)
15 Piece Spacer Kit for use with EV & Transmission Lifting Tables GO1000B / GO1500B / GO1500T Spacers can used to raise the battery or transmission off the tale to allow access to the underneath for removing bolts etc. Allow you to avoid battery contact with the metal table and so prevents arcing. Allow for easy access for straps to lift the battery off the table when full battery replacement is required Thread size - M10
