GO452 - Universal Glow Plug Tip Extraction Set - Deep Design

Description

Can be used with any current diesel engines using threading sizes M8 x 1, M9 x 1, M10 x 1, M10 x 1.25

  • When extracting glow plugs, the glow plug tip (glow tube) often breaks and remains stuck in the cylinder head. The broken glow plug tips can be easily extracted with the help of this kit.
  • The set of tools contains all of the tools needed to tap resilient
    threading into the end of the glow plug. Afterwards the glow plug tip will be extracted with the help of the extraction rod and a striking hammer.
  • The drill will be guided precisely using the glow plug threading in the cylinder head. This will avoid any damage to the cylinder head. This set can be used with any current diesel engines using threading sizes: M8 x 1, M9 x 1, M10 x 1 and M10 x 1.25.
  • Drilling tips implemented and reinforced for new ceramic glow plugs.


Applications: Citroen/Peugeot: 1.4, 1.6L HDI Ford: 1.4, 1.6L TDCI Mazda: 1.4 CD Suzuki: 1.4L DDIS Toyota: 1.4 HDI Volvo: 1.6D, etc.

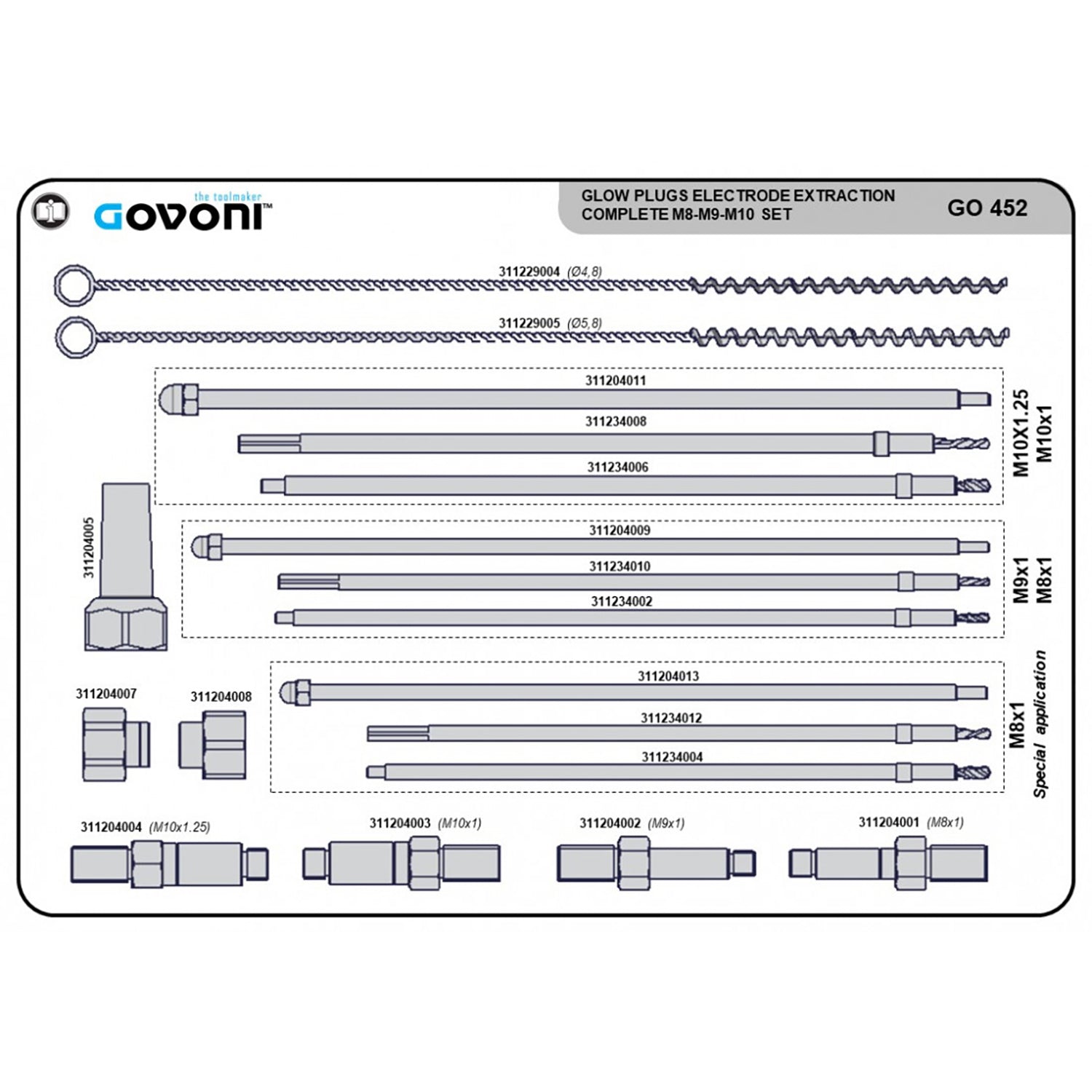

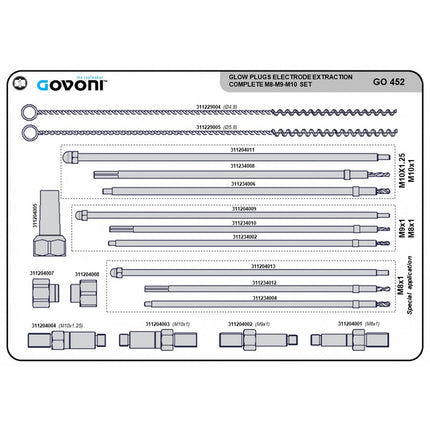

Components:

  • 1 x core hole drill extension with a diameter of 2.5 for M8 x 1 and M9x1
  • 1 x core hole drill extension with a diameter of 3.2 for M8 x 1 (special application)
  • 1 x core hole drill extension with a diameter of 3.2 for M10 x 1 and M10 x 1.25
  • 1 x M3 core hole drill extension for M8 x 1 and M9 x 1
  • 1 x M4 thread tap extension for M8 x 1 (special application)
  • 1 x M4 thread tap extension for M10 x 1 and M10 x 1.25
  • 1 x M3 extra long extraction rod with cap nut for M8 x 1 and M9 x 1
  • 1 x M4 extra long extraction rod with cap nut for M8 x 1 (special application)
  • 1 x M4 extra long extraction rod with cap nut for M10 x 1 and M10 x 1.25
  • 1 x striking hammer, weight 400g
  • 1 x tap guide for M8 x 1 glow plug threads
  • 1 x tap guide for M9 x 1 glow plug threads
  • 1 x tap guide for M10 x 1 glow plug threads
  • 1 x tap guide for M10 x 1.25 glow plug threads



Product form

Can be used with any current diesel engines using threading sizes M8 x 1, M9 x 1, M10 x 1,... Read more

SKU: GO452
