Mechanical Pullers & Kits

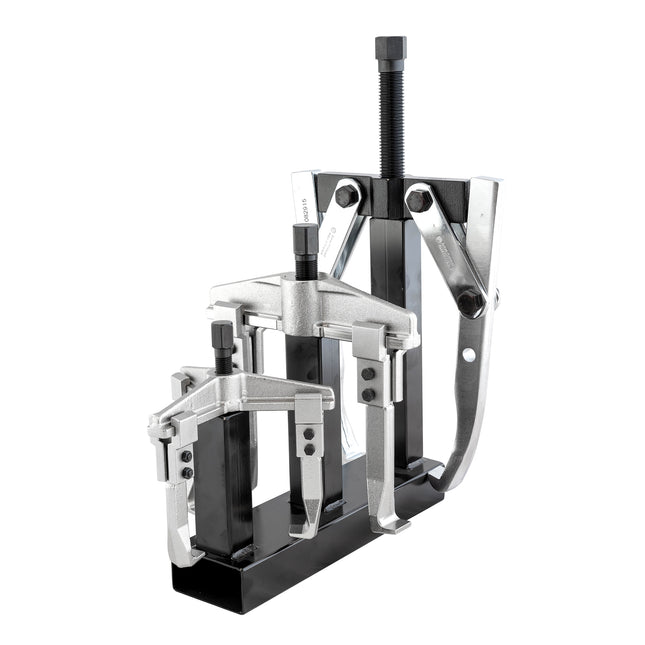

Contains components to make up 7 thin jaw leg pullersThin jaws enable access where clearance behind components is limitedSupplied with metal display panel Dimensions: Spread max: 225mm Reach max: 225mm Display panel has space to add additional components; 08601400 - 75mm Thin Jaw Leg x1 08601300 - Triple Beam x 1 08602800 - 48mm Thin Jaw Extension Set x 3  Contents: 08611100 1 x Forcing Screw 08291100 1 x Forcing Screw 08600000 1 x Puller - Thin Jaw 08611200 1 x Twin Beam 08621200 1 x Twin Beam 08651300 1 x Triple Beam 08611400 3 x Leg 150mm - Thin Jaw 08612800 3 x Thin Jaw Ext Set - 75mm Includes powder coated metal board with vinyl overlay and lockable hooks 15512800 - Metal Panel (610mm x 457mm) 08652900 - Hook Kit Not suitable for use with air/impact tools.

Read more less

Triple Leg Mechanical Puller Thin jaws enable access where clearance behind components is limited Three legs for removing gears, races, bearings and sprockets Automotive and industrial applications Drop forged steel legs, beam and jaws Heat treated for strength and durability Supplied in cardboard box  Dimensions: Spread Min - Max: 0-150mm Reach Max: 225mm Not suitable for use with air/impact tools.

Read more less

Contains components to make up 10 thin jaw leg pullers Thin jaws enable access where clearance behind components is limited Supplied in metal case Dimensions: Spread max: 225mm Reach max: 225mm  Contents: 08611100 1 x Forcing Screw 08291100 1 x Forcing Screw 08600000 1 x Puller - Thin Jaw 08611200 1 x Twin Beam 08621200 1 x Twin Beam 08651300 1 x Triple Beam 08611400 3 x Leg 150mm - Thin Jaw 08602800 3 x Thin Jaw Ext Set - 48mm 08601300 1 x Triple Beam 08601400 1 x Leg 75mm - Thin Jaw 08612800 3 x Thin Jaw Ext Set - 75mm Not suitable for use with air/impact tools.

Read more less

Contains components to make up 10 thin jaw leg pullers Thin jaws enable access where clearance behind components is limited Supplied with metal display panel  Dimensions: Spread max: 225mm Reach max: 225mm  Contents: 08611100 1 x Forcing Screw 08291100 1 x Forcing Screw 08600000 1 x Puller - Thin Jaw 08611200 1 x Twin Beam 08621200 1 x Twin Beam 08651300 1 x Triple Beam 08611400 3 x Leg 150mm - Thin Jaw 08602800 3 x Thin Jaw Ext Set - 48mm 08601300 1 x Triple Beam 08601400 1 x Leg 75mm - Thin Jaw 08612800 3 x Thin Jaw Ext Set - 75mm Not suitable for use with air/impact tools.

Read more less

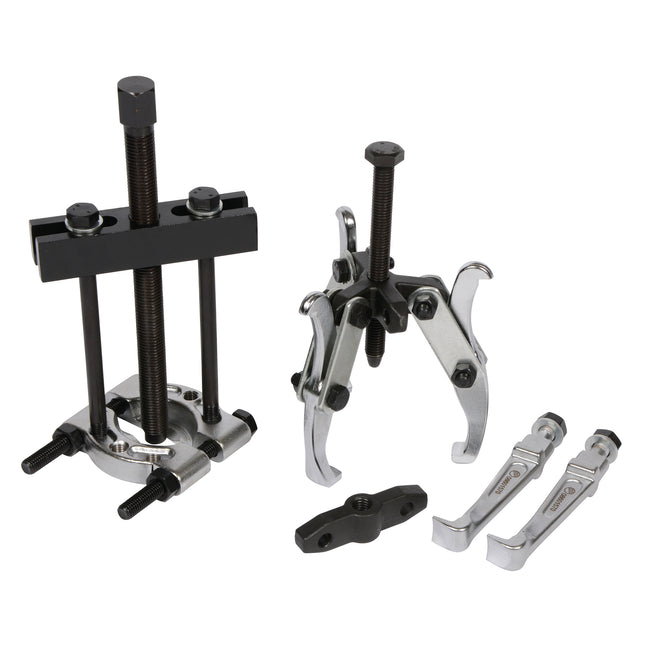

Makes 5 different mechanical puller/separator combinationsConsists of a thin jaw puller, reversible leg puller and separator the ideal combination for light applicationsSupplied in cardboard box  Dimensions: Spread Max: 140mm Reach Max: 89mm External Spread Max: 55mm  Contents: 08281100 1 x  Forcing Screw 08601400 2 x Leg 75mm - Thin Jaw 09301200 1 x Twin Beam 09301500 2 x Main Rod 08271100 1 x Forcing Screw 09500000 1 x Separator 10-55mm 08271200 1 x Twin Head 08271300 1 x Triple Head 08271400 3 x Leg - Double Ended Reversible Not suitable for use with air/impact tools.

Read more less

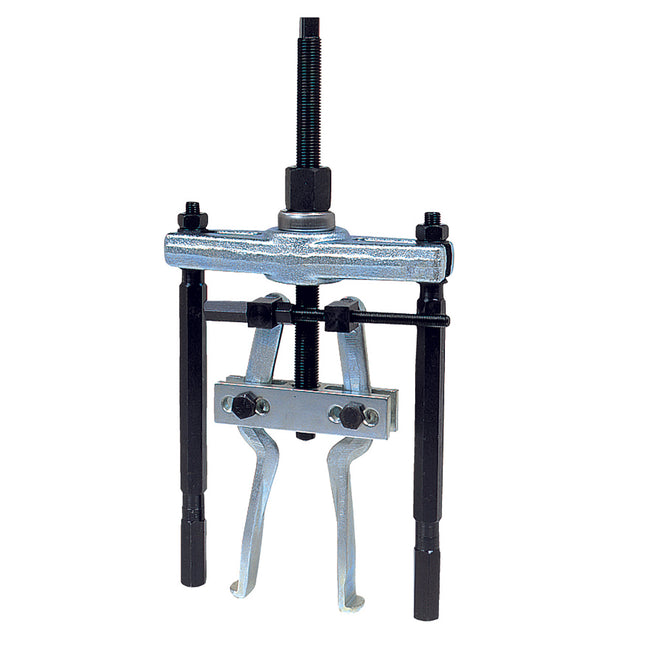

Internal Extractor Kit Extract components quickly and efficiently when conventional pullers cannot be used. Removes gears, bearings, oil seals etc. Additional twin beam pulling unit available part no. 09580500. Specifications -  Internal Spread Min - Max: 8.5 - 17mm and 19 - 22mm No. of Split Collet Extractors: 4 Thread size - ½" x 20 UNF

Read more less

Set of 5 x 2 Jaw Mechanical Pullers Forged jaws Reversible jaws - can be used internally or externally  Includes: 13110000 - Mechanical Puller - 2 Leg - 100 X 95mm 13115000 - Mechanical Puller - 2 Leg - 100 X 135mm 13120000 - Mechanical Puller - 2 Leg - 150 X 165mm 13125000 - Mechanical Puller - 2 Leg - 155 X 190mm 13130000 - Mechanical Puller - 2 Leg - 205 X 240mm Display Stand Header Card with Cable Ties Not suitable for use with air/impact tools.

Read more less

The jaws are connected by a self-centring mechanism for simultaneous movement, improving the placement of the puller on the work piece if in an unsuitable position. The device has safety in mind by preventing the jaws opening past the recommended opening distance. When a puller is opened beyond this distance, the work piece may be released or the puller could become broken.  Features: External 2/3 jaw puller Forged jaws Self-centring closure system Jaw opening limiting safety feature Dimensions: Reach - 105mm (A) Spread - 110mm (B) Tonne - 1 Weight - 1kg Spindle - M10 x 1 x 110 Not suitable for use with air/impact tools.

Read more less

The jaws are connected by a self-centring mechanism for simultaneous movement, improving the placement of the puller on the work piece if in an unsuitable position. The device has safety in mind by preventing the jaws opening past the recommended opening distance. When a puller is opened beyond this distance, the work piece may be released or the puller could become broken.  Features: External 2/3 jaw puller Forged jaws Self-centring closure system Jaw opening limiting safety feature Dimensions: Reach - 225mm (A) Spread - 240mm (B) Tonne - 7 Weight - 6.5kg Spindle - M18 x 1.5 x 250 Not suitable for use with air/impact tools.

Read more less

The jaws are connected by a self-centering mechanism for simultaneous movement, improving the placement of the puller on the work piece if in an unsuitable position. The device has safety in mind by preventing the jaws opening past the recommended opening distance. When a puller is opened beyond this distance, the work piece may be released or the puller could become broken.  Features: External 2/3 jaw puller Forged jaws Self-centring closure system Jaw opening limiting safety feature Dimensions: Reach - 410mm (A) Spread - 350mm (B) Tonne - 10 Weight - 14.5kg Spindle - M20 x 1.5 x 319 Not suitable for use with air/impact tools.

Read more less

The jaws are connected by a self-centring mechanism for simultaneous movement, improving the placement of the puller on the work piece if in an unsuitable position. The device has safety in mind by preventing the jaws opening past the recommended opening distance. When a puller is opened beyond this distance, the work piece may be released or the puller could become broken.  Features: External 2/3 jaw puller Forged jaws Self-centring closure system Jaw opening limiting safety feature Dimensions: Reach - 490mm (A) Spread - 405mm (B) Tonne - 10 Weight - 16kg  Spindle - M20 x 1.5 x 319 Not suitable for use with air/impact tools.

Read more less

2 Jaw Mechanical Puller Forged jaws Reversible jaws - can be used internally or externally  Dimensions Spread for External Applications - 30 - 95mm (B) Spread for Internal Applications - 92 - 130mm (W) 3 Ton. Not suitable for use with air/impact tools. Reach - 100mm (A) Width - 134mm (C)   Optional Extra: Long reach jaws ref 133100-02, will give your puller extra reach up to 200mm

Read more less

2 Jaw Mechanical Puller Forged jaws Reversible jaws - can be used internally or externally  Dimensions Spread for External Applications - 35 - 135mm (B) Spread for Internal Applications - 100 - 175mm (W) Reach - 100mm (A) Width - 176mm (C) Max - 3 Ton. Optional Extra: Long reach jaws ref 133100-02, will give your puller extra reach up to 200mm Not suitable for use with air/impact tools.

Read more less

2 Jaw Mechanical Puller Forged jaws Reversible jaws - can be used internally or externally  Dimensions Spread for External Applications - 40 - 165mm (B) Spread for Internal Applications - 130 - 225mm (W) Reach - 150mm (A) Width - 223mm (C) Max - 7 Ton. Not suitable for use with air/impact tools. Optional Extra: Long reach jaws ref 133200-02, will give your puller extra reach up to 305mm

Read more less

2 Jaw Mechanical Puller Forged jaws Reversible jaws - can be used internally or externally Dimensions Spread for External Applications - 35 - 190mm (B) Spread for Internal Applications - 135 - 250mm (W) Reach - 155mm (A) Width - 250mm (C) Max - 7 Ton. Not suitable for use with air/impact tools. Optional Extra: Long reach jaws ref 133200-02, will give your puller extra reach up to 305mm

Read more less

2 Jaw Mechanical Puller Forged jaws Reversible jaws - can be used internally or externally  Dimensions Spread for External Applications - 50 - 240mm (B) Spread for Internal Applications - 175 - 325mm (W) Reach - 205mm (A) Width - 325mm (C) Max - 12 Ton. Not suitable for use with air/impact tools. Optional Extra: Long reach jaws ref 133300-02, will give your puller extra reach up to 380mm

Read more less

2 Jaw Mechanical Puller Forged jaws Reversible jaws - can be used internally or externally  Dimensions Spread for External Applications - 60 - 350mm (B) Spread for Internal Applications - 175 - 425mm (W) Reach - 200mm (A) Width - 425mm (C) Max - 12 Ton. Not suitable for use with air/impact tools. Optional Extra: Long reach jaws ref 133300-02, will give your puller extra reach up to 380mm

Read more less

2 Jaw Mechanical Puller Forged jaws Reversible jaws - can be used internally or externally  Dimensions Spread for External Applications - 90 - 510mm (B) Spread for Internal Applications - 220 - 580mm (W) Reach - 200mm (A) Width - 585mm (C) Max - 12 Ton. Not suitable for use with air/impact tools. Optional Extra: Long reach jaws ref 133300-02, will give your puller extra reach up to 380mm

Read more less

3 Jaw Mechanical Puller Forged jaws  Dimensions: Spread Minimum (External Applications) - 35mm Spread Maximum (External Applications) - 95mm Spread Minimum (Internal Applications) - 92mm Spread Maximum (Internal Applications) - 130mm Reach - 100mm (A) Width - 134mm (C) Not suitable for use with air/impact tools.

Read more less

3 Jaw Mechanical Puller Forged jaws  Dimensions Spread Minimum (External Applications) - 38mm Spread Maximum (External Applications) - 135mm Spread Minimum (Internal Applications) - 100mm Spread Maximum (Internal Applications) - 175mm Reach - 100mm (A) Width - 176mm (C) Not suitable for use with air/impact tools.

Read more less

3 Jaw Mechanical Puller Forged jaws  Dimensions Spread Minimum (External Applications) - 42mm Spread Maximum (External Applications) - 165mm Spread Minimum (Internal Applications) - 130mm Spread Maximum (Internal Applications) - 225mm Reach - 150mm (A) Width - 223mm (C) Not suitable for use with air/impact tools.

Read more less

Includes: 2 x 2 Leg mechanical Pullers 1 x 3 Leg mechanical puller  Puller Information:13215000: Forged Jaws Reversible Jaws  Reach (Max): 100mm Spread (External): 38-135mm Spread (Internal): 100-175mm  13120000: Forged Jaws Reversible Jaws  Reach (Max): 150mm Spread (External): 40-165mm Spread (Internal): 130-225mm   08320000: 3 positions: adjustable legs for increased pulling options Can be upgraded for triple leg pulling Different legs style avilable Reach (Max): 250mm Spread: 0-300mm

Read more less

SPEEDLINE 2 Leg Mechanical Puller Features: External self-centring 2 Jaw Puller Legs come together with the support nut of the spindle, which makes all the legs move at the same time.    Dimensions: Leg Height: 80mm Max Spread: 80mm Not suitable for use with air/impact tools.

Read more less

SPEEDLINE 1800 Series Internal and External Multi Jaw Pullers Includes 4 sets of reversible jaws for external & internal applications SP1810-32 jaws have a slot for pulling screws Two jaws can be joined together for extra height 10T  Dimensions Reach: 182mm Spread for External Applications: Min 35mm Max 250mm Spread for Internal Applications: Min 105mm Max 260mm Not suitable for use with air/impact tools.

Read more less

Sykes-Pickavant pullers are manufactured to a very high specification and subjected to rigorous testing - far exceeding their stated capacities. The legs and beams are drop forged from high quality steel and then heat treated for extra strength and durability.  Fast Fit Micro Puller For rapid removal of small bearings Covers a wide range of automotive and engineering applications including: alternators/generators, domestic appliances, power tools and pumps Self-centering force screw with T bar and 13mm hexagon drive Drop forged legs with independent leaf springs Securing collar tightens under load for positive, non slip pulling action Suitable for ISO referenced bearings 1 tonne capacity Dimensions: Spread - 19-45mm Reach - 73mm  Contents: 08210300 - 1 x Forcing Screw 08210400 - 1 x Nose Piece Extension 08210570 - 3 x legs Not suitable for use with air/impact tools.

Read more less

Combi Pull A pulling system that offers versatility with many different puller combinations. The system covers a wide range; automotive, industrial and engineering applications for bearings, gears, oil seals, bearing outer races and pinions. The slide hammer allows the tool to be used where a conventional screw puller is not suitable do to the absence of a shaft.  Contents Slide hammer 2/3 way beam 3 straight legs, 3 cranked reversible legs for internal and external pulling. 4 split collet internal extractors 10- 30mm Supplied in metal case  Straight Leg Style External Spread Min - Max: 0-75 mmInternal Spread Min - Max: 60-100 mmReach Max: 55 mmCranked Leg StyleInternal Spread Min - Max: 25-60 mmReach Max: 45 mmSplit ColletsInternal Spread Min - Max: 10-30 mm

Read more less

2 Jaw Mechanical Puller Forged jaws Reversible jaws - can be used internally or externally  Dimensions Spread for External Applications - 140 - 640mm (B) Spread for Internal Applications -  310 - 740mm (W) Reach - 225mm (A) Width - 717mm (C) Max - 15 Ton. Optional Extra: Long reach jaws ref 133450-02, will give your puller extra reach up to 350mm Not suitable for use with air/impact tools.

Read more less

2 Jaw Long Reach Mechanical Puller Forged jaws Reversible jaws - can be used internally or externally  Dimensions Spread for External Applications - 25-95mm (B) Spread for Internal Applications - 80-130mm (W) Reach - 200mm (A) Width - 134mm (C) Max - 3 Ton. Optional Extra: Short reach jaws ref 131100-02 will allow you to do jobs where a shorter reach is required - up to 100mm Not suitable for use with air/impact tools.

Read more less

2 Jaw Long Reach Mechanical Puller Forged jaws Reversible jaws - can be used internally or externally  Dimensions Spread for External Applications - 35-135mm (B) Spread for Internal Applications - 95-175mm (W) Reach - 200mm (A) Width - 176mm (C) Max - 3 Ton. Optional Extra: Short reach jaws ref 131100-02 will allow you to do jobs where a shorter reach is required - up to 100mm Not suitable for use with air/impact tools.

Read more less

2 Jaw Long Reach Mechanical Puller Forged jaws Reversible jaws - can be used internally or externally  Dimensions Spread for External Applications - 45-165mm (B) Spread for Internal Applications - 130-225mm (W) Reach - 305mm (A) Width - 223mm (C) Max - 7 Ton. Optional Extra: Short reach jaws ref 131200-02 will allow you to do jobs where a shorter reach is required - up to 150mm Not suitable for use with air/impact tools.

Read more less

2 Jaw Long Reach Mechanical Puller Forged jaws Reversible jaws - can be used internally or externally  Dimensions Spread for External Applications - 35-190mm (B) Spread for Internal Applications - 130-270mm (W) Reach - 305mm (A) Width - 250mm (C) Max - 12 Ton. Optional Extra: Short reach jaws ref 131200-02 will allow you to do jobs where a shorter reach is required - up to 150mm Not suitable for use with air/impact tools.

Read more less

48mm extension piece for thin jaw puller legs

Read more less

900 Series - Pulling Unit for use with 09500000 Separator Comprises: Twin Beam, Screw and Pulling Rods (2)Suitable for use with 19310500, 15530500 Not suitable for use with air/impact tools.

Read more less

Individual separator for removing and refitting bearings, etc.Can be used with any of the Sykes-Pickavant design of pullers where standard legs cannot gain access.Tapered legs provide all round support.Supplied in carton. External Spread Min - Max: 10-62mm Compatible with: 09301500 Main Rod for Mechanical Puller – Sykes Pickavant.   Found in Kits: 08420600 - Mechanical Puller & Separator Kit 350mm – Sykes Pickavant 09300000 - Mechanical External Separator Kit – Sykes Pickavant 15530500 - Comprehensive Hydraulic Puller/Separator/Extractor Kit – Sykes Pickavant 19310500 - Hydraulic Internal Extractor, Puller & Separator Kits with – Sykes Pickavant

Read more less

Individual separator for removing and refitting bearings, etc.Can be used with any of the Sykes-Pickavant design of pullers where standard legs cannot gain access.Tapered legs provide all round support.Supplied in carton. External Spread Min - Max: 20-110mm   Compatible with: 09311500 - Main Rod Assembly – Sykes Pickavant   Found in Kits: 08420600 - Mechanical Puller & Separator Kit 350mm – Sykes Pickavant 15520000 - Hydraulic Puller & Separator Kit 50-150mm – Sykes Pickavant 155200TC - Hydraulic Puller & Separator Kit - Tool Control – Sykes Pickavant 155200XT - Hydraulic Puller & Separator Kit - Extra Travel – Sykes Pickavant 15520800 - Hydraulic Puller & Separator Kit – Sykes Pickavant 15530500 - Comprehensive Hydraulic Puller/Separator/Extractor Kit – Sykes Pickavant 155400V2 - Hydraulic Puller & Separator Kit – Sykes Pickavant 155405V2 - Hydraulic Puller & Separator Kit – Sykes Pickavant 155700V2 - Hydraulic Internal Extractor, Puller & Separator Kit – Sykes Pickavant 155900V2 - Hydraulic Internal Extractor, Puller & Separator Kit - Mast – Sykes Pickavant 19310000 - Hydraulic Separator Kit – Sykes Pickavant 19310100 - Hydraulic Separator Kit exc Ram – Sykes Pickavant 19310300 - Hydraulic Puller & Separator Kit - Thin Jaw – Sykes Pickavant 19310500 - Hydraulic Internal Extractor, Puller & Separator Kits with – Sykes Pickavant

Read more less

Individual separators for removing and refitting bearings, etc.Can be used with any of the Sykes-Pickavant design of pullers where standard legs cannot gain access.Tapered legs provide all round support.Supplied in carton. External Spread Min - Max: 35-134mm Can be used with 08320000 & 08330000 Twin Leg Pullers or 09420000 Twin Leg Pulling Unit Compatible with: 09321500 - Main Rod Assembly 332mm – Sykes Pickavant Found in Kits: 08420600 - Mechanical Puller & Separator Kit 350mm – Sykes Pickavant 155800V2 - Hydraulic Internal Extractor, Puller & Separator Kit – Sykes Pickavant 155900V2 - Hydraulic Internal Extractor, Puller & Separator Kit - Mast – Sykes Pickavant 15600000 - Hydraulic Internal/External Puller & Separator Kit – Sykes Pickavant 19320000 - Hydraulic Separator Kit - Heavy Duty – Sykes Pickavant 19320100 - Hydraulic Separator Kit - heavy Duty exc Ram – Sykes Pickavant

Read more less

Individual separators for removing and refitting bearings, etc.Can be used with any of the Sykes-Pickavant design of pullers where standard legs cannot gain access.Tapered legs provide all round support.Supplied in carton. External Spread Min - Max: 50 - 175mm Can be used with Sykes-Pickavant Loadstar Heavy Duty Pullers or 09430000 Twin Leg Pulling Unit Found in Kits: 20202000 20 Tonne Loadstar "Plus" Separator Add-on Pack – Sykes Pickavant 20205000 - 20 Tonne Loadstar "Plus" Comprehensive Kit – Sykes Pickavant 20302000 - 30 Tonne Loadstar "Plus" Separator Add-On Pack – Sykes Pickavant 20305000 - 30 Tonne Loadstar "Plus" Comprehensive Kit – Sykes Pickavant 20502000 - 50T Loadstar "Plus" Separator Add-On Pack – Sykes Pickavant 20505000 - 50T Loadstar "Plus" Comprehensive Kit – Sykes Pickavant

Read more less

Twin beam mechanical puller for use with Sykes-Pickavant split collet type internal extractors. Mechanical force screw can then be used to draw extractors in place of slide hammer.

Read more less

For when greater impact is requiredHub pullers can be further enhanced when using this heavy duty tool, which is fully compatible and can be fitted directly into the Puller Ring Plate Slide Hammer Shaft Thread - M20 x 2.5Adaptor Thread - 1 1/2" 16tpi WhitworthFull Length - 840mmWorking Length - 700mm

Read more less

Pulling attachment for Sykes-Pickavant bearing pullers, part number 09330000.Users should also use correct thread protector to fit their bearing puller.Supplied in cardboard box.Internal Reach Min - Max: 75-230mmExternal Reach Max: 150mmUse with 09330000 Kit* - Use screw adaptor 09360100*Thread Protectors - When ordering an internal pulling attachment usersshould also order the correct thread protectors to fit their pulling unit or bearing puller kit.Pulling Unit Part No. 09410000 / Pulling Kit Part No. 09310000Use thread protectors Part No. 09312000 (2)Pulling Unit Part No. 09420000 / Pulling Kit Part No. 09320000Use thread protectors Part No. 09322000 (2)

Read more less

For the extraction of bushes, sleeves and bearings from blind housings, when the centre shaft has been removed and does not allow the use of a mechanical puller. Supplied in cardboard box. Internal Reach Min - Max: 40 - 150mmExternal Reach Max: 100mm

Read more less

2 Jaw Long Reach Mechanical Puller Forged jaws Reversible jaws - can be used internally or externally  Dimensions Spread for External Applications - 60-250mm (B) Spread for Internal Applications - 175-340mm (W) Reach - 380mm (A) Width - 325mm (C) Max - 12 Ton. Optional Extra: Short reach jaws ref 131300-02 will allow you to do jobs where a shorter reach is required - up to 205mm Not suitable for use with air/impact tools.

Read more less

2 Jaw Long Reach Mechanical Puller Forged jaws Reversible jaws - can be used internally or externally  Dimensions Spread for External Applications - 60-350mm (B) Spread for Internal Applications - 180-425mm (W) Reach - 380mm (A) Width - 425mm (C) Max - 12 Ton. Optional Extra: Short reach jaws ref 131300-02 will allow you to do jobs where a shorter reach is required - up to 205mm Not suitable for use with air/impact tools.

Read more less

2 Jaw Long Reach Mechanical Puller Forged jaws Reversible jaws - can be used internally or externally  Dimensions Spread for External Applications - 90-510mm (B) Spread for Internal Applications - 220-580mm (W) Reach - 380mm (A) Width - 525mm (C) Max - 12 Ton. Optional Extra: Short reach jaws ref 131300-02 will allow you to do jobs where a shorter reach is required - up to 205mm Not suitable for use with air/impact tools.

Read more less

2 Jaw Long Reach Mechanical Puller Forged jaws Reversible jaws - can be used internally or externally  Dimensions Spread for External Applications - 140-640mm (B) Spread for Internal Applications - 310-740mm (W) Reach - 350mm (A) Width - 717mm (C) Max - 15 Ton. Not suitable for use with air/impact tools.

Read more less

2 Leg self centering internal puller with handle to aid the opening and closing of the legs. Hexagonal headed spindle. Greater extraction capacity due to the design of the jaws. Patented self centering system. 13770400 puller can be used with slide hammer 08532000 Specification Reach Max - 143mm Spread Min - Max - 40-155mm Not suitable for use with air/impact tools.

Read more less

3 Leg self centering internal puller with handle to aid the opening and closing of the legs. Hexagonal headed spindle. Greater extraction capacity due to the design of the jaws. Patented self centering system. 13770400 puller can be used with slide hammer 08532000 Specification Reach Max - 143mm Spread Min - Max - 40-155mm Not suitable for use with air/impact tools.

Read more less
