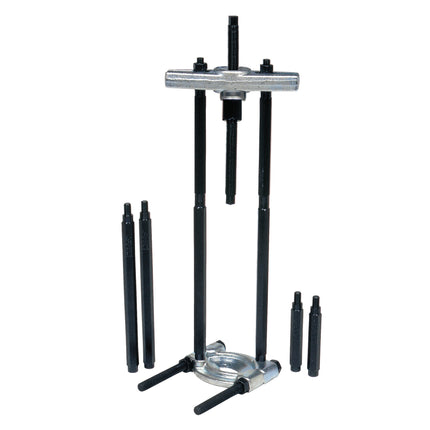

09310000 - Mechanical External Separator Kit

Description

  • With tapered edge for insertion behind close fitting bearings, gears etc.
  • Drop forged, high quality alloy steel, heat treated for strength and durability
  • Users should ensure that the thread is lubricated before fitting the puller
  • Each kit supplied in metal case


Dimensions:

  • External Spread Min - Max: 20 - 105mm
  • External Reach Max: 876mm


Basic pulling units excluding the bearing separator can be supplied if required. These include a basic twin beam, screw, thrust nut, thrust race and main rod assembly.
Kit No. 09310000 = Pulling Unit No. 09410000

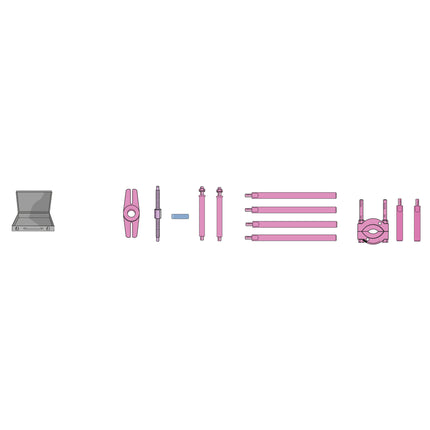

Contents:

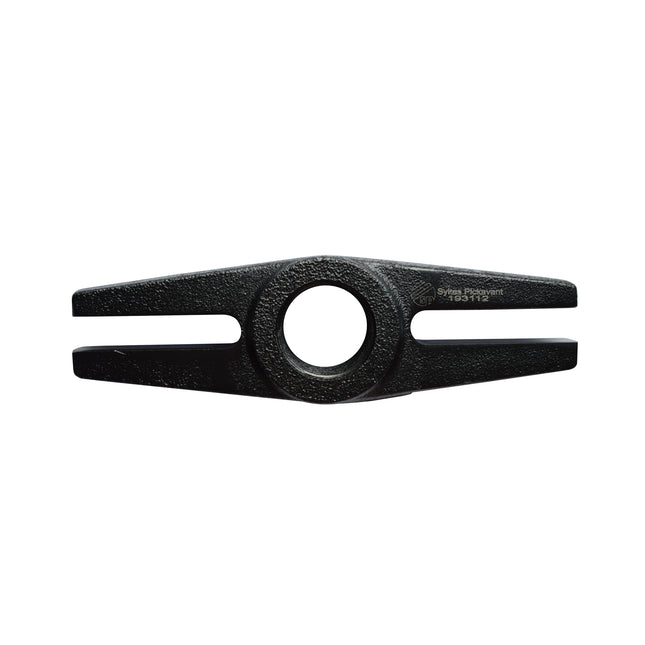

  • 09311200 1 x Beam
  • 09311100 1 x Screw / Nut Thrust
  • 09312100 1 x Thrust race
  • 09311500 2 x Main rods, nuts & washers
  • 09312300 2 x 5" Extension Rods
  • 09311900 4 x Extension Rods
  • 09510000 1 x Separator


Kit can be upgraded for internal pulling by adding 09350000

Product form

With tapered edge for insertion behind close fitting bearings, gears etc. Drop forged, high quality alloy steel, heat treated for... Read more

SKU: 09310000

Icon for notificationEnquire About This Product

Contact us with an enquiry about this product.

Please include a contact number in the message.

Send us a message!

Description

  • With tapered edge for insertion behind close fitting bearings, gears etc.
  • Drop forged, high quality alloy steel, heat treated for strength and durability
  • Users should ensure that the thread is lubricated before fitting the puller
  • Each kit supplied in metal case


Dimensions:

  • External Spread Min - Max: 20 - 105mm
  • External Reach Max: 876mm


Basic pulling units excluding the bearing separator can be supplied if required. These include a basic twin beam, screw, thrust nut, thrust race and main rod assembly.
Kit No. 09310000 = Pulling Unit No. 09410000

Contents:

  • 09311200 1 x Beam
  • 09311100 1 x Screw / Nut Thrust
  • 09312100 1 x Thrust race
  • 09311500 2 x Main rods, nuts & washers
  • 09312300 2 x 5" Extension Rods
  • 09311900 4 x Extension Rods
  • 09510000 1 x Separator


Kit can be upgraded for internal pulling by adding 09350000
