Description
The Puller and Separator Kit is supplied in a blow-moulded case in foams; this dedicated design is ideal for tool control, i.e. off site work where its imperative that all parts are accounted for, i.e. food production locations
Hydraulic 1500 series
-
Removes gears, bearings, pulleys and sprockets
-
Wide range of automotive and industrial applications
-
Powered by 1500 hydraulic ram
-
Safe and easy to use
-
8 tonnes of force with minimum effort
-
Easy to adjust
-
Non-twisting for improved stability
-
Supplied with nose piece for use on centered shafts
-
Self centering and self locking
-
Redesigned legs, improving strength
- The separator is a versatile tool where a long reach is required to draw a bearing from a shaft.
- The tapered edges of the bearing separator provide all round support and can fit behind bearings where normal puller legs cannot gain access.
- Makes 4 different twin/triple leg pullers, plus bearing separator kit
Dimensions:
- Puller Spread Min - Max: 50-150mm
- Puller Reach Max: 150mm
- External Spread Min - Max: 20-105mm
- External Reach Max: 876mm

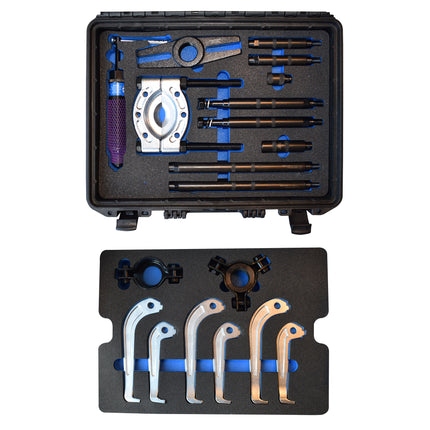

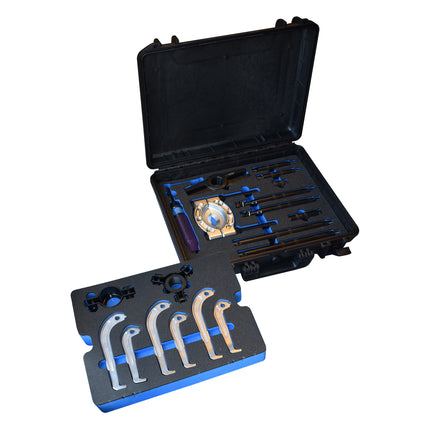

Contents:
- 1500 Series Hydraulic Ram With Nose Piece
- 15241200 1 x Twin Head
- 15341300 1 x Triple Head
- 15242200 1 x Ram Extension - 50mm
- 15262400 1 x Ram Extension - 100mm
- 15242400 3 x Legs - 100mm
- 15262600 3 x Legs - 150mm
- 19311200 1 x Twin Beam
- 09510000 1 x Separator 20-105mm
- 09311500 2 x Main Rods
- 09311900 4 x Extension Rods
- 09312300 2 x Extension Rods 5 inch
