34196000 - 60kg Battery Powered Wheel Lifter
Reduce manual handling and improve workshop safety with the 34196000 Battery Powered Wheel Lifter. Designed to assist with the removal and installation of medium and small vehicle wheels, it supports loads up to 60kg, allowing technicians to accurately align wheels while eliminating the strain of manual lifting.
The smooth battery-powered lifting mechanism is operated from the ergonomic handle using simple push-button controls, while the lightweight aluminium construction and four locking swivel castors provide excellent manoeuvrability and stability around the workshop.
For even greater versatility, this wheel lifter can also be converted into a Door & Parts Lifter using the optional 34185100 Door / Parts Lifter Kit, allowing the same unit to safely handle vehicle doors, body panels and other large components.
Key Features
-
60kg lifting capacity for the safe handling of medium and small vehicle wheels.
-
Battery-powered lifting mechanism provides smooth, effortless raising and lowering.
-
Simple push-button controls integrated into the handle for easy operation.
-
Two-speed lift control for improved positioning and accuracy.
-

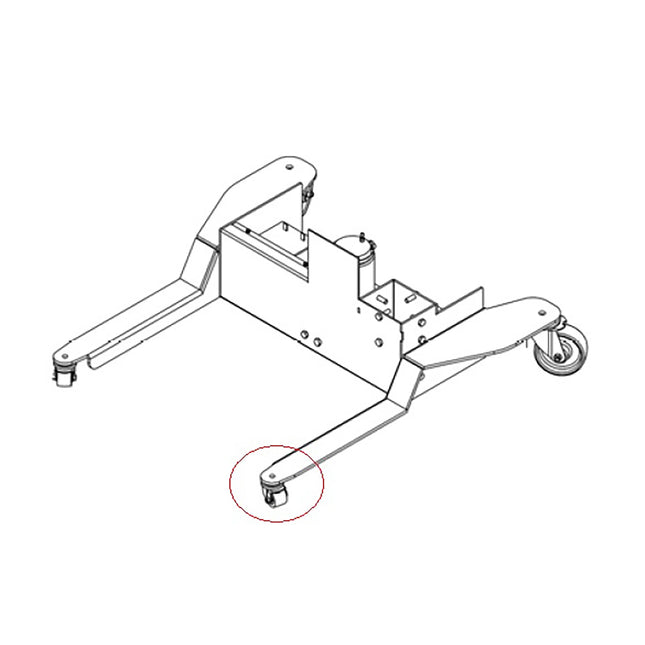

Four locking swivel castors provide excellent manoeuvrability and secure positioning.
-
Low centre of gravity enhances stability during lifting operations.
-
Lowering wheel brackets allow wheels to be loaded with minimal effort.
-
Lightweight aluminium frame combines strength with easy handling.
-
Powered by two 12V 12Ah rechargeable batteries with LED charge level indicators.
Specifications
- Maximum Capacity: 60kg
- Run: 1180mm
- Max. wheel hub height: 1450mm
- Base Width: 725mm
- Base Depth: 720mm
- Vertical Acceleration: 0.10 - 0.14 m/s
- Batteries: 2 x 12V - 12Ah
Expand Its Capabilities
Already using the 34196000 Wheel Lifter? Add the 34185100 - Door / Parts Lifter Kit to convert it into a versatile lifting system for vehicle doors, body panels and other large components. This cost-effective upgrade allows one piece of equipment to perform multiple workshop tasks, reducing equipment costs while maximising workshop efficiency.
