Description
Pneumatic Coil Spring Compressor Workstation with Upper Bracket
Universal piece of equipment for assembling and disassembling struts and coil springs - suitable for Cars, 4WDs and LCV's
- Automatic jaw levelling pivots to compensate and hold all coil springs including left hand coils
- Safety switch prevents operation when gates are open

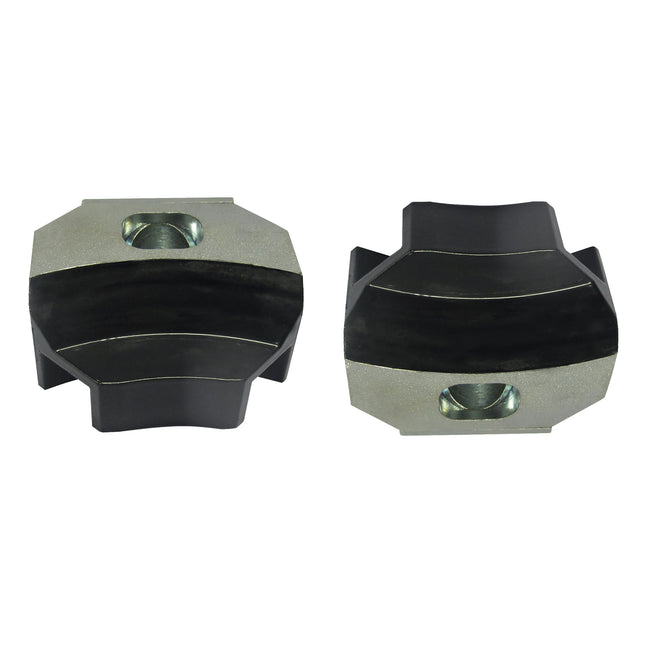

- Interchangeable jaws / vice to suit different springs
- Up to 2452kg of force (at 8 bar) at the touch of a pedal
- Full height steel safety gates
- Top arms and jaws adjust and lock to secure spring
- Unique double depth front plate allows safe work on extra long strut assemblies
- 4 x 10mm floor mounting holes for insurance company compliance
- Safety cut-out for de-activation of cylinder when safety guard is opened
ALS “ Auto Levelling System - Auto levelling upper arms simplify working on conical and misaligned springs
Brackets System - Front and side spring clamps designed for fast changeover using unique Brackets System
Aluminium Cylinder Can be used on extra-long shock absorbers (e.g. commercials) due to the long (330mm) stroke of the cylinder. Manufactured from light alloy and resin to eliminate risk of corrosion and internal parts failure
Contents:

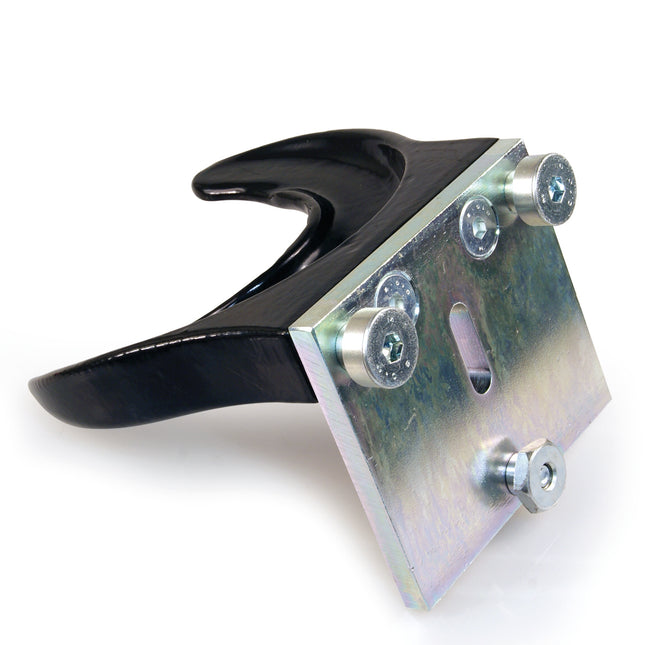

- Bracket A: 78 “ 130mm (38481200)
- Bracket C: 105 - 182mm (38481400)

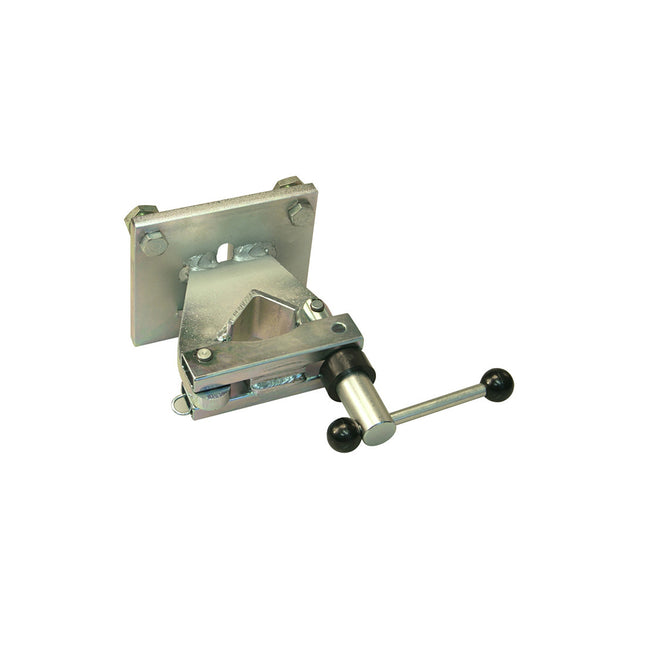

- Strut Vice
- Safety Guards
Specifications:
- Dimensions: 1600 x 520 x 300mm
- Max Working Pressure: 8 bar (116 psi)
- Compression Force: 2452 kg (24500N)
- Cylinder Stroke: 330mm
- CE approved
Fitted with Extra Heavy Duty Pneumatic Cylinder - Ideal for Extra Heavy Duty applications i.e. SUVs, 4WDs etc where full spring compression is required
Also Includes: GO338- Upper Bracket for Spring Compressor
The design is ideal for;
- Springs with a small number of coils; meaning that one more coil can always be tensioned automatically
- Simplifying dismantling and assembly operations
The rotatable and fixable mounting plate is provided with a universal hole division. In addition, the holder between the arms can easily be tilted. Suitable for use with Sykes-Pickavant Coil Spring Compressors.
Applications:

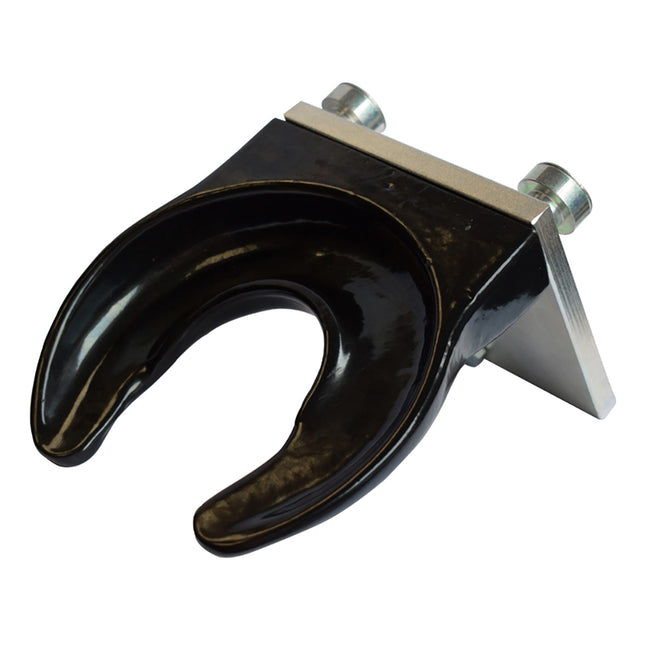

- Nissan Qashqai
- Renault Talisman, Megane, Master 3° Series, Kojar, Koleos
- Peugeot 208, 3008, 5008
- Tesla S
- Bmw X1, X2, X3, X4, X5, Series 1, Series 2
- Ford Transit
- Mercedes Class A, B, C, E
- Mini Clubman, Countryman
BMW (Series 1, 2, X1, X2):
- 1 F52 Sedan (01.2017 -)
- 1 Hatchback F40 (07.2019 -)
- 2 Active Tourer F45 (11.2013 -)
- 2 Gran Coupe F44 (11.2019 -)
- 2 Gran Tourer F46 (07.2014 -)
- X1 F48 (11.2014 -)
- X1 Van F48 (11.2015 -)
- X2 F39 (11.2017 -)
MINI (Clubman, Countryman):
- Clubman F54 (11.2014 -)
- Countryman F60 (10.2016 -)

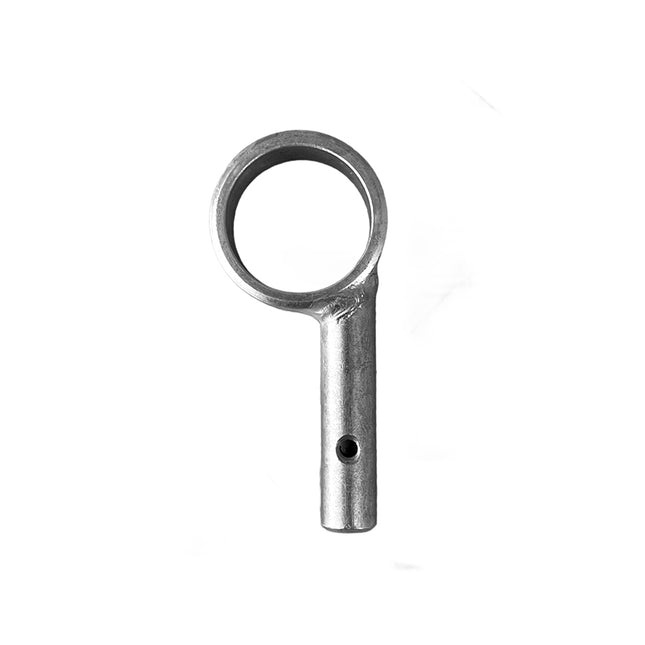

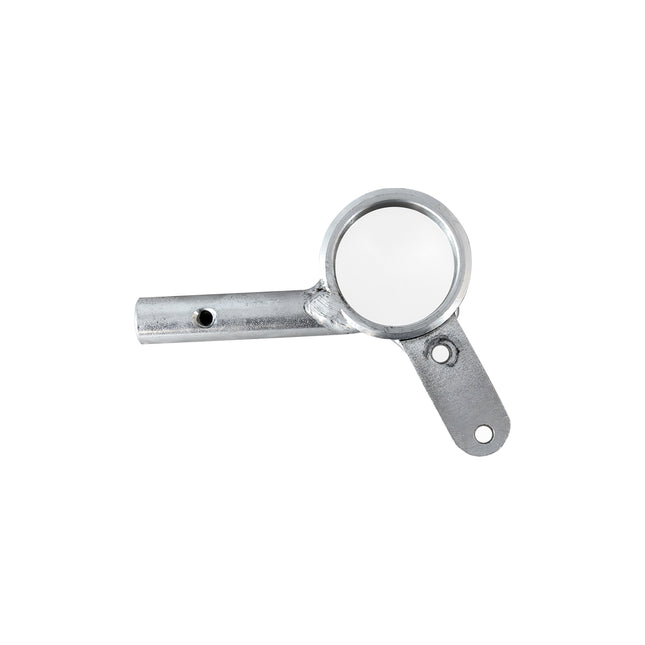

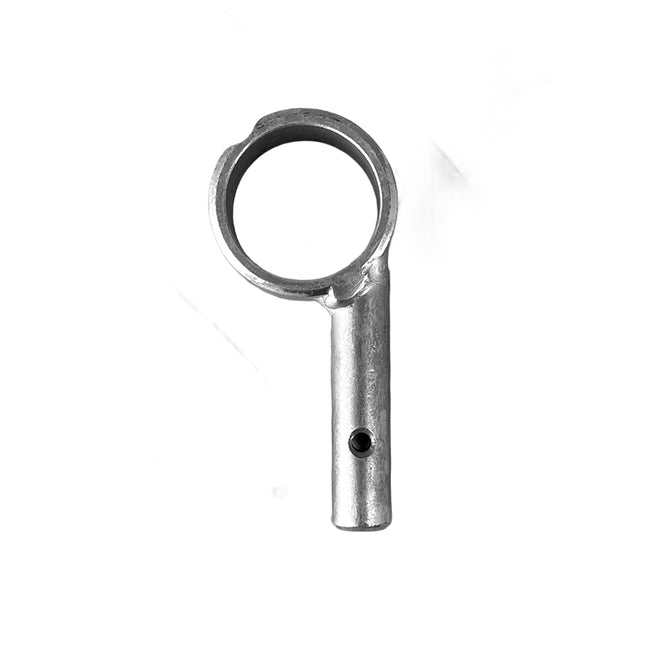

385801SP Spare Part Break Down
Full Range of Service Packs also Available
