387800SP - Super Heavy Duty Pneumatic Coil Spring Compressor Workstation

Description

Universal piece of equipment for assembling and disassembling the strongest struts and coil springs on cars, 4WDs & LCVs

Pneumatic spring compressor from passenger cars to transporters

Comprehensive safety concept includes pneumatic cylinder, foot pedal, safety cage, shock absorber drop guard and pedestal to ensure maximum safety for the user.

The station  includes one small clamping jaw , one medium clamping jaw, GO338 upper top mount bracket and a vice that allows the compression of almost all the coil springs of the market. Other optional special accessories deliverable.

Two clamping jaw mounts on the basic unit permit a maximum opening width of up to 350 mm. Particularly important for many current models with extra-long vehicle springs.

Mirror for viewing from above makes the piston rod easier to position during installation.

Protective cage with high-strength polycarbonate panels ensures a high level of protection in the event of incorrect operation or accidental splintering of the material.

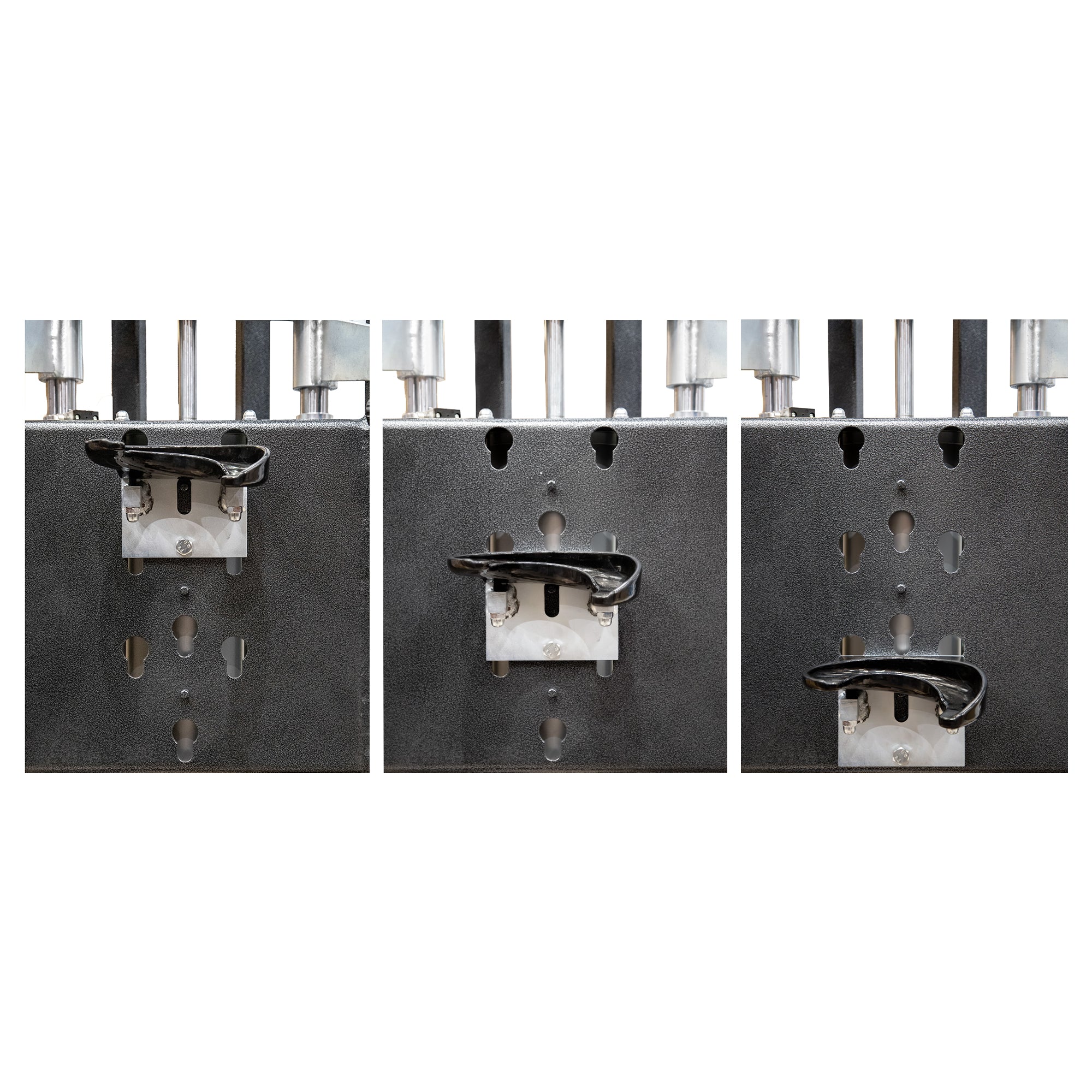

The two infinitely adjustable upper gripper jaws can be set to the required coil diameter. They can be moved upwards and downwards, tilted and fixed in place for maximum adaptability to any type of spring.

The practical absorber drop guard keeps the absorber in position during installation.

The handles above the unit and the wheels make the unit easy to manoeuvre.

Standard equipment

  • Basic unit 3.000 kg
  • Small clamping jaw, Ø 78 - Ø 130 mm
  • Medium clamping jaw, Ø 105 - Ø 185  mm
  • GO338 Upper Top Mount Bracket
  • Mirror with swan neck, magnetic
  • Transport module with 2 steel wheels
  • Vice clamping jaw for absorber tube, Ø 40-60 mm

Technical data

  • CE approval for the unit documents the unit's conformity with 2006/42/EC (machinery directive)
  • Working pressure max. 8 bar
  • Cylinder stroke 330 mm



Product form

Universal piece of equipment for assembling and disassembling the strongest struts and coil springs on cars, 4WDs & LCVs Pneumatic... Read more

SKU: 387800SP

Icon for notificationEnquire About This Product

Contact us with an enquiry about this product.

Please include a contact number in the message.

Send us a message!

Description

Universal piece of equipment for assembling and disassembling the strongest struts and coil springs on cars, 4WDs & LCVs

Pneumatic spring compressor from passenger cars to transporters

Comprehensive safety concept includes pneumatic cylinder, foot pedal, safety cage, shock absorber drop guard and pedestal to ensure maximum safety for the user.

The station  includes one small clamping jaw , one medium clamping jaw, GO338 upper top mount bracket and a vice that allows the compression of almost all the coil springs of the market. Other optional special accessories deliverable.

Two clamping jaw mounts on the basic unit permit a maximum opening width of up to 350 mm. Particularly important for many current models with extra-long vehicle springs.

Mirror for viewing from above makes the piston rod easier to position during installation.

Protective cage with high-strength polycarbonate panels ensures a high level of protection in the event of incorrect operation or accidental splintering of the material.

The two infinitely adjustable upper gripper jaws can be set to the required coil diameter. They can be moved upwards and downwards, tilted and fixed in place for maximum adaptability to any type of spring.

The practical absorber drop guard keeps the absorber in position during installation.

The handles above the unit and the wheels make the unit easy to manoeuvre.

Standard equipment

  • Basic unit 3.000 kg
  • Small clamping jaw, Ø 78 - Ø 130 mm
  • Medium clamping jaw, Ø 105 - Ø 185  mm
  • GO338 Upper Top Mount Bracket
  • Mirror with swan neck, magnetic
  • Transport module with 2 steel wheels
  • Vice clamping jaw for absorber tube, Ø 40-60 mm

Technical data

  • CE approval for the unit documents the unit's conformity with 2006/42/EC (machinery directive)
  • Working pressure max. 8 bar
  • Cylinder stroke 330 mm
