53421000 - Electro-Hydraulic Workshop Press - Double Action Cylinder 100 Tonne

Description

Double Action Cylinder: Featuring both pressing and pulling facilities

• Working area: h915mm x w1035mm
• 90° hinged pump unit enables easier insertion of longer work-pieces
• Multi-adjustable pressure valve
• Fast and safe adjustment of the press table height, using a braked winch
• Flange supplied for fitting of tooling
• Wide insertion width
• 300mm stroke
• Pressure gauge
• Two V-blocks
• Hard Chrome Piston
• Moveable cylinder
• 3 year warranty


Dimensions

  • Measurement A - 915mm
  • Measurement B - 1035mm
  • Measurement C - 305mm
  • Measurement D - 300mm
  • Measurement E - 200mm
  • Measurement F - 100mm
  • Measurement G - 2200mm
  • Measurement H - 1790mm
  • Measurement I - 800mm
  • Unit weight - 981kg

Optional extras:

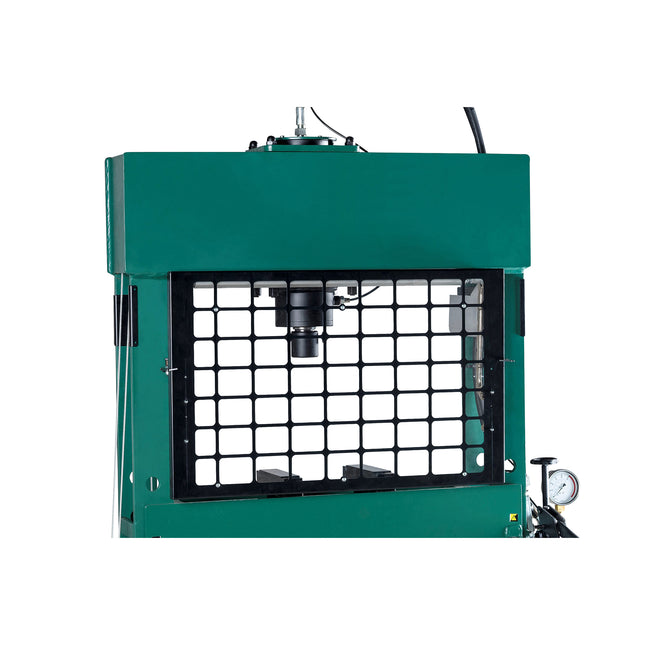

534210-FR - Front Press Guard

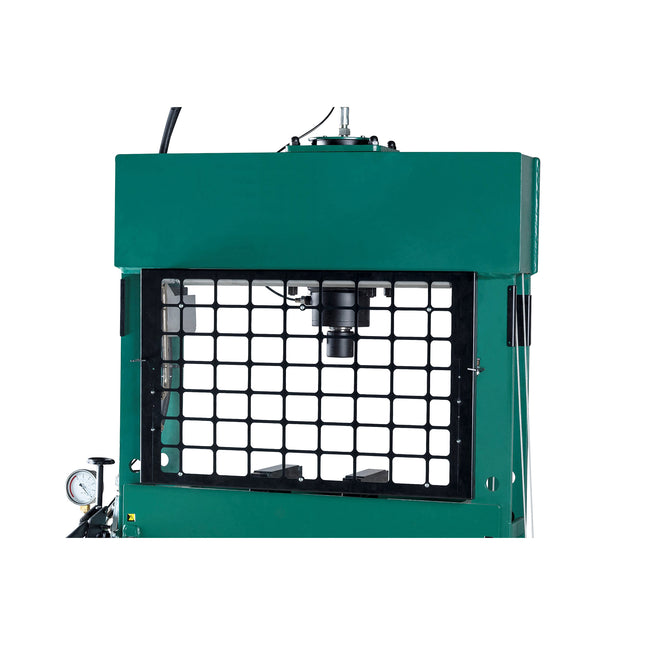

534210-RR - Front Press Guard

Product form

Double Action Cylinder: Featuring both pressing and pulling facilities • Working area: h915mm x w1035mm• 90° hinged pump unit enables... Read more

SKU: 53421000

Icon for notificationEnquire About This Product

Contact us with an enquiry about this product.

Please include a contact number in the message.

Send us a message!

Description

Double Action Cylinder: Featuring both pressing and pulling facilities

• Working area: h915mm x w1035mm
• 90° hinged pump unit enables easier insertion of longer work-pieces
• Multi-adjustable pressure valve
• Fast and safe adjustment of the press table height, using a braked winch
• Flange supplied for fitting of tooling
• Wide insertion width
• 300mm stroke
• Pressure gauge
• Two V-blocks
• Hard Chrome Piston
• Moveable cylinder
• 3 year warranty


Dimensions

  • Measurement A - 915mm
  • Measurement B - 1035mm
  • Measurement C - 305mm
  • Measurement D - 300mm
  • Measurement E - 200mm
  • Measurement F - 100mm
  • Measurement G - 2200mm
  • Measurement H - 1790mm
  • Measurement I - 800mm
  • Unit weight - 981kg

Optional extras:

534210-FR - Front Press Guard

534210-RR - Front Press Guard
