Description

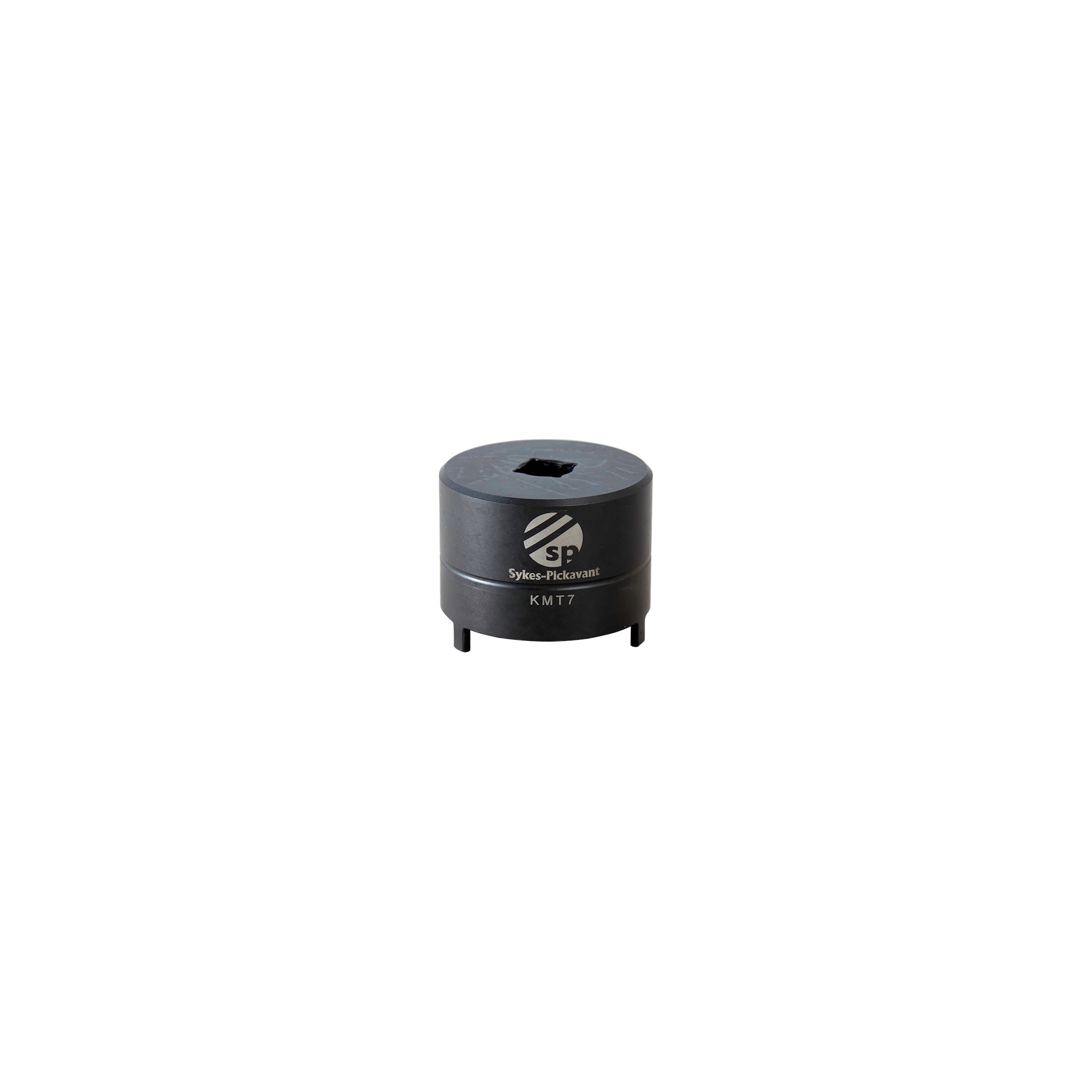

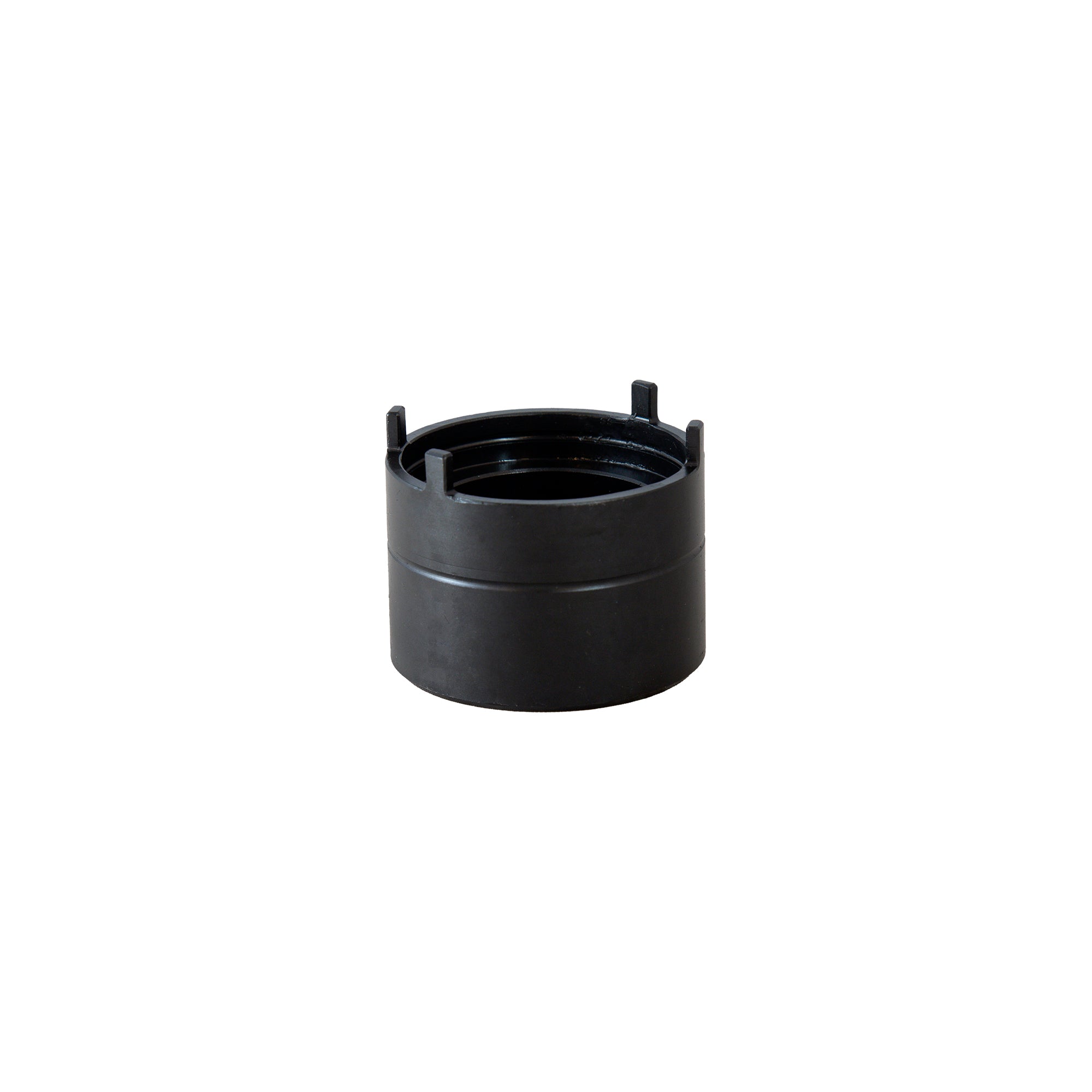

696500-KMT7 - Locknut Socket
The Sykes-Pickavant KMT Sockets are designed for the safe, accurate installation and removal of KMT locknuts - specialised precision nuts used to secure bearings and other critical components on shafts. These nuts feature slots around their circumference, which means a standard socket or spanner cannot be used without risking damage to the nut or shaft.
KMT sockets are purpose-built tools that engage directly with the nut’s slots, providing a positive drive connection that distributes torque evenly. This prevents slippage, rounding, or distortion - common issues when improvised tools are used - and helps maintain the integrity of both the locknut and the component it secures.
The socket demands less space around the bearing arrangement than when using a hook spanner and allows the use of ratchets and torque wrenches via a 1/2" drive.

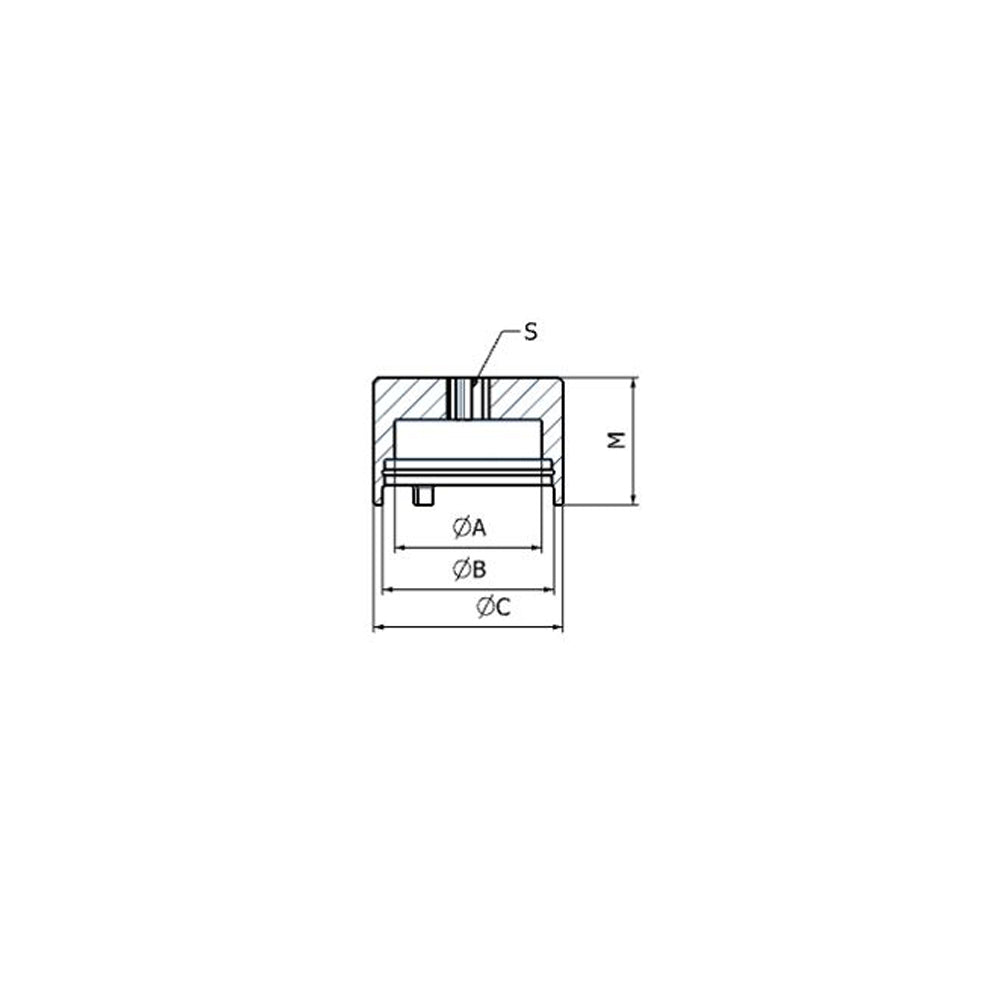

KMT Socket Specifications
| Size |
A (mm) |
B (mm) |
C (mm) |
M (mm) |
S (mm) |
Weight Kgs |
| KMT4 |
26 |
36.7 |
42 |
45 |
1/2" |
0.28 |
| KMT5 |
30 |
40.8 |
46 |
45 |
1/2" |
0.5 |
| KMT6 |
35 |
45.8 |
51 |
45 |
1/2" |
0.38 |
| KMT7 |
40 |
50.8 |
56 |
45 |
1/2" |
0.45 |
| KMT8 |
50 |
60.7 |
67 |
45 |
1/2" |
0.64 |
| KMT9 |
55 |
65.7 |
72 |
45 |
1/2" |
0.75 |
| KMT10 |
60 |
69.9 |
77 |
50 |
1/2" |
0.87 |
| KMT11 |
65 |
79.5 |
87 |
50 |
3/4" |
1.2 |
| KMT12 |
70 |
83.5 |
92 |
53 |
3/4" |
1.3 |

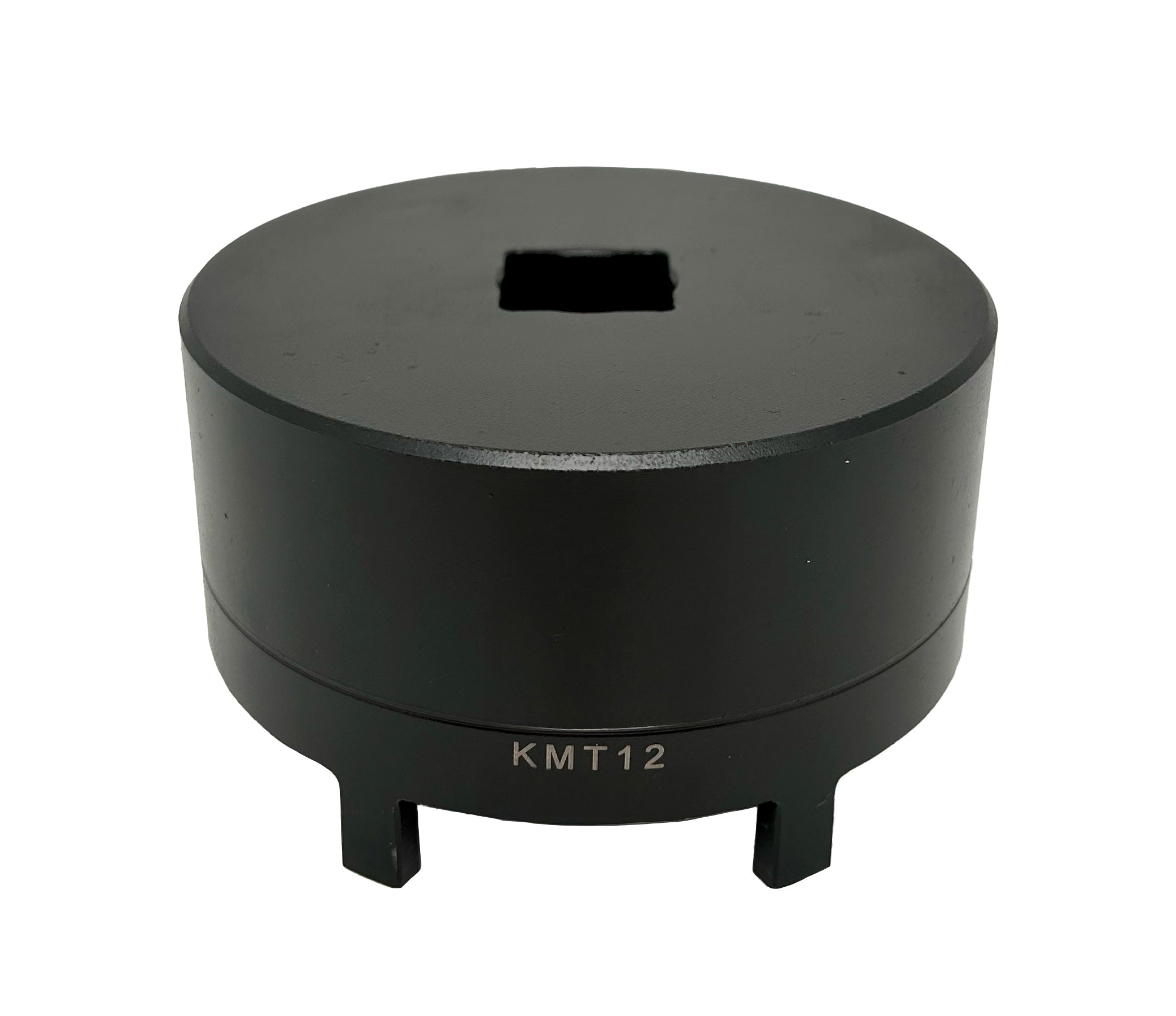

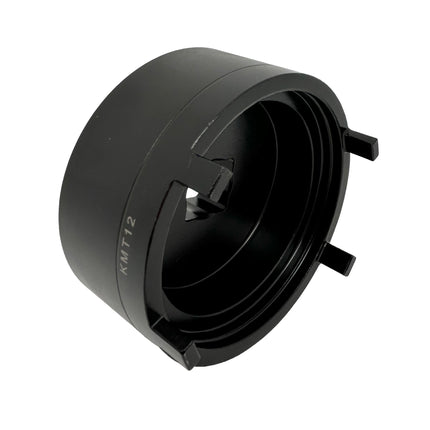

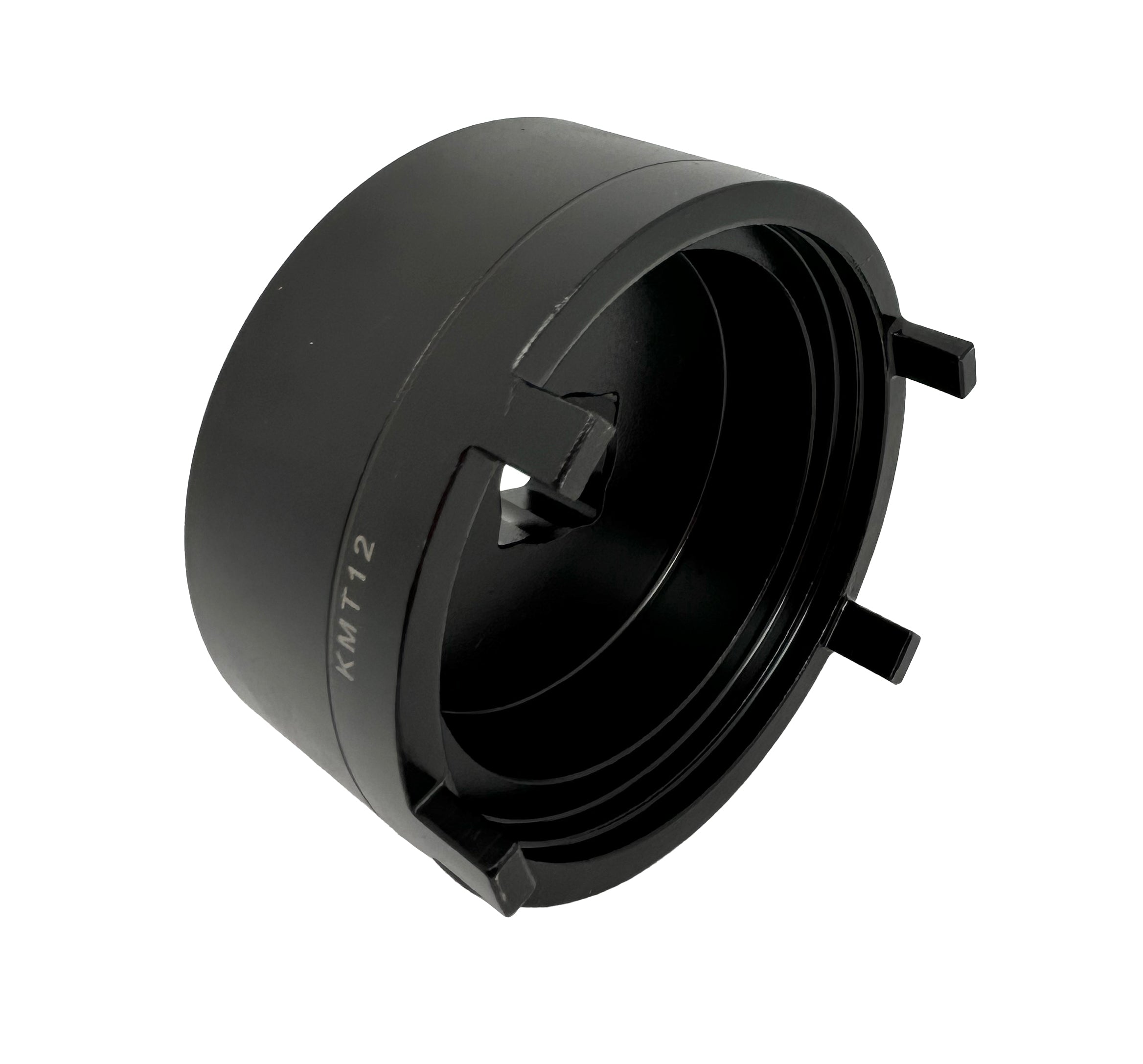

Please note image shows KMT12 socket for illustrative purposes only.
Individual KM sockets and extension pieces CLICK HERE LINK
