Description

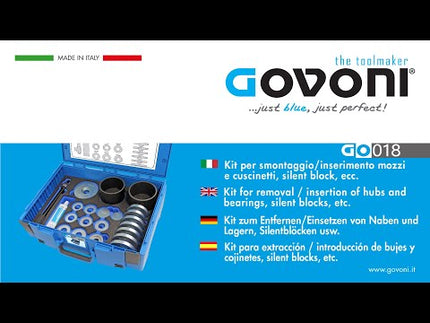

Modular tool set for removing and inserting bearings and for inserting hubs
Suitable for use where hub and bearing are not integrated but separated. This tool set can also be used in combination with the removal and insertion tool set of hubs/bearings, silent blocks, etc.
Manual application with M20 screw (included in the tool set) or with 17-ton hydraulic cylinder - 43-mm stroke GO1017 (cylinder not included in the tool set - long screw is required).
Contents:
- 1 x Ø85.5mm Bearing Pressure Ring
- 1 x Ø87.5mm Bearing Pressure Ring
- 1 x Ø89.5mm Bearing Pressure Ring
- 1 x Ø91.5mm Bearing Pressure Ring
- 1 x Ø95.5mm Bearing Pressure Ring
- 1 x Ø97.5mm Bearing Pressure Ring
- 1 x Ø99mm Bearing Pressure Ring
- 1 x Adaptor
- 1 x Ø43mm Bearing Centring Ring
- 1 x Ø44.5mm Bearing Centring Ring
- 1 x Ø48.5mm Bearing Centring Ring
- 1 x Ø49.5mm Bearing Centring Ring
- 1 x Ø50.5mm Bearing Centring Ring
- 1 x Ø53.5mm Bearing Centring Ring
- 1 x Ø54.5mm Bearing Centring Ring
- 1 x Ø57.5mm Bearing Centring Ring
- 1 x Ø95mm Support
- 1 x Ø100mm Support
- 1 x M20 x 1.5 Screw (300mm length)
- 1 x Ø95 - Ø100mm Centring Device for Supports
- 1 x Press Pressure Ring
- 1 x M20 x 1.5 Nut (50 - SW30 length)
- 1 x SW30 Nut & Bearing
