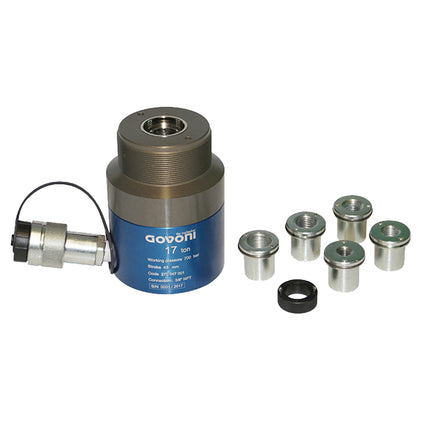

GO1061 - Hydraulic Cylinder - Aluminium 17 Tonne

Description

The mechanical properties, the shape and dimensioning for which they were designed, ensure that Govoni hydraulic cylinders have a field of use to the automotive industry as:

  • Injector disassembly;
  • Bearing, hub and silent block disassembly;
  • Coaxial unlocking of very tight mechanical components.
Equipped with 5 threaded bushes in order to fit the most relevant threaded bars on the market.

Specifications
  • Provides up to 12 tons of controlled hydraulic force
  • Dimensions: 90 x 155 mm
  • Stroke: 43 mm
  • Pressure: max. 700 Bar
  • Hole: 20 mm

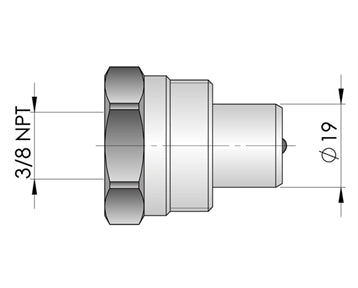

  • Connection: 3/" -18 NPT
  • Mounting Thread: 2 3/4-16 UN
  • Adaptors: M10/M12/M14/M16/M18
Product form

The mechanical properties, the shape and dimensioning for which they were designed, ensure that Govoni hydraulic cylinders have a field... Read more

SKU: GO1061

Icon for notificationEnquire About This Product

Contact us with an enquiry about this product.

Please include a contact number in the message.

Send us a message!

DownloadDownload

Description

The mechanical properties, the shape and dimensioning for which they were designed, ensure that Govoni hydraulic cylinders have a field of use to the automotive industry as:

  • Injector disassembly;
  • Bearing, hub and silent block disassembly;
  • Coaxial unlocking of very tight mechanical components.
Equipped with 5 threaded bushes in order to fit the most relevant threaded bars on the market.

Specifications
  • Provides up to 12 tons of controlled hydraulic force
  • Dimensions: 90 x 155 mm
  • Stroke: 43 mm
  • Pressure: max. 700 Bar
  • Hole: 20 mm
  • Connection: 3/" -18 NPT
  • Mounting Thread: 2 3/4-16 UN
  • Adaptors: M10/M12/M14/M16/M18
