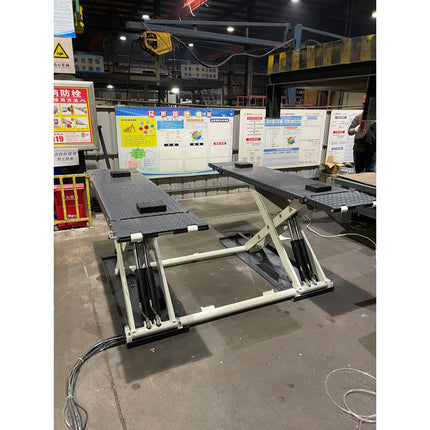

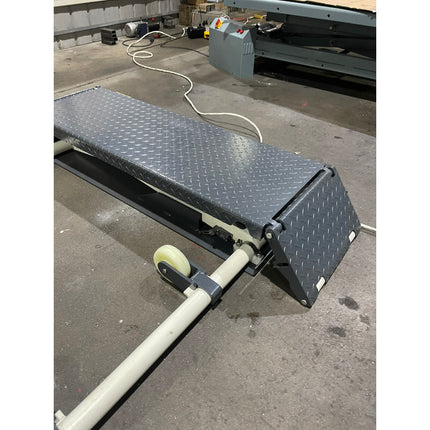

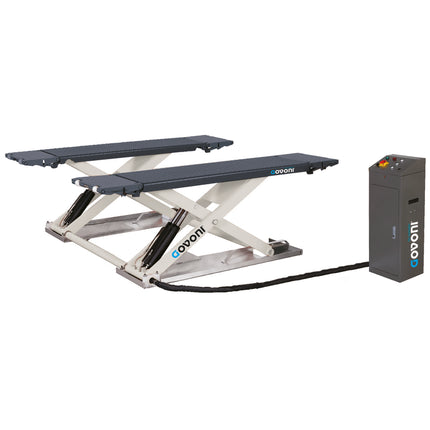

GO3001 - Electro Hydraulic Scissor Lift 3.5 Tonne

Description

3.5 Tonne electro hydraulic, mid raise scissor lift for tyre and car body shops.

Features

  • Overload safety valve
  • Safety valve in case of sudden loss of pressure
  • Descent speed control valve
  • "Dead man" controls 24V
  • Safety control on last descent segment
  • "Buzzer" on last portion of descent
  • Integrated lubrication system
  • Easy to handle drive on and drive off ramps
  • Hydraulically synchronized platforms

Technical Data

  • Lifting capacity: 3500 Kg
  • Lifting Height: 105 - 960 mm
  • Platform Length: 1400 - 2015 mm
  • Platform Width: 480 mm
  • Total Width: 1920 (2020) mm
  • Distance between Platform: 900 (1000) mm
  • Power: 3.2 kW
  • Voltage: 380-415V 50hZ
  • Lifting Time: ≤ 50 s
  • Lowering Time: ≥ 20 s
  • Noise Level: ≤75 dB



Product form

3.5 Tonne electro hydraulic, mid raise scissor lift for tyre and car body shops. Features Overload safety valve Safety valve... Read more

SKU: GO3001

Icon for notificationEnquire About This Product

Contact us with an enquiry about this product.

Please include a contact number in the message.

Send us a message!

Description

3.5 Tonne electro hydraulic, mid raise scissor lift for tyre and car body shops.

Features

  • Overload safety valve
  • Safety valve in case of sudden loss of pressure
  • Descent speed control valve
  • "Dead man" controls 24V
  • Safety control on last descent segment
  • "Buzzer" on last portion of descent
  • Integrated lubrication system
  • Easy to handle drive on and drive off ramps
  • Hydraulically synchronized platforms

Technical Data

  • Lifting capacity: 3500 Kg
  • Lifting Height: 105 - 960 mm
  • Platform Length: 1400 - 2015 mm
  • Platform Width: 480 mm
  • Total Width: 1920 (2020) mm
  • Distance between Platform: 900 (1000) mm
  • Power: 3.2 kW
  • Voltage: 380-415V 50hZ
  • Lifting Time: ≤ 50 s
  • Lowering Time: ≥ 20 s
  • Noise Level: ≤75 dB
