Description
X80062000 - Gear Belt Installation / Removal Tool - EcoBoost
EX DEMO UNIT
cosmetic damage only, in full working order.
RRP £395
Precision Installation of Crankshaft Pulley Bolts
Modern Ford engines like the 1.0L EcoBoost and 1.1 NA (Naturally aspirated) engines require very high-torque tightening (up to 1,500 Nm) when installing crankshaft pulley bolts. These engines use stretch bolts, meaning they must be tightened with exact torque stages to avoid Engine damage, Bolt failure, and oil leaks or misalignment of timing components. The tools 5:1 gear ratio allows users to apply this high torque Safely and with control using a standard torque wrench.
This set will ensure that the crankshaft pulley bolt is removed and installed correctly every time, it is tightened in stages to get to the high torque loading that is required.
Key Features
-
5:1 torque multiplier delivers smooth, controlled tightening and loosening of crankshaft pulley bolts
-
Handles up to 1 500 Nm output torque, ideal for high‑torque bolts on Ford 1.0 EcoBoost and 1.1 engines
-

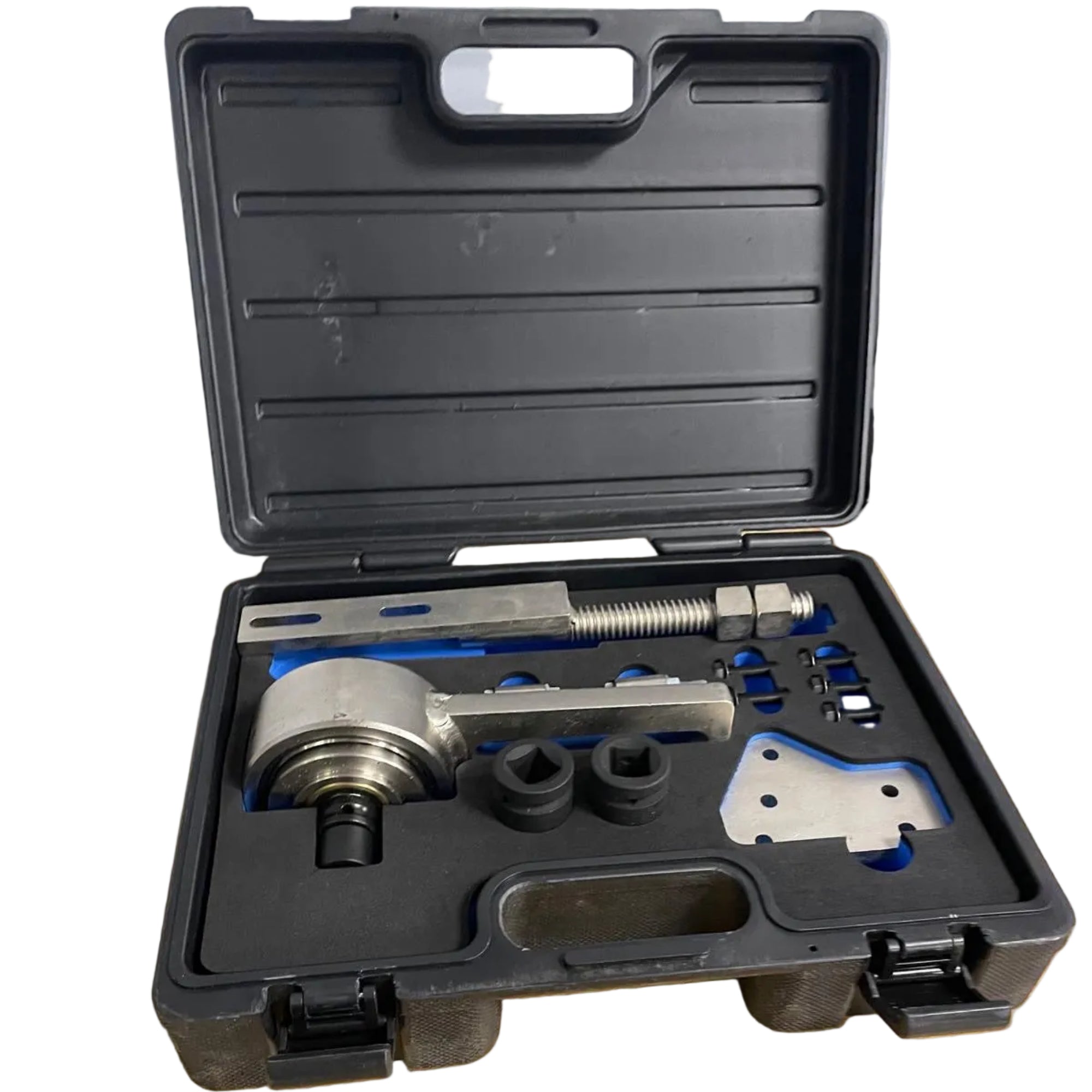

Dual socket sizes (21 mm & 24 mm) included to fit OE bolt heads for seamless installation.
- No torque conversions required torquing in stages ensures accurate tightening and safe bolt seating.
- OEM Equivalent 303-1611, 303-1611-01, 303-1611-02
Specifications
- 1/2" Sq Drive Input - Max Input 300Nm
- 3/4" drive Output - Max output 1500Nm
- Equivalent to OE tools 303-1611, 303-1611-01, 303-1611-02
Applications:
1.0 EcoBoost Belt-in-oil (2012-2018), 1.0 EcoBoost Chain (2017-) and 1.1 NA (Naturally aspirated) engines
Ford 1.0 Ecoboost & 1.1 NA engines
- B-MAX
- C-MAX ('11)
- C-MAX ('15)
- EcoSport
- Fiesta ('13)
- Focus ('11)
- Focus ('15)
- Grand C-MAX ('11)
- Grand C-MAX ('15)
- Grand Tourneo Connect ('14)
- Mondeo ('15)
- Tourneo Connect ('14)
- Tourneo Courier (14)
- Transit Connect ('14)
- Transit Courier ('14)
Engine Codes:
B3DA, B7DA,
M1CA, M1CB, M1DA, M1DC, M1DD, M1DH, M1FA, M1JA, M1JC, M1JE, M1JH, M1JJ, M1JL, M1JM, M1JP, M1JU, M2DA, M2DB, M2DC, M2GA, M2GB,
P4JA, P4JB, P4JC, P4JD,
SFCA, SFCB, SFCC, SFCD, SFCE, SFCF, SFDB, SFJA, SFJB, SFJC, SFJD, SFJE, SFJH, SFJJ, SFJK, SFJL,
XMJA, XMJB, XMJC, XMJD, XPJA, XPJB, XPJC, XPJD, XYJA, XYJB, XYJC, XYJD, XYJE,
YYJA, YYJB, YYJC, YYJD, YYJE, YYJF, YYJG
