Impact Air Hammer and Accessories

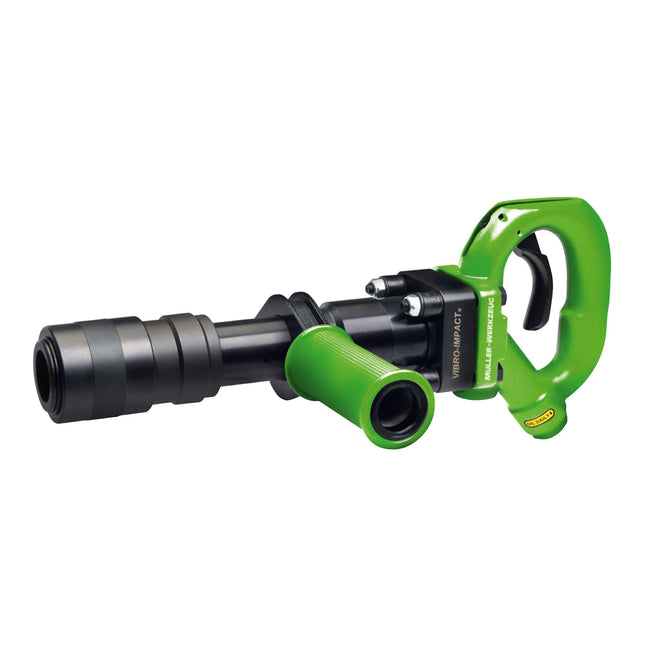

90245000 - Heavy Duty Vibro Impact Air Hammer The heavy duty Vibro-Impact® air hammer is for applications including loosening tight connections on vehicles such as HGVs, agricultural and construction vehicles. No insert included using this part number (please see related). The high performance airhammer helps to disassemble conical seat connections, wheel bearings, bushes, rusted screw connections etc. A unique concept to aid the removal of seized suspension parts The Vibro-Impact system allows for the controlled application of force via an air powered Impact Hammer Allows the operator to control and gradually increase the force being applied, in order to loosen seized components Features a built-in shock-absorber in order to minimise risk of damage if too much pressure is accidentally applied. Low vibration for user comfort Technical Data Drive: 15mm / Hex Weight: 5.4 Kgs Length: 380 mm Air Nipple: 3/8" Air Hose: 13mm / 1/2" Air Consumption: 210 l/min Impacts/min: 2,500 Bpm Air Pressure: 6.2 bar Noise Pressure Level: 104 dbA Noise Performance Level: 115 dbA Vibration Acceleration: 20.4 m/s² Optional Accessories A range of interchangeable Vibro-Impact inserts is available to adapt the hammer for specific tasks. Each insert focuses the tool’s vibration and impact force on a particular component shape, making it easier to release seized or corroded parts in suspension, steering and drivetrain assemblies. 90245100 - Heavy Duty Vibro Impact Chisel The flat chisel attachment allows vibration and impact force to be applied along an edge to help separate stubborn or seized components. Ideal for breaking corrosion between mating surfaces and assisting with the removal of rusted parts during heavy-duty vehicle and machinery repair. 90245300 - Heavy Duty Vibro Impact Tie Rod Hammer Insert Specifically shaped to assist with removing seized tie rods and steering components. The insert delivers controlled vibration and impact to the joint, helping to break corrosion and taper fits without damaging surrounding components. 90245500 - Heavy Duty Vibro Impact Hammer Insert A general-purpose impact insert designed for use with the Heavy Duty Vibro-Impact Air Hammer. The insert transfers the tool’s vibration directly into seized components, helping to break the bond caused by corrosion or tight interference fits. Ideal for freeing stubborn suspension parts, bearings and rusted fasteners where controlled impact force is required. 90245700 - Heavy Duty Vibro Impact Concave Hammer Insert The concave design allows the insert to sit securely over bolt heads, studs or rounded surfaces. This ensures impact energy is applied evenly and reduces the risk of slipping. Particularly useful when working on bolts, pins and similar fasteners that require a centered striking point. 90245800 - Pointed Chisel for Vibro Impact Air Hammer The pointed chisel concentrates the tool’s vibration and impact force onto a small area to help break corrosion and loosen seized components. Ideal for starting movement in stubborn pins, bolts and fasteners where precise, controlled impact is required. 90245900 - Heavy Duty Vibro Impact Pin Hammer Insert The pin hammer insert is designed for driving or loosening stubborn pins and dowels. Its focused striking surface concentrates the air hammer’s impact energy directly onto the pin, helping to release seized or corroded pins commonly found in suspension, steering and chassis assemblies.

Read more less

The heavy duty Vibro-Impact® air hammer is for applications including loosening tight connections on vehicles such as HGVs, agricultural and construction vehicles. The high performance airhammer helps to disassemble conical seat connections, wheel bearings, bushes, rusted screw connections etc. Assembled above with heavy duty Vibro-Impact chisel (90245100) which is included in the price A unique concept to aid the removal of seized suspension parts The Vibro-Impact system allows for the controlled application of force via an air powered Impact Hammer Allows the operator to control and gradually increase the force being applied, in order to loosen seized components Features a built-in shock-absorber in order to minimise risk of damage if too much pressure is accidentally applied. Low vibration for user comfort Technical Data Drive: 15mm / Hex Weight: 5.4 Kgs Length: 380 mm Air Nipple: 3/8" Air Hose: 13mm / 1/2" Air Consumption: 210 l/min Impacts/min: 2,500 Bpm Air Pressure: 6.2 bar Whilst the Vibro-Impact Air Hammer has been designed for use on suspension parts, there are a number of additional applications where its use may prove to be convenient “ e.g. Seized or rusted nuts / bolts on any part of the vehicle.

Read more less

The heavy duty Vibro-Impact® air hammer is for applications including loosening tight connections on vehicles such as HGVs, agricultural and construction vehicles The high performance airhammer helps to disassemble conical seat connections, wheel bearings, bushes, rusted screw connections etc. A unique concept to aid the removal of seized suspension parts The ˜Vibro-Impact system allows for the controlled application of force via an air powered Impact Hammer Allows the operator to control and gradually increase the force being applied, in order to loosen seized components Features a built-in shock-absorber in order to minimise risk of damage if too much pressure is accidentally applied. Low vibration for user comfort Supplied with Hammer Insert - 90245500 Technical Data Drive: 15mm / Hex Weight: 5.4 Kgs Length: 380 mm Air Nipple: 3/8" Air Hose: 13mm / 1/2" Air Consumption: 210 l/min Impacts/min: 2,500 Bpm Air Pressure: 6.2 bar Whilst the Vibro-Impact Air Hammer has been designed for use on suspension parts, there are a number of additional applications where its use may prove to be convenient “ e.g. Seized or rusted nuts / bolts on any part of the vehicle.

Read more less

902400SP - Vibro Impact Hammer Insert Set (4pc) 4 Piece set of attachments for use with 90245000 - Heavy Duty Vibro Impact Air Hammer Contents 90245300 - Heavy Duty Vibro Impact Tie Rod Hammer Insert Specifically shaped to assist with removing seized tie rods and steering components. The insert delivers controlled vibration and impact to the joint, helping to break corrosion and taper fits without damaging surrounding components. 90245500 - Heavy Duty Vibro Impact Hammer Insert A general-purpose impact insert designed for use with the Heavy Duty Vibro-Impact Air Hammer. The insert transfers the tool’s vibration directly into seized components, helping to break the bond caused by corrosion or tight interference fits. Ideal for freeing stubborn suspension parts, bearings and rusted fasteners where controlled impact force is required. 90245700 - Heavy Duty Vibro Impact Concave Hammer Insert The concave design allows the insert to sit securely over bolt heads, studs or rounded surfaces. This ensures impact energy is applied evenly and reduces the risk of slipping. Particularly useful when working on bolts, pins and similar fasteners that require a centered striking point. 90245900 - Heavy Duty Vibro Impact Pin Hammer Insert The pin hammer insert is designed for driving or loosening stubborn pins and dowels. Its focused striking surface concentrates the air hammer’s impact energy directly onto the pin, helping to release seized or corroded pins commonly found in suspension, steering and chassis assemblies.

Read more less

90245100 - Heavy Duty Vibro Impact Chisel For use with 90245000 - Heavy Duty Vibro Impact Air Hammer The flat chisel attachment allows vibration and impact force to be applied along an edge to help separate stubborn or seized components. Ideal for breaking corrosion between mating surfaces and assisting with the removal of rusted parts during heavy-duty vehicle and machinery repair.

Read more less

90245900 - Heavy Duty Vibro Impact Pin Hammer Insert For use with 90245000 - Heavy Duty Vibro Impact Air Hammer The pin hammer insert is designed for driving or loosening stubborn pins and dowels. Its focused striking surface concentrates the air hammer’s impact energy directly onto the pin, helping to release seized or corroded pins commonly found in suspension, steering and chassis assemblies. Pin Size: 20mm

Read more less

90245700 - Heavy Duty Vibro Impact Concave Hammer Insert For use with 90245000 - Heavy Duty Vibro Impact Air Hammer The concave design allows the insert to sit securely over bolt heads, studs or rounded surfaces. This ensures impact energy is applied evenly and reduces the risk of slipping. Particularly useful when working on bolts, pins and similar fasteners that require a centred striking point.

Read more less

90245500 - Heavy Duty Vibro Impact Hammer Insert For use with 90245000 - Heavy Duty Vibro Impact Air Hammer A general-purpose impact insert designed for use with the Heavy Duty Vibro-Impact Air Hammer. The insert transfers the tool’s vibration directly into seized components, helping to break the bond caused by corrosion or tight interference fits. Ideal for freeing stubborn suspension parts, bearings and rusted fasteners where controlled impact force is required.

Read more less

90245800 - Pointed Chisel for Vibro Impact Air Tool For use with 90245000 - Heavy Duty Vibro Impact Air Hammer The pointed chisel concentrates the tool’s vibration and impact force onto a small area to help break corrosion and loosen seized components. Ideal for starting movement in stubborn pins, bolts and fasteners where precise, controlled impact is required.

Read more less

90245300 - Heavy Duty Vibro Impact Tie Rod Hammer Insert For use with 90245000 - Heavy Duty Vibro Impact Air Hammer Specifically shaped to assist with removing seized tie rods and steering components. The insert delivers controlled vibration and impact to the joint, helping to break corrosion and taper fits without damaging surrounding components.
