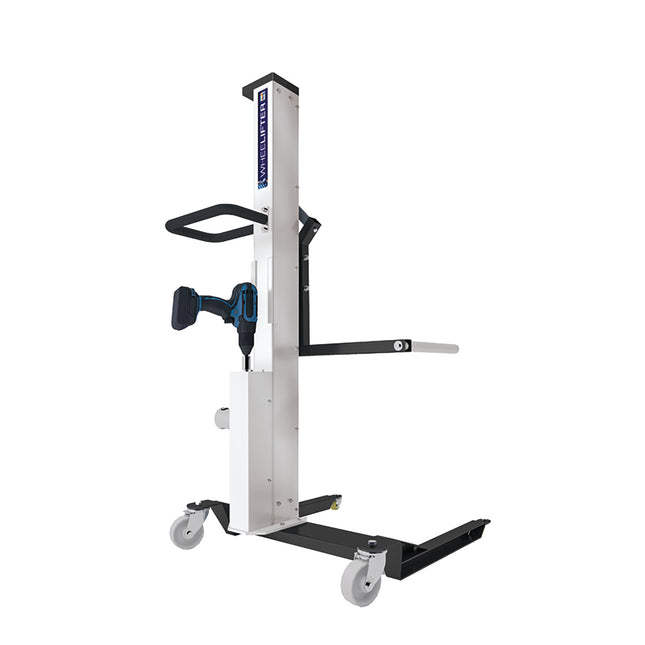

Wheel Lifting Equipment

Operated using battery power or pneumatic screwdriver with 1/2" square socket Four heavy duty swivel wheels for excellent maneuverability Low centre of gravity and lightweight column for ease of handling and stability against tipping Special handle shape provides a convenient point of grip and minimum interference during the mounting/ dismounting  operation of the tyres Lowering of the base bracket allows for easy wheel loading  Specifications Max. Capacity - 35kg Run - 950mm Max. Wheel Hub Height - 1200mm Packing Height - 1450mm Base Width - 840mm Base Depth - 770mm Max. Screwdriver Speed - 2000rpm Working Temperature - -5°C; +45°C

Read more less

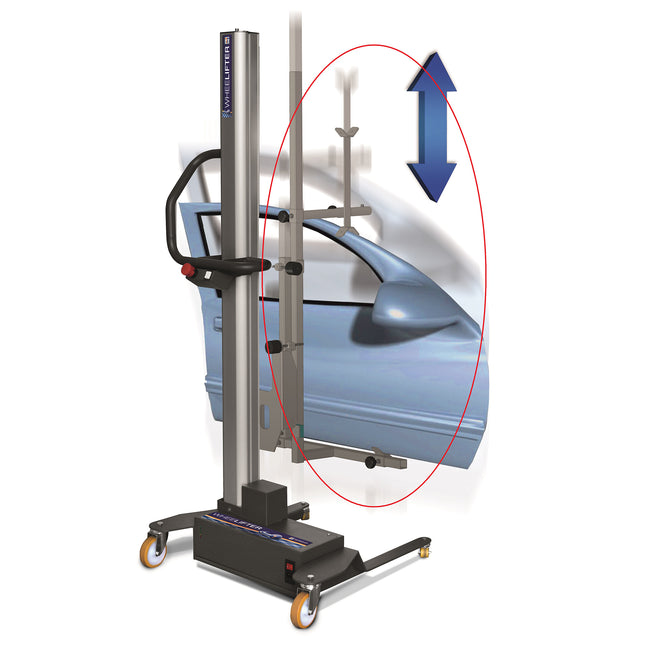

34185100 - Door / Parts Lifter Kit for Wheel Lifter Convert your existing 34196000 Battery Powered Wheel Lifter into a versatile door and vehicle parts lifting system with the 34185100 Door / Parts Lifter Kit. Designed for bodyshops and repair workshops, this conversion kit enables the safe handling, positioning and installation of vehicle doors, body panels and other large components without the need for a dedicated lifting unit. Key Features Converts the 34196000 Wheel Lifter into a door and vehicle parts lifting system. Handles doors and body components up to 1350 mm in height. Adjustable support frame accommodates different door widths and panel sizes. Improves safety by reducing manual handling of large, awkward vehicle components. Ideal for bodyshop and collision repair workshops carrying out door removal, installation and panel alignment. Quick and simple to fit, allowing your wheel lifter to perform multiple workshop tasks.

Read more less

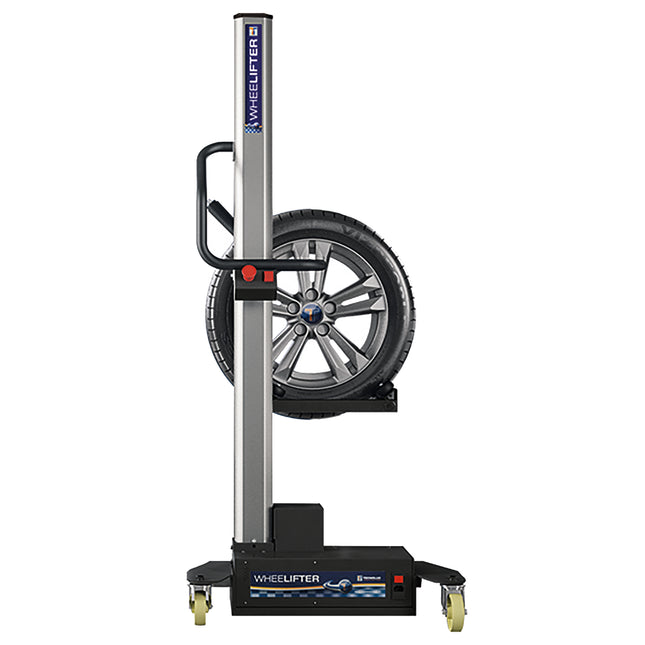

34196000 - 60kg Battery Powered Wheel Lifter Reduce manual handling and improve workshop safety with the 34196000 Battery Powered Wheel Lifter. Designed to assist with the removal and installation of medium and small vehicle wheels, it supports loads up to 60kg, allowing technicians to accurately align wheels while eliminating the strain of manual lifting. The smooth battery-powered lifting mechanism is operated from the ergonomic handle using simple push-button controls, while the lightweight aluminium construction and four locking swivel castors provide excellent manoeuvrability and stability around the workshop. For even greater versatility, this wheel lifter can also be converted into a Door & Parts Lifter using the optional 34185100 Door / Parts Lifter Kit, allowing the same unit to safely handle vehicle doors, body panels and other large components. Key Features 60kg lifting capacity for the safe handling of medium and small vehicle wheels. Battery-powered lifting mechanism provides smooth, effortless raising and lowering. Simple push-button controls integrated into the handle for easy operation. Two-speed lift control for improved positioning and accuracy. Four locking swivel castors provide excellent manoeuvrability and secure positioning. Low centre of gravity enhances stability during lifting operations. Lowering wheel brackets allow wheels to be loaded with minimal effort. Lightweight aluminium frame combines strength with easy handling. Powered by two 12V 12Ah rechargeable batteries with LED charge level indicators. Specifications Maximum Capacity: 60kg Run: 1180mm Max. wheel hub height: 1450mm Base Width: 725mm Base Depth: 720mm Vertical Acceleration: 0.10 - 0.14 m/s Batteries: 2 x 12V - 12Ah Expand Its Capabilities Already using the 34196000 Wheel Lifter? Add the 34185100 - Door / Parts Lifter Kit to convert it into a versatile lifting system for vehicle doors, body panels and other large components. This cost-effective upgrade allows one piece of equipment to perform multiple workshop tasks, reducing equipment costs while maximising workshop efficiency.

Read more less

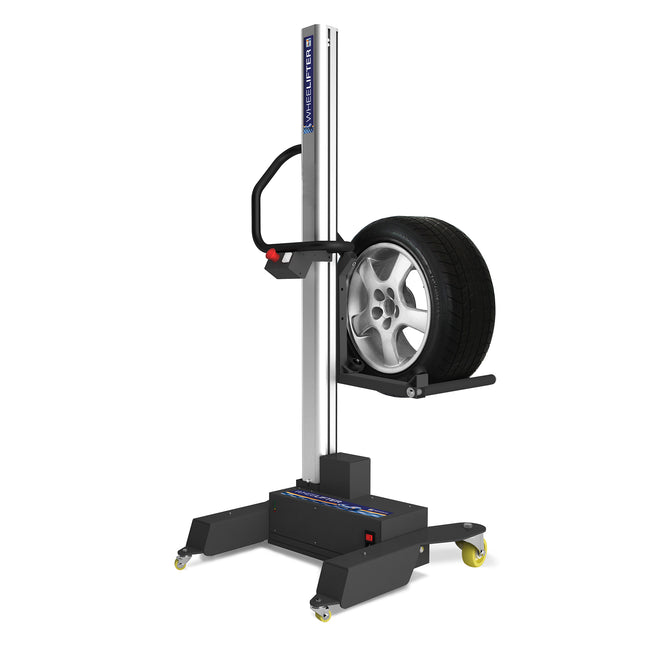

Compact Wheel lifter 60kg -specially for embedded lifts e.g scissor lifts Product Specification - Compact version with reduced base sizes to ensure easy operations with any kind of lift. The vertical movement is obtained through a translation mechanism which is realized by a screw lifting through a powerful motor controlled by a pushbutton on the handle which can be operated with one hand.  The trolley can be easily moved thanks to four swivel wheels. Power supplied by two batteries 12 V - 12 Ah. Handling - The trolley is equipped with 4 swivel wheels with high hardness and capacity, which ensure an excellent manageability. The particularly low centre of gravity of the masses and the lightened column further facilitate the handling and ensure, at the same time, an excellent stability against tipping. Functionality - The particular shape of the handle ensures the minimum interference during the mounting/dismounting operation of the tyres, and, at the same time, the efficacy and a convenient point of grip during the trolley handle. The lowering of the brackets allows an easy loading of the wheel thanks to the rolling on the lifter side. Lasting - The power supplied by two 12 V batteries ensures several cycles of handling . The state of charge of the battery can be easily monitored thanks to five LED charge indicators.   Specifications: Maximum Capacity: 60kg Run: 1110mm Max. wheel hub height: 1400mm Base Width: 800mm Base Depth: 690mm Vertical Acceleration: 0.10 - 0.14 m/s Batteries: 2 x 12V - 12Ah

Read more less

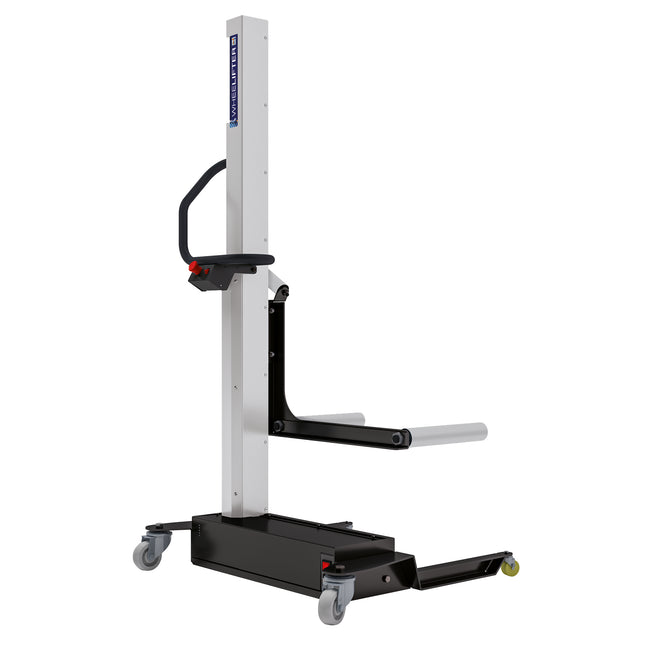

34196500 - Wheel Lifter - Heavy Duty 100kg Designed for commercial vehicle workshops, tyre centres and fleet maintenance facilities, the 34196500 Heavy Duty Battery Powered Wheel Lifter provides a safe and efficient way to remove and install large, heavy wheels weighing up to 100kg. The battery-powered lifting mechanism enables technicians to accurately raise, lower and position HGV and commercial vehicle wheels with minimal physical effort, helping to reduce manual handling, improve workshop safety and speed up wheel service operations. A robust chassis, low centre of gravity and four swivel castors provide excellent stability and manoeuvrability when handling large wheel assemblies. Key Features 100kg lifting capacity for HGV, truck and commercial vehicle wheel assemblies. Battery-powered lifting mechanism provides smooth, controlled raising and lowering. Simple push-button controls on the handle enable easy one-handed operation. Extended lifting height with a maximum wheel hub height of 1790mm, making it suitable for taller commercial vehicles. Suitable for tyre diameters from 750–1000mm, covering a wide range of truck and commercial vehicle applications. Four heavy-duty swivel castors provide excellent manoeuvrability and precise positioning. Low centre of gravity improves stability when handling large, heavy wheels. Ergonomic handle design provides a comfortable grip while minimising interference during wheel removal and installation. Powered by two 12V 12Ah rechargeable batteries with LED charge level indicators. Built for Heavy-Duty Workshops Ideal for HGV workshops, commercial tyre fitting centres, bus depots and fleet maintenance facilities, the 34196500 reduces the physical effort required to handle large wheel assemblies while improving safety, efficiency and accuracy during wheel removal and refitting. Specifications Max. Capacity - 100kg Run - 1290mm Max. Wheel Hub Height - 1790mm Packing Height - 1825mm Base Width - 980mm Base Depth - 850mm Travel Speed - 120 m/s  Battery Type - 12 V - 12 Ah  Tyre Diameter - 750-1000mm

Read more less
