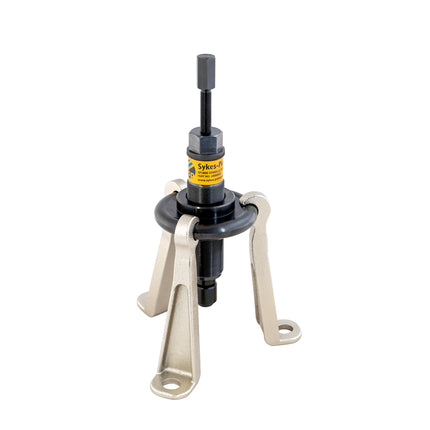

12741300 - Hydraulic Hub Puller - 3 Leg

Description

The Sykes Pickavant Hub Puller range comprises of a wide variety of puller types, all using interchangeable components - whether Hydraulic, Impact or Mechanical, all parts can be used in more than one format, thus providing flexible pulling options and value for money.

  • Can be used on a variety of wheel stud pattern applications - 4, 5, 6 stud hubs, with a pitch circle up to 203mm
  • Can be used in 3, 4 or 5 leg combinations*
  • 1800 Series hydraulic ram included for smooth, progressive application of up to 12 tonnes of force
  • Supplied in steel storage case
  • Can be used with a slide hammer (08520900**) for greater impact force or 12731100 mechanical force screw

Specification

  • Leg reach: 160 mm
  • Spread capacity: 100-180 mm
  • Stud hole diameter: 18mm
  • Impact screw / hydraulic ram thread: 1.1/2" BSW
  • Puller plate thread 1.1/2" BSW

*extra legs required for 4 & 5 leg combinations, - 12741000

**will require adaptor 08531270

Product form

The Sykes Pickavant Hub Puller range comprises of a wide variety of puller types, all using interchangeable components - whether... Read more

SKU: 12741300
Barcode: 5012737994342

Icon for notificationEnquire About This Product

Contact us with an enquiry about this product.

Please include a contact number in the message.

Send us a message!

Description

The Sykes Pickavant Hub Puller range comprises of a wide variety of puller types, all using interchangeable components - whether Hydraulic, Impact or Mechanical, all parts can be used in more than one format, thus providing flexible pulling options and value for money.

  • Can be used on a variety of wheel stud pattern applications - 4, 5, 6 stud hubs, with a pitch circle up to 203mm
  • Can be used in 3, 4 or 5 leg combinations*
  • 1800 Series hydraulic ram included for smooth, progressive application of up to 12 tonnes of force
  • Supplied in steel storage case
  • Can be used with a slide hammer (08520900**) for greater impact force or 12731100 mechanical force screw

Specification

  • Leg reach: 160 mm
  • Spread capacity: 100-180 mm
  • Stud hole diameter: 18mm
  • Impact screw / hydraulic ram thread: 1.1/2" BSW
  • Puller plate thread 1.1/2" BSW

*extra legs required for 4 & 5 leg combinations, - 12741000

**will require adaptor 08531270
