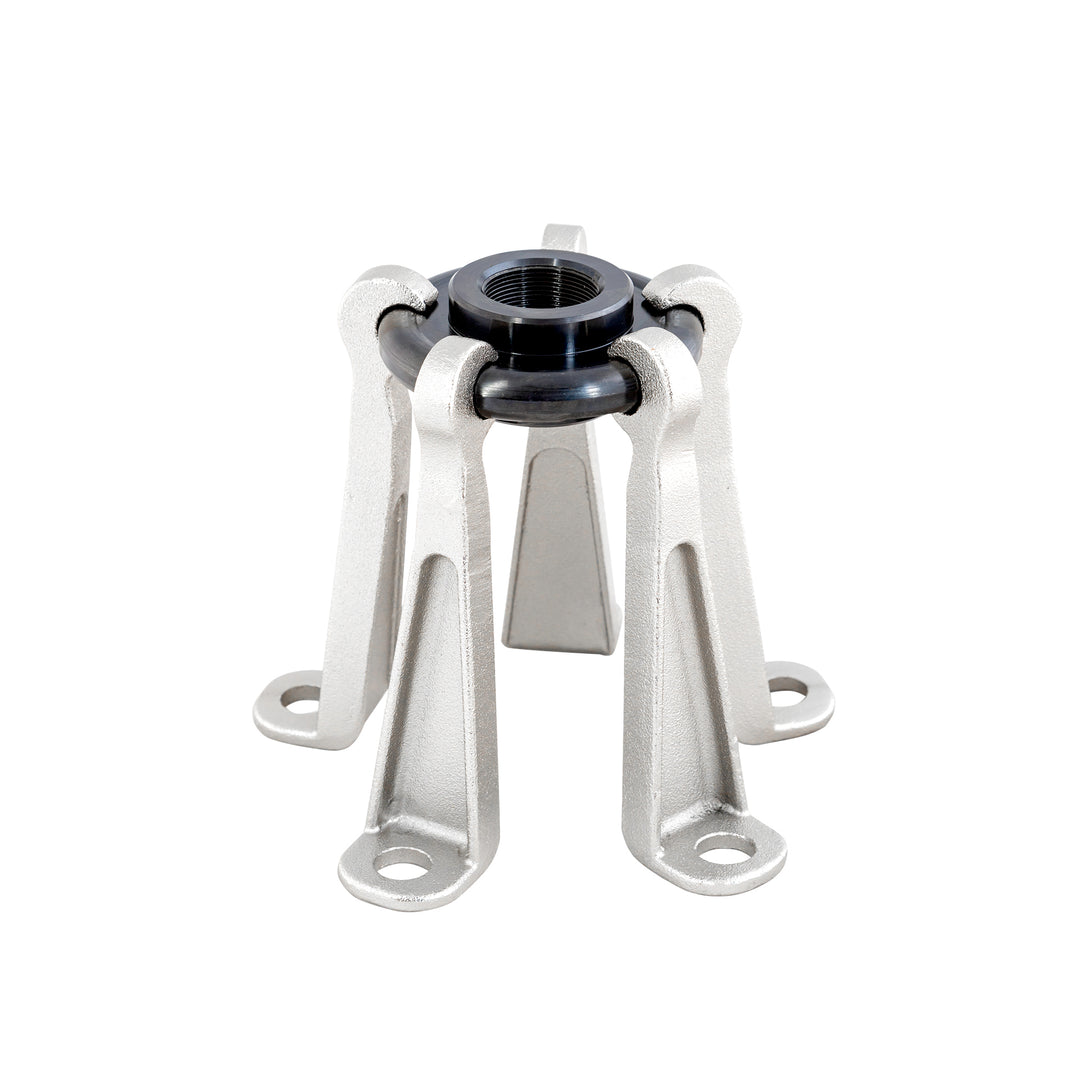

12742500 - Hub Puller Body & 5 Legs

Description

The Sykes Pickavant Hub Puller range comprises of a wide variety of puller types, all using interchangeable components - whether Hydraulic, Impact or Mechanical, all parts can be used in more than one format, thus providing flexible pulling options and value for money.

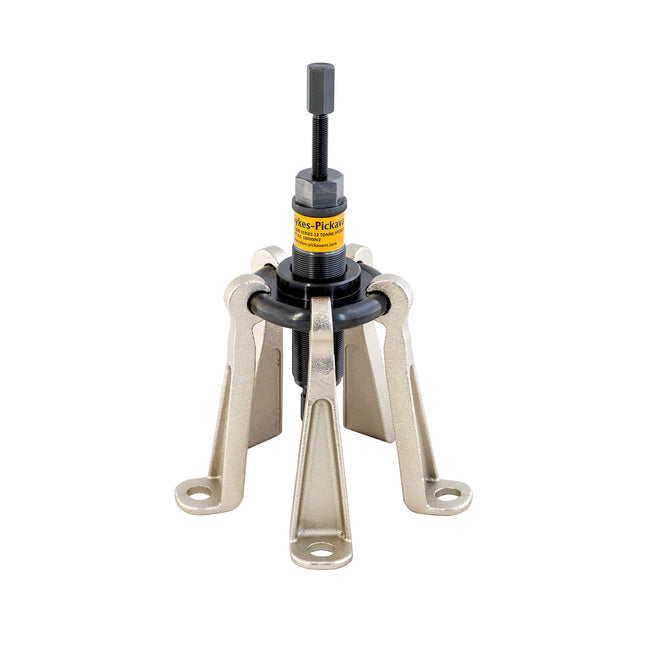

  • 3 Legs & body supplied, for use with 12731100 Mechanical force screw, 150000v2 Hydraulic Ram or can be used with a slide hammer (08520900*) for greater impact force
  • Can be used on a variety of wheel stud pattern applications - 4, 5, 6 stud hubs, with a pitch circle up to 203mm
  • Can be used in 3, 4 or 5 leg combinations*

Specification

  • Leg reach: 160 mm
  • Spread capacity: 100-180 mm
  • Stud hole diameter: 18mm
  • Puller plate thread 1.1/2" BSW

*will require adaptor 08531270

Product form

The Sykes Pickavant Hub Puller range comprises of a wide variety of puller types, all using interchangeable components - whether... Read more

SKU: 12742500
Barcode: 5012737994328

Icon for notificationEnquire About This Product

Contact us with an enquiry about this product.

Please include a contact number in the message.

Send us a message!

Description

The Sykes Pickavant Hub Puller range comprises of a wide variety of puller types, all using interchangeable components - whether Hydraulic, Impact or Mechanical, all parts can be used in more than one format, thus providing flexible pulling options and value for money.

  • 3 Legs & body supplied, for use with 12731100 Mechanical force screw, 150000v2 Hydraulic Ram or can be used with a slide hammer (08520900*) for greater impact force
  • Can be used on a variety of wheel stud pattern applications - 4, 5, 6 stud hubs, with a pitch circle up to 203mm
  • Can be used in 3, 4 or 5 leg combinations*

Specification

  • Leg reach: 160 mm
  • Spread capacity: 100-180 mm
  • Stud hole diameter: 18mm
  • Puller plate thread 1.1/2" BSW

*will require adaptor 08531270
