155100V2 - Hydraulic 2/3 Leg Puller Kit 50-250mm

Description

Hydraulic 1500 series

  • Removes gears, bearings, pulleys and sprockets
  • Wide range of automotive and industrial applications
  • Powered by 1500 series hydraulic ram
  • Safe and easy to use
  • 8 tonnes of force with minimum effort
  • Easy to adjust
  • Non-twisting for improved stability
  • Supplied with nose piece for use on centred shafts
  • Self centering and self locking
  • Redesigned legs, improving strength
  • Makes 8 different twin/triple leg pullers
  • Supplied in metal case


Dimensions:

  • Puller Spread Min - Max: 50 - 250mm
  • Puller Reach Max: 250mm
  • Ram Extension: 50 / 100 / 150mm

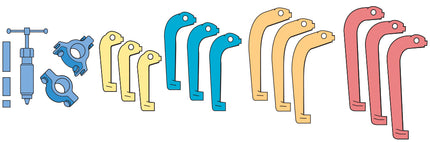

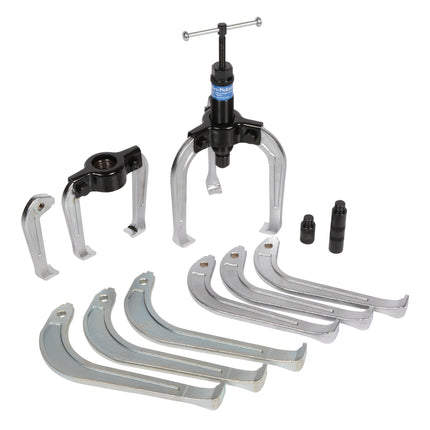

Contents:

  • 150000V2 1 x Hydraulic Ram With Nose Piece
  • 15241200 1 x Twin Head
  • 15341300 1 x Triple Head
  • 15242200 1 x Ram Extension - 50mm
  • 15262400 1 x Ram Extension - 100mm
  • 15272600 1 x Ram Extension - 150mm
  • 15242400 3 x Legs - 100mm
  • 15262600 3 x Legs - 150mm
  • 15282800 3 x Legs - 200mm
  • 15292900 3 x Legs - 250mm (extra wide)
Product form

Hydraulic 1500 series Removes gears, bearings, pulleys and sprockets Wide range of automotive and industrial applications Powered by 1500 series... Read more

SKU: 155100V2

Icon for notificationEnquire About This Product

Contact us with an enquiry about this product.

Please include a contact number in the message.

Send us a message!

Description

Hydraulic 1500 series

  • Removes gears, bearings, pulleys and sprockets
  • Wide range of automotive and industrial applications
  • Powered by 1500 series hydraulic ram
  • Safe and easy to use
  • 8 tonnes of force with minimum effort
  • Easy to adjust
  • Non-twisting for improved stability
  • Supplied with nose piece for use on centred shafts
  • Self centering and self locking
  • Redesigned legs, improving strength
  • Makes 8 different twin/triple leg pullers
  • Supplied in metal case


Dimensions:

  • Puller Spread Min - Max: 50 - 250mm
  • Puller Reach Max: 250mm
  • Ram Extension: 50 / 100 / 150mm


Contents:

  • 150000V2 1 x Hydraulic Ram With Nose Piece
  • 15241200 1 x Twin Head
  • 15341300 1 x Triple Head
  • 15242200 1 x Ram Extension - 50mm
  • 15262400 1 x Ram Extension - 100mm
  • 15272600 1 x Ram Extension - 150mm
  • 15242400 3 x Legs - 100mm
  • 15262600 3 x Legs - 150mm
  • 15282800 3 x Legs - 200mm
  • 15292900 3 x Legs - 250mm (extra wide)
