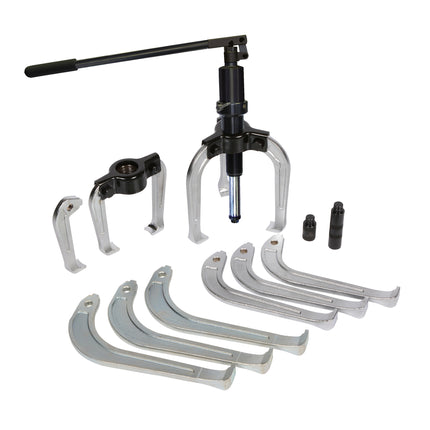

155100XT - Hydraulic 2/3 Leg Puller Kit 50-250mm- Extra Travel Ram

Description

Hydraulic 1500 series

  • Removes gears, bearings, pulleys and sprockets
  • Wide range of automotive and industrial applications
  • Powered by 150000XT Extra Travel Hydraulic Ram
  • Safe and easy to use
  • 8 tonnes of force with minimum effort
  • Easy to adjust
  • Non-twisting for improved stability
  • Supplied with nose piece for use on centred shafts
  • Self centering and self locking
  • Redesigned legs, improving strength
  • Makes 8 different twin/triple leg pullers
  • Supplied in metal case

    Equivalent to TMHP 10E TMHC 110E

    Dimensions:

    • Puller Spread Min - Max: 50 - 250mm
    • Puller Reach Max: 250mm
    • Ram Extension: 50 / 100 / 150mm



     150000XT Extra Travel Ram

    • Measurable 8 tonnes of pressure capacity.
      85mm of travel allows for reduced setting operations and saves time.
    • 4 x faster output operation than standard 1500 Series ram.
    • Removable handle can be rotated 360°.
    • Integrated pressure relief control valve opens at 8 tonnes and cannot be overloaded.
    • Oil hydraulics work in any position - even upside down.
    • Features piston with spring return.
    • Compatible with the 1500 Series Puller Range where the 8 Tonne Hydraulic Ram is used.

      Contents:

      • 150000XT 1 x 1500 Series 8 Tonne Extra Travel Ram
      • 15241200 1 x Twin Head
      • 15341300 1 x Triple Head
      • 15242200 1 x Ram Extension - 50mm
      • 15262400 1 x Ram Extension - 100mm
      • 15272600 1 x Ram Extension - 150mm
      • 15242400 3 x Legs - 100mm
      • 15262600 3 x Legs - 150mm
      • 15282800 3 x Legs - 200mm
      • 15292900 3 x Legs - 250mm (extra wide)
      Product form

      Hydraulic 1500 series Removes gears, bearings, pulleys and sprockets Wide range of automotive and industrial applications Powered by 150000XT Extra... Read more

      SKU: 155100XT

      Icon for notificationEnquire About This Product

      Contact us with an enquiry about this product.

      Please include a contact number in the message.

      Send us a message!

      Description

      Hydraulic 1500 series

      • Removes gears, bearings, pulleys and sprockets
      • Wide range of automotive and industrial applications
      • Powered by 150000XT Extra Travel Hydraulic Ram
      • Safe and easy to use
      • 8 tonnes of force with minimum effort
      • Easy to adjust
      • Non-twisting for improved stability
      • Supplied with nose piece for use on centred shafts
      • Self centering and self locking
      • Redesigned legs, improving strength
      • Makes 8 different twin/triple leg pullers
      • Supplied in metal case

        Equivalent to TMHP 10E TMHC 110E

        Dimensions:

        • Puller Spread Min - Max: 50 - 250mm
        • Puller Reach Max: 250mm
        • Ram Extension: 50 / 100 / 150mm



         150000XT Extra Travel Ram

        • Measurable 8 tonnes of pressure capacity.
          85mm of travel allows for reduced setting operations and saves time.
        • 4 x faster output operation than standard 1500 Series ram.
        • Removable handle can be rotated 360°.
        • Integrated pressure relief control valve opens at 8 tonnes and cannot be overloaded.
        • Oil hydraulics work in any position - even upside down.
        • Features piston with spring return.
        • Compatible with the 1500 Series Puller Range where the 8 Tonne Hydraulic Ram is used.

          Contents:

          • 150000XT 1 x 1500 Series 8 Tonne Extra Travel Ram
          • 15241200 1 x Twin Head
          • 15341300 1 x Triple Head
          • 15242200 1 x Ram Extension - 50mm
          • 15262400 1 x Ram Extension - 100mm
          • 15272600 1 x Ram Extension - 150mm
          • 15242400 3 x Legs - 100mm
          • 15262600 3 x Legs - 150mm
          • 15282800 3 x Legs - 200mm
          • 15292900 3 x Legs - 250mm (extra wide)
