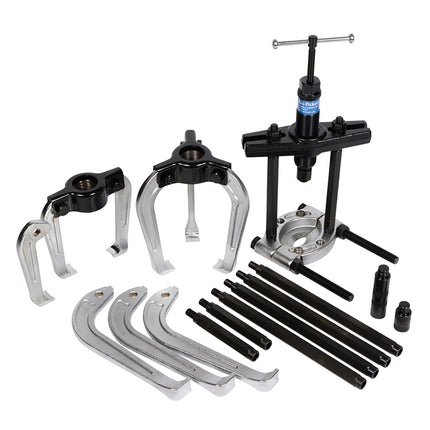

15520800 Hydraulic Puller & Separator Kit

Description

Hydraulic 1500 series

  • Removes gears, bearings, pulleys and sprockets
  • Wide range of automotive and industrial applications
  • Powered by 1500 series hydraulic ram
  • Safe and easy to use
  • 8 tonnes of force with minimum effort
  • Easy to adjust
  • Non-twisting for improved stability
  • Supplied with nose piece for use on centered shafts
  • Self centering and self locking
  • Redesigned legs, improving strength
  • The separator is a versatile tool where a long reach is required to draw a bearing from a shaft.
  • The tapered edges of the bearing separator provide all round support and can fit behind bearings where normal puller legs cannot gain access.
  • Makes 6 different twin/triple leg pullers, plus bearing separator kit
  • Supplied in metal case

Dimensions:

  • Puller Spread Min - Max: 50-200mm
  • Puller Reach Max: 200mm
  • External Spread Min - Max: 20-105mm
  • External Reach Max: 876mm

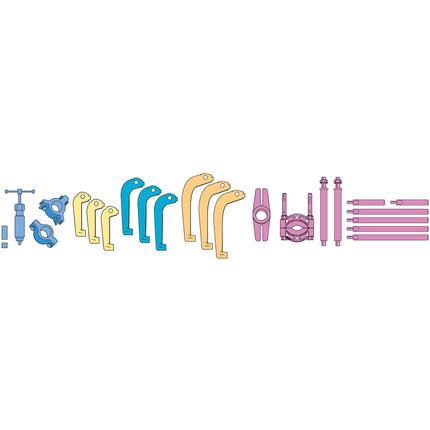

Contents:

  • 1500 Series Hydraulic Ram With Nose Piece
  • 15241200 1 x Twin Head
  • 15341300 1 x Triple Head
  • 15242200 1 x Ram Extension - 50mm
  • 15262400 1 x Ram Extension - 100mm
  • 15242400 3 x Legs - 100mm
  • 15262600 3 x Legs - 150mm
  • 15282800 3 x Legs - 200mm
  • 19311200 1 x Twin Beam
  • 09510000 1 x Separator 20-105mm
  • 09311500 2 x Main Rods
  • 09311900 4 x Extension Rods
  • 09312300 2 x Extension Rods 5 inch
