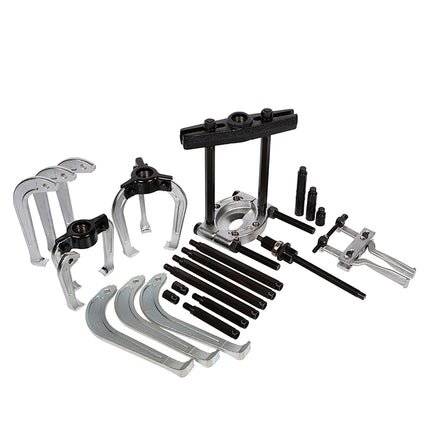

155800V2 - Hydraulic Internal Extractor, Puller & Separator Kit

Description

Hydraulic 1500 series

  • Removes gears, bearings, pulleys and sprockets
  • Wide range of automotive and industrial applications
  • Powered by 1500 series hydraulic ram
  • Safe and easy to use
  • 8 tonnes of force with minimum effort
  • Easy to adjust
  • Non-twisting for improved stability
  • Supplied with nose piece for use on centered shafts
  • Self centering and self locking
  • Redesigned legs, improving strength
  • The separator is a versatile tool where a long reach is required to draw a bearing from a shaft.
  • The tapered edges of the bearing separator provide all round support and can fit behind bearings where normal puller legs cannot gain access.
  • Makes 8 different twin/triple leg pullers, plus heavy duty bearing separator kit and internal extractor kit
  • Supplied in metal case

Dimensions:

  • Puller Spread Min - Max: 50-250mm
  • Puller Reach Max: 250mm
  • External Spread Min - Max: 35-140mm
  • External Reach Max: 863mm
  • Internal Reach Min - Max: 40 - 150mm

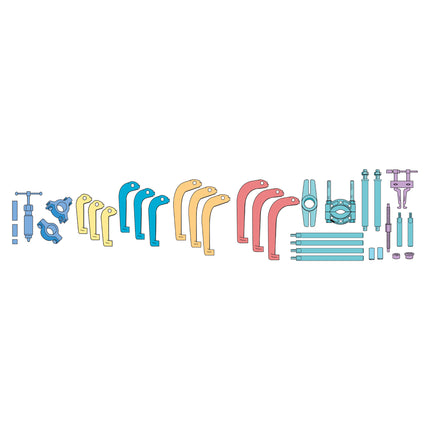

Contents:

  • 1500 Series Hydraulic Ram With Nose Piece
  • 15241200 1 x Twin Head

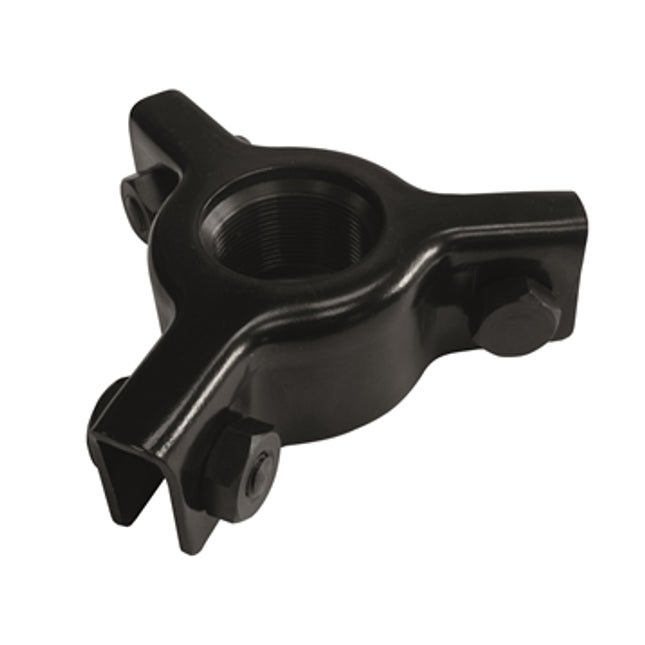

  • 15341300 1 x Triple Head
  • 15242200 1 x Ram Extension - 50mm
  • 15262400 1 x Ram Extension - 100mm
  • 15272600 1 x Ram Extension - 150mm
  • 15242400 3 x Leg - 100mm
  • 15262600 3 x Leg - 150mm
  • 15282800 3 x Leg - 200mm
  • 15292900 3 x Leg - 250mm (Extra Wide)
  • 19321200 1 x Twin Beam
  • 09520000 1 x Separator 35-145mm
  • 09321500 2 x Main Rod
  • 09321900 4 x Extension Rod
  • 09322300 2 x Extension Rod 5 inch
  • 09350000 1 x  Internal Race Extractor
  • 09311100 1 x Forcing Screw C/W Nut
  • 09312100 1 x Thrust Race
  • 09312200 1 x Convertor
  • 09322000 2 x Protector
