18655400 Hydraulic Twin/Triple Leg Puller Kit - Thin Jaw

Description

Hydraulic 1500 series
  • Removes gears, bearings, pulleys and sprockets
  • Wide range of automotive and industrial applications
  • Powered by 1500 series hydraulic ram
  • Safe and easy to use
  • 8 tonnes of force with minimum effort
  • Easy to adjust
  • Non-twisting for improved stability
  • Supplied with nose piece for use on centered shafts
  • Thin jaws enable access where clearance behind components is limited
  • Makes 6 different hydraulic and 4 mechanical thin jaw pullers
  • Supplied in metal case


Dimensions:

  • Puller Spread Min - Max: 10 - 225mm
  • Puller Reach Max: 225mm
  • Ram Extension: 50 / 150mm

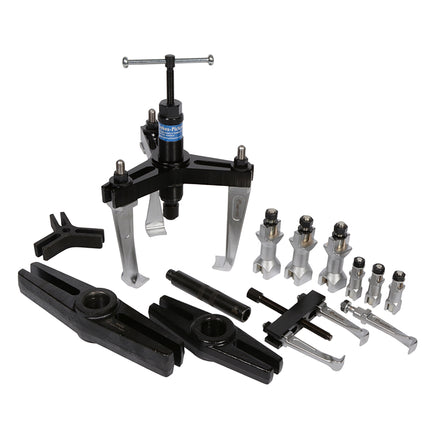

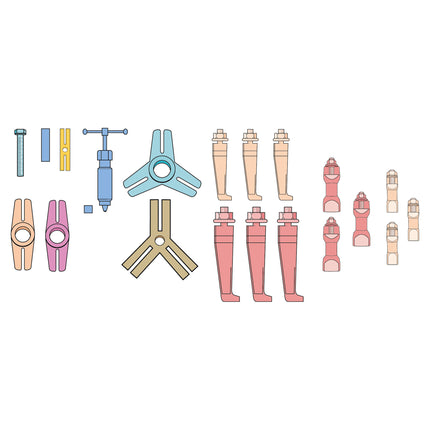

Contents:

  • 15000000 1 x Hydraulic Ram With Nose Piece
  • 15242200 1 x Ram Extension - 50mm
  • 15272600 1 x Ram Extension - 150mm
  • 08601200 1 x Twin Beam
  • 18621200 1 x Twin Beam
  • 08651300 1 x Triple Beam
  • 19311200 1 x Twin Beam
  • 08601400 3 x Legs 75mm - Thin Jaw
  • 08271100 1 x Forcing Screw 12 x 1.75 x 150mm
  • 08611400 3 x Legs 150mm - Thin Jaw
  • 08601300 1 x Triple Beam
  • 08602800 3 x Thin Jaw Extension Set - 48mm
  • 08612800 3 x Thin Jaw Extension Set - 75mm
Product form
