Description

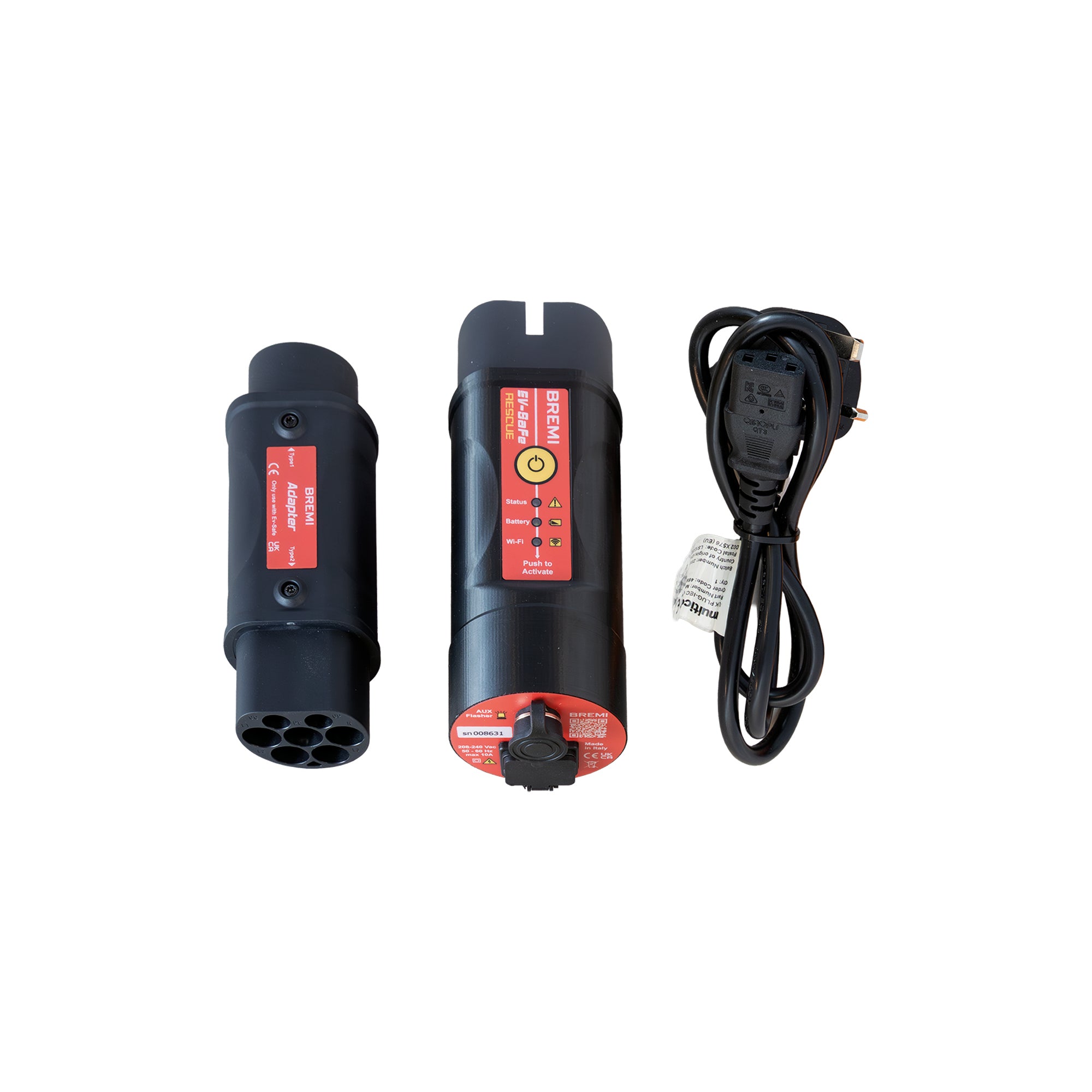

92980000 - EV Safe
EV-SAFE provides real-time battery status verification and four-wheel lockout for electric and hybrid vehicles, helping prevent unintended movement and supporting safer incident response, recovery, transport, and repair operations. Due to the high-voltage components used in EV and hybrid propulsion systems, including batteries, electric motors, and inverter/converter units, these vehicles present unique safety risks that require continuous monitoring and control.
![]()
|
![]() ![]() Vehicle Movement Lockout: Mechanically locks all four wheels to prevent accidental vehicle movement during rescue operations. |
 |
High-Voltage Safety Verification: Performs electrical isolation testing to ensure the safety of the vehicle’s high-voltage system and protect electric and hybrid vehicle control units. |
 |
Clear Visual Safety Indicators: Integrated LED status indicators and roof mounted LED light bank provides instant & clear visual feedback. |
 |
Continuous Temperature Monitoring: Checks charging port and chassis temperatures every 5 seconds to detect overheating or battery instability. |
 |
Ground Discharge System: Optional grounding/discharge cable for additional operational safety. |
![]()
|
Supports slow charging and vehicle maintenance charging via standard 230V AC mains supply. |
 |
Real-Time Wi-Fi Monitoring: Built-in Wi-Fi interface enables live monitoring and status updates through a web-based application. |
 |
Includes internal lithium battery that provides up to 6 hours standard operation or up to 1 hour operation with active Wi-Fi enabled |
Technical Specifications
-
Vehicle Charging: Single Phase AC current max 8A (rated 6A), voltage max 230v AC, freq. 50-60hz with a mandatory ground connection
-
Integrated current leakage (differential sensor and self-diagnostic detection of blocked relay)
-
Wi-Fi interface: 802.11 b/g/n; WPA/WPA2; WEP/TKIP/AES
-
Compatible connector: IEC 62196 type 2 (optional adapter for j1772 type 1), IEC power socket for internal battery charging.
-
Internal battery: Li-ion battery from 600mAh. Estimated
Contents
Suitable for mobile users such as tow truck operators, garages & bodyshops.
Applications
Click the links below to see how EV Safe suits your sector
EV-SAFE delivers real-time EV battery safety verification and vehicle stabilisation for safer incident response, recovery, transport, and repair operations
Optional Extras
- 92980300 - Grounding / Welding Kit
- 92980400 - Wifi Module
