Separator And Extractor Kits

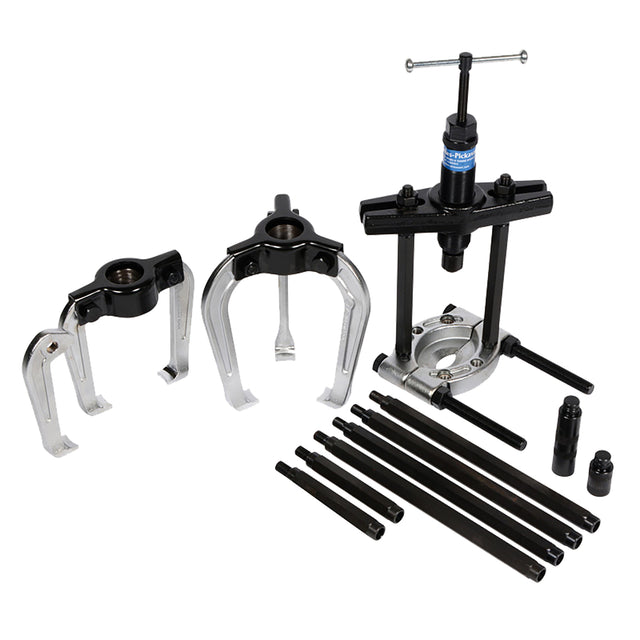

15520000 - Hydraulic Puller & Separator Kit 50-150mm
Hydraulic 1500 series Removes gears, bearings, pulleys and sprockets Wide range of automotive and industrial applications Powered by 1500 series hydraulic ram Safe and easy to use 8 tonnes of force with minimum effort Easy to adjust Non-twisting for improved stability Supplied with nose piece for use on centered shafts Self centering and self locking Redesigned legs, improving strength The separator is a versatile tool where a long reach is required to draw a bearing from a shaft. The tapered edges of the bearing separator provide all round support and can fit behind bearings where normal puller legs cannot gain access. Makes 4 different twin/triple leg pullers, plus bearing separator kit Supplied in metal case Dimensions: Puller Spread Min - Max: 50-150mm Puller Reach Max: 150mm External Spread Min - Max: 20-105mm External Reach Max: 876mm Contents: 1500 Series Hydraulic Ram With Nose Piece 15241200 1 x Twin Head 15341300 1 x Triple Head 15242200 1 x Ram Extension - 50mm 15262400 1 x Ram Extension - 100mm 15242400 3 x Legs - 100mm 15262600 3 x Legs - 150mm 19311200 1 x Twin Beam 09510000 1 x Separator 20-105mm 09311500 2 x Main Rods 09311900 4 x Extension Rods 09312300 2 x Extension Rods 5 inch
15520800 - Hydraulic Puller & Separator Kit
Hydraulic 1500 series Removes gears, bearings, pulleys and sprockets Wide range of automotive and industrial applications Powered by 1500 series hydraulic ram Safe and easy to use 8 tonnes of force with minimum effort Easy to adjust Non-twisting for improved stability Supplied with nose piece for use on centered shafts Self centering and self locking Redesigned legs, improving strength The separator is a versatile tool where a long reach is required to draw a bearing from a shaft. The tapered edges of the bearing separator provide all round support and can fit behind bearings where normal puller legs cannot gain access. Makes 6 different twin/triple leg pullers, plus bearing separator kit Supplied in metal case Dimensions: Puller Spread Min - Max: 50-200mm Puller Reach Max: 200mm External Spread Min - Max: 20-105mm External Reach Max: 876mm Contents: 1500 Series Hydraulic Ram With Nose Piece 15241200 1 x Twin Head 15341300 1 x Triple Head 15242200 1 x Ram Extension - 50mm 15262400 1 x Ram Extension - 100mm 15242400 3 x Legs - 100mm 15262600 3 x Legs - 150mm 15282800 3 x Legs - 200mm 19311200 1 x Twin Beam 09510000 1 x Separator 20-105mm 09311500 2 x Main Rods 09311900 4 x Extension Rods 09312300 2 x Extension Rods 5 inch
155405V2 - Hydraulic Puller & Separator Kit
Hydraulic 1500 series Removes gears, bearings, pulleys and sprockets Wide range of automotive and industrial applications Powered by 1500 series hydraulic ram Safe and easy to use 8 tonnes of force with minimum effort Easy to adjust Non-twisting for improved stability Supplied with nose piece for use on centered shafts Self centering and self locking Redesigned legs, improving strength The separator is a versatile tool where a long reach is required to draw a bearing from a shaft. The tapered edges of the bearing separator provide all round support and can fit behind bearings where normal puller legs cannot gain access. Makes 10 different twin/triple leg pullers, plus bearing separator kit Supplied with metal display panel (1000mm x 457mm) Dimensions: Puller Spread Min - Max: 50-250mm Puller Reach Max: 200mm External Spread Min - Max: 20-105mm External Reach Max: 876mm Contents: 1500 Series Hydraulic Ram With Nose Piece 15241200 1 x Twin Head 15341300 1 x Triple Head 15242200 1 x Ram Extension - 50mm 15262400 1 x Ram Extension - 100mm 15272600 1 x Ram Extension - 150mm 15242400 3 x Legs - 100mm 15262600 3 x Legs - 150mm 15282800 3 x Legs - 200mm 15292900 3 x Legs - 250mm (Extra Wide) 19311200 1 x Twin Beam 09510000 1 x Separator 20-105mm 09311500 2 x Main Rods 09311900 4 x Extension Rods 09312300 2 x Extension Rods 5 inch 15512800 1 x Metal Panel 15542900 1 x Hook Kit
19310000 - Hydraulic Separator Kit
Hydraulic 1500 series Versatile tool where a long reach is required to draw a bearing from a shaft The tapered edges of the bearing separator provide all round support and can fit behind bearings where normal puller legs cannot gain access Supplied in metal case Dimensions: External Spread Min - Max: 20 - 105mm External Reach Max: 876mm Contents: 150000V2 - Hydraulic Ram With Nose Piece 15262400 - Ram Extension - 100mm 19311200 - Twin Beam 09510000 - Separator 20-105mm 09311500 - Main Rods (x2) 09311900 - Extension Rods (x4) 09312300 - Extension Rods 5 inch (x2) Also available: Without hydraulic ram as kit 19310100 (in cardboard box)
19310300 - Hydraulic Thin Jaw Puller & Separator Kit
Combination pack consisting of a medium duty hydraulic thin jaw puller and bearing separator Also available without hydraulic ram as kit 19310400 (in carton) Supplied in cardboard box Dimensions: External Spread Min - Max: 20 - 105mm External Reach Max: 876mm Puller Spread Min - Max: 50 - 150mm Puller Reach Max: 150 Contents: 1500 Series Hydraulic Ram With Nose Piece 15262400 1 x Ram Extension - 100mm 08611400 2 x Legs 150mm - Thin Jaw 19311200 1 x Twin Beam 09510000 1 x Separator 20-105mm 09311500 2 x Main Rods 09311900 4 x Extension Rods 09312300 2 x Extension Rods 5 inch
19310500 - Hydraulic Internal Extractor, Puller & Separator Kits with Slide Hammer, on Panel
Hydraulic 1500 series For removing bearings and gears. where access behind components is too restricted to use standard pullers Drop forged, high quality steel, heat treated for strength and durability Extract components quickly and efficiently when conventional pullers can not be used Slide Hammer with 7 split collet internal extractors Supplied with metal display panel - 610mm x 457mm Dimensions: External Spread Min - Max: 10-105mm Internal Reach Min - Max: 6.5-38mm External Reach Max: 876mm Contents: 150000V2 - Hydraulic Ram With Nose Piece 19311200 - Twin Beam 09500000 - Separator 10-55mm 09510000 - Separator 20-105mm 09311500 - Main Rods (x2) 09311900 - Extension Rods (x4) 09312300 - Extension Rods 5 inch (x2) 08601400 - Legs 75mm - Thin Jaw (x2) 08542100 - Slide Hammer 09580900 - Split Collet Extractor 6.5 - 8mm (No.00) 09581000 - Split Collet Extractor 8.5 - 10mm (No.0) 09581100 - Split Collet Extractor 10 - 12mm (No.1) 09581200 - Split Collet Extractor 12 - 17mm (No.2) 09581300 - Split Collet Extractor 19 - 22mm (No.3) 09581400 - Split Collet Extractor 22 - 30mm (No.4) 09581500 - Split Collet Extractor 30 - 38mm (No.5) 09582000 - Adaptor 09400000 - Pulling Unit 15512800 - Metal Panel 19312670 - Overlay 19312900 - Hook Kit
19320000 - Hydraulic Separator Kit - Heavy Duty
Hydraulic 1500 series Versatile tool where a long reach is required to draw a bearing from a shaft The tapered edges of the bearing separator provide all round support and can fit behind bearings where normal puller legs cannot gain access Supplied in metal case Dimensions: External Spread Min - Max: 35 - 140mm External Reach Max: 863mm Contents: 150000V2 - Hydraulic Ram With Nose Piece 15272600 - Ram Extension - 150mm 19321200 - Twin Beam 09520000 - Separator 35-140mm 09321500 - Main Rod (x2) 09321900 - Extension Rod (x4) 09322300 - Extension Rod 5 inch Also available without hydraulic ram as 19320100 - Hydraulic Separator Kit
08420600 - Mechanical Puller & Separator Kit 350mm
Makes 12 mechanical 2 or 3 leg pullers with 3 separator options Twin / triple head and double ended reversible legs for a wide range of pulling options Supplied in metal case Dimensions: Spread Max: 350mm Reach Max: 380mm External Spread Max: 140mm Contents: 08271100 1 x Forcing Screw 08272300 1 x Twin/Triple Head 08271400 3 x Leg Assembly - Reversible 08281100 1 x Forcing Screw 08282300 1 x Twin/Triple Head 08281400 3 x Leg Assembly - Reversible 08291100 1 x Forcing Screw 08292300 1 x Twin/Triple Head 08291400 3 x Leg Assembly - Standard Adjustable 08331400 3 x Leg Assembly - Standard Adjustable 09500000 1 x Separator 10-55mm 09510000 1 x Separator 20-105mm 09520000 1 x Separator 35-140mm Not suitable for use with air/impact tools.
09300000 - Mechanical External Separator Kit
With tapered edge for insertion behind close fitting bearings, gears etc Drop forged, high quality alloy steel, heat treated for strength and durability Users should ensure that the thread is lubricated before fitting the puller Each kit supplied in metal case Dimensions: External Spread Min - Max: 0 - 55mm External Reach Max: 115mm Basic pulling units excluding the bearing separator can be supplied if required. These include a basic twin beam, screw, thrust nut, thrust race and main rod assembly.Kit No. 09300000 = Pulling Unit No. 09400000Contents: 09301200 1 x Beam 08281100 1 x Screw / Nut Thrust 09301500 2 x Main rods, nuts & washers 09500000 1 x Separator Not suitable for use with air/impact tools.
09305300 - Mechanical Puller & Separator Kit 75mm
Small capacity puller and separator pack Thin jaws enable access where clearance behind component is limited Supplied in cardboard box Dimensions: Spread Max: 75mm Reach Max: 125mm External Spread Max: 55mm Contents: 1 x 08230000 - Mechanical 2/3 Leg 'Gold Standard' Puller 0-70mm 2 x 08601400 - Thin Jaw Leg 75mm 1 x 08281100 - Force Screw 230mm M16 1 x 09301200 - Twin Beam for Mechanical Puller 2 x 09301500 Main Rod for Mechanical Puller 1 x 09500000 - Mechanical Bearing Separator - 10-62mm 2 x 08602800 - Thin Jaw Leg Extension - 48mm Not suitable for use with air/impact tools.
09310000 - Mechanical External Separator Kit
With tapered edge for insertion behind close fitting bearings, gears etc. Drop forged, high quality alloy steel, heat treated for strength and durability Users should ensure that the thread is lubricated before fitting the puller Each kit supplied in metal case Dimensions: External Spread Min - Max: 20 - 105mm External Reach Max: 876mm Basic pulling units excluding the bearing separator can be supplied if required. These include a basic twin beam, screw, thrust nut, thrust race and main rod assembly.Kit No. 09310000 = Pulling Unit No. 09410000Contents: 09311200 1 x Beam 09311100 1 x Screw / Nut Thrust 09312100 1 x Thrust race 09311500 2 x Main rods, nuts & washers 09312300 2 x 5" Extension Rods 09311900 4 x Extension Rods 09510000 1 x Separator Kit can be upgraded for internal pulling by adding 09350000
09580600 - Bearing Extractor Set 57-75mm
A safe and simple pulling solution for larger bearings found on engines, gearboxes and industrial machinery. Specification: Internal spread 57-75 mm Contents 09582100 - 57-75mm Bearing Extractor 09311500 - Main Rod Assembly x 2 09311200 - Twin Beam 205mm 09584300 - Force Screw 09311400 - Thrust Nut 09312100 - Thrust Race 09312000 - Thread Protector -63mm 09584200 - Adaptor Supplied in Metal Tin Also available 09582200 - Bearing Extractor 74-100mm This kit is also compatible with slide hammer 08532000* adaptor required 09582300
09580700 - Bearing Extractor Set 74-100mm
A safe and simple pulling solution for larger bearings found on engines, gearboxes and industrial machinery. Contents: 09582200 - 74-100 mm Bearing Extractor 09311500 - Main Rod Assembly x 2 09311200 - Twin Beam 205mm 09584300 - Force Screw 09311400 - Thrust Nut 09312100 - Thrust Race 09312000 - Thread Protector -63mm 09584200 - Adaptor Supplied in Metal Tin Also available 09582100 - Bearing Extractor 57-75mm This kit is also compatible with slide hammer 08532000* adaptor required 09582300
09580800 - Bearing Extractor Set 57-100mm
A safe and simple pulling solution for larger bearings found on engines, gearboxes and industrial machinery. Contents 09582100 - 57-75 mm Bearing Extractor 09582200 - 74-100 mm Bearing Extractor 09311500 - Main Rod Assembly x 2 09311200 - Twin Beam 205 mm 09584300 - Force Screw 09311400 - Thrust Nut 09312100 - Thrust Race 09312000 - Thread Protector -63mm 09584200 - Adaptor Supplied in Metal Tin This kit is also compatible with slide hammer 08532000* adaptor required 09582300
09800000 - Multipull® Blind Housing Bearing Remover Kit
These special pullers will remove blind housing bearings without the need to dismantle machinery or remove the running shaft. Positive seating allows even tension on inner and outer bearing rings, reducing resistance. Stabilisers reduce sideways movement and self-centre the puller. 3 kits cover a wide range of ISO bearings. (To identify kit for bearings without an ISO reference, refer to puller spread and adaptor diameter). Supplied in blow moulded case with foam. Specifications: Min Spread: 20mm Max Spread: 95mm Adaptor Dia.: 5.5-8mm Puller Reach: 125mm
09810000 - Multipull® Blind Housing Bearing Remover Kit
These special pullers will remove blind housing bearings without the need to dismantle machinery or remove the running shaft.Positive seating allows even tension on inner and outer bearing rings, reducing resistance.Stabilisers reduce sideways movement and self-centre the puller.3 kits cover a wide range of ISO bearings. (To identify kit for bearings without an ISO reference, refer to puller spread and adaptor diameter).Supplied in blow moulded case with foam.Min Spread: 20mmMax Spread: 117mmAdaptor Dia.: 5.5-12.5mmPuller Reach: 415mm
09820000 - Multipull® Blind Housing Bearing Remover Kit
These special pullers will remove blind housing bearings without the need to dismantle machinery or remove the running shaft.Positive seating allows even tension on inner and outer bearing rings, reducing resistance.Stabilisers reduce sideways movement and self-centre the puller.3 kits cover a wide range of ISO bearings. (To identify kit for bearings without an ISO reference, refer to puller spread and adaptor diameter).Supplied in blow moulded case with foam.Min Spread: 56mmMax Spread: 210mmAdaptor Dia.: 16-31.75mmPuller Reach: 490mm
09580900 - Split Collet Extractor 6.5 - 8mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 6.5 - 8 mm No.00 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) ** ** Additional part 09582000 (converter from M8 to 1/2” UNF) must be attached for use with slide hammer Found in kits: 09580000 - Internal Split Collets Extractor Kit 09580100 - Slide Hammer & Split Collet Extractor Kit 19310500 - Hydraulic Internal Extractor, Puller & Separator Kit
09581000 - Split Collet Extractor 8.5 - 10mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 8.5 - 10 mm No.0 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) ** ** Additional part 09582000 (convertor from M8 to 1/2” UNF) must be attached for use with slide hammer Found in kits: 09580000 - Internal Split Collets Extractor Kit 09580100 - Slide Hammer & Split Collet Extractor Kit 09580400 - Slide Hammer & Split Collet Extractor Kit 19310500 - Hydraulic Internal Extractor, Puller & Separator Kit
09581100 - Split Collet Extractor 10 - 12mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 10-12mm No.1 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) ** ** Additional part 09582000 (convertor from M8 to 1/2” UNF) must be attached for use with slide hammer Found in kits: 09580100 - Slide Hammer & Split Collet Extractor Kit 09580400 - Slide Hammer & Split Collet Extractor Kit 19310500 - Hydraulic Internal Extractor, Puller & Separator Kit 08540400 - Slide Hammer Combi Puller & Extractor Kit
09581200 - Split Collet Extractor 12 - 17mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 12 - 17 mm No.2 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) ** ** Additional part 09582000 (convertor from M8 to 1/2” UNF) must be attached for use with slide hammer Found in kits: 09580000 - Internal Split Collets Extractor Kit 09580200 - Slide Hammer & Split Collet Extractor Kit 09580400 - Slide Hammer & Split Collet Extractor Kit 19310500 - Hydraulic Internal Extractor, Puller & Separator Kit 08540400 - Slide Hammer Combi Puller & Extractor Kit
09581300 - Split Collet Extractor 19 - 22mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 19-22mm No.3 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads ** 08542100 - Slide Hammer Assembly - (1kg) ** ** Additional part 09582000 (converter from M8 to 1/2” UNF) must be attached for use with slide hammer Found in kits: 09580000 - Internal Split Collets Extractor Kit 09580200 - Slide Hammer & Split Collet Extractor Kit 09580400 - Slide Hammer & Split Collet Extractor Kit 19310500 - Hydraulic Internal Extractor, Puller & Separator Kit 08540400 - Slide Hammer Combi Puller & Extractor Kit
09581400 - Split Collet Extractor 22 - 30mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 22-30 mm No.4 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads 08542100 - Slide Hammer Assembly - (1kg) Found in kits: 09580000 - Internal Split Collets Extractor Kit 09580200 - Slide Hammer & Split Collet Extractor Kit 19310500 - Hydraulic Internal Extractor, Puller & Separator Kit 08540400 - Slide Hammer Combi Puller & Extractor Kit
09581500 - Split Collet Extractor 30 - 38mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 30-38mm No.5 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads 08542100 - Slide Hammer Assembly - (1kg) Found in kits: 09580000 - Internal Split Collets Extractor Kit 09580300 - Slide Hammer & Split Collet Extractor Kit 19310500 - Hydraulic Internal Extractor, Puller & Separator Kit
09581600 - Split Collet Extractor 38-50mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 38-50mm No.6 - stamped on extractor Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads 08542100 - Slide Hammer Assembly - (1kg) Found in kits: 09580000 - Internal Split Collets Extractor Kit 09580300 - Slide Hammer & Split Collet Extractor Kit
09581700 - Split Collet Extractor 50-60mm
The split collet is pushed into the centre of the bearing and then expanded via the hex nut on the end of the collet until a secure grip is achieved. The slide hammer is then attached providing the necessary extracting force. Specifications: Internal Spread Min - Max: 50-60mm No.7 - stamped on extractor (Previous models were No.9) Compatible with: 08532000 - Slide Hammer (2Kg) Double Ended Threads 08542100 - Slide Hammer Assembly - (1kg) Found in kits: 09580000 - Internal Split Collets Extractor Kit 09580300 - Slide Hammer & Split Collet Extractor Kit
09585600 - Slide Hammer Bearing Extractor Set 57-75mm
Bearing Extractor Set 57-75mm A safe and simple pulling solution for larger bearings found on engines, gearboxes and industrial machinery. Includes: 09582100 - 57-75mm Bearing Extractor 08532000 - 2 Kg Slide Hammer 74-100mm Extractor also available 09582200
09585700 - Slide Hammer Bearing Extractor Set 74-100mm
Bearing Extractor Set 74-100mm A safe and simple pulling solution for larger bearings found on engines, gearboxes and industrial machinery. Includes 09582200 - 74 - 100mm Bearing Extractor 08532000 - 2 Kg Slide Hammer 57 - 75mm extractor also available 09582100
09585800 - Slide Hammer Bearing Extractor Set 57-100mm
Bearing Extractor Set 57-100mm A safe and simple pulling solution for larger bearings found on engines, gearboxes and industrial machinery. Includes: 09582100 - 57-75mm Bearing Extractor 09582200 - 74 - 100mm Bearing Extractor 08532000 - 2 Kg Slide Hammer
